Looking for Zt30 Sensor? SIYI ZT30 Optical Pod Four Sensors 4K 8MP 180X Hybrid 30X Optical Zoom Gimbal Camera is available at Zbotic with fast shipping across India.

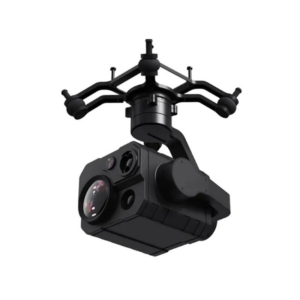

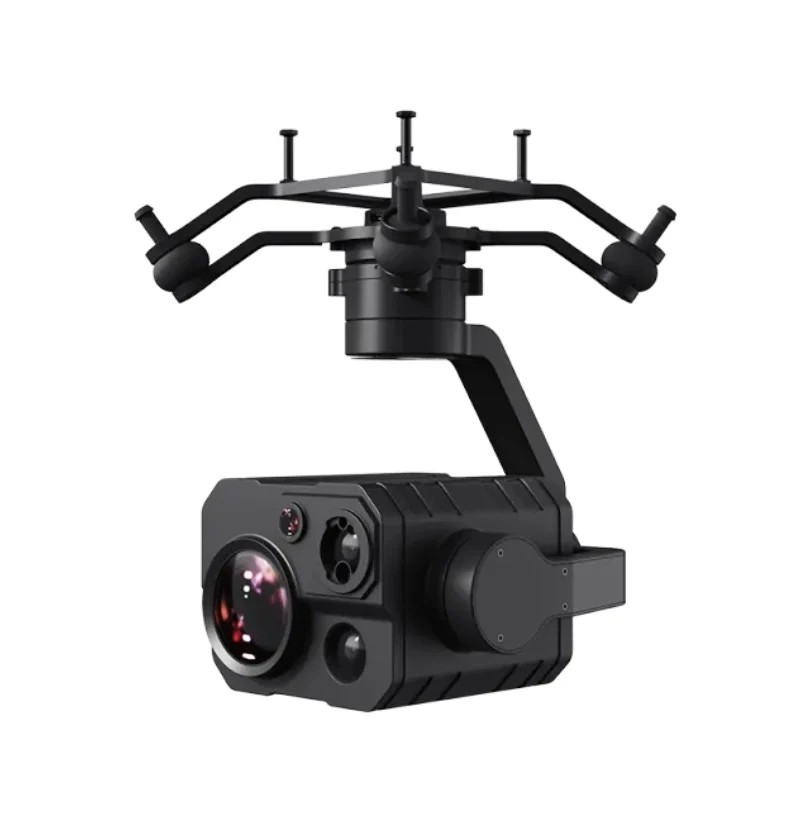

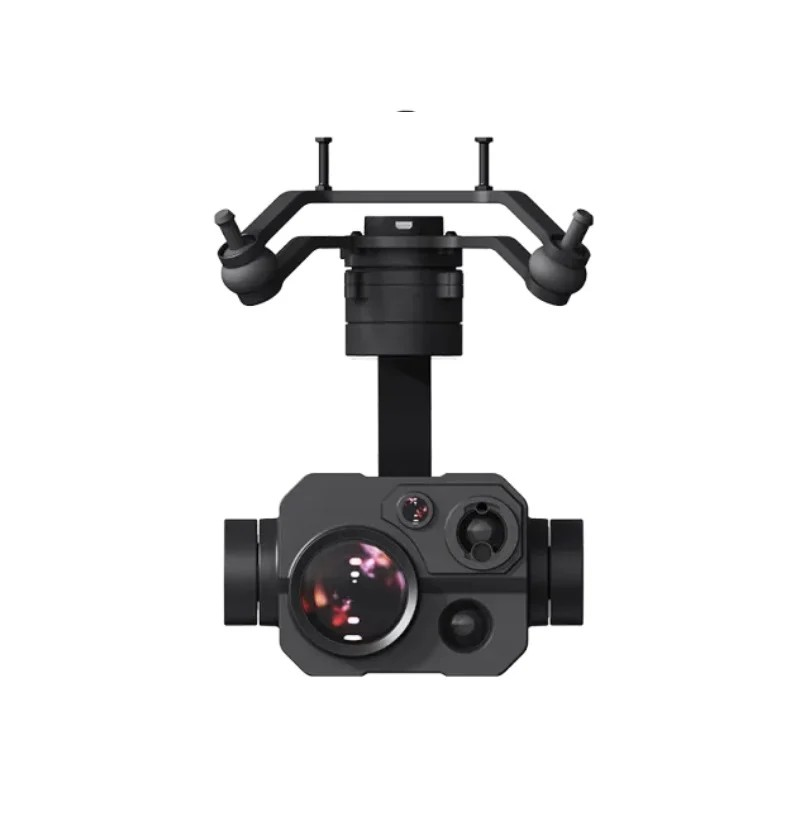

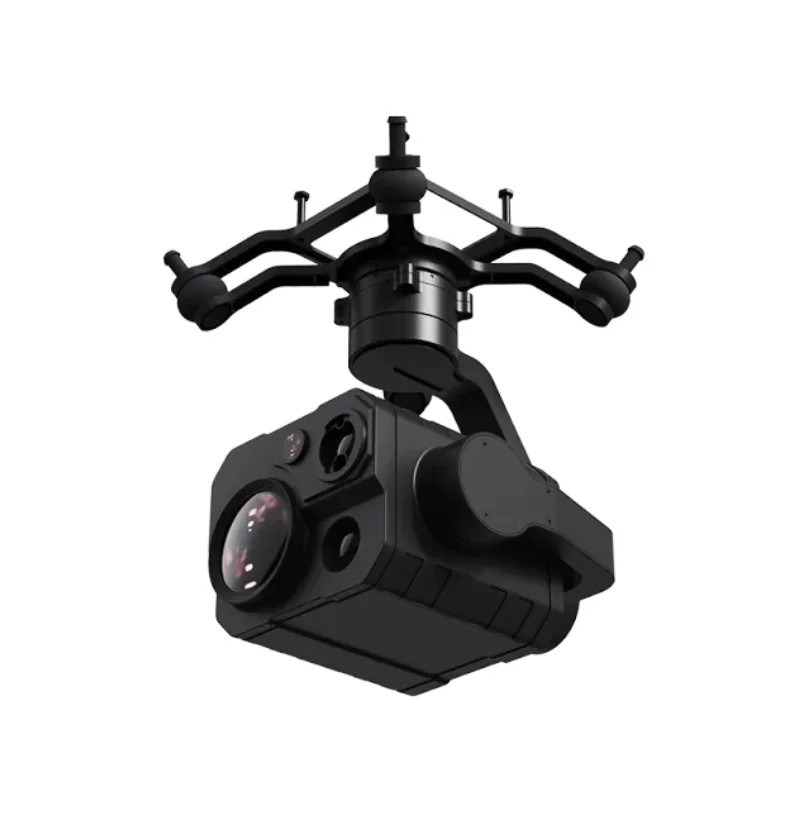

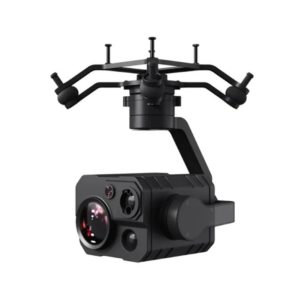

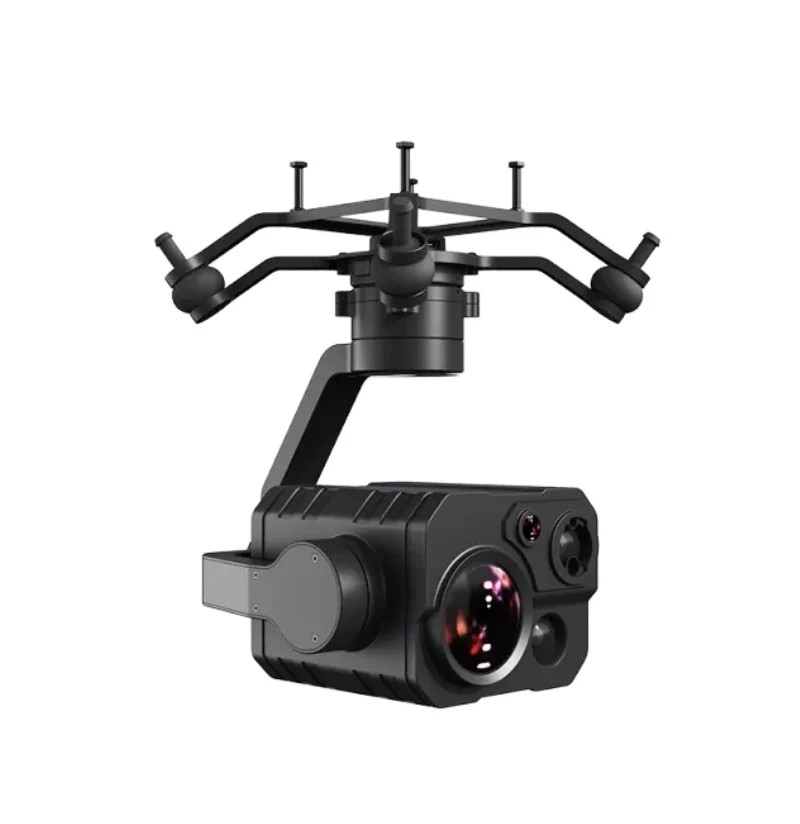

SIYI ZT30 Optical Pod Four Sensors 4K 8MP 180X Hybrid 30X Optical Zoom Gimbal Camera
The SIYI ZT30 Optical Pod featuring Four Sensors stands as a pinnacle of versatility and advancement in aerial camera systems. Equipped with four high-resolution optical sensors, it excels in capturing intricate imagery and data from aerial perspectives. Tailored for a myriad of applications such as aerial photography, mapping, and surveillance, its compact yet durable build guarantees unwavering performance even in demanding conditions. By seamlessly integrating with drones, the SIYI ZT30 elevates the standards of professionalism across various industries, cementing its status as an indispensable tool for professionals seeking unparalleled aerial capabilities.

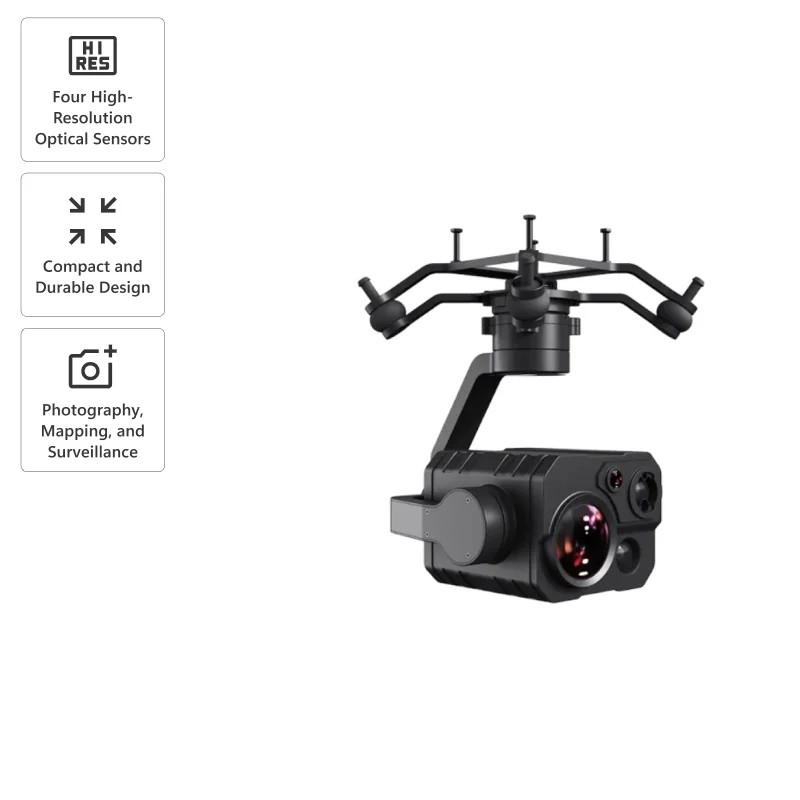

Features:
- Four High-Resolution Optical Sensors
- Versatile Aerial Camera System
- Ideal for Photography, Mapping, and Surveillance
- Compact and Durable Design
- Enhances Drone Capabilities
- Suitable for Various Professional Applications
Infrared Zoom
The thermal camera supports 2x digital zoom and accurately controls more picture details.
Synchronized Zoom
Thermal imaging cameras and zoom cameras can zoom in and out synchronously in the same perspective. The operator can quickly obtain valuable information by comparing the details of the picture.
Video Split-Screen
ZT30 can split screen for video streams from any two sensors freely and the third sensor can be streamed in the floating window simultaneously.
Starlight Night Vision
The ultra-sensitive starlight CMOS keeps images bright in low-light environments.
Point To Focus
Point anywhere to focus the lens from the zoom camera to get a clear view of selected part of the screen.
Focus Tracking
Zoom camera stays focused and keeps filming smooth videos while users are scaling images.
HDR
HDR (High Dynamic Range) precisely captures good details of highlights and shadows in dynamic scenes to get true colors and natural brightness.
ZT30 Quick Release Anti-Vibration Claw
Weight: 104 g
Controllable Pitch Angle: -90° to +25°
Controllable Yaw Angle: Limitless
Roll Angle: -45° to +45°
Image Sensor: 1/2.7 Inch, 8 MP effective resoultion
– 4K (4096 x 2160) @ 30 fps
– 2K (2560 x 1440) @ 30 fps
– 1080p (1920 x 1080) @ 30 fps
– 720p (1280 x 720) @ 30 fps
Still Photo Resolution: 4K (4096 x 2160)
Digital Zoom: 2X
Lens
– Focal Length: 19 mm
– Fixed Focus
– Athermalization
Temperature Measuring Range
– High Gain: -20 ~ +150℃
– Low Gain: 0 ~ +550℃
Temperature Measuring Accuracy
– ±2℃ (-20 ~ +150℃)
– ±3℃ (0 ~ +550℃)
Temperature Measuring Mode
– Point to Measurement
– Full-Screen Measurement
Image Sensor: 1/2.8 Inch, 4 MP effective resoultion
Equivalent Focal Length: 21 mm
FOV: Horizontal 88°
Still Photo Resolution: 2K (2560 x 1440)
Range Finder
Range: 5 ~ 1200 m
Wavelength Range: 900 ~ 908 nm
Resolution: 0.1 m
Ranging Accuracy:
– ±1 m (3 ~ 100 m)
– ±1 + L*0.25% m, L=Length (100 ~ 600 m)
Laser Pulse Frequency: 3 Hz
Max Laser Power: 5 mW
General Camera Specs
Video Storage Bitrate: 15 Mbps (H.265 codec)
File Storage Format: FAT32
Video Format: MP4
Supported MicroSD Cards: MicroSD Class10, Max 128GB

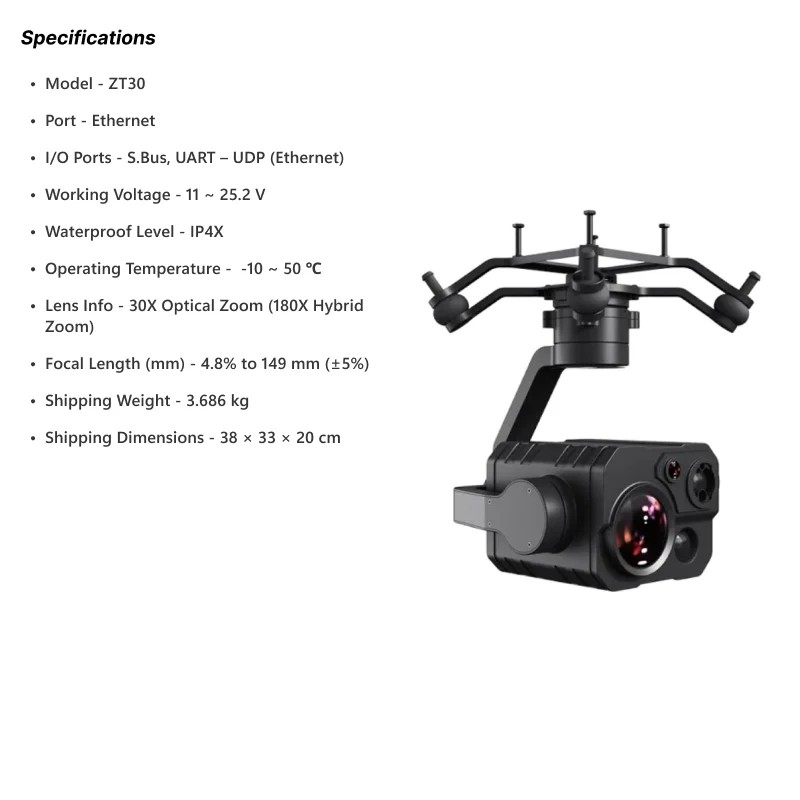

| Model | ZT30 |
|---|---|
| Port | Ethernet |
| I/O Ports | S.Bus, UART – UDP (Ethernet) |
| Working Voltage | 11 ~ 25.2 V |
| Waterproof Level | IP4X |
| Operating Temperature (°C) | -10 ~ 50 ℃ |
| Lens Info | 30X Optical Zoom (180X Hybrid Zoom) |
| Focal Length (mm) | 4.8% to 149 mm (±5%) |
Package Includes:
1 x SIYI ZT30 Optical Pod Four Sensors 4K 8MP 180X Hybrid 30X Optical Zoom
Gimbal Camera
Gimbal Accessories
SIYI ZT30 Optical Pod Four Sensors 4K 8MP 180X Hybrid 30X Overview
The SIYI ZT30 Optical Pod Four Sensors combines a 30× optical zoom lens with four high-resolution sensors to deliver 4K video and 8MP stills. Designed for integration on UAVs and inspection drones, it supports detailed aerial imaging, mapping and surveillance in demanding environments.
Key Features of SIYI ZT30 Optical Pod Four Sensors 4K 8MP 180X Hybrid 30X
- 30× Optical Zoom with 180× Hybrid Zoom and focal length from 4.8 mm to 149 mm (±5%)
- 4K resolution video capture and 8 MP still imaging across four sensors
- Ethernet port with S.Bus and UART–UDP connectivity for data and control
- Wide input voltage range (11 V to 25.2 V) compatible with common drone power systems
- IP4X splash resistance and operating temperature from –10 °C to 50 °C
- Durable gimbal housing for stable footage in flight and fast shipping from Zbotic
Applications and Use Cases
- Aerial surveillance for security and law enforcement missions
- High-resolution mapping and photogrammetry surveys
- Industrial inspection of infrastructure, pipelines and power lines
- Search and rescue operations with long-range zoom capability
- Agricultural crop monitoring and health assessment
- Wildlife observation and environmental research
How to Use SIYI ZT30 Optical Pod Four Sensors 4K 8MP 180X Hybrid 30X
Mount the ZT30 pod onto a compatible drone gimbal, connect power (11–25.2 V) and data lines via Ethernet, S.Bus or UART–UDP, then integrate with your flight controller. Calibrate the gimbal in your ground control software, adjust zoom and sensor settings in the camera interface, and perform a test hover to verify stable imaging before your mission.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What is the maximum zoom capability of the ZT30 pod?
The ZT30 offers 30× optical zoom and up to 180× hybrid zoom, allowing precise long-range target identification.
Which ports and communication interfaces does the ZT30 support?
It features an Ethernet port for video/data and supports S.Bus and UART–UDP control protocols for seamless integration.
What are the operating temperature range and waterproof rating?
The camera pod operates between –10 °C and 50 °C and carries an IP4X rating for splash resistance in varied conditions.
