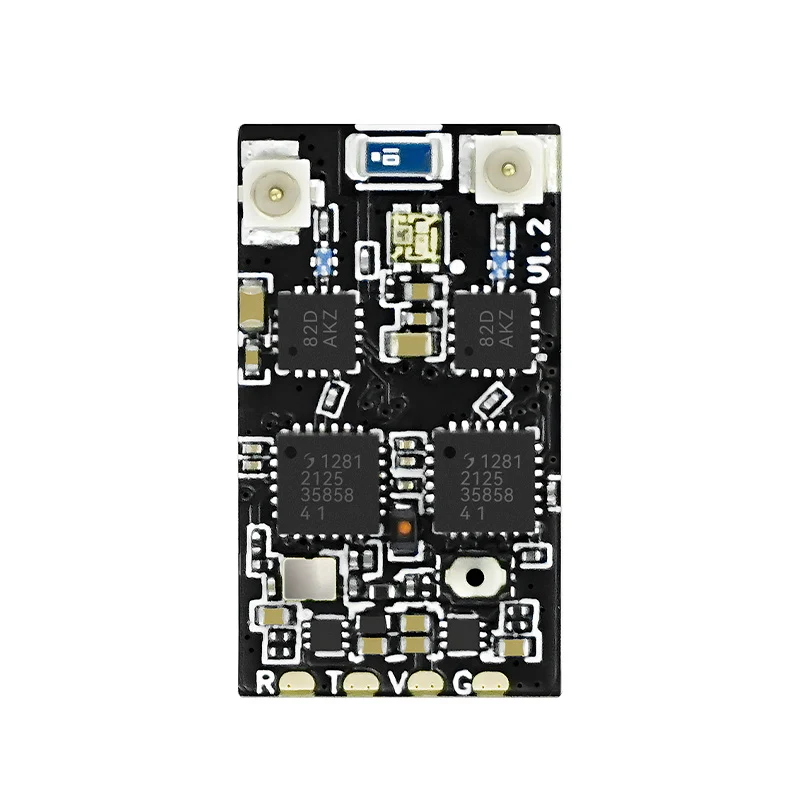

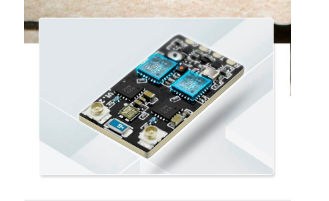

SEQURE ELRS 2.4GHz Dual RX True Diversity Receiver with Dual Antennas
Description:

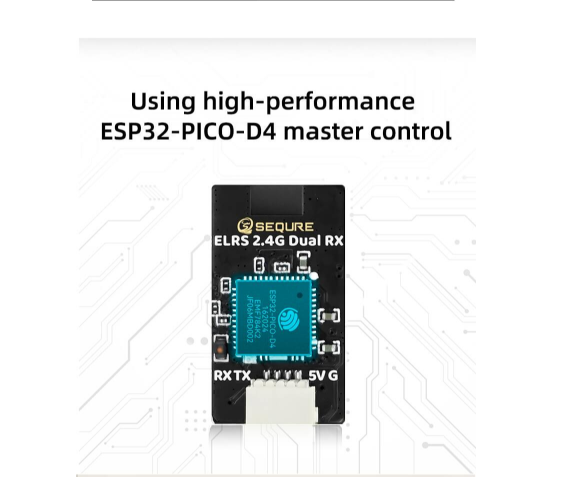

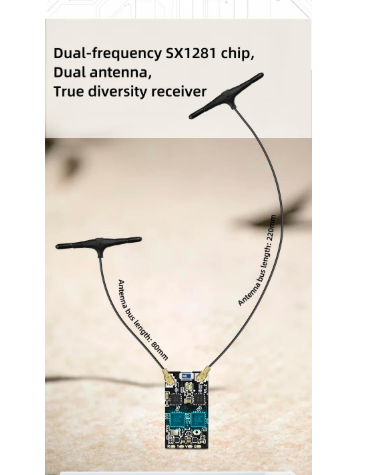

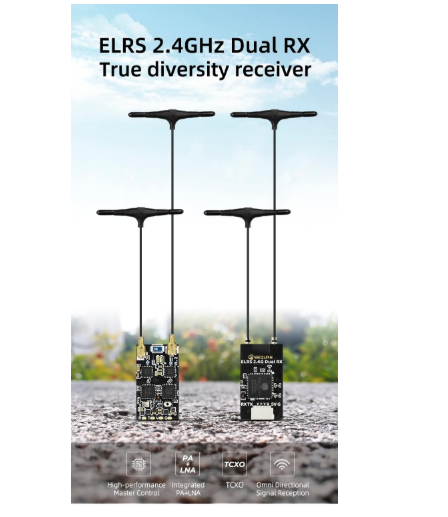

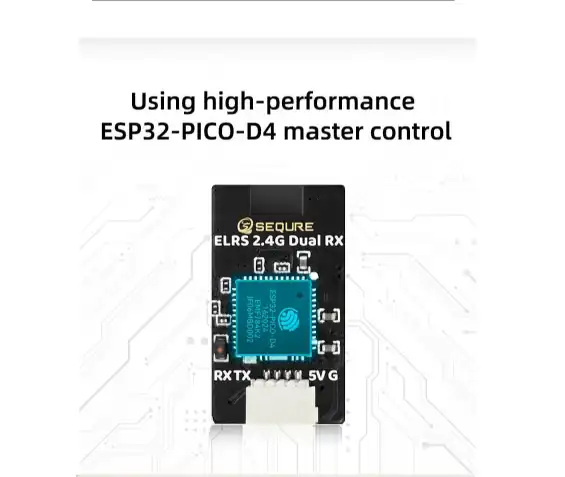

High-performance ESP32-PICO-D4 master control, dual-frequency SX1281 chip, true diversity dual antenna receiver.

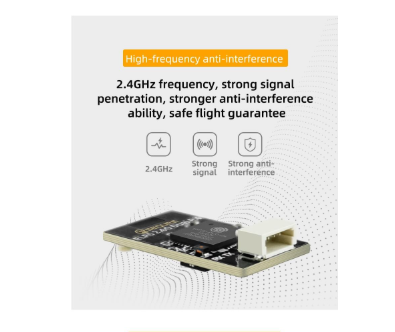

(2) High-frequency anti-interference, 2.4GHz frequency, strong signal penetration.

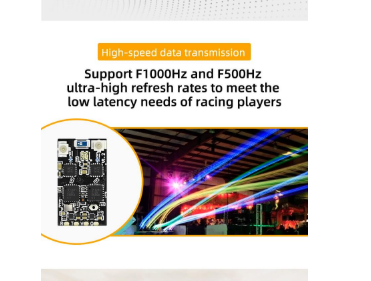

(3) High-speed data transmission, support F1000Hz and F500Hz ultra-high refresh rates, meet the low latency requirements of racing players.
(4) Onboard temperature-compensated crystal oscillator (TCXO), refuses ambient temperature to affect flight, maintains stable operation in high or cold environments, making flight safer.

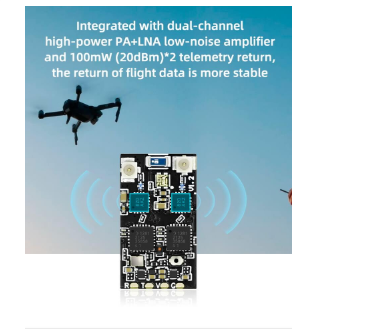

(5) Integrated with dual-channel high-power PA+LNA low-noise amplifier and 100mW (20dBm)*2 telemetry return, the return of flight data is more stable.
(6) Onboard RGB color indicator, quickly identify different working status.

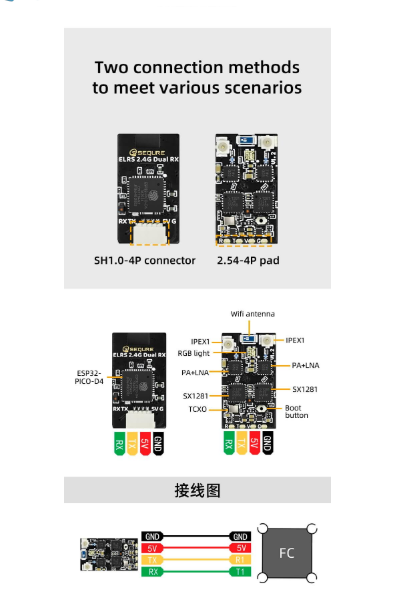

(7) Support SH1.0-4P socket and 2.54-4P pad, two connection methods to meet various scenarios.

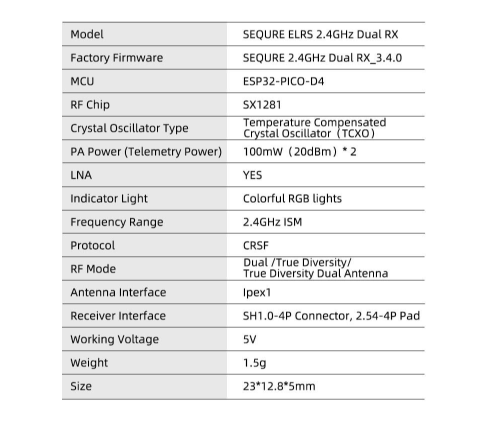

Specification:
| Model | SEQURE ELRS 2.4GHz Dual RX |
| Factory Firmware | SEQURE 2.4GHz Dual RX_3.4.0 |

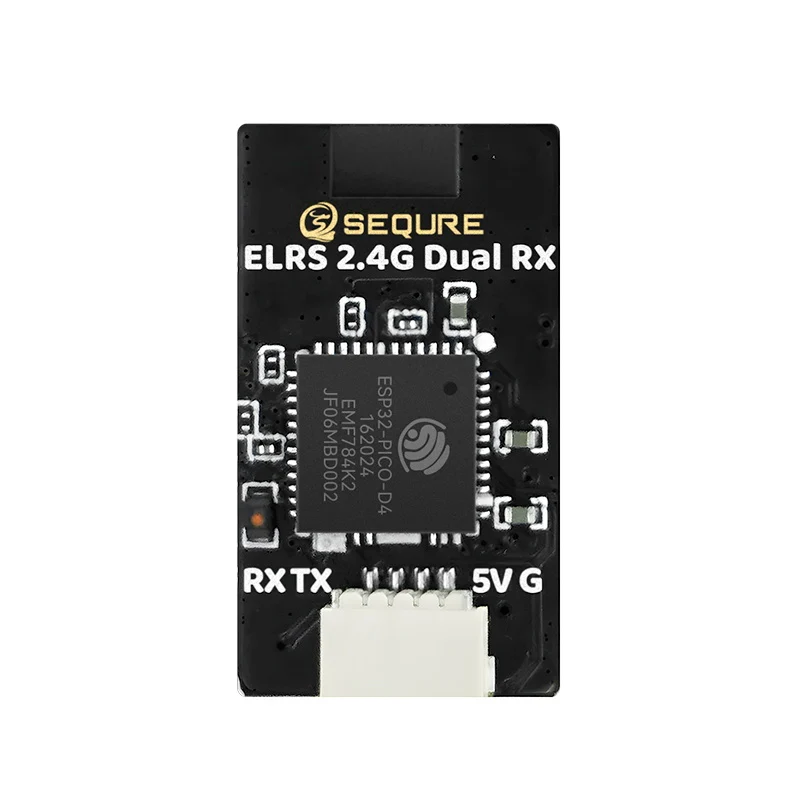

| MCU | ESP32-PICO-D4 |
| RF Chip | SX1281 |
| Crystal Oscillator Type | Temperature Compensated Crystal Oscillator（TCXO） |
| PA Power (Telemetry Power) | 100mW（20dBm）* 2 |
| LNA | YES |
| Indicator Light | Colorful RGB Light |
| Frequency Band | 2.4GHz ISM |
| Protocol | CRSF |

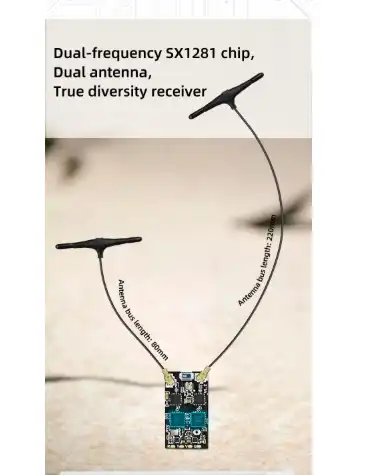

| RF Mode | Dual /True Diversity/True diversity dual antenna |
| Antenna Interface | Ipex1 |
| Receiver Interface | SH1.0-4P connector, 2.54-4P pad |
| Working voltage | 5V |

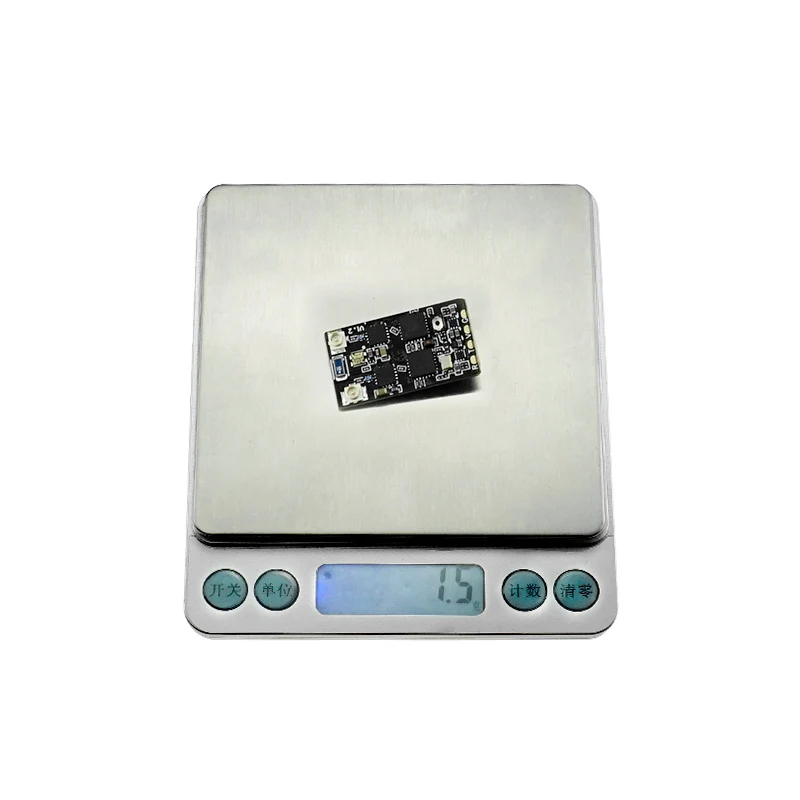

| Weight | 1.5g |

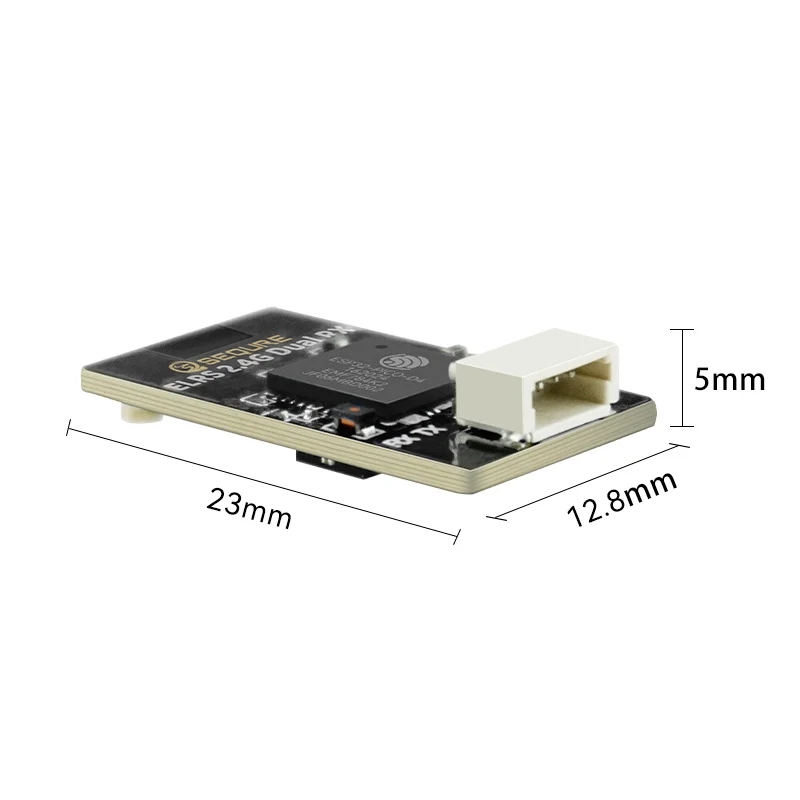

| Size | 23*12.8*5mm |

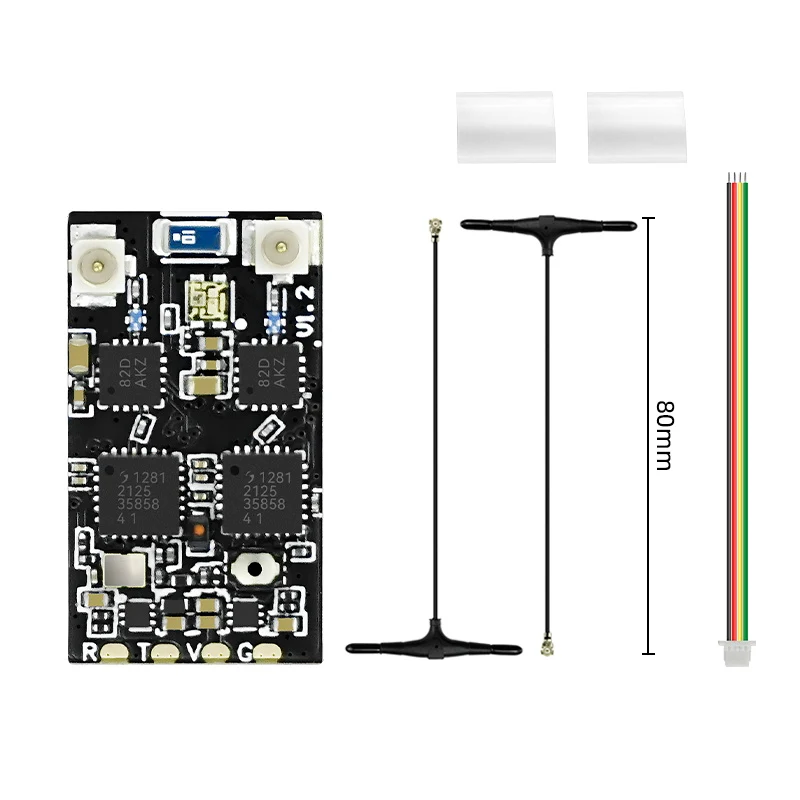

Package Included:
1x SEQURE ELRS 2.4GHz Dual RX
2x 2.4G antenna
1x 30AWG 100mm single-end SH1.0-4P cable
2x 12*30mm heat shrink tube
