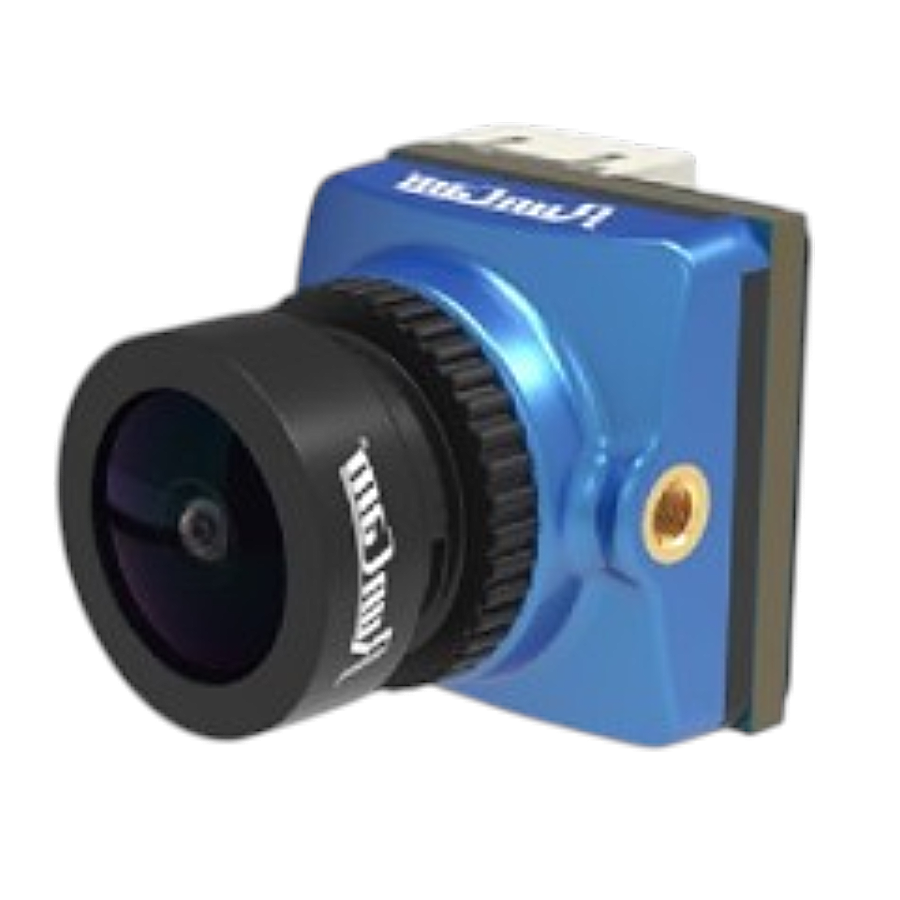

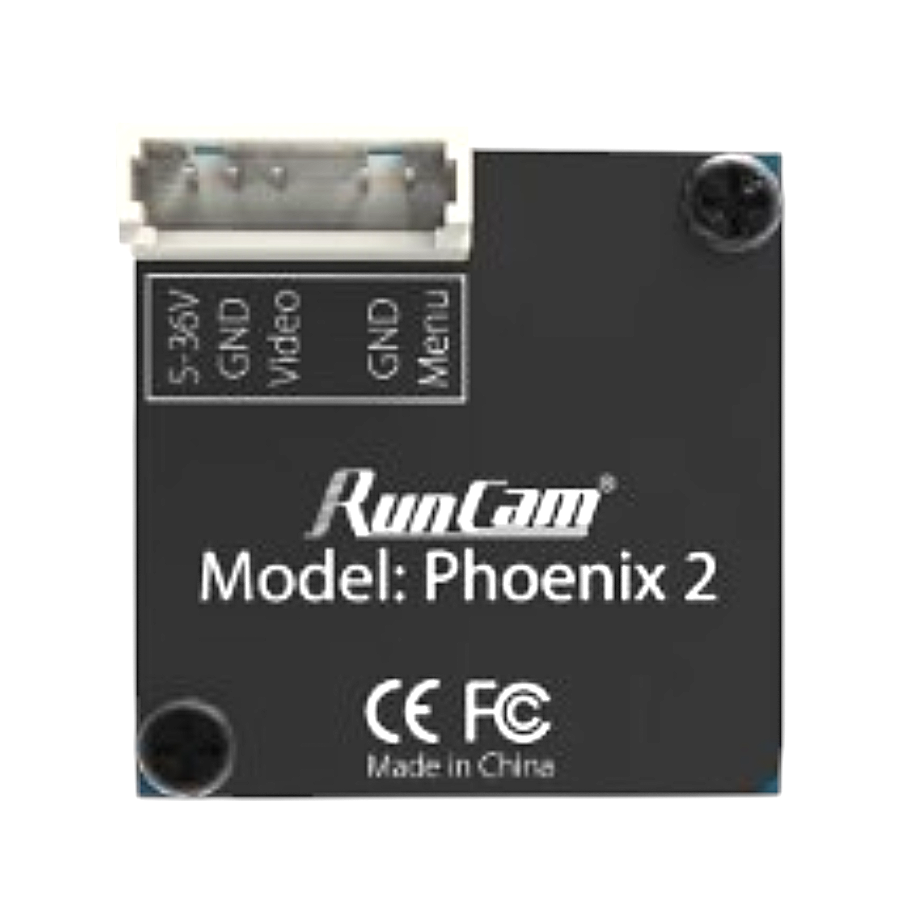

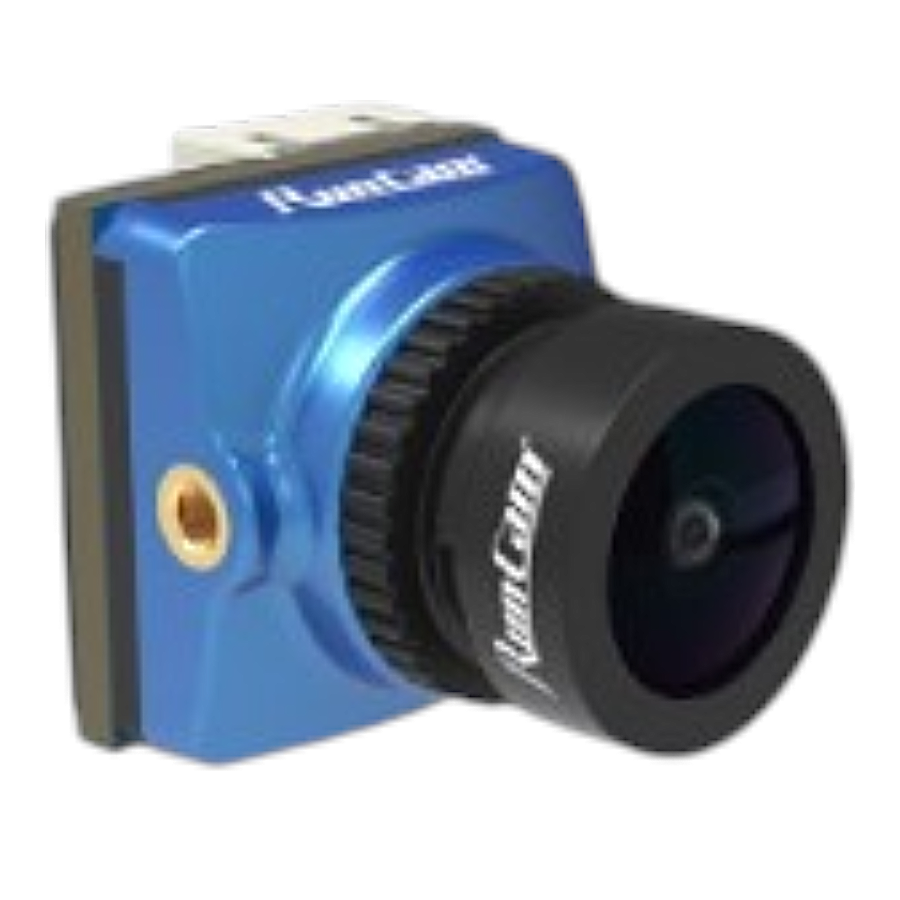

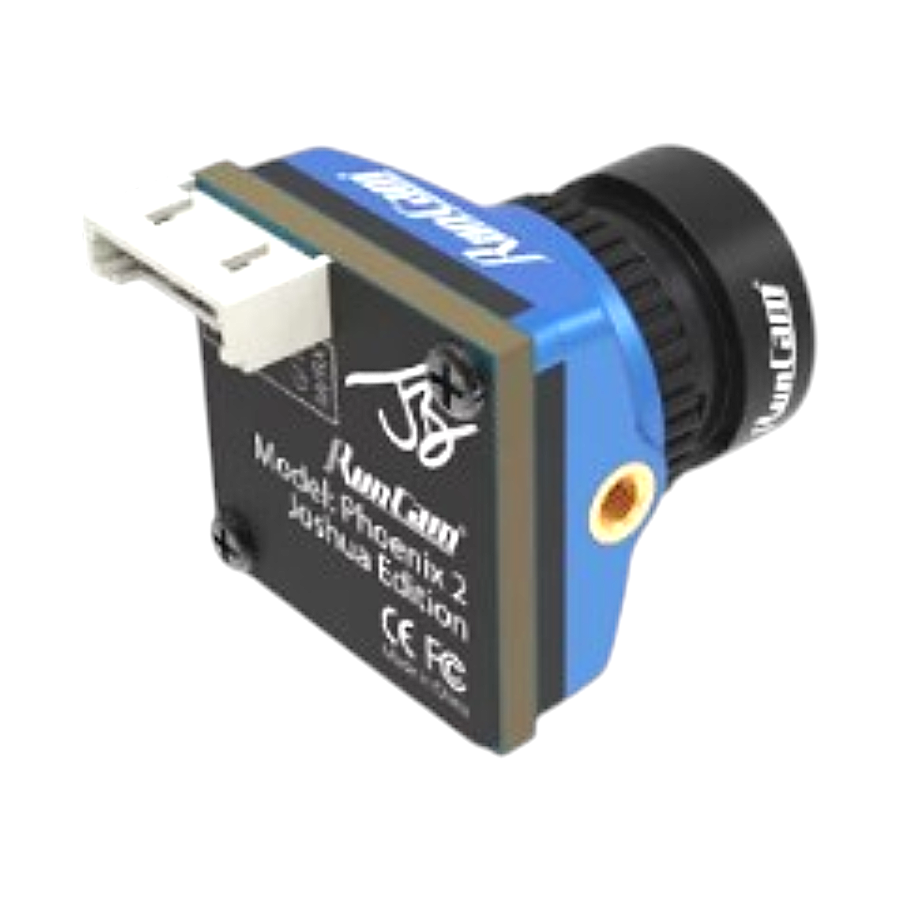

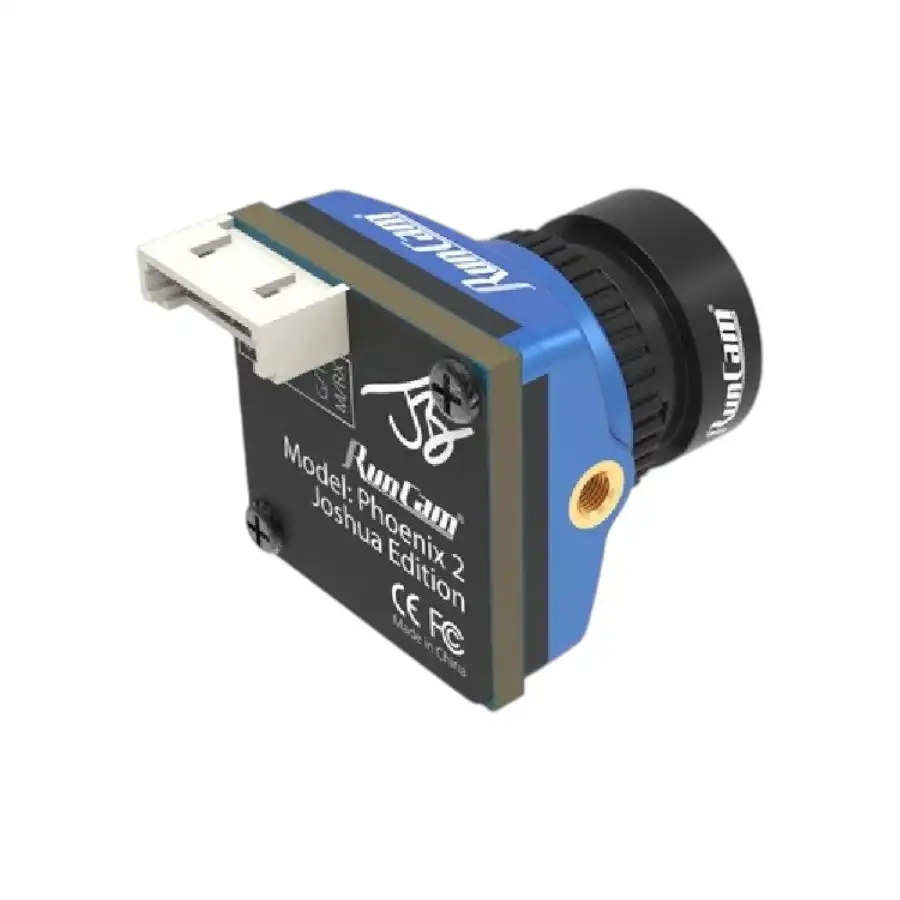

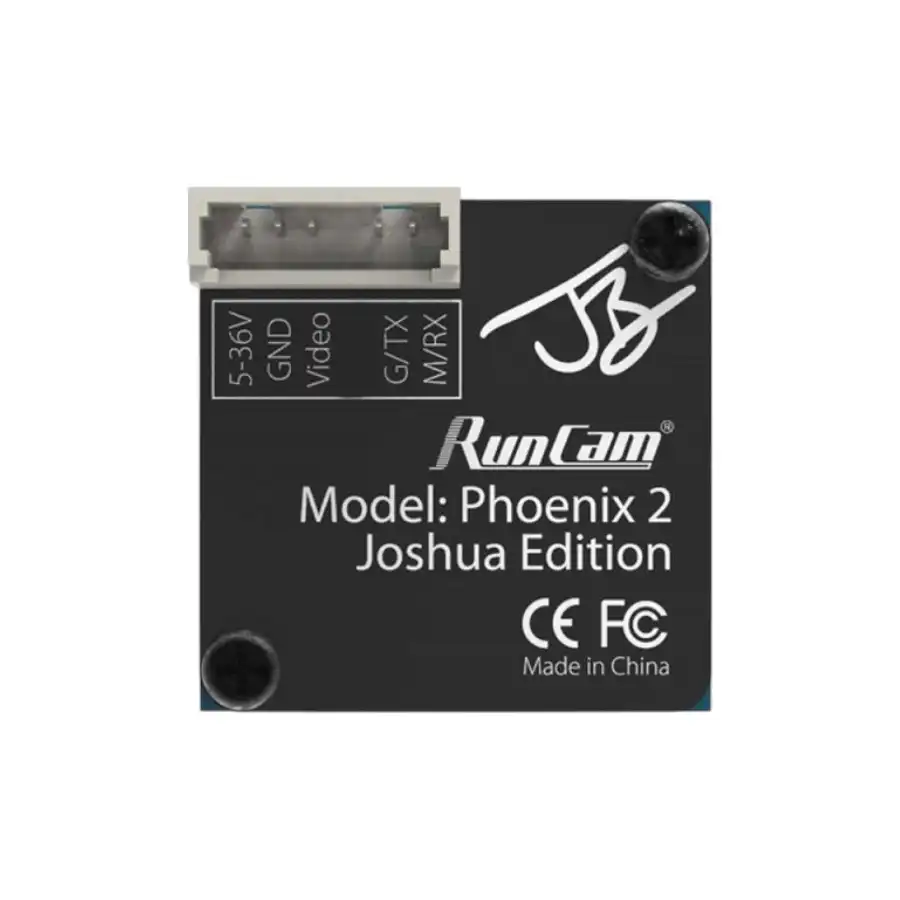

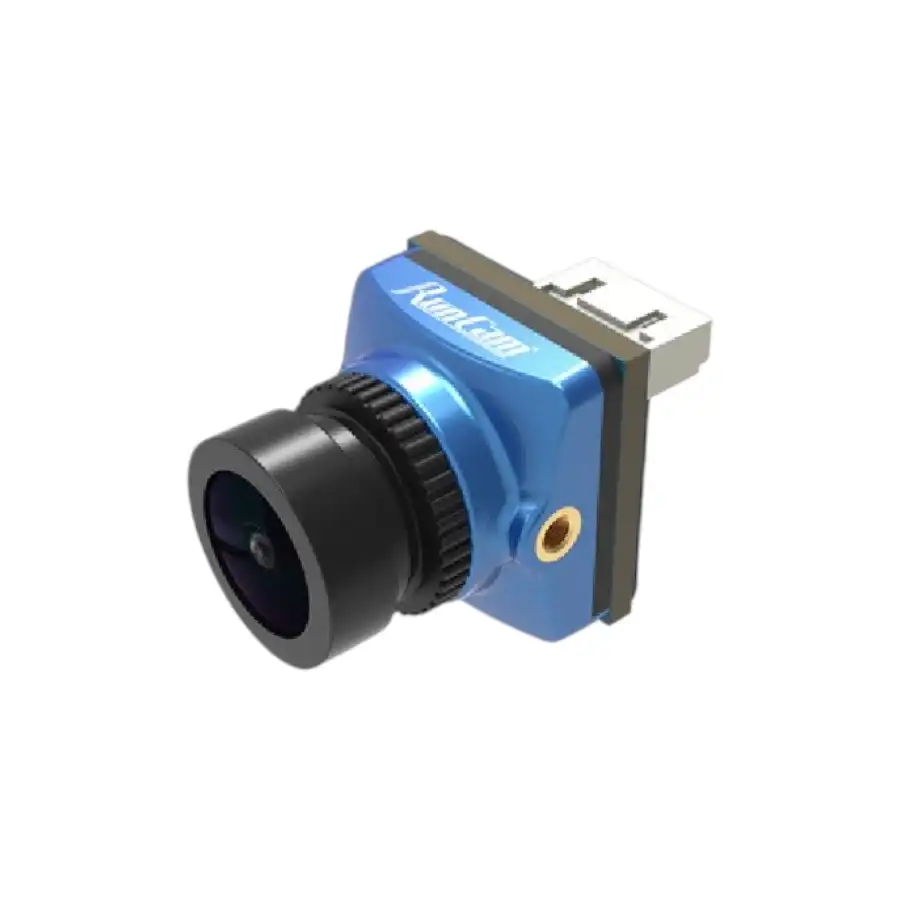

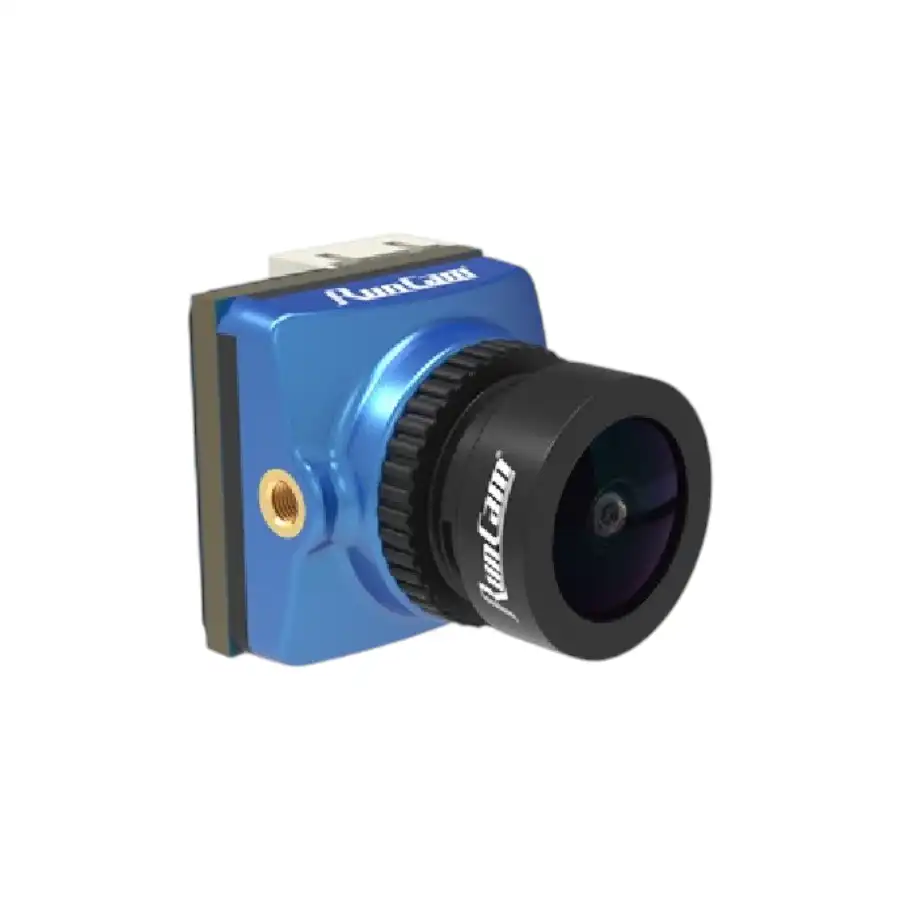

RunCam Phoenix 2 Micro FPV Camera for Quadcopters
Description:
The RunCam Phoenix 2 Micro FPV Camera for Quadcopters is both a great daylight and low light FPV camera, equipped with an improve 1/2″ image sensor and high quality M12 lens. The Phoenix features a high 1000 TVL picture with a 4:3 or 16:9 aspect ratio option, WDR CMOS, and fast image processing. This micro FPV camera comes in a custom white camera shell for not only a cool look – but also a great way to keep your camera cool from absorbing too much heat. This is one of the best micro FPV cameras on the market with top of the line peformance at a competitive price. Note : Camera color may be different.
Features:
- New upgraded CPU for better performance
- High quality 6 layer glass lens for better picture
- Supports Image Mirror & Flip
- Low latency, high performance
- Excellent low light performance
Specification:
| Item Type: | FPV Camera |
| Resolution (TVL): | 1000 |
| Min. Illumination | [email protected] |
| Operating Voltage (VDC): | 5 to 36 |
| Max. Operating Current (mA) | 220mA@5V ; 120mA@12V |
| Electronic Shutter Speed | Auto |
| Lense Viewing Angle (FOV) | 2.1mm (M12) FOV155° (4:3) |
| Horizontal Resolution (TVL) | 1000 |
| Screen Format | 4:3 / 16:9 Switchable |
| Max Gain | Auto |
| S/N Ratio (dB) | >50dB (AGC OFF) |
| Signal System | NTSC / PAL Switchable |
| Housing Material | ABS |
Datasheet:
Package Includes:
- 1 x RunCam Phoenix 2 FPV Camera
- 1 x 6pin FPV Silicone Cable
- 1 x Screw Set
Technical Specifications
| Brand | RunCam |
|---|---|
| Package Quantity | 2 pcs |
| SKU | AI8244 |
| Weight | 0.03 kg |
| Availability | Out of Stock |
Applications & Use Cases
The RunCam Phoenix 2 Micro FPV Camera for Quadcopters is a versatile fpv cameras used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
