Discription:
After a long wait of almost 7 years, the Raspberry Pi released the camera-3 series, the successor to the Camera module 2 series. This newest addition of Raspberry Pi Camera Module 3 NoIR to the Raspberry Pi mainstream camera lineup replaces the wildly successful Camera Module 2, which was introduced in April 2016.
The all-new Raspberry Pi Camera 3 Standard/Wide is a camera for Raspberry Pi computers. Featuring autofocus and a 12-megapixel sensor and supported by Raspberry Pi’s Picamera2 Python library, Camera Module 3 gives you excellent image quality with precise control.
Raspberry Pi Camera 3 NoIR came up with significant improvements over Camera Module 2, which is built around a 12-megapixel Sony IMX708 image sensor. Additionally, Camera Module 3 is offered with a normal (76°) or wide-angle (120°) lens, as well as in regular and infrared-sensitive (NoIR) versions.
- The standard variant is designed to take pictures in normal light.
- The NoIR variant doesn’t have an infrared filter, so you can use it together with an infrared light source to take pictures in the dark.
Features:
- Back-illuminated and stacked CMOS 12-megapixel image sensor (Sony IMX708)
- High signal-to-noise ratio (SNR)
- Built-in 2D Dynamic Defect Pixel Correction (DPC)
- Phase Detection Autofocus (PDAF) for rapid autofocus
- QBC Re-mosaic function
- HDR mode (up to 3-megapixel output)
- CSI-2 serial data output
- 2-wire serial communication (supports I2C fast mode and fast-mode plus)
- 2-wire serial control of focus mechanism
- Improved low-light sensitivity.
- High dynamic range (HDR) support.
- Sony IMX708 12MP sensor with 12C-controlled focus actuator
- Large 7.4mm diagonal sensor
- Resolution: 12 Megapixel
- Diagonal Viewing Angle: 76º
- Compatible with all models of Raspberry Pi*
Specification:
| Item Type: | Camera |
|---|---|
| Model: | NoIR Camera |
| Compatibility: | Pi 3 |
| Model Name: | Camera Module 3 (NoIR) |
| Sensor | SONY IMX708 |
| Viewing Angle: | 76º |
| Supported | All models of Raspberry Pi* |
| Resolution: | 11.9 Megapixel |
| Sensor size | 7.4mm sensor diagonal |
| Pixel Size | 1.4μm × 1.4μm |
| Horizontal/Vertical | 4608 × 2592 pixels |
| Common Video Modes | 1080p50, 720p100, 480p120 |
| Output | RAW10 |
| IR Cut Filter | Integrated in standard variants; not present in NoIR variants |
| Autofocus System | Phase Detection Autofocus |
| Dimensions (L x W x H) mm | 25 × 24 × 11.5mm (12.4mm height for Wide variants) |
| Ribbon cable Length | 200mm |
| Cable Connector | 15 × 1mm FPC |
Package include:

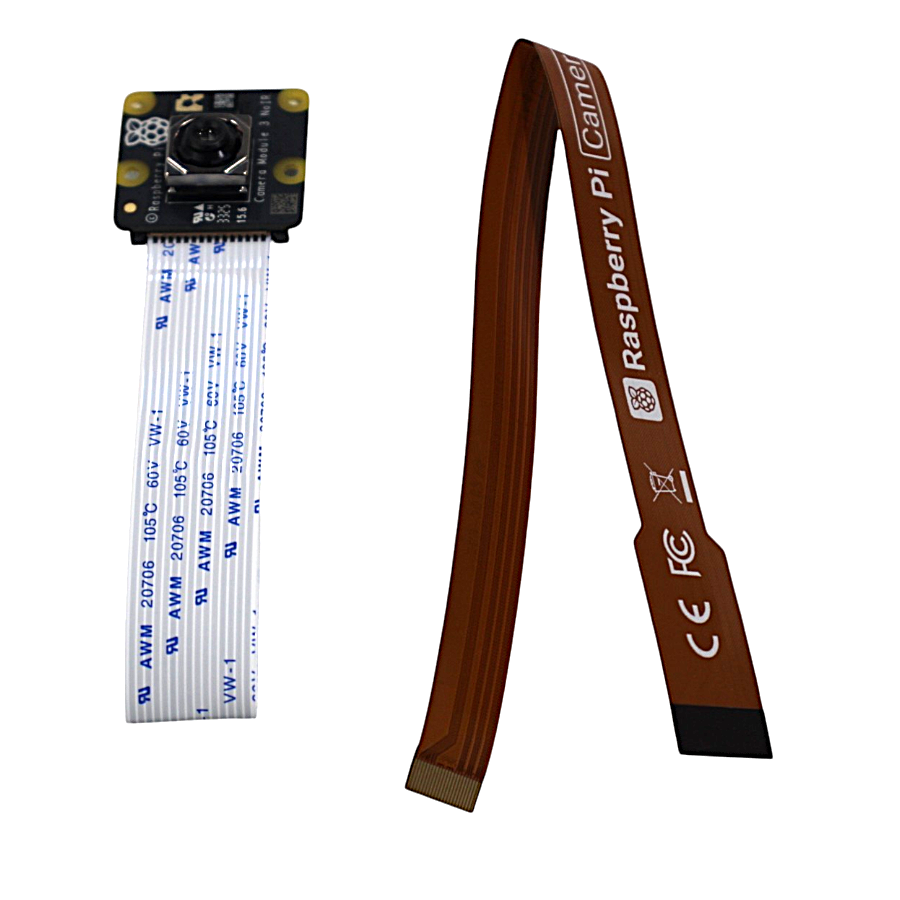

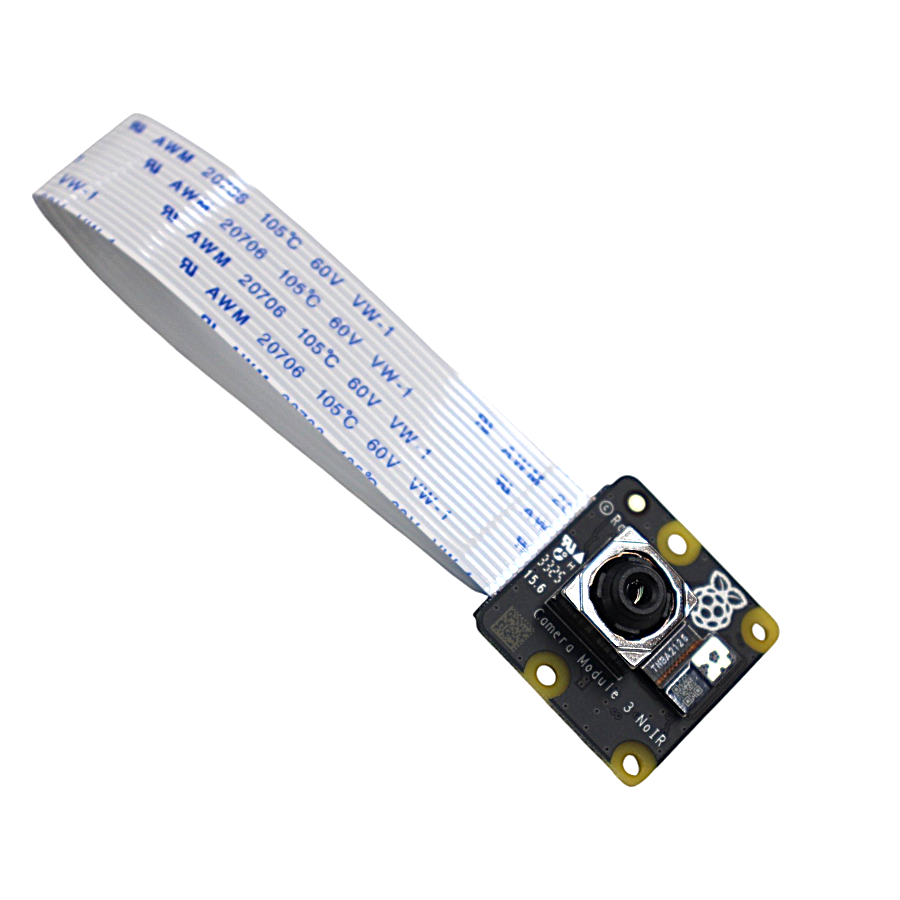

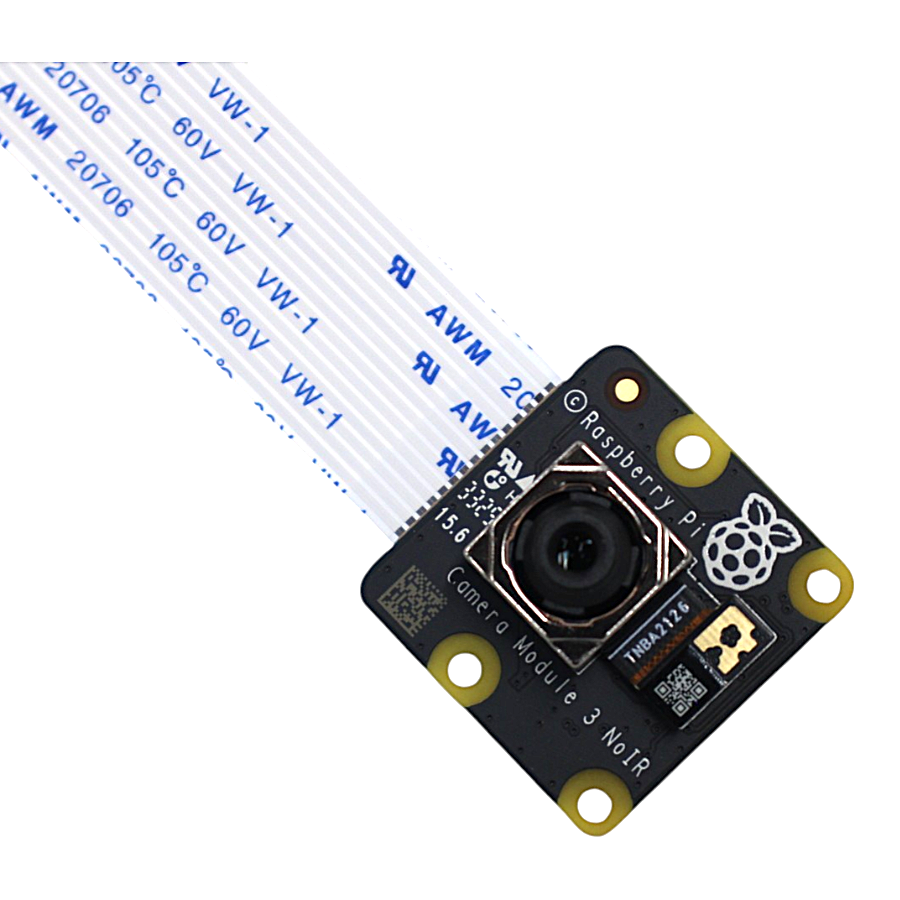

1 x Raspberry Pi Camera Module 3 NoIR
