Looking for Tx16s Controller Radiomaster 569163? Radiomaster TX16S Mark II Max Radio Controller (M2) – ELRS Version – Joshua Bardwell Edition is available at Zbotic with fast shipping across India.
Tx16s Controller Radiomaster 569163 – Description:

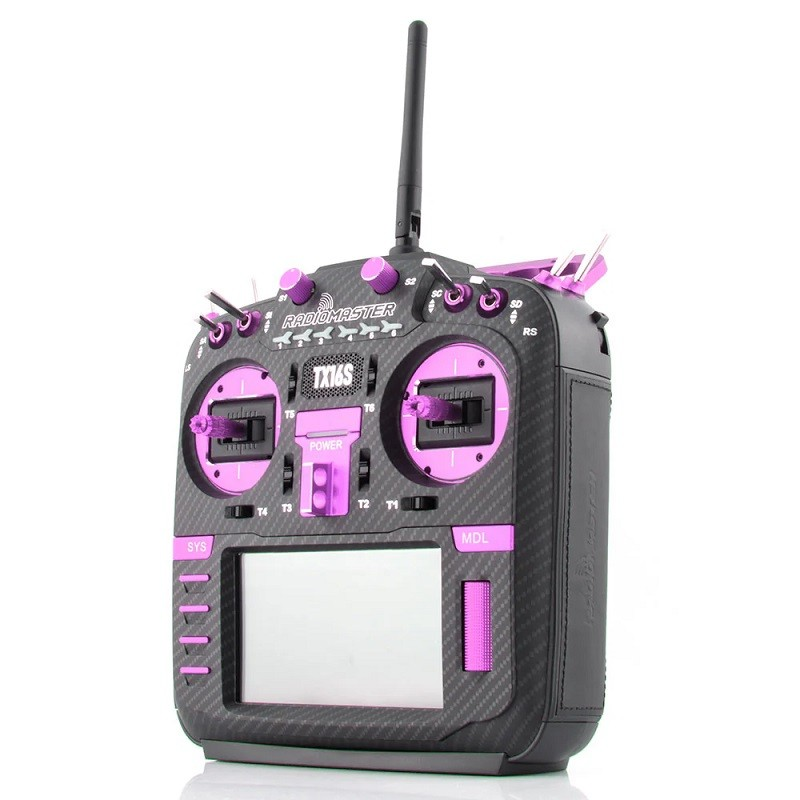

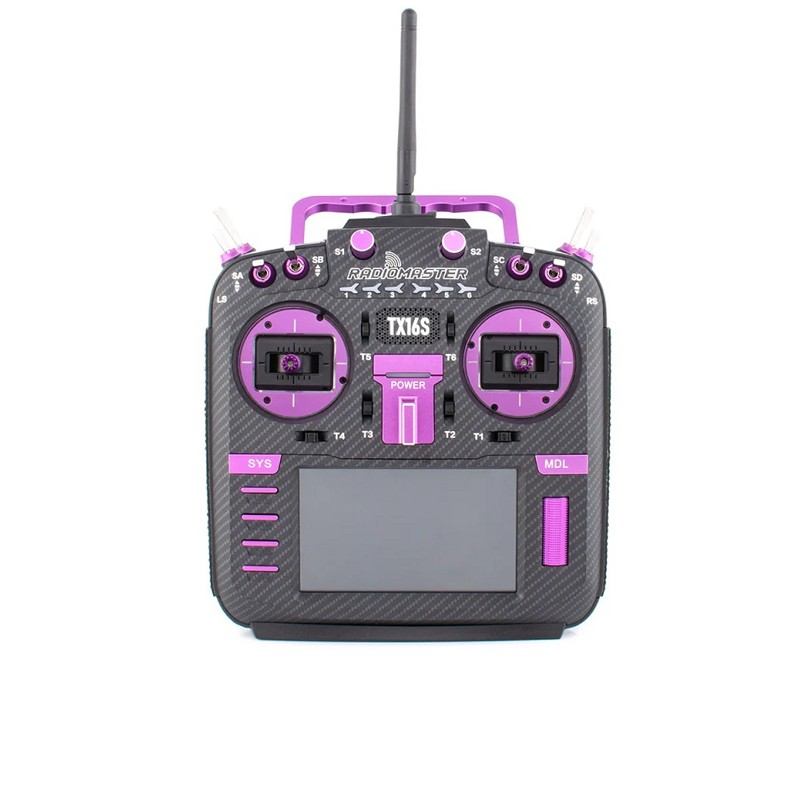

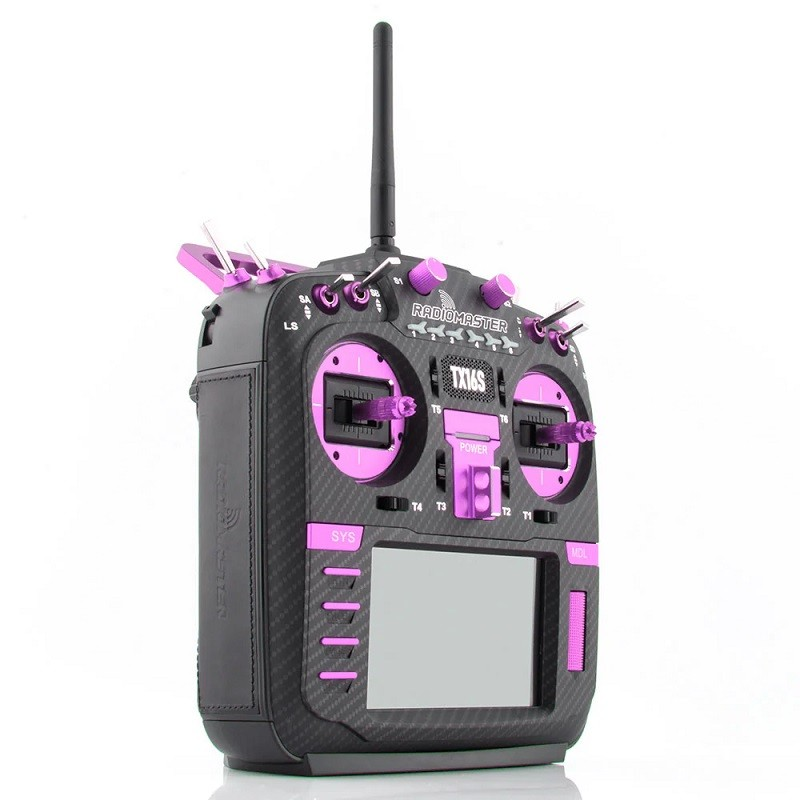

Radiomaster TX16S Mark II Max Radio Controller (M2) – ELRS Version – Joshua Bardwell Edition Featuring carbon fiber faceplate, purple CNC parts, with V4.0 hall gimbal, this is definitely the high performance JB radio that everyone can afford it. Check here to find more TX16S Mark II Edition.
Radiomaster TX16S Mark II Max Radio Controller (M2) – ELRS Version – Joshua Bardwell Edition has standard version with same chipset as the AG01, optimized hall sensor circuitry, improves center point positioning and temperature stability. Stick travel, self-centering and stick tension are now externally adjustable.
Both the raised and flat versions of the rear grips are included allowing you to customize the feel of your TX16s MKII right out of the box. The Radiomaster TX16S Mark II Max Radio Controller (M2) natively supports Team Black Sheep MicroTX modules in CRSF mode with LUA scripts. Best of all the TX16s Internal 4-in-1 Multi-protocol module allows you to keep the MicroTX installed and switch between internal RF and Crossfire via software, no more module swapping.
Features:
- Built-in ExpressLRS Backpack
- Improved internal circuity and optimized power supply.
- New charge circuitry with integrated reverse-polarity protection.
- Optimized charge IC now allows up to 2.2A internal USB-C charge current.
- Rear mounted audio jack provided headphone output.

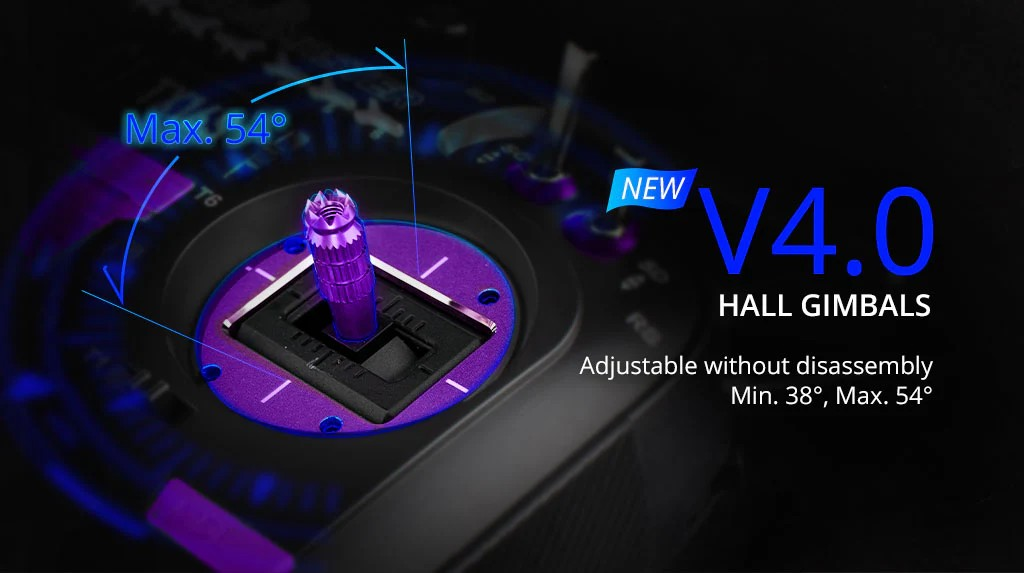

- V4.0 Gimbal improved centering and temperature stability (Same circuitry as AG01).
- Optional high/low rear grips included for improved ergonomics.
- Improved S1/S2 knobs with clear centre-detents.

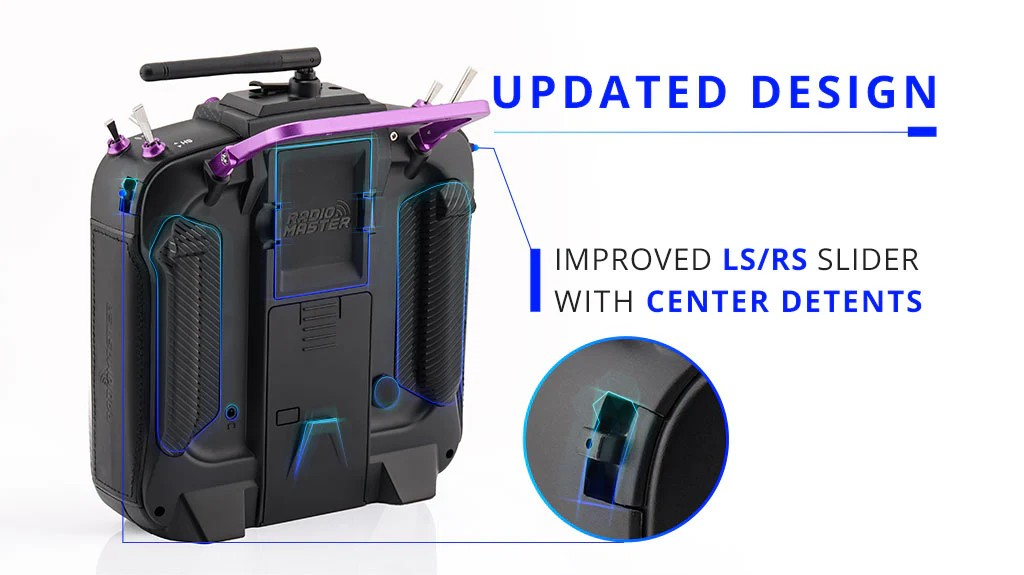

- Improved LS/RS Sliders with smoother feel and better centre-detents.

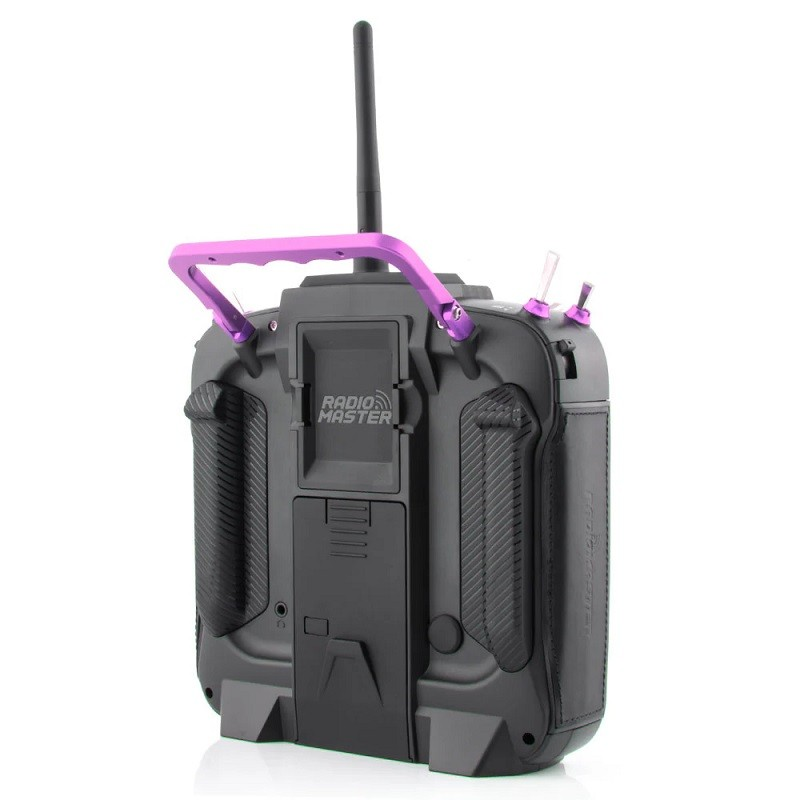

- Redesigned battery cover for improved battery access.
- Retooled body shell with improved fit and finish.
- Trainer socket changed to standard TRS 3.5mm socket.
- Rear DIY Socket added for personalized mods.
- Improved internal plastics for better longevity.
Specifications:
| Item Type: | Radio Controller |
|---|---|
| Transmission frequency | 2.400GHz-2.480GHz |
| Antenna Gain | 2db (transmit power adjustable) |
| Working Current | 400mA |
| Radio firmware | EdgeTX |
| Channels | Up to 16 channels (depending on the receiver) |
| Display: | 4.3-inch TFT full-colour touch display with a resolution of 480 * 272 |
| Gimbal | V4.0 Hall sensor with Aluminium fascia |
| Length (mm): | 287 |
| Width (mm): | 129 |
| Height (mm): | 184 |
Package Includes:
- 1 x TX16S Mark II Max Radio Controller
- 1 x 18650 Tray
- 1 x USB-C Cable
- 1 x Screen Protector
- 1 x LED Gimbal Light Mod Set (White)
- 1 x pair of flat grips
- 1 x pair of raised grips (installed on radio by default)
- 1 x TX16S Key Chain
Radiomaster TX16S Mark II Max Radio Controller (M2) – Overview
The Radiomaster TX16S Mark II Max (M2) – ELRS Version – Joshua Bardwell Edition is a high-performance multi-protocol radio transmitter designed for serious FPV and RC enthusiasts. Featuring an internal ExpressLRS (SX1280) module and EdgeTX firmware, it delivers precise control and reliable connections for drones, planes, and other RC models.
Key Features of Radiomaster TX16S Mark II Max Radio Controller (M2) –
- Internal ELRS SX1280 module operating on 2.400–2.480 GHz for ultra-low latency control.
- Carbon fiber faceplate and purple CNC-aluminum parts for lightweight durability and style.
- V4.0 hall-effect gimbals with optimized circuitry for improved center-point accuracy and thermal stability.
- Dual firmware support: ExpressLRS for high-performance link and EdgeTX for extensive model programming.
- Onboard microSD slot (256 MB default, expandable up to 8 GB) for firmware, model profiles, and voice packs.
- Wide input voltage range (6.6–8.4 V DC) compatible with common 2S/3S LiPo battery packs.
- Fast shipping from Zbotic across India—get your JB Edition radio ready to fly without delay.
Applications and Use Cases
- High-speed FPV drone racing where low-latency and precise stick feel are critical.
- Long-range ExpressLRS flights for aerial photography or exploration missions.
- Multi-rotor freestyle flying utilizing custom dual-rate and expo settings in EdgeTX.
- Fixed-wing aircraft control with fail-safe configurations and unlimited model memory.
- Indoor park flyer setups requiring crisp, jitter-free response from hall-effect gimbals.
- RC boat or car projects leveraging multi-protocol support for diverse receiver types.
How to Use Radiomaster TX16S Mark II Max Radio Controller (M2) –
Start by installing a compatible 2S or 3S LiPo battery (6.6–8.4 V) on the rear strap, power on the transmitter, and insert your microSD card with EdgeTX and ExpressLRS firmware. Navigate to the ELRS bind menu, press the bind button, and power up your ExpressLRS-equipped receiver to link. Configure each model’s output channels, flight modes, and mixer settings in EdgeTX, then perform a range test before your first flight.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
How do I bind the TX16S M2 to an ExpressLRS receiver?
Power on the transmitter, go to Model Setup → External RF → ELRS Settings, select Bind, then press the bind button. Power up your ELRS receiver in bind mode—LED will flash then become solid when linked.
What size and type of SD card can I use?
The TX16S M2 ships with a 256 MB microSD card and supports expansion up to 8 GB. Use a Class 10 card for faster read/write when storing voice files, model configs, and firmware images.
How do I calibrate the V4.0 hall-effect gimbals?
In EdgeTX, navigate to System Settings → Hardware → Calibrate Sticks. Follow on-screen prompts to move each stick to its endpoints. Save the calibration, and the hall sensors will auto-adjust center points for precise throws.
