Description:

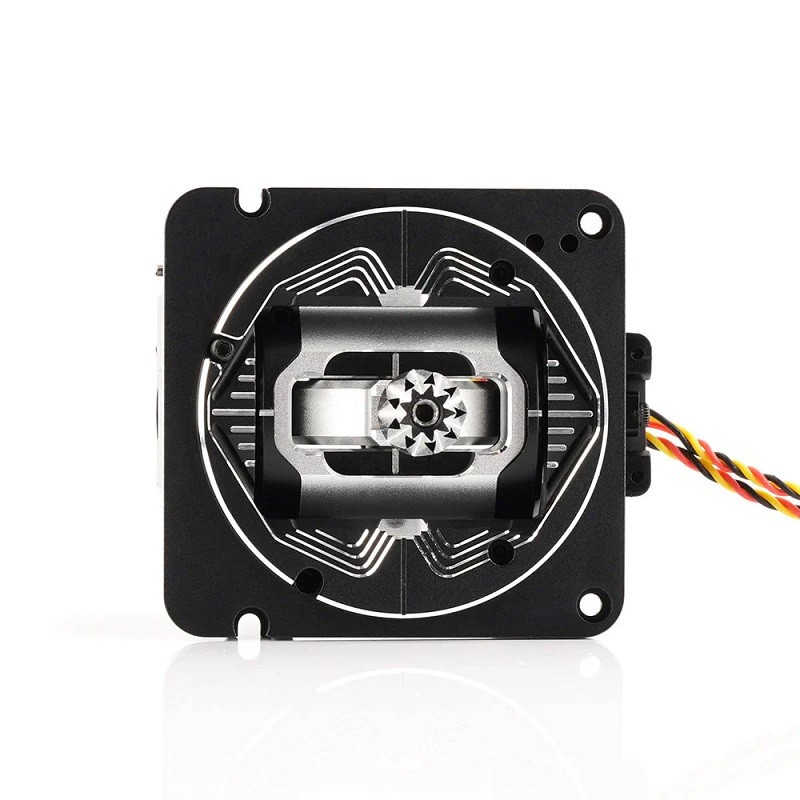

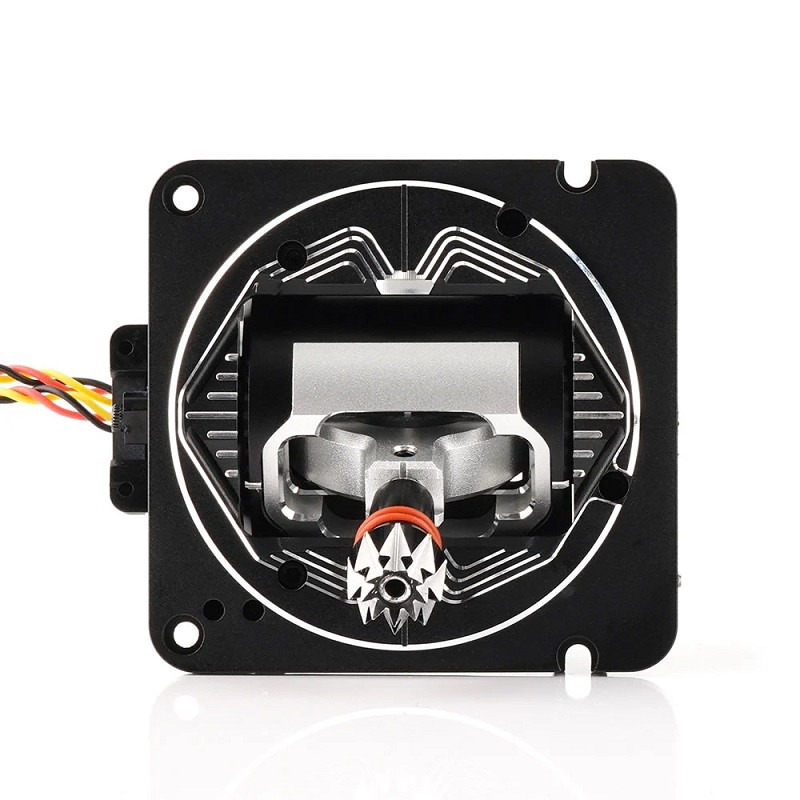

Radiomaster AG01 CNC Hall Gimbal (HOLLOW SHAFT Version these gimbals have a hollow shaft to allow wiring for aftermarket 4mm gimbal stick ends with buttons and switches etc. These are for special use cases only. Unless this is required, normal AG01 CNC Hall Gimbals should be selected.
Features:

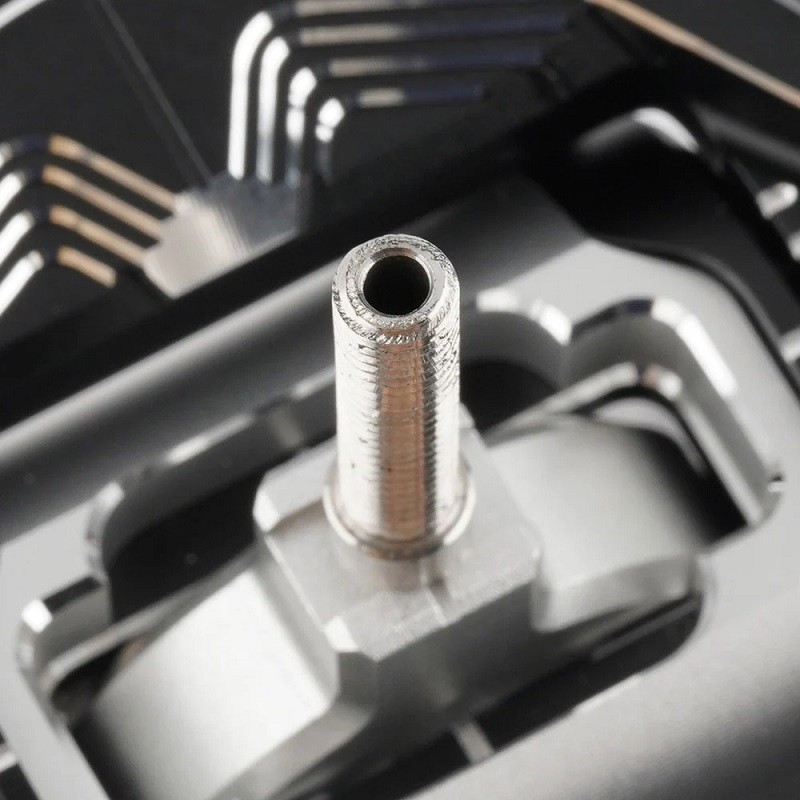

- With a hollow shaft to allow wiring for aftermarket 4mm gimbal stick ends with buttons and switches etc.
- Made with CNC processed aviation grade aluminum.

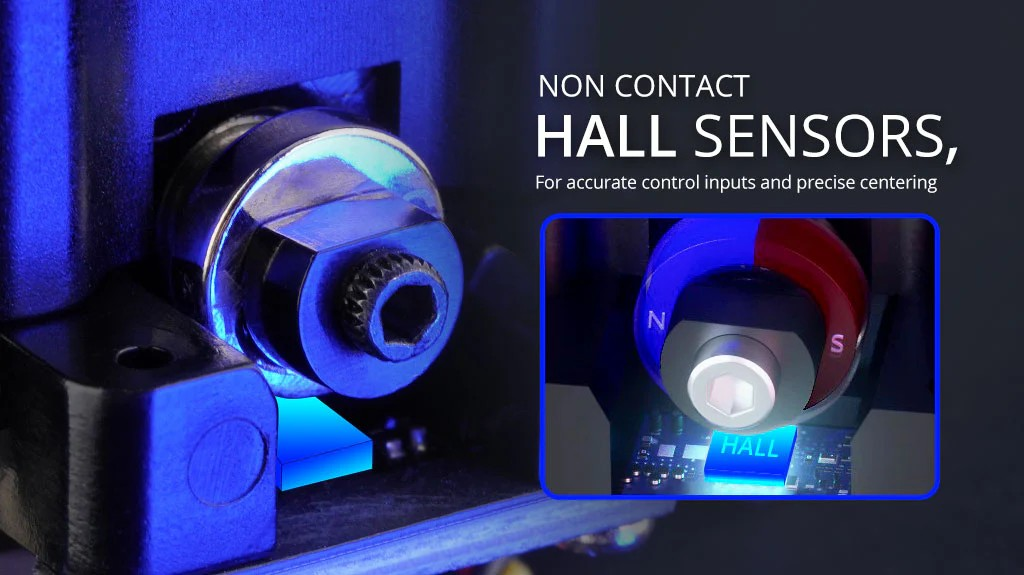

- Non-contact hall sensors, for accurate control inputs and precise centering.
- Quad precision bearings, for unparalleled stick feel.
Specifications:
| Item Type: | AG01 CNC Hall Gimbal- HOLLOWSHAFT- Set |
|---|---|
| Sensor Type | Hall Sensor |
| Operating Temperature (°C): | -20°c-85°c |

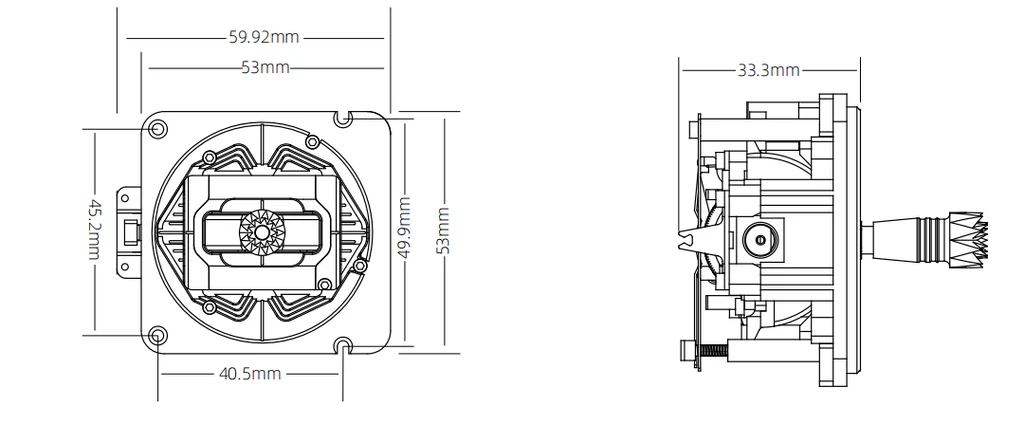

| Length (mm): | 60 |
| Width (mm): | 53 |
| Height (mm): | 56 |
Package Includes:

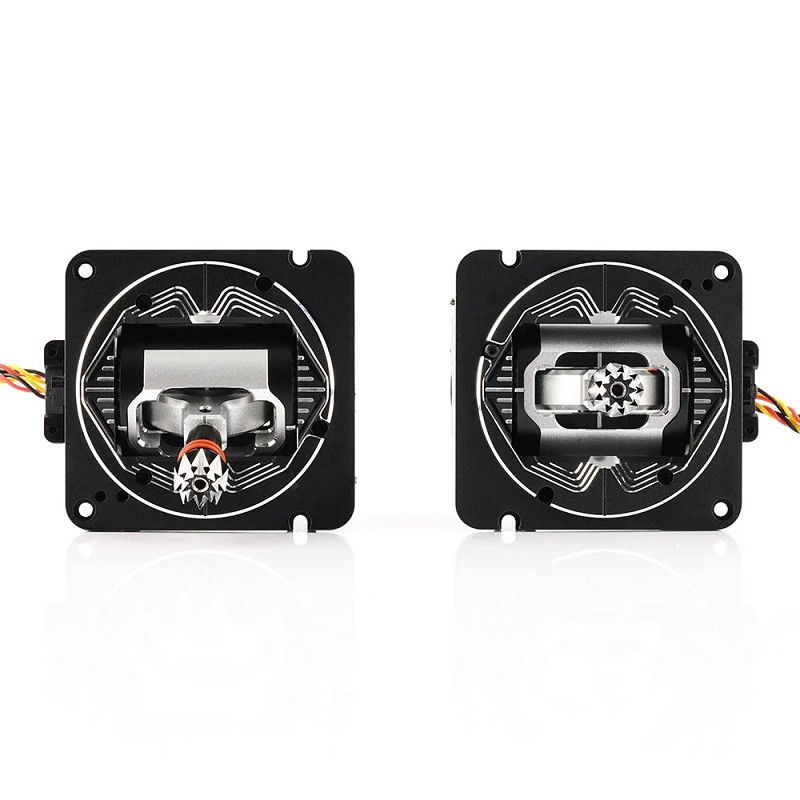

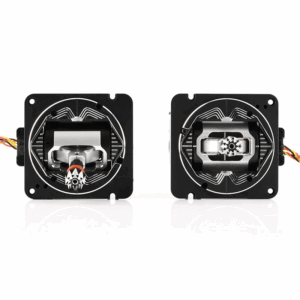

- 1 x AG01 HOLLOWSHAFT CNC Hall Gimbal (Centering / Throttle)
- 1 x TX16S Softer Tension Spring Set
- 1 x Hexagon socket screwdriver
- 1 x Manual
Radiomaster AG01 CNC Hall Gimbal (HOLLOW SHAFT Version） Overview
The Radiomaster AG01 CNC Hall Gimbal (HOLLOW SHAFT Version) is a high-precision replacement gimbal module for RC transmitter sticks. Featuring non-contact hall sensors and a hollow shaft design, it allows wiring for aftermarket 4 mm stick ends with integrated buttons or switches while delivering smooth, real-time response.
Key Features of Radiomaster AG01 CNC Hall Gimbal (HOLLOW SHAFT Version）

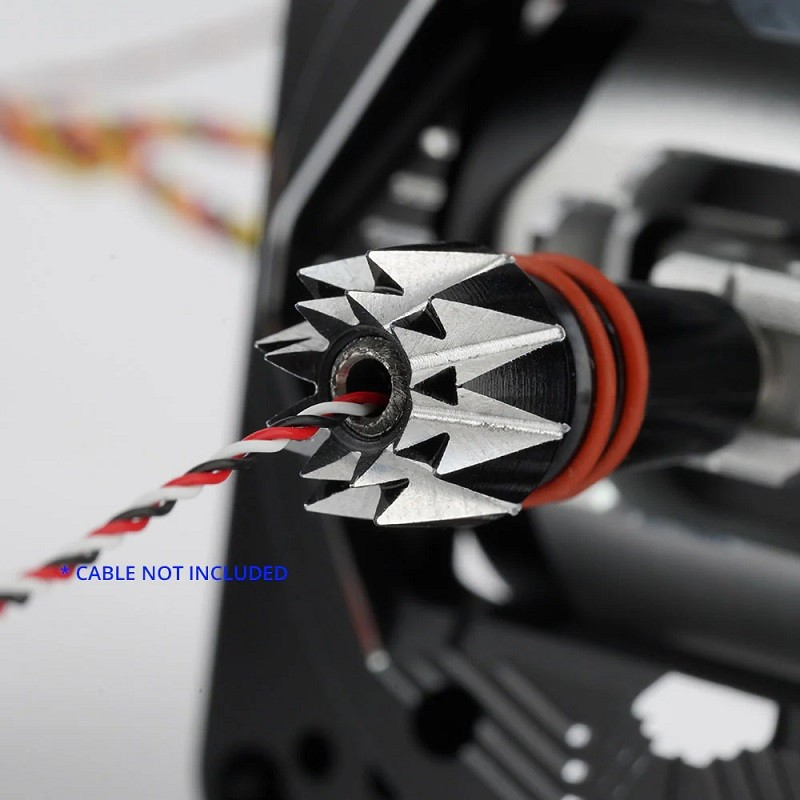

- Hollow shaft accommodates wiring for 4 mm gimbal stick ends with buttons or switches
- CNC-machined aviation-grade aluminum construction for superior durability
- Non-contact hall sensors ensure precise centering and zero delay linearity
- Quad precision bearings deliver consistent, friction-free stick feel
- Adjustable travel range from 38° to 54° to suit various transmitter setups
- Genuine Radiomaster product, shipped fast from Zbotic
Applications and Use Cases
- Customizing FPV drone transmitters with stick-end buttons for camera control
- Upgrading hobbyist radio controllers for smoother gimbal response
- Building DIY simulators requiring wired switches in stick ends
- Retrofitting older transmitters to add programmable functions on the sticks
- Racing setups where precise, real-time inputs are critical
How to Use Radiomaster AG01 CNC Hall Gimbal (HOLLOW SHAFT Version）

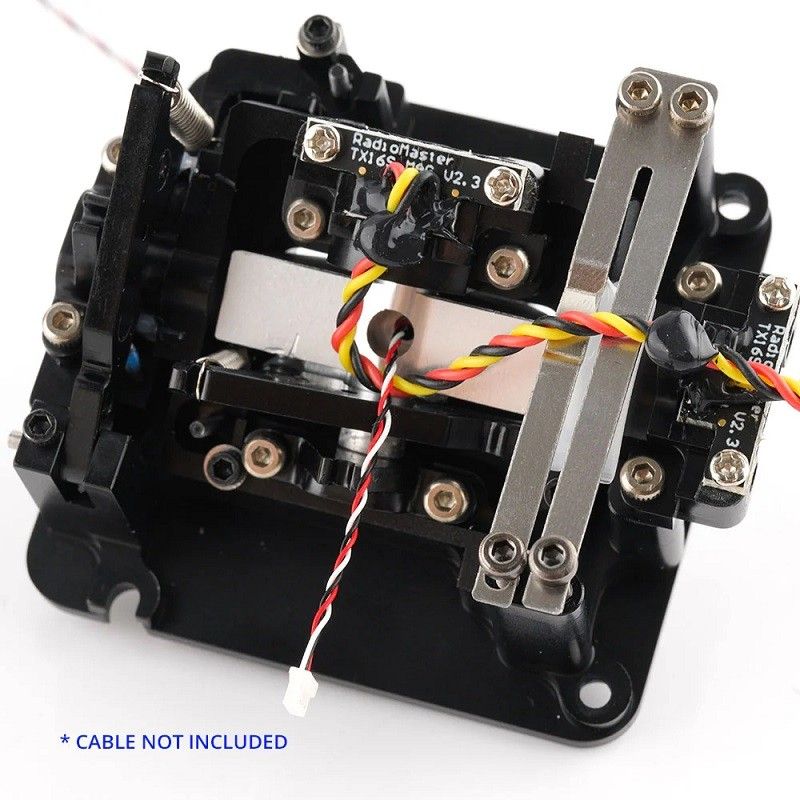

Install the gimbal into your compatible transmitter’s gimbal bay, route the wiring through the hollow shaft to your aftermarket 4 mm stick end, and solder according to your stick-end design. Connect the gimbal’s signal, ground, and 3.3 V supply to your transmitter board, then power on and calibrate the travel range (38°–54°) in your radio’s gimbal settings for optimal performance.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Can I use the hollow shaft version with standard AG01 stick ends?
Yes, the hollow shaft gimbal fits the same mounting footprint as standard AG01 units. However, its primary benefit is routing wiring—if you don’t need stick-end wiring, the normal AG01 CNC Hall Gimbal may be more cost-effective.
What voltage does the hall sensor gimbal require?
This gimbal operates on a DC 3.3 V supply, matching common RC transmitter gimbal ports. Ensure your transmitter’s gimbal connector provides 3.3 V for proper sensor function.
How do I adjust centering and travel limits?
After installation, enter your transmitter’s gimbal calibration menu to set center position and travel angles within the 38°–54° range. The non-contact hall sensors offer real-time, linear response without mechanical wear.
