This is the 12V variant of the PTC Heaters Plate 12V 70 Degrees 60*21*5mm in Thermoelectric Peltier Elements. Available at ₹53.10 (₹45.00 + GST) with free shipping across India.

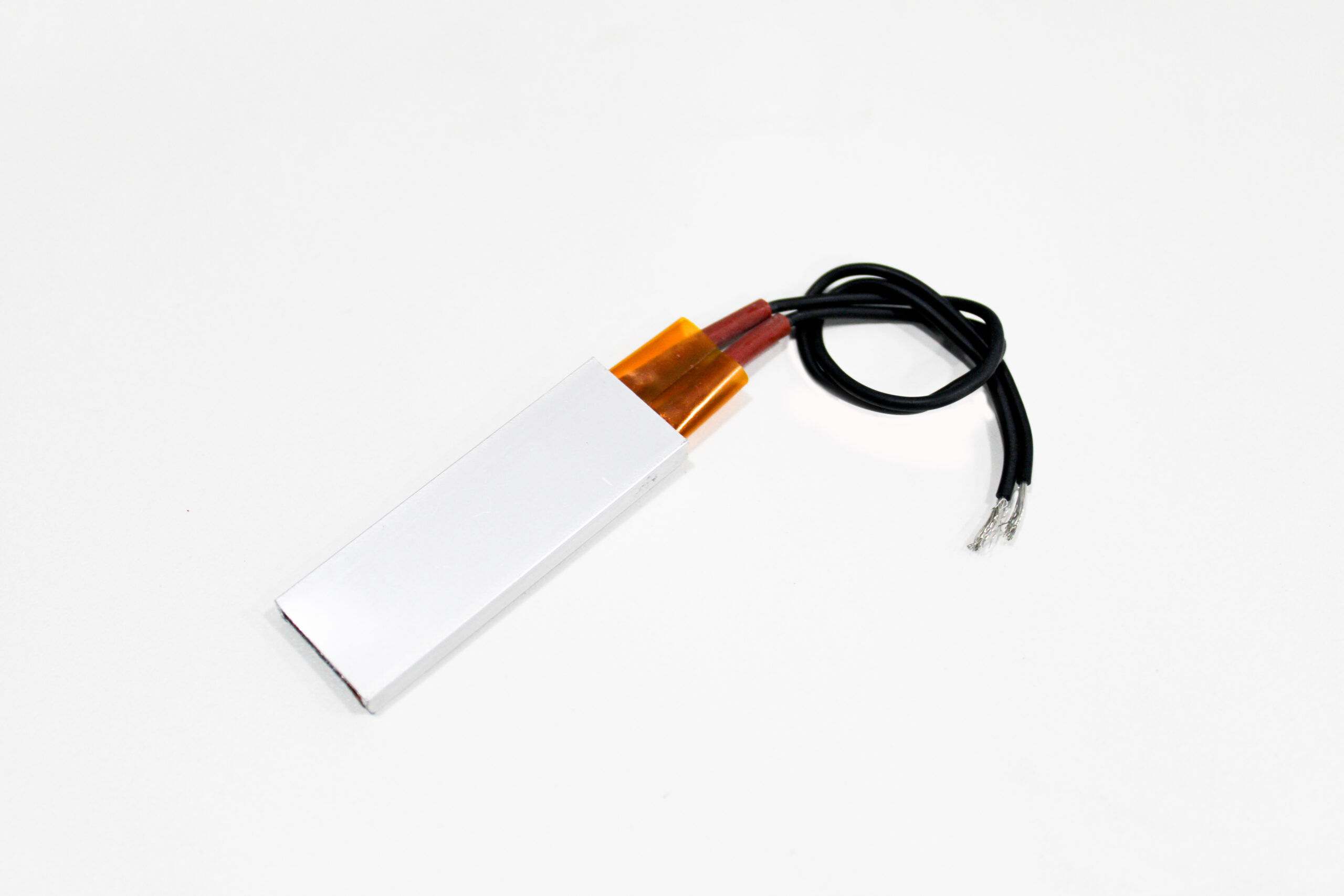

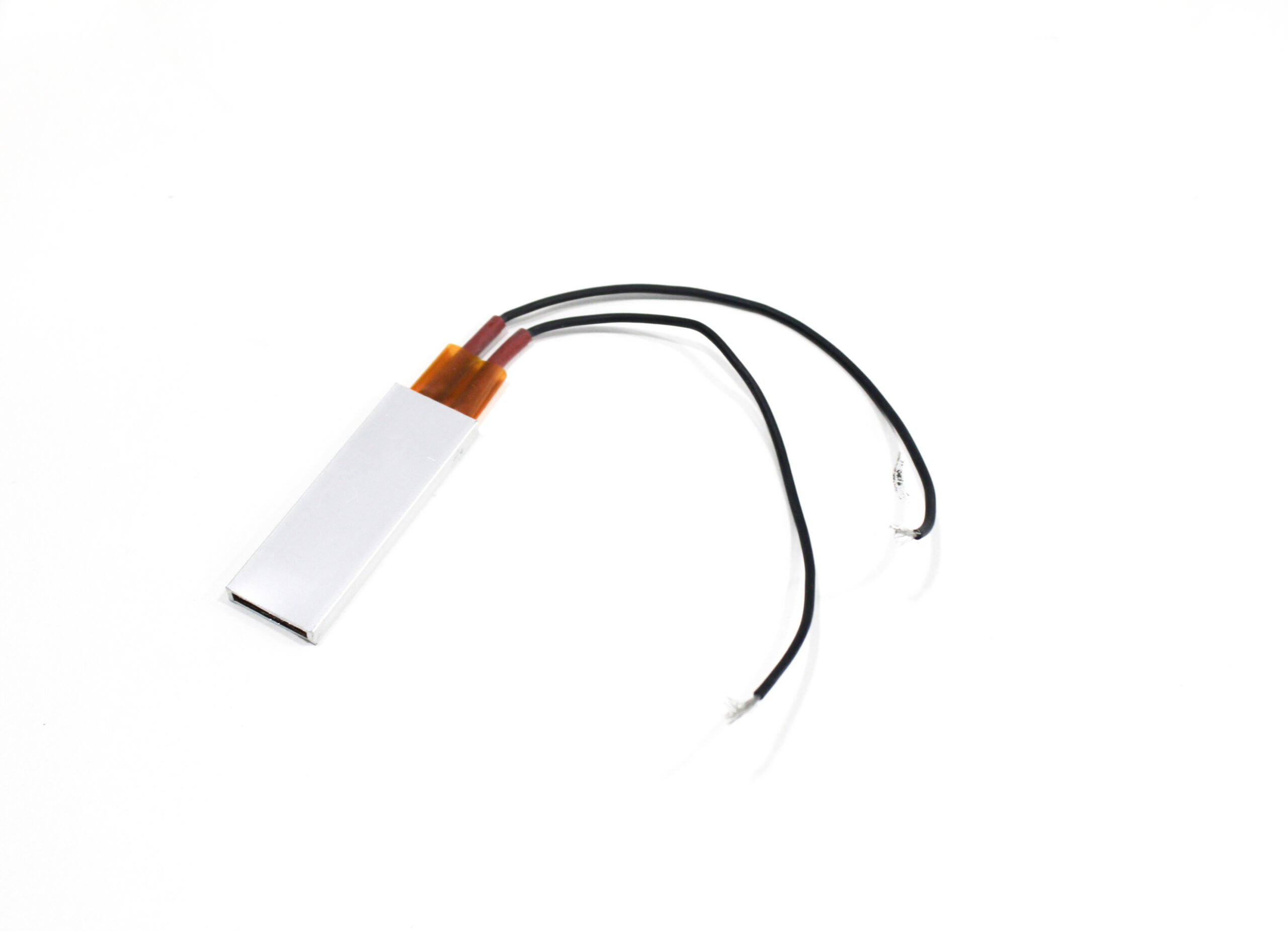

This is PTC Heaters Plate 12V 70 Degrees 60*21*5mm. A PTC (Positive Temperature Coefficient) heater plate is a type of heating element that operates using a material with a PTC effect. When an electric current passes through this material, its resistance increases with rising temperature.
These heaters are commonly used in various applications where a compact, self-regulating heating element is required, such as in small appliances, automotive systems, electronics, or for precise temperature control in specific equipment. The PTC effect in these devices allows for a built-in safety feature—when the heater reaches its designed temperature, its resistance increases, reducing the risk of overheating.
Features:
-
Safety protection, insulation and temperature resistance
-
Safe and energy-saving, no open flame, no redness, no toxic and harmful gas, suitable for use in humid environments
-
Stable performance, using ceramic constant temperature heating technology to continuously output heat and automatically work at constant temperature.
-
The reaction is rapid. After power-on, PTC will quickly convert electrical energy into heat energy and conduct it to the surface of the aluminum shell within 10S, which can be dry-burned for a long time.
-
Application range: coffee machine, smart toilet, massager, hyperthermia instrument, glue gun, mosquito killer, incense burner, beauty salon, egg cooker
Specifications:
- Voltage: 12V
- Degrees: 70 (denotes the temperature at which the PTC heater plate stabilizes or reaches its maximum temperature during operation. It might signify the self-regulating temperature limit or the temperature at which it’s designed to maintain.)
- Product dimensions (mm): 60*21*5mm
- Product weight (g): 12
- Cable length: 15cm
Package Includes:
1 x PTC Heaters Plate 12V 70 Degrees 60*21*5mm
PTC Heaters Plate 12V 70 Degrees 60*21*5mm Overview
The PTC Heaters Plate 12V 70 Degrees 60×21×5mm is a compact, self-regulating heating element that uses a Positive Temperature Coefficient material to maintain a stable temperature of around 70 °C when powered by 12 V DC. As the plate warms, its resistance increases, reducing current draw and preventing overheating.
Key Features of PTC Heaters Plate 12V 70 Degrees 60*21*5mm
- Self-regulating PTC element stabilizes at approximately 70 °C for safe, consistent heating
- Operates on a standard 12 V DC supply without external controllers
- Compact dimensions (60 × 21 × 5 mm) fit into tight assemblies
- Built-in over-temperature protection due to PTC characteristic
- High insulation and temperature resistance for reliability
- Genuine product with fast shipping from Zbotic
Applications and Use Cases
- Maintaining temperature in small enclosures or sensor housings
- Defrosting or anti-condensation in camera or instrumentation enclosures
- Supplemental heating in 3D printer beds or heads for consistent filament flow
- Automotive mirror or lens de-icing modules
- Local heating in laboratory fixtures or test rigs
- Thermal management in telecommunications or networking equipment
How to Use PTC Heaters Plate 12V 70 Degrees 60*21*5mm
Attach the heater plate securely to your target surface or heat sink using a high-temperature thermal adhesive or silicone pad, then connect the leads to a regulated 12 V DC power source, observing correct polarity. The plate will warm up and self-regulate at around 70 °C without additional controllers—ensure adequate ventilation and insulation to maintain performance and safety.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What is the maximum operating temperature of this PTC heater plate?
This PTC heater plate self-regulates at approximately 70 °C, meaning it stabilizes around this temperature under normal 12 V DC operation.
Do I need an external temperature controller?
No. The PTC effect built into the heater plate automatically increases resistance as temperature rises, eliminating the need for a separate thermostat or controller.
Can I mount the heater plate directly onto metal surfaces?
Yes. Use a high-temperature thermal adhesive, silicone pad, or thermal tape to secure the 60 × 21 × 5 mm plate to metal or heat sinks, ensuring proper heat transfer and electrical insulation.
Technical Specifications
| Operating Voltage | 12V |
|---|---|
| Size | 5mm |
| Max Temperature | 70°C |
| SKU | AI4084 |
| Weight | 0.02665 kg |
| Availability | Out of Stock |
Applications & Use Cases
The PTC Heaters Plate 12V 70 Degrees 60*21*5mm is a versatile thermoelectric peltier elements used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
