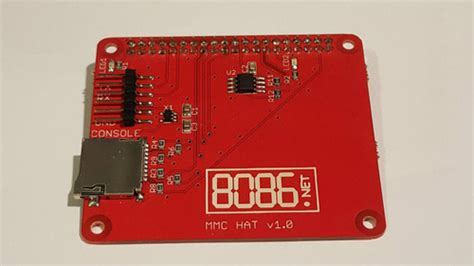

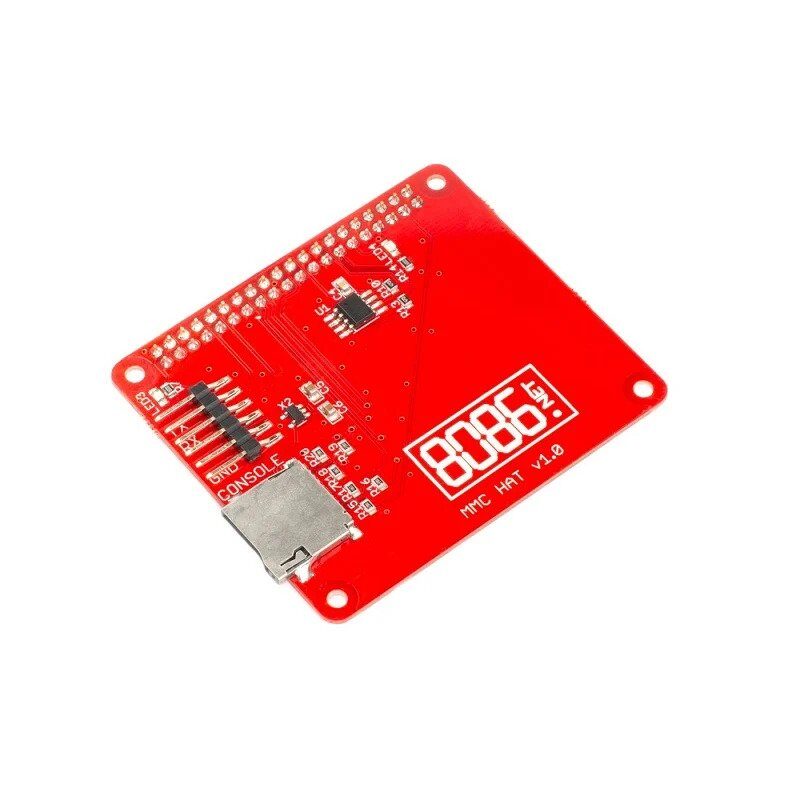

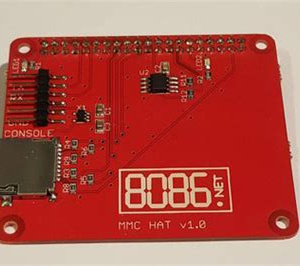

PIMORONI MMC (micro SD) HAT for Raspberry Pi
Introducing the MMC HAT (Hardware Attached on Top) for your Raspberry Pi, a clever expansion board that adds an extra microSD socket to your setup using the second (or third) SDIO interface.
Compatible with Raspberry Pi A+, B+, Zero (with headers), Zero W* (with headers), 2B, 3B*, 3B+, and 4B, the MMC HAT offers expanded storage options without compromising the functionality of your Raspberry Pi.
(*Please note: When used with a Raspberry Pi Zero W, 3B, or 3B+, the onboard WiFi is disabled since the MMC HAT utilizes the SDIO interface.)
Notably, the Raspberry Pi 4 boasts three SD controllers, enabling simultaneous use of onboard SD, WiFi, and the MMC HAT (SD) without conflict. This enhanced functionality allows for seamless multitasking and expanded storage capabilities, ideal for a wide range of projects and applications.
Upgrade your Raspberry Pi experience with the MMC HAT, unlocking additional storage options and maximizing the potential of your favorite single-board computer.
Applications:
- Micro SD card reader. Write new images, repair or modify existing Raspberry Pi installations with ease.
- Additional storage, mount as your home directory or for general storage or backups.
- RAID1 on the root (/) partition for added reliability.
- Connector for Controller Serial Console using our USB Serial Adaptor.
Specification:
| Compatible With | Raspberry Pi A+, Raspberry PI B+, Raspberry Pi Zero & Zero W1 (with headers), Raspberry 2B, Raspberry Pi 3B1 & 3B+, Raspberry Pi 4B |
|---|---|
| Color: | Red |
| SD-Card Support | Micro SD-Card |
| Length (mm): | 70 |
| Width (mm): | 60 |
| Height (mm): | 3 |
| Weight (g): | 15 |
Features
- High-Quality Construction
- Expands the Raspberry Pi’s Onboard Micro-SD Card Socket
- Compatible With Raspberry Pi A+, Raspberry PI B+, Raspberry Pi Zero & Zero W1 (with headers), Raspberry 2B, Raspberry Pi 3B1 & 3B+, Raspberry Pi 4B
- Easy to Use
Package Includes
- 1 x MMC (micro SD) HAT for Raspberry Pi
- 4 x 12mm M2.5 standoff
- 8 x 6mm M2.5 screw
- 4 x stick-on foot
PIMORONI MMC (micro SD) HAT for Raspberry Pi Overview
The PIMORONI MMC HAT is a hardware add-on that provides a secondary microSD card socket via the Pi’s extra SDIO interface. It’s designed to expand storage options on Raspberry Pi models A+, B+, Zero & Zero W (with headers), 2B, 3B/3B+ and 4B without sacrificing the onboard SD slot.
Key Features of PIMORONI MMC (micro SD) HAT for Raspberry Pi
- High-quality PCB construction for reliable connections
- Adds a dedicated microSD slot using the Pi’s second (or third) SDIO interface
- Supports booting or data storage on the external microSD card
- Compatible with Raspberry Pi A+, B+, Zero/Zero W (with headers), 2B, 3B/3B+ and 4B
- On Raspberry Pi 4 you can use onboard SD, WiFi and MMC HAT simultaneously
- Genuine product, fast shipping from Zbotic
Applications and Use Cases
- Boot multiple operating systems without swapping cards
- Build clustered Pi nodes with independent storage per unit
- Expand capacity for media servers, data logging or backups
- Implement redundancy in remote or embedded monitoring systems
- Prototype storage-heavy projects like CCTV capture or local databases
How to Use PIMORONI MMC (micro SD) HAT for Raspberry Pi
Plug the MMC HAT onto your Pi’s 40-pin GPIO header, insert a microSD card into its slot, then edit /boot/config.txt to enable the MMC overlay (e.g. add dtoverlay=mmc). Save and reboot—your external card will appear as /dev/mmcblk1 for boot or data storage. On Pi Zero W and 3B/3B+ the onboard WiFi is disabled by the SDIO takeover; on Pi 4 all three interfaces run together.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Will the MMC HAT disable onboard WiFi?
On Raspberry Pi Zero W, 3B and 3B+ the MMC HAT uses the same SDIO interface that powers onboard WiFi, so wireless will be disabled when the HAT is active. Raspberry Pi 4 has a separate SD controller, so WiFi remains functional.
Can I boot my Raspberry Pi from the MMC HAT?
Yes. After installing the HAT and inserting a microSD card, edit /boot/config.txt to enable the MMC overlay. Upon reboot, the Pi will detect and boot from the card in the HAT’s slot.
Is the HAT compatible with Raspberry Pi Zero without soldering?
You’ll need to attach a set of 2×20 female GPIO headers to the Pi Zero or Zero W to mount the MMC HAT. Once headers are in place, the HAT slides on directly for immediate storage expansion.
