PCT-223-3 Stationary Type Quick Connection Terminal

Looking for Pct-223 Ic 194909? PCT-223-3 Stationary Type Quick Connection Terminal is available at Zbotic with fast shipping across India.

PCT-223-3 Stationary Type Quick Connection Terminal

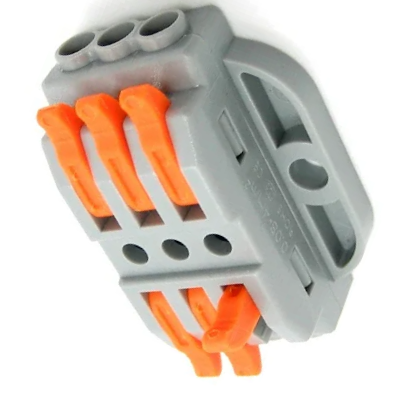

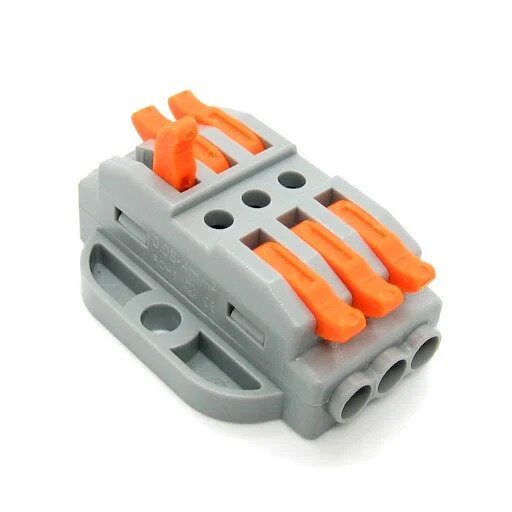

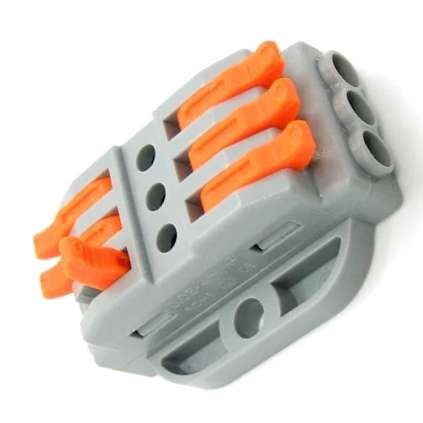

The PCT-223-3 is a three-pole wire connector terminal block that comes with spring lock levers, making cable connections convenient. It can accommodate single-strand hardwires from 0.08 to 4.0 mm² in area, as well as soft wires of the same range.

This compact connector package is equipped with locking wire connectors that are operated by spring levers, ensuring easy and secure cable connections. It has a voltage tolerance of up to 400V and can handle electric current peaks of up to 32A, with a rated impulse voltage of around 4 kV. The connector is suitable for a strip length of 9-10 mm and is compatible with wire gauges from 28 to 12 AWG.

Features

1. Fast and easy to use
2. The right terminal block and connector for every application
3. Minimal space requirements enable high wiring density
4. Clearly organized wiring in control cabinets and junction boxes
5. Maintenance-free installation
6. Permanent, secure connections

Specifications:

1. Rated voltage: 600V
2. Rated current: 32A
3. Number of poles: 3
4. Wire section :0.08~4.0mm2
5. Number of clamps: 6

Package Includes

1 x PCT-223-2 Stationary Type Quick Connection Terminal

PCT-223-3 Stationary Type Quick Connection Terminal Overview

The PCT-223-3 is a three-pole stationary quick connection terminal block designed for secure and rapid wire connections in electrical assemblies. It features spring lock levers that simplify cable installation without the need for screws or special tools.

Key Features of PCT-223-3 Stationary Type Quick Connection Terminal

• Three-pole terminal block with 6 spring-lock clamps for multiple circuits
• Rated voltage: 600 V; rated current: 32 A; impulse voltage tolerance up to 4 kV
• Accepts solid and stranded wires from 0.08 to 4.0 mm²
• Tool-free spring lever mechanism for quick, secure cable locking
• Requires strip length of 9–10 mm for reliable contact
• Genuine component with fast shipping from Zbotic

Applications and Use Cases

• Wire termination in industrial control panels and relay units
• Power distribution connections in electrical cabinets
• Junction points in HVAC and building automation systems
• Prototype and test bench wiring for electronics development
• Field servicing and maintenance of machinery cabling
• Signal and power line interconnections in factory automation

How to Use PCT-223-3 Stationary Type Quick Connection Terminal

Strip each conductor to approximately 9–10 mm, open the spring lever on the desired pole, insert the stripped wire fully into the clamp, then close the lever to lock the wire. Repeat for all poles and mount the block onto your panel or DIN rail as required for a durable, tool-free connection.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

What is the maximum operating voltage and current of the PCT-223-3?

The PCT-223-3 is rated for 600 V continuous voltage and 32 A continuous current, with an impulse voltage tolerance of up to 4 kV.

Which conductor types and sizes are supported?

This connector accepts both single-strand (solid) and stranded wires within a cross-section range of 0.08–4.0 mm².

How do I prepare and lock the wire in this terminal block?

Strip the insulation to 9–10 mm, open the spring lever, insert the wire fully into the clamp slot, and close the lever to achieve a secure, tool-free connection.
