Looking for Nextion Intelligent Nx8048p050_011r_y Display? Nextion Intelligent NX8048P050_011R_Y HMI 5.0″ Resistive Touch Display with enclosure383083 is available at Zbotic with fast shipping across India.

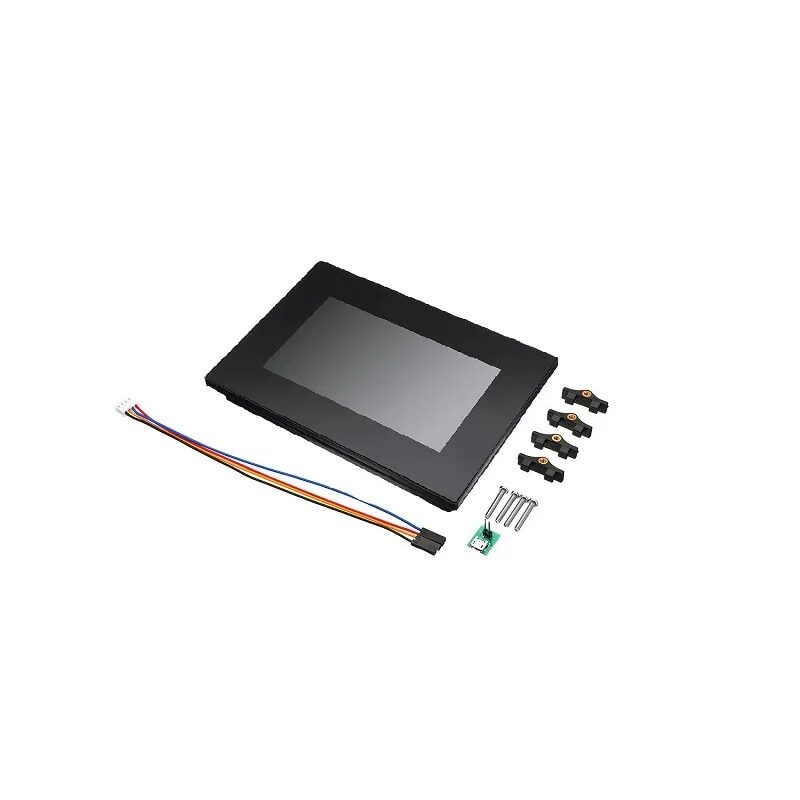

Nextion Intelligent NX8048P050_011R_Y HMI 5.0″ Resistive Touch Display with enclosure383083
Description:
NX8048P050-011R-Y is a 5.0″ Nextion Resistive touchscreen display with an enclosure that comes with a resistive touch display. This display is from the Newly launched Intelligent series and is very easy to use and can be interfaced to the Microcontroller using a simple UART port. The Nextion display can be easily interfaced with any Microcontroller using just 2 wires. Nextion displays have a built-in microcontroller that controls the display, it takes care of which button has been clicked, creating text, storing images, or change the background. The Nextion display then communicates with your microcontroller using serial communication at a 9600 baud rate.
NX8048P050-011R-Y is a 5.0″ Nextion Resistive touchscreen display with an enclosure that comes with a resistive touch display is so simple to the interface that it can easily work with Arduino, Raspberry Pi, ESP8266, ESP32, PIC Microcontroller, AVR controller, ARM Microcontroller and you won’t believe it will work even with basic 8051 microcontrollers basically it will work with any board or Microcontroller that has UART port.
Note: The small power supply test board and connecting wire inside the package allow you to test if the electrical supply is enough or not. See the image below on how to use it.
Features:
- 5” LCD-TFT HMI display module
- 840 x 480 screen resolution
- RGB 65K true-to-life colors
- Resistive touch panel
- 300 nit Brightness
- Onboard 200MHz MCU
- 512 KB of SRAM
- 128 MB of Flash memory
- 1024 Byte EEPROM
Datasheet:
https://nextion.tech/datasheets/nx8048p050-011r-y/
Package Includes:
1 x Nextion Intelligent NX8048P050_011R_Y HMI 5.0″ Resistive Touch Display with enclosure
About Nextion Intelligent Nx8048p050_011r_y Display
Nextion Intelligent NX8048P050_011R_Y HMI 5.0″ Resistive Touch Display with enclosure383083 is available at Zbotic, India’s trusted electronics and robotics store. Manufactured by Nextion, this product is designed for hobbyists, students, and professionals working on electronics, robotics, and DIY projects.
Product Details
- Brand: Nextion
- SKU: AI1831
- Category: HMI LCD Display
Why Buy from Zbotic?
Zbotic offers a wide range of electronics components, development boards, sensors, and robotics parts. All products are quality-checked and shipped within 24 hours. Free shipping on qualifying orders. We offer COD (Cash on Delivery) and secure online payment options. Our customer support team is available to help with technical queries about Nextion Intelligent Nx8048p050_011r_y Display and other products.
Applications
Nextion Intelligent Nx8048p050_011r_y Display can be used in a variety of projects including Arduino projects, Raspberry Pi builds, drone assembly, 3D printing, IoT applications, and educational experiments. Whether you are a beginner or an advanced user, this component provides the reliability and performance you need. Order your Nextion Intelligent Nx8048p050_011r_y Display today and start building.
About Nextion Intelligent Nx8048p050_011r_y Display
Nextion Intelligent NX8048P050_011R_Y HMI 5.0″ Resistive Touch Display with enclosure383083 is available at Zbotic, India’s trusted electronics and robotics store. Manufactured by Nextion, this product is designed for hobbyists, students, and professionals working on electronics, robotics, and DIY projects.
Product Details
- Brand: Nextion
- SKU: AI1831
- Category: HMI LCD Display
Why Buy from Zbotic?
Zbotic offers a wide range of electronics components, development boards, sensors, and robotics parts. All products are quality-checked and shipped within 24 hours. Free shipping on qualifying orders. We offer COD (Cash on Delivery) and secure online payment options. Our customer support team is available to help with technical queries about Nextion Intelligent Nx8048p050_011r_y Display and other products.
Applications
Nextion Intelligent Nx8048p050_011r_y Display can be used in a variety of projects including Arduino projects, Raspberry Pi builds, drone assembly, 3D printing, IoT applications, and educational experiments. Whether you are a beginner or an advanced user, this component provides the reliability and performance you need. Order your Nextion Intelligent Nx8048p050_011r_y Display today and start building.
Nextion Intelligent NX8048P050_011R_Y HMI 5.0″ Resistive Overview
The Nextion Intelligent NX8048P050_011R_Y is a 5.0″ HMI display module featuring an integrated resistive touchscreen and robust enclosure. Designed for rapid integration, it provides a stand-alone GUI engine that communicates with microcontrollers over a simple two-wire UART link, making it ideal for custom control panels and embedded projects.
Key Features of Nextion Intelligent NX8048P050_011R_Y HMI 5.0″ Resistive
- 5.0″ TFT display with 840×480 pixel resolution for clear visual feedback
- 65K true-to-life RGB colors and 300 nit brightness for vibrant, legible graphics
- Resistive touchscreen panel enabling precise input with stylus or finger
- Built-in processor and GUI engine handle touch events, text, images and layouts
- Simple two-wire UART interface (TX/RX) for seamless connection to any microcontroller
- Genuine product: Authorized Nextion module
- Fast Shipping: Dispatched quickly from Zbotic across India
Applications and Use Cases
- Industrial machine control panels displaying real-time sensor data
- Home automation dashboards for lighting, HVAC and security interfaces
- Embedded device menus on Arduino, ESP32 or STM32 platforms
- Medical equipment touchscreens for parameter adjustments and status monitoring
- Vending machines and kiosks requiring a user-friendly touch interface
- Robotics control displays showing telemetry and control buttons
How to Use Nextion Intelligent NX8048P050_011R_Y HMI 5.0″ Resistive
Begin by designing your GUI in the free Nextion Editor software, then upload the compiled .HMI file via the onboard SD card slot. Wire the module’s RX/TX pins to your microcontroller’s UART at 5 V logic, power it with a stable 5 V supply, and perform touchscreen calibration through the editor. Your host MCU can then send and receive simple ASCII commands to update screens, read touch events or modify widget properties in real time.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Which interface is required to connect this Nextion display?
The NX8048P050_011R_Y uses a TTL-level UART interface with TX and RX pins. You simply connect these two lines plus ground to your microcontroller to exchange commands and touch events.
How do I create and upload my own GUI screens?
Install the Nextion Editor on your PC, design screens using drag-and-drop widgets, then export the .HMI file. Copy it to a microSD card and insert into the display’s slot; power up and the module will auto-load your interface.
Is the enclosure included with the display?
Yes, this model comes pre-mounted in a protective plastic enclosure that simplifies panel mounting and protects the touchscreen in industrial or field environments.
