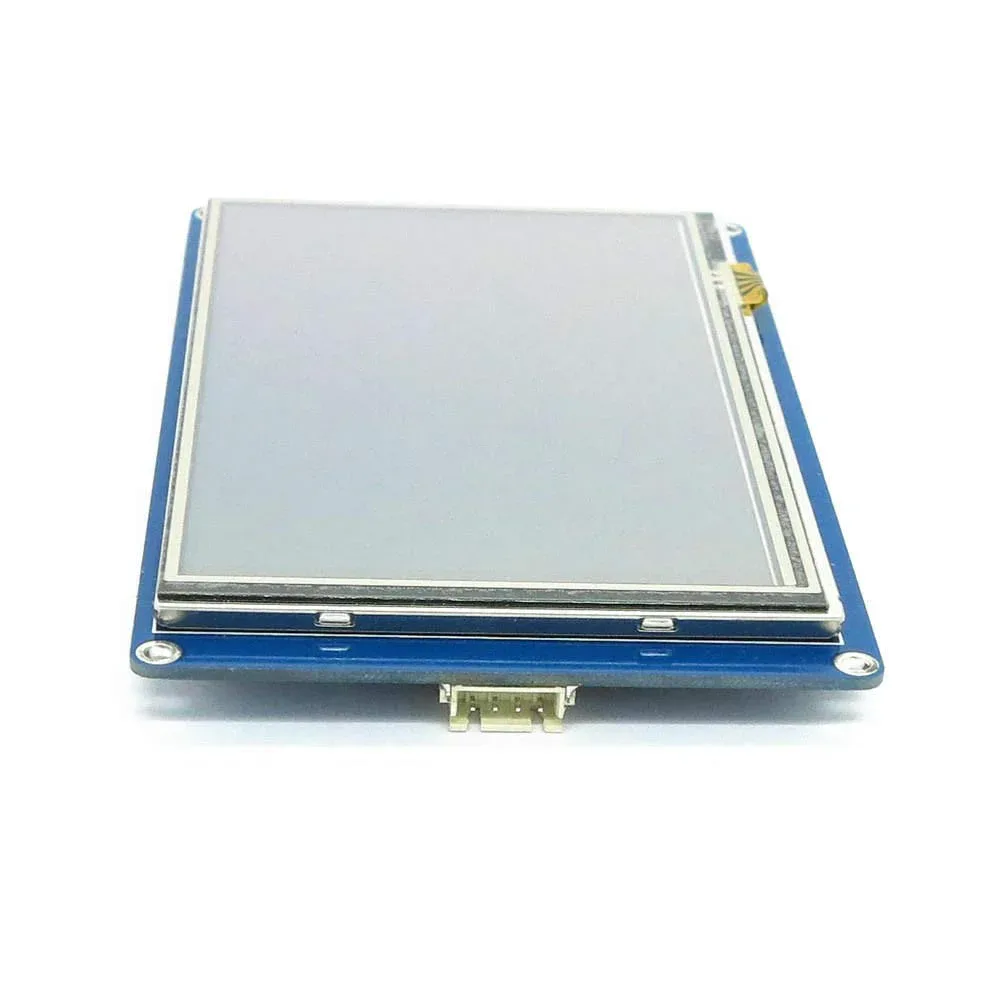

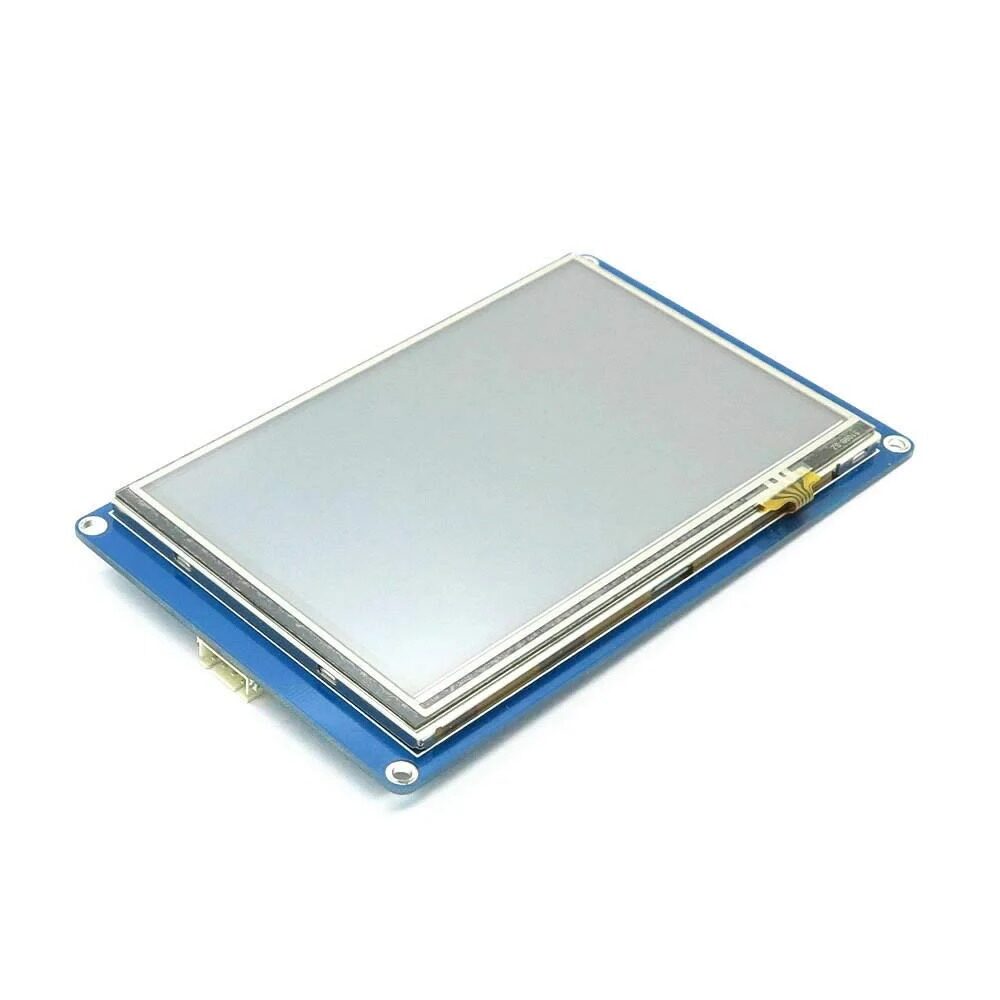

Nextion Enhanced NX8048K050 5.0” HMI Touch Display
Description:
HMI Displays are becoming increasingly popular as a result of their intelligence, and NEXTION is one of the major players in HMI Display Production, which has introduced a range of different kinds of Displays at a very affordable cost.
NEXTION offers an advanced level of displays at an affordable cost than any other competitor brand in the market, making them ideal for the one who wants to start some Projects through touch displays. This type of Display has inbuilt audio, video, and animation play functions which makes it smart.
Nextion Enhanced NX8048K050 5.0” HMI Touch Display is a seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application, or appliance. The operating Voltage of the Display is lies between 4.75 to 7 V also with 32MB Flash data storage space, 1024 byte EEPROM, 8192 byte RAM. With GPIO supported, now customers can use Nextion to control external devices. Using the NEXTION Editor software, you can quickly develop the HMI GUI by drag-and-drop components (graphics, text, button, slider, etc.) and ASCII text-based instructions for coding how components interact at the display side. Nextion HMI display connects to peripheral MCU via TTL Serial (5V, TX, RX, GND) to provide event notifications that peripheral MCU can act on, the peripheral MCU can easily update progress, and status back to Nextion display utilizing simple ASCII text-based instructions.
Furthermore, the drag-and-drop function ensures that users spend less time in programming, which will reduce 99% of their development workloads. With the help of this WYSIWYG editor, designing a GUI is a piece of cake. It’s easy to adapt Nextion family HMI to existing projects- users just need to provide it with a UART.
Features:
- Supports built-in RTC
- Supports GPIO
- SD Card interface: support max 32G Micro TF/SD card (FAT32 file format)
- Flash data storage space: 32MB
- EEPROM: 1024 bytes
- RAM: 8192 bytes
- Instruction buffer: 1024 bytes
- Color: 65K (65536) colors
- Resolution: 800×480 pixel
- Adjustable Brightness:0~230 nit- the interval of adjustment is 1%
- Certificates: CE/EMC, RoHS (certificates)
Specifications:
- Model No.:NX8048K050
- Operating Voltage (VDC):5
- Max. Operating Current (mA):1A
- Touch Type: Resistive
- Colors:65K (65536)
- Flash Memory:32 MB
- RAM:8192 bytes
- Backlight: LED
- Backlight Lifetime (Avg):>30,000 Hours
Datasheet:
https://nextion.tech/datasheets/nx8048k050/

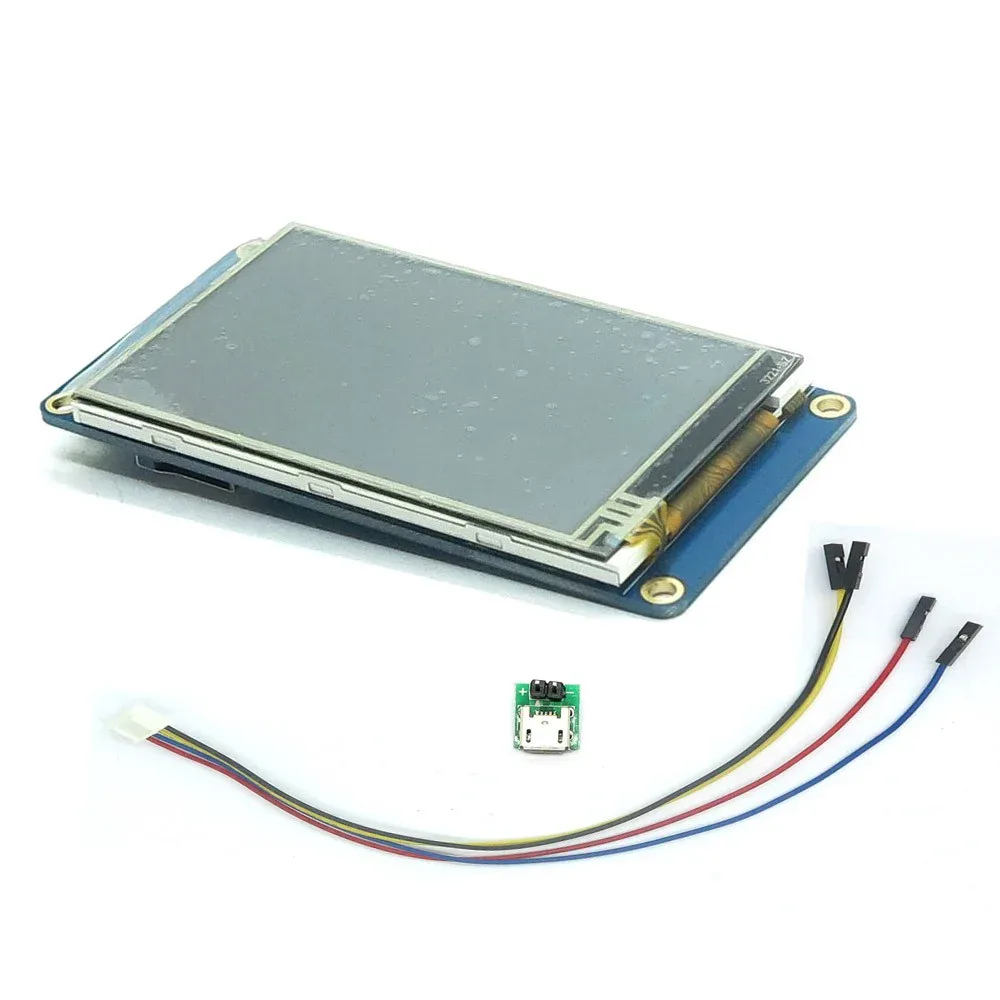

Package Includes:
1× 5.0″ Nextion Enhanced HMI Display
1× Power supply test board
1× 4-pin grove cable
About Nx8048k050 Display
Nextion Enhanced NX8048K050 5.0” HMI Touch Display is available at Zbotic, India’s trusted electronics and robotics store. Manufactured by Nextion, this product is designed for hobbyists, students, and professionals working on electronics, robotics, and DIY projects.
Product Details
- Brand: Nextion
- SKU: AI1855
- Category: HMI LCD Display
Why Buy from Zbotic?
Zbotic offers a wide range of electronics components, development boards, sensors, and robotics parts. All products are quality-checked and shipped within 24 hours. Free shipping on qualifying orders. We offer COD (Cash on Delivery) and secure online payment options. Our customer support team is available to help with technical queries about Nx8048k050 Display and other products.
Applications
Nx8048k050 Display can be used in a variety of projects including Arduino projects, Raspberry Pi builds, drone assembly, 3D printing, IoT applications, and educational experiments. Whether you are a beginner or an advanced user, this component provides the reliability and performance you need. Order your Nx8048k050 Display today and start building.
Nextion Enhanced NX8048K050 5.0” HMI Touch Display Overview
The Nextion Enhanced NX8048K050 is a 5.0-inch human-machine interface (HMI) touch display designed for embedded control panels and interactive systems. With resistive touch functionality and built-in audio, video, and animation playback, it streamlines user interface development for a wide range of electronics projects.
Key Features of Nextion Enhanced NX8048K050 5.0” HMI Touch Display
- 5.0” TFT display with 65K (65536) colors for vivid graphics and smooth transitions
- Resistive touch panel offering accurate single-point touch response
- 32 MB onboard flash memory and 8 KB RAM for storing GUI assets and runtime data
- LED backlight with an average lifetime of over 30,000 hours for long-term reliability
- Operates on 5 VDC with a maximum current draw of 1 A
- Integrated audio, video, and animation play functions to enhance interface interactivity
- Genuine product shipped fast from Zbotic with nationwide delivery
Applications and Use Cases
- Industrial control panels requiring a responsive touch interface
- Home automation dashboards for lighting, climate, and security systems
- 3D printer and CNC controller displays for real-time status monitoring
- DIY electronics and robotics projects where user feedback is essential
- Point-of-sale terminals and vending machines with custom menu screens
- Medical devices and laboratory equipment interfaces
How to Use Nextion Enhanced NX8048K050 5.0” HMI Touch Display
Begin by powering the NX8048K050 with a stable 5 V supply and connecting its TX/RX pins to your microcontroller’s serial port. Use the Nextion Editor software on your PC to design and compile the graphical user interface, then upload the .tft file to the display via the serial link. Once the UI is stored in flash memory, the display will operate standalone, responding to touch inputs and playing animations and audio as programmed.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What interface does the NX8048K050 use to communicate?
The display communicates via a TTL-level UART serial interface, making it easy to integrate with most microcontrollers and single-board computers.
How much memory is available for storing graphics and animations?
This Enhanced model offers 32 MB of flash memory for GUI assets and 8 KB of runtime RAM for data handling and dynamic content.
Can the display handle custom audio and video files?
Yes, the NX8048K050 supports basic audio and video playback functions. You can upload WAV audio and simple video animations through the Nextion Editor.
