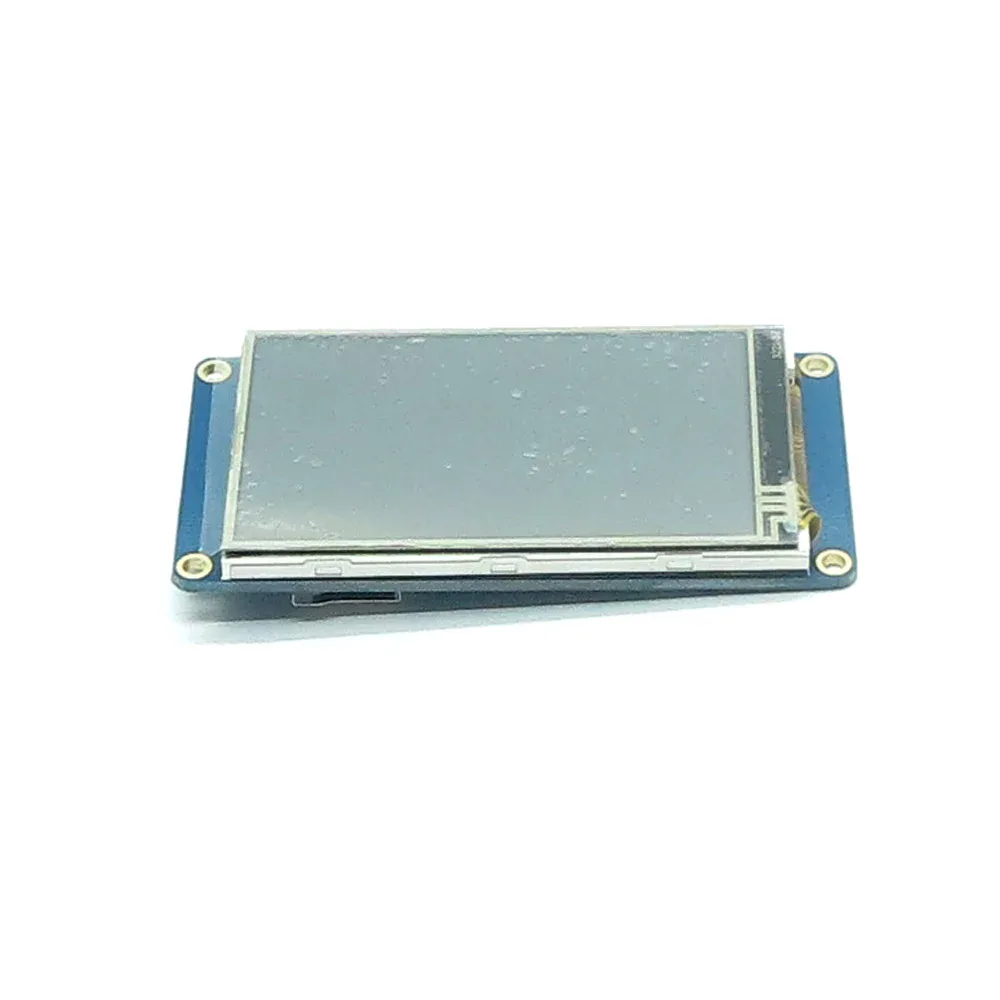

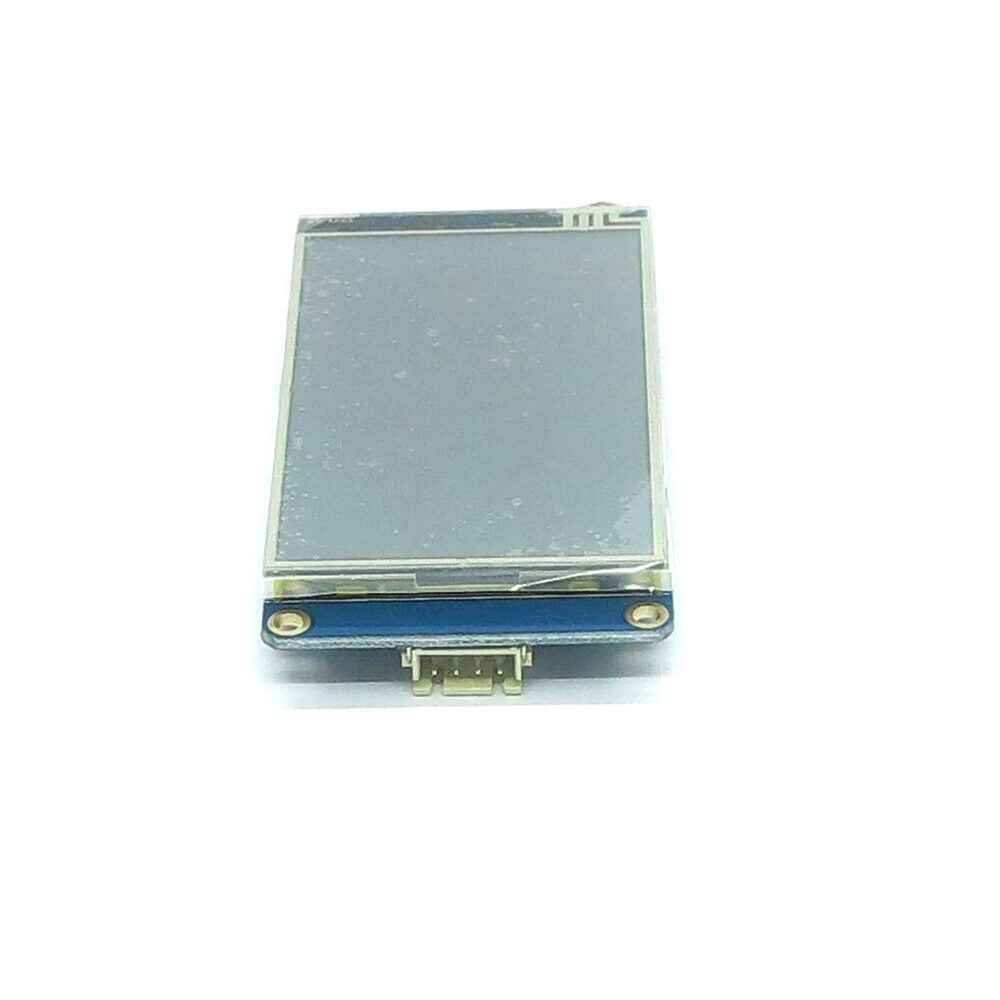

Nextion BASIC NX4024T032 3.2″ HMI TFT LCD Touch Display Module

Looking for Nx4024t032 Module? Nextion BASIC NX4024T032 3.2″ HMI TFT LCD Touch Display Module is available at Zbotic with fast shipping across India.

Note: We have discontinued this product.

Nextion NX4024T032 – Generic 3.2″ HMI TFT Intelligent LCD Touch Display Module is a seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application or appliance. Nextion is mainly applied to the Internet of thing (IoT) or consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tube.

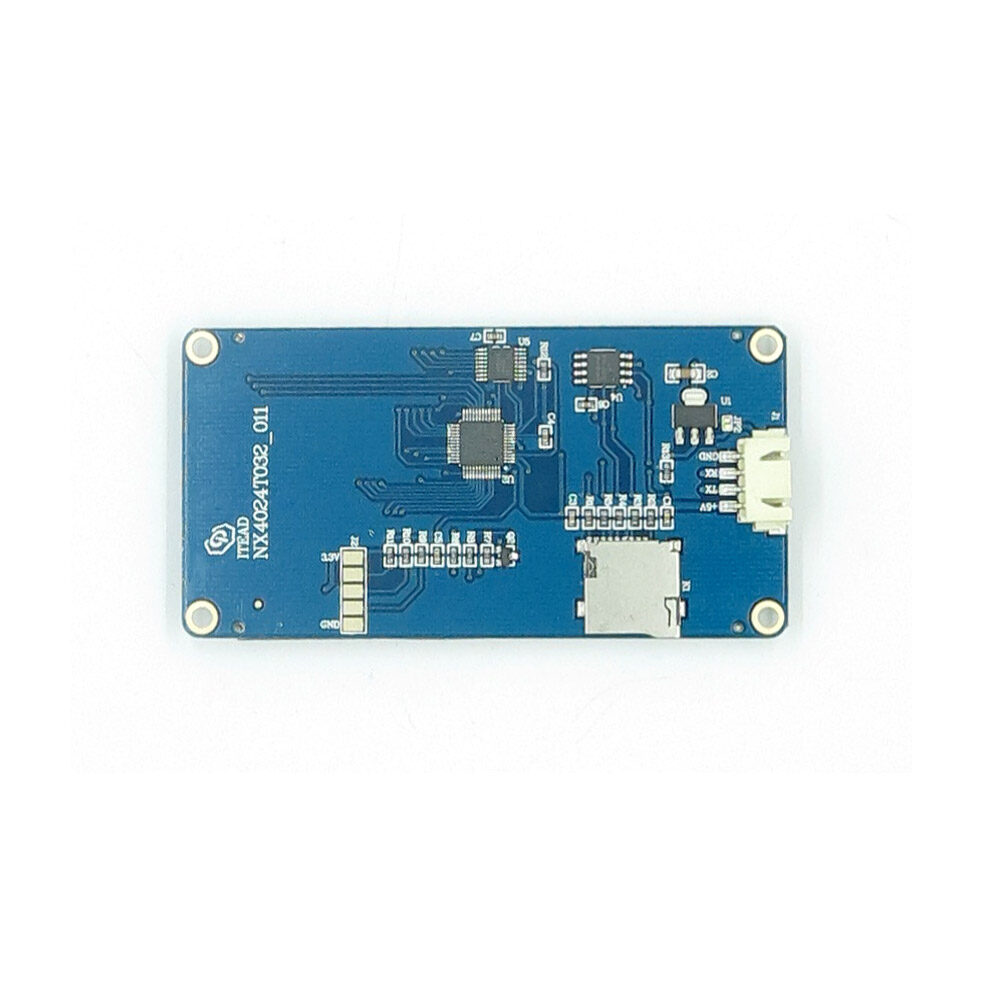

Nextion includes a hardware part (a series of TFT boards) and a software part (the Nextion editor). The Nextion TFT board uses only one serial port to communicate. It lets users avoid the hassle of wiring. We noticed that most engineers spend much time in application development but get unsatisfactory results. As a solution to this situation, Nextion editor has mass components such as button, text, progress bar, slider, instrument panel etc. to enrich the interface design. Furthermore, the drag-and-drop function ensures that users spend less time in programming, which will reduce 99% of their development workloads. With the help of this WYSIWYG editor, designing a GUI is a piece of cake.

It’s easy to adapt Nextion family HMI to existing projects. Users just need to provide it a UART.

Features:

1. 400 x 240 Resolution
2. RGB 65K true to life colors

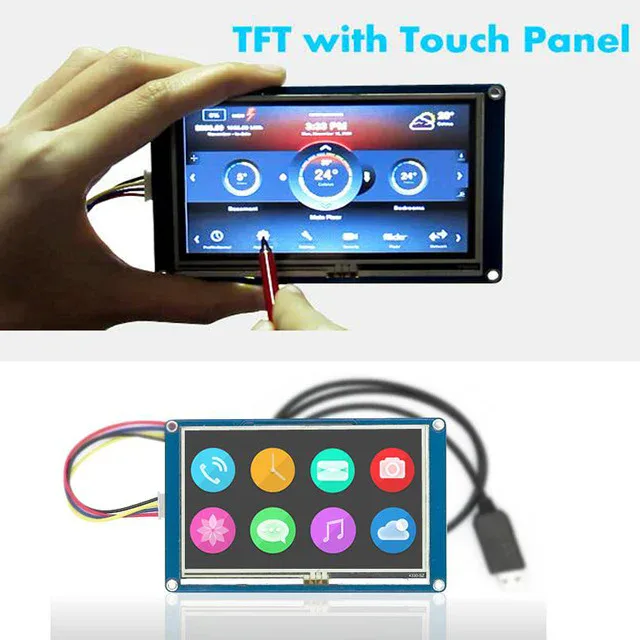

3. TFT Screen with integrated 4-wire Resistive Touch Panel
4. Easy 4 pin interface to any TTL Serial Host
5. 4M Flash memory for User Application Code and Data
6. Onboard micro-SD card for firmware upgrade
7. Visual Area:69.60mm(L)×41.76mm(W)
8. Adjustable Brightness:0~230 nit, the interval of adjustment is 1%
9. 5V85mA power consumption
10. CE/EMC, RoHS certified (certificates)

Software:

Documents:

Please visit our wiki page for more information about this product. Any suggestions for improvement, such as correcting errors, adding more demo codes or tutorials, will be highly appreciated.

Technical support:

For technical support, please open a ticket on Itead Support System.

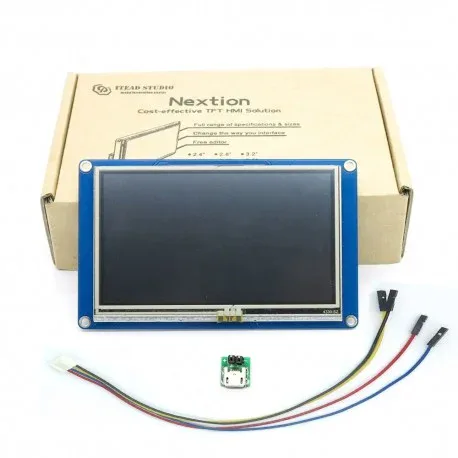

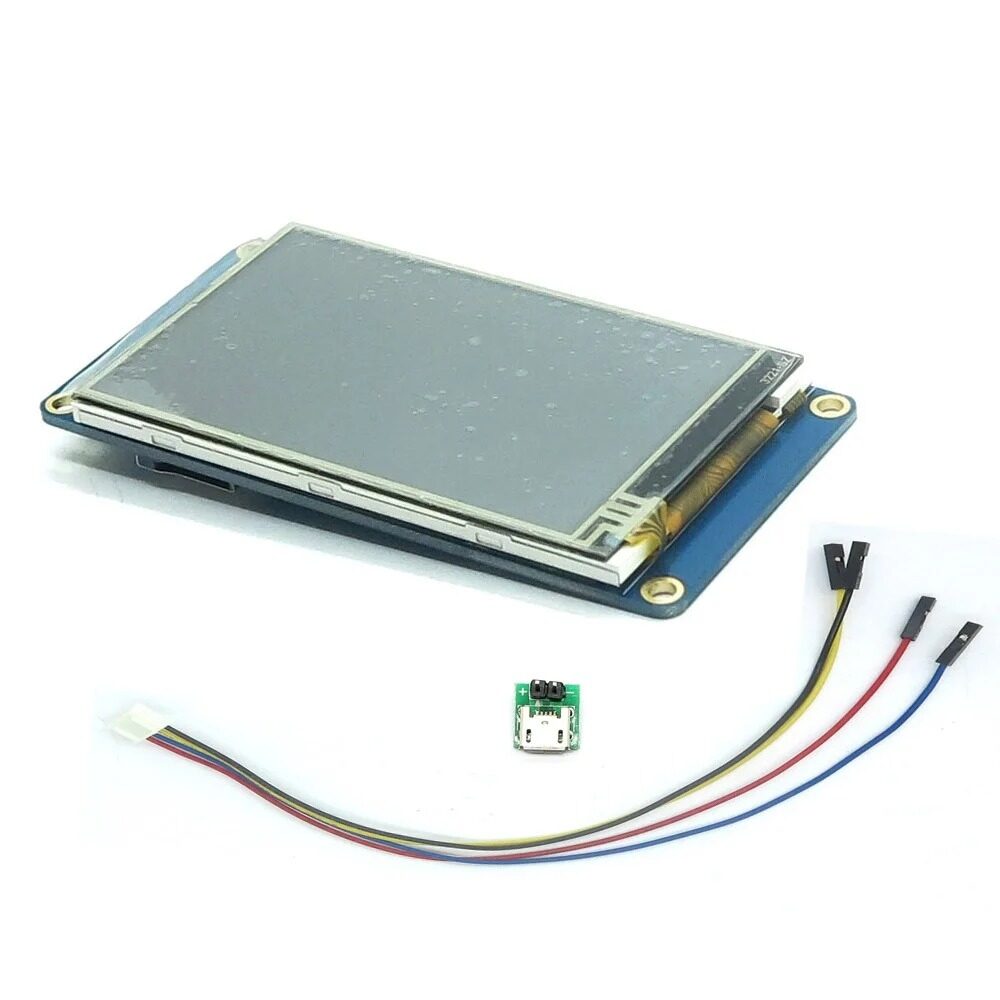

Package Includes:

1 x Nextion NX4024T032 – Generic 3.2″ HMI TFT Intelligent LCD Touch Display Module

1 x Connecting Wires

1 x Power Supply Test Board

About Nx4024t032 Module

Nextion BASIC NX4024T032 3.2″ HMI TFT LCD Touch Display Module is available at Zbotic, India’s trusted electronics and robotics store. Manufactured by Nextion, this product is designed for hobbyists, students, and professionals working on electronics, robotics, and DIY projects.

Product Details

• Brand: Nextion
• SKU: AI1843
• Category: HMI LCD Display

Why Buy from Zbotic?

Zbotic offers a wide range of electronics components, development boards, sensors, and robotics parts. All products are quality-checked and shipped within 24 hours. Free shipping on qualifying orders. We offer COD (Cash on Delivery) and secure online payment options. Our customer support team is available to help with technical queries about Nx4024t032 Module and other products.

Applications

Nx4024t032 Module can be used in a variety of projects including Arduino projects, Raspberry Pi builds, drone assembly, 3D printing, IoT applications, and educational experiments. Whether you are a beginner or an advanced user, this component provides the reliability and performance you need. Order your Nx4024t032 Module today and start building.

Nextion BASIC NX4024T032 3.2″ HMI TFT LCD Touch Display Overview

The Nextion BASIC NX4024T032 is a 3.2-inch TFT LCD touch display module designed as an all-in-one Human Machine Interface (HMI) solution. It offers a streamlined serial-port connection and a built-in resistive touch panel, making it ideal for integration into consumer electronics, industrial controls or appliance interfaces.

Key Features of Nextion BASIC NX4024T032 3.2″ HMI TFT LCD Touch Display

• 3.2″ TFT LCD with integrated resistive touch panel for interactive control
• Single UART serial interface simplifies wiring and communication with microcontrollers
• Seamless GUI design via Nextion Editor software on PC or Mac
• Onboard processor handles graphics rendering, offloading host MCU
• Compact footprint for space-constrained applications
• Fast shipping across India from Zbotic

Applications and Use Cases

• Industrial machine operator panels for status monitoring and control
• Home automation touchscreens for lighting, HVAC or security systems
• IoT prototypes needing a user-friendly display interface
• Consumer electronics devices such as smart appliances and gadgets
• Laboratory instruments requiring real-time data visualization

How to Use Nextion BASIC NX4024T032 3.2″ HMI TFT LCD Touch Display

Begin by powering the module with a regulated 5 V supply and connecting its TX/RX pins to your host microcontroller’s UART. Design your screens and touch events in the Nextion Editor, then upload the compiled HMI file via microSD card or USB-TTL adapter. Once loaded, the display will run your interface autonomously, communicating user actions back to the MCU over serial.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

How do I create and upload a custom interface?

Use the free Nextion Editor to drag-and-drop UI components, assign touch events and compile into an HMI file. Transfer the file to a FAT32 microSD card, insert it into the module’s slot, and cycle power. The display will auto-flash your design.

What communication protocol does the NX4024T032 use?

This module communicates over a single TTL-level UART serial port (TX/RX). Standard baud rates of 9600 or 115200 bps are supported and configurable via the Nextion Editor.

Can I interface this display with an Arduino?

Yes. Connect the display’s TX/RX pins to the Arduino’s RX/TX respectively, use a 5 V power supply, and send Nextion-formatted commands or read touch events through the Serial library.
