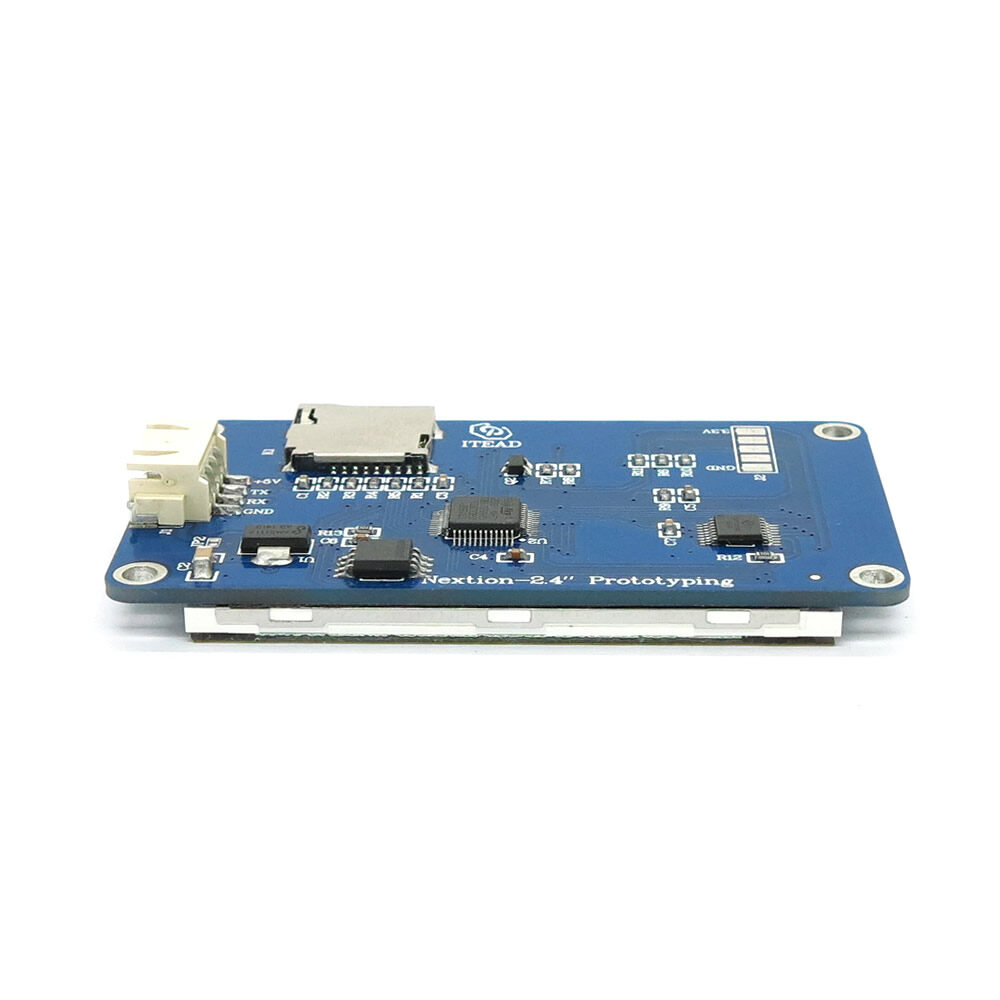

Nextion BASIC NX3224T024 2.4″ TFT ManMachine Interface HMI kernel LCD Touch Display
Description:
Nextion NX3224T024-Generic 2.4″ TFT Intelligent ManMachine Interface HMI kernel LCD Touch Display is a seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application or appliance. Nextion is mainly applied to the Internet of thing (IoT) or consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tube.
Nextion includes a hardware part (a series of TFT boards) and a software part (the Nextion editor). The Nextion TFT board uses only one serial port to communicate. It lets users avoid the hassle of wiring. We noticed that most engineers spend much time in application development but get unsatisfactory results. As a solution to this situation, Nextion editor has mass components such as button, text, progress bar, slider, instrument panel etc. to enrich the interface design. Furthermore, the drag-and-drop function ensures that users spend less time in programming, which will reduce 99% of their development workloads. With the help of this WYSIWYG editor, designing a GUI is a piece of cake.
It’s easy to adapt Nextion family HMI to existing projects. Users just need to provide it a UART.
ZBOTIC.IN is an official distributor for Nextion Displays in India.
Features:
- 320 x 240 Resolution
- Compatible with Raspberry Pi A+, B+ and Raspberry Pi 2
- RGB 65K true to life colors
- TFT Screen with integrated 4-wire Resistive Touch Panel
- Easy 4 pin interface to any TTL Serial Host
- 4M Flash memory for User Application Code and Data
- Onboard micro-SD card for firmware upgrade
- Visual Area:36.72mm(L)×48.96mm(W)
- Adjustable Brightness:0~180 nit, the interval of adjustment is 1%
- 5V90mA power consumption
- Generic using for all Arduino or Raspberry Pi project
- CE/EMC, RoHS certified
Interfaces Performance:
| Test Conditions | Min | Typical | Max | Unit | |
|---|---|---|---|---|---|
| Serial Port Baudrate | Standard | 2400 | 9600 | 115200 | bps |
| Output High Voltage | IOH=-1mA | 3.0 | 3.2 | – | V |
| Output low Voltage | IOL=1mA | – | 0.1 | 0.2 | V |
| Input High Voltage | – | 2.0 | 3.3 | 5.0 | V |
| Input low Voltage | – | -0.7 | 0.0 | 1.3 | V |
| Serial Port Mode | TTL | ||||
| Serial Port | 4Pin_2.54mm | ||||
| USB interface | NO | ||||
| SD card socket | Yes (FAT32 format), support maximum 32G Micro SD Card | ||||
Datasheet:
https://nextion.tech/datasheets/nx3224t024/#7
Package Includes:

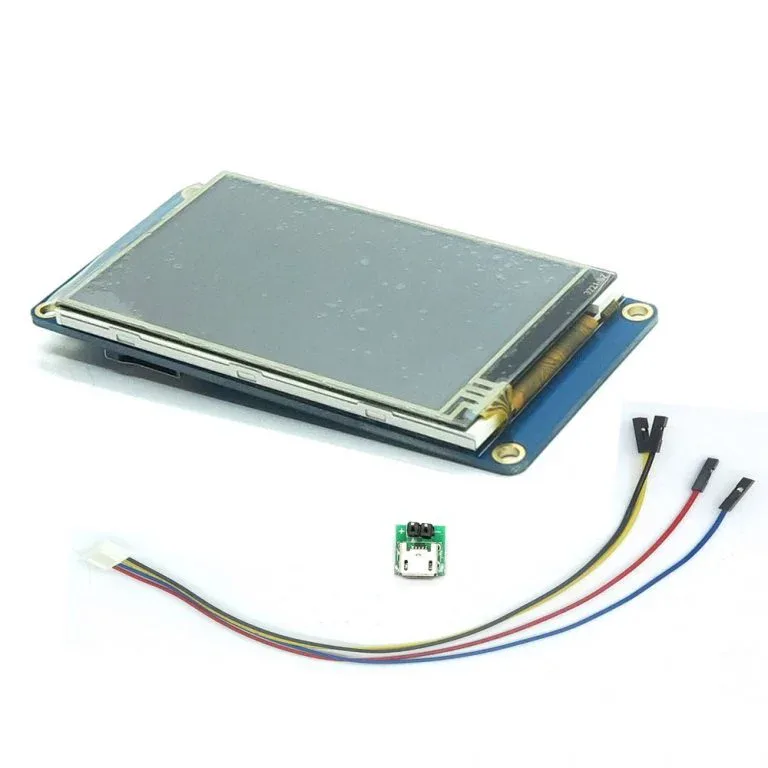

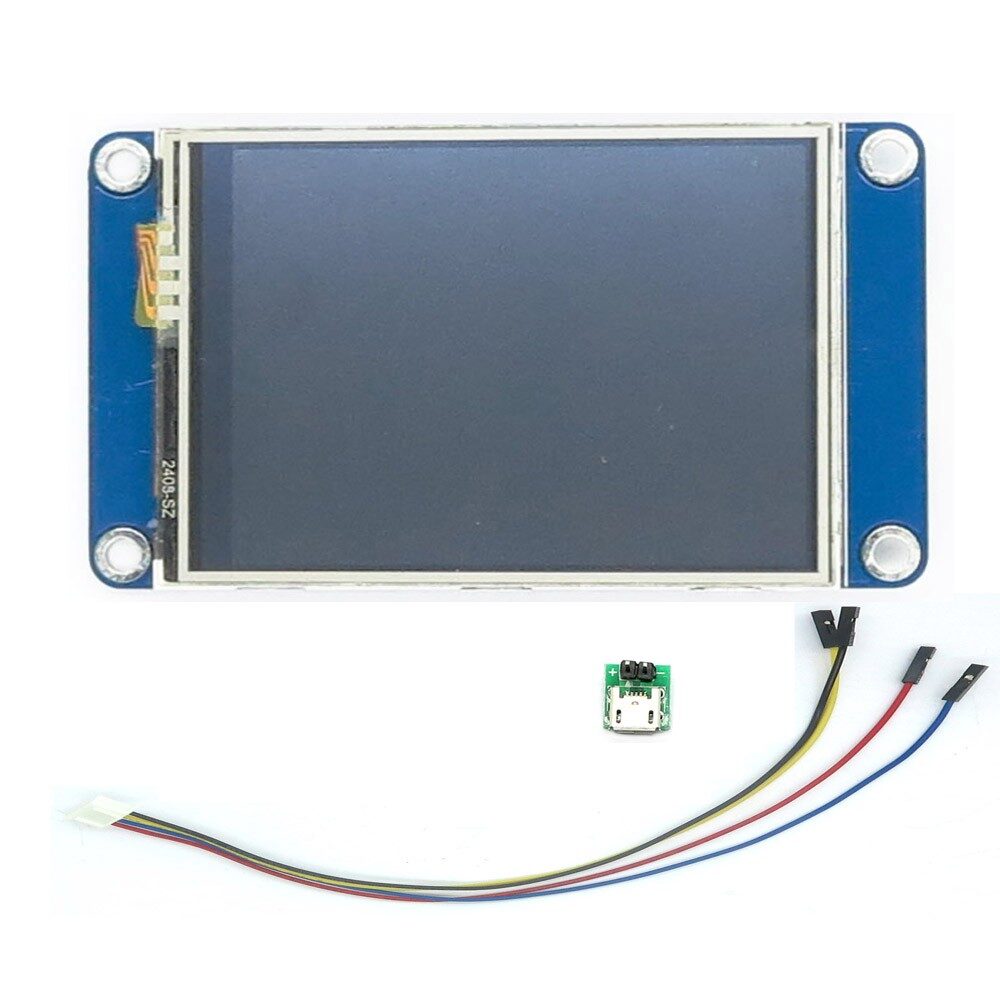

1 x Nextion NX3224T024 – Generic 2.4″ TFT Intelligent LCD Touch Display
1 x Connecting Cable
1 x Power Supply Test Board
This Nx3224t024 Display is a popular choice among hobbyists and professionals. The Nx3224t024 Display offers reliable performance for your projects.
About Nx3224t024 Display
Nextion BASIC NX3224T024 2.4″ TFT ManMachine Interface HMI kernel LCD Touch Display is available at Zbotic, India’s trusted electronics and robotics store. Manufactured by Nextion, this product is designed for hobbyists, students, and professionals working on electronics, robotics, and DIY projects.
Product Details
- Brand: Nextion
- SKU: AI1841
- Category: HMI LCD Display
Why Buy from Zbotic?
Zbotic offers a wide range of electronics components, development boards, sensors, and robotics parts. All products are quality-checked and shipped within 24 hours. Free shipping on qualifying orders. We offer COD (Cash on Delivery) and secure online payment options. Our customer support team is available to help with technical queries about Nx3224t024 Display and other products.
Applications
Nx3224t024 Display can be used in a variety of projects including Arduino projects, Raspberry Pi builds, drone assembly, 3D printing, IoT applications, and educational experiments. Whether you are a beginner or an advanced user, this component provides the reliability and performance you need. Order your Nx3224t024 Display today and start building.
Nextion BASIC NX3224T024 2.4″ TFT ManMachine Interface Overview
The Nextion BASIC NX3224T024 is a 2.4-inch TFT touchscreen HMI kernel module designed to simplify human–machine interactions. It offers a compact display solution for visualizing status, controlling processes, or navigating menus in embedded and IoT applications.
Key Features of Nextion BASIC NX3224T024 2.4″ TFT ManMachine Interface
- 2.4″ TFT LCD with integrated touch panel for intuitive user input
- Single UART serial interface for easy connection to microcontrollers
- Standalone HMI kernel—no external graphics controller needed
- Programmable via Nextion Editor software for custom GUI design
- Onboard flash memory stores UI elements, fonts, and images
- Genuine stock with fast shipping from Zbotic across India
Applications and Use Cases
- Control panel for home automation devices such as smart thermostats
- Status display in consumer electronics and kitchen appliances
- Interface screen for industrial machinery and test equipment
- Front-end display for 3D printers or CNC machines
- Visualization module in custom IoT sensor or data-logging projects
How to Use Nextion BASIC NX3224T024 2.4″ TFT ManMachine Interface
Begin by designing your user interface in the Nextion Editor on your PC, then compile and upload the HMI file to the display via its microSD slot or USB-to-serial adapter. Connect the module’s TX/RX pins to your microcontroller’s serial port and supply 5 V power. Once powered and connected, your MCU can exchange commands and data with the screen over the single UART channel.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
How does this display communicate with a microcontroller?
The Nextion BASIC NX3224T024 uses a single UART serial interface (TX/RX) at TTL level, simplifying wiring and code on platforms like Arduino, STM32, or ESP series.
What software do I need to create the touchscreen UI?
You can design, simulate, and compile your graphical interface using the free Nextion Editor available for Windows. Once compiled, upload the .HMI file directly to the display’s flash memory.
Can I include custom fonts and images in my project?
Yes. The Nextion Editor allows you to import TTF fonts and PNG images, then assign them to buttons, text fields, and other components before flashing to the NX3224T024 unit.
