Looking for Nema17? Nema17 Stepper Motor Shock Absorber / Vibration Damper is available at Zbotic with fast shipping across India.
PRODUCT DESCRIPTION
Does your 3D printer make too much noise?
A 3D printer that makes unpleasant noises can be annoying for the operator and anyone else in the room. However, this can be tolerated if the 3D printer produces beautiful results. But what if the noise from the stepper motors affects the quality of the output? That is something that cannot be ignored.
Don’t worry!! We have the perfect solution for your noise problem: a vibration damper or a shock absorber for your NEMA 17 stepper motor. It is easy to install and only takes a few minutes to disassemble and reassemble.
The stepper motors can create sound waves at certain frequencies, which are unwanted and can be amplified by a 3D printer made of sheet metal or wood.
You can use this Nema17 Stepper Motor Shock Absorber / Vibration Damper to eliminate this noise issue. Just attach this rubber barrier between the motor and the 3D printer frame. This will prevent the vibrations from the stepper motor from reaching the 3D printer frame.

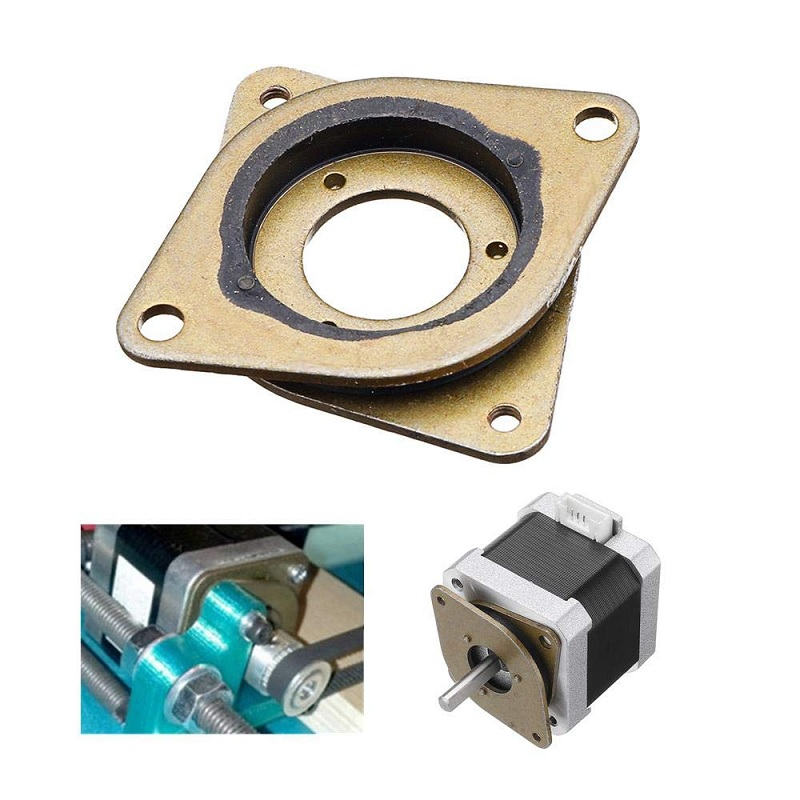

The damper has two sides: one with non-threaded holes for mounting the stepper motor, and one with threaded holes for mounting the printer. This is a great device to reduce the sound made by your 3D printers.
Features:
- Useful in reducing shocks.
- Effective for 3D printers
- This will help to reduce resonance.
Specification:
| Material | Rubber |
|---|---|
| Motor Type | NEMA17 |
| Inner Diameter (ID) (mm) | 15 |
| Length (mm): | 51 |
| Width (mm) | 51 |
| Weight (gm) | 20 |
| Shipping Weight | 0.022 kg |
| Shipping Dimensions | 5 × 5 × 1 cm |
Package Includes:
1 x Nema17 Stepper Motor Vibration Damper.
Nema17 Stepper Motor Shock Absorber / Vibration Damper Overview

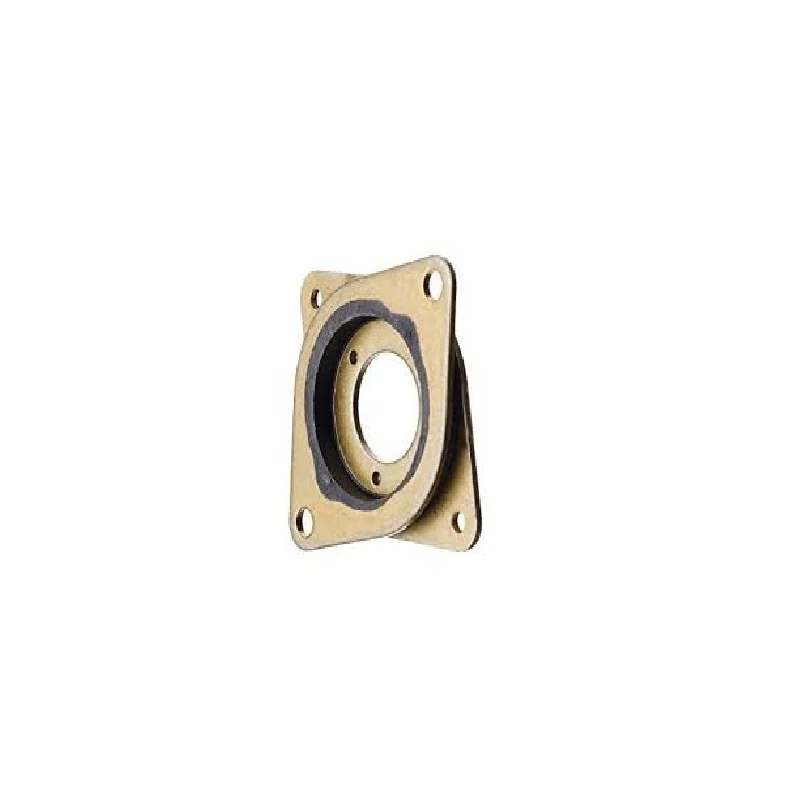

The Nema17 Stepper Motor Shock Absorber is a rubber vibration damper designed specifically for NEMA17 stepper motors. It fits the 51×51 mm mounting flange with a 15 mm inner diameter cut-out and 6 mm thickness to isolate motor-induced resonance, reducing noise and improving print or machining quality.
Key Features of Nema17 Stepper Motor Shock Absorber / Vibration Damper
- Premium Rubber Material: Durable elastomer construction resists wear and maintains elasticity.
- Standard NEMA17 Fit: 51×51 mm outer dimensions align with NEMA17 motor mounting holes.
- 15 mm Inner Diameter: Central cut-out provides clearance around the motor shaft and coupling.

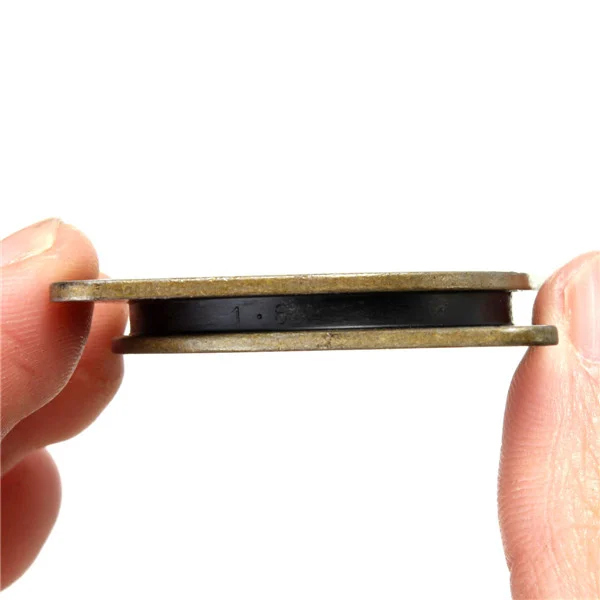

- 6 mm Thickness: Optimal thickness for damping vibrations without altering motor alignment.
- Resonance Reduction: Minimizes stepper motor hum and resonance for quieter operation.
- Fast Shipping from Zbotic: Genuine product dispatched within 24 hours across India.
Applications and Use Cases
- 3D printers: Dampens stepper noise for cleaner surface finishes.
- CNC machines: Reduces chatter and improves cut accuracy.
- Laser cutters: Minimizes vibration for sharper engraving details.
- Robotic arms: Enhances positional stability in pick-and-place tasks.
- Automation platforms: Lowers mechanical noise in conveyor or gantry systems.
How to Use Nema17 Stepper Motor Shock Absorber / Vibration Damper
To install, remove the four mounting screws from your NEMA17 motor, position the rubber damper between the motor flange and mounting surface (aligning the 15 mm hole over the shaft), then reinsert and tighten the screws to secure. No additional tools are needed and installation typically takes under five minutes per motor.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Will this damper fit all NEMA17 stepper motors?
Yes. The 51×51 mm dimensions match the standard NEMA17 mounting flange, and the 15 mm inner hole provides clearance around the motor shaft and coupling.
How much noise reduction can I expect?
This rubber damper effectively reduces resonance and motor hum, resulting in noticeably quieter operation. Actual decibel reduction varies with motor model and operating speed.
Can I use this on CNC or laser machines?
Absolutely. Any application using a NEMA17 stepper—CNC routers, laser cutters, robotics—will benefit from reduced vibration and improved precision when fitted with this shock absorber.
