This is the 6V variant of the N20-6V-200 RPM Micro Metal Gear-box DC Motor in N20 Gear Motor without Encoder. Available at ₹248.98 (₹211.00 + GST) with free shipping across India.

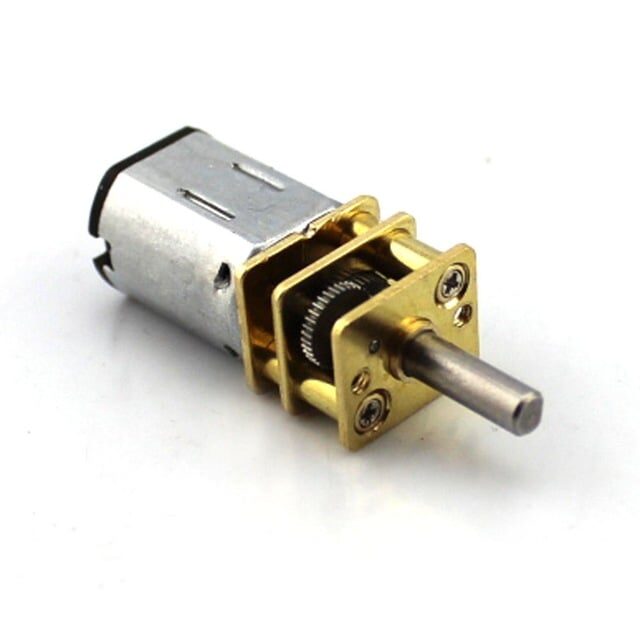

This N20-6V-200 Rpm Micro Metal Gear Motor is a small, powerful, and durable motor with all-metal gears. It can replace the old or broken DC geared motors on various machines. It is suitable for applications such as Boats, Cars, Electric Bicycles, Fans, and Home Appliances.
The N20 Micro Gear 6V 200 RPM DC Motor is a lightweight motor that delivers high torque and low speed. It has a gearbox assembly that increases its torque output. It has a rectangular cross-section of 10 × 12 mm, and a D-shaped output shaft that is 9 mm long and 3 mm in diameter. It has a compact size that fits in small spaces of different projects. It can be attached to wheels to move heavy loads from one place to another.
Features :
- This is a DC Mini Metal Gear Motor, ideal for making robots
- Lightweight, high torque and low RPM.
- Fine craftsmanship, durable, not easy to wear.
- With excellent stall characteristics, can climb hills easily.
- You can also easily mount a wheel on the motor’s output shaft.
Specification-
| Model No. | N20-6V-200 |
|---|---|
| Operating Voltage (VDC) | 3 ~ 6 |
| No Load Current (mA) | 0.04 A |
| Stall Current (A) | 0.67 |
| Rated Torque(kg-cm) | 0.4 |
| Stall Torque(Kg-Cm) | 1.2 |
| Motor Body Size (Diameter) (mm) | 12 |
| Rated Operating Voltage (VDC) | 6 |
| No load Speed (RPM) | 200 |
| Rated Speed (RPM) | 200 |
| Shaft Type | D-type, Single Side |
| Shaft Diameter (mm) | 3 |
| Weight (g): | 12 |
| Output Axial Length (mm) | 10 |
| Fuselage w/o Shaft Length | 26 |
| Screw Size | M3 |
| Shipping Weight | 0.016 kg |
| Shipping Dimensions | 6 × 6 × 2 cm |
Package Includes :
1 x N20-6V-200 RPM Micro Metal Gear-box DC Motor
