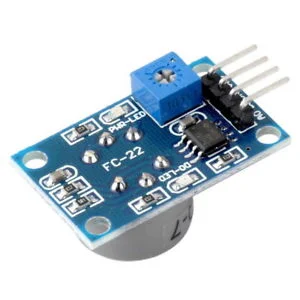

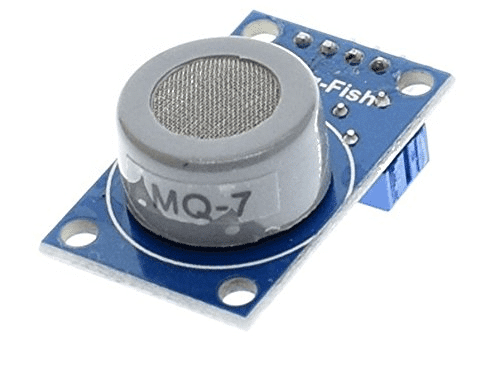

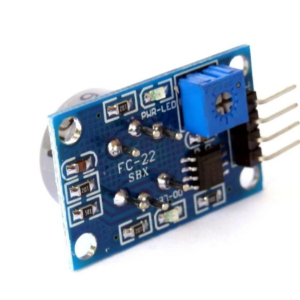

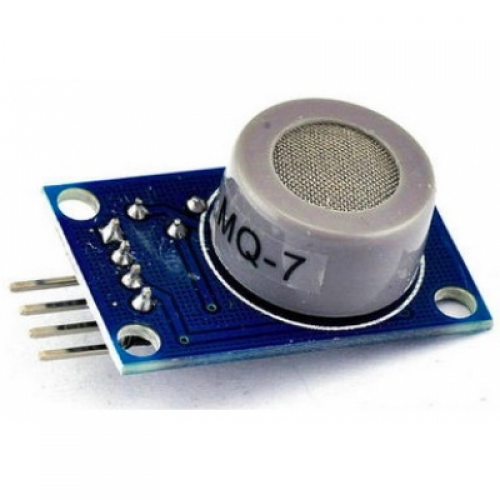

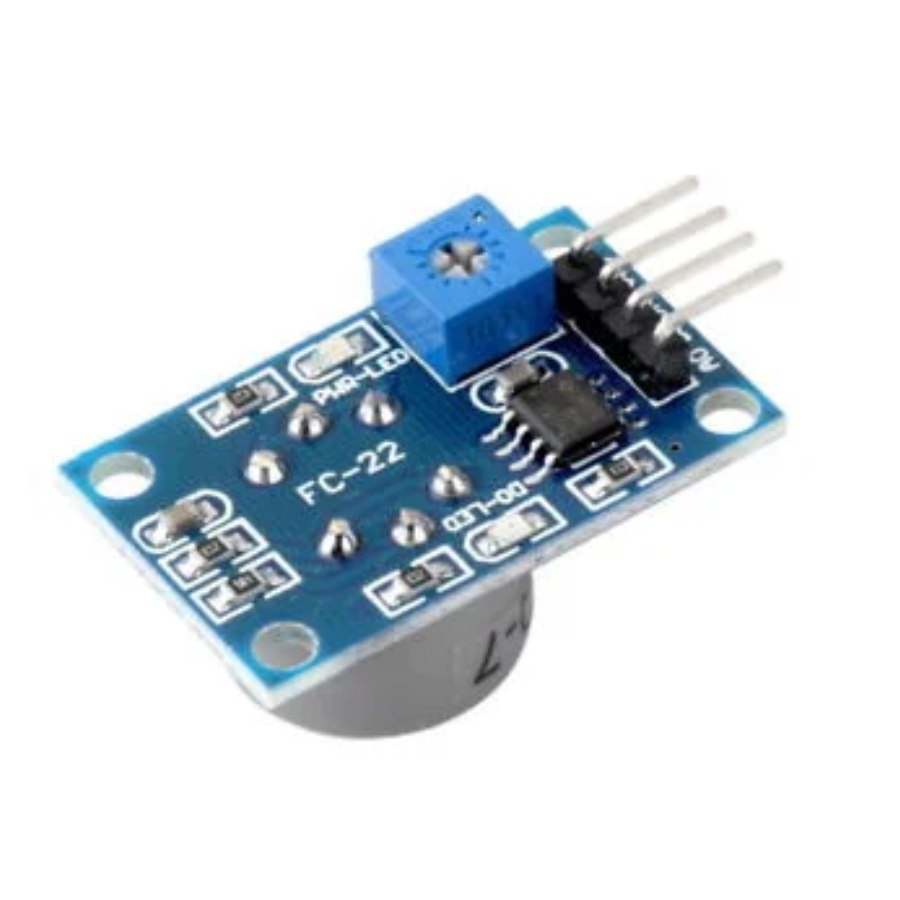

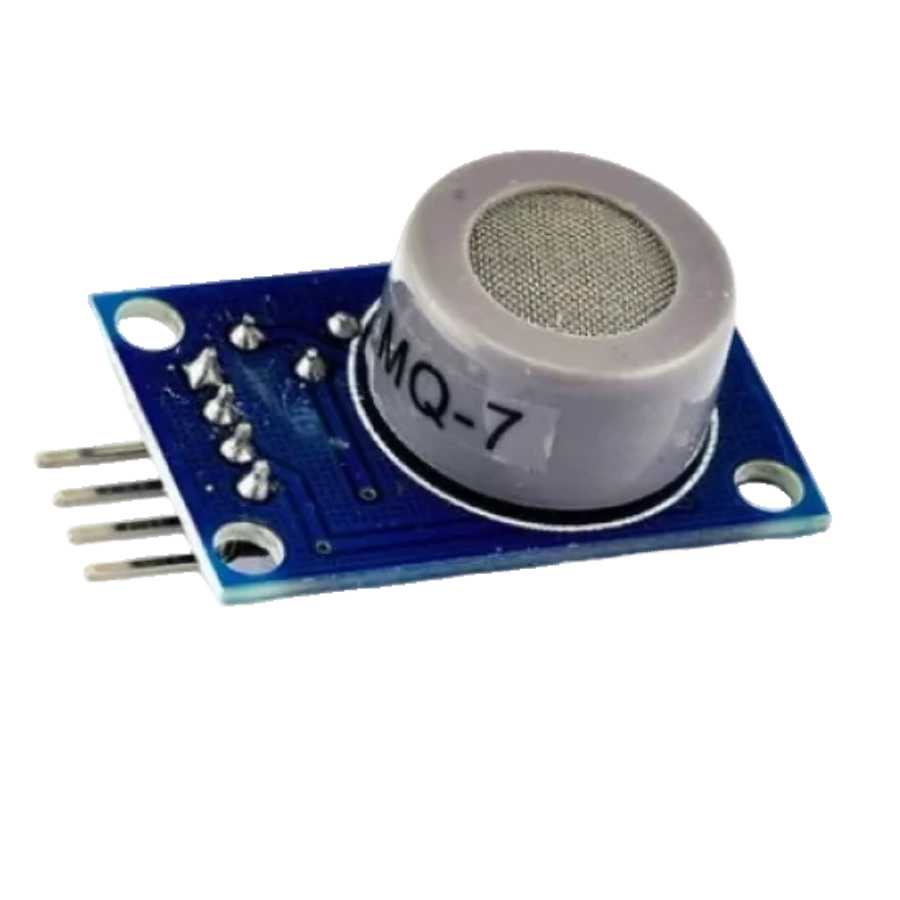

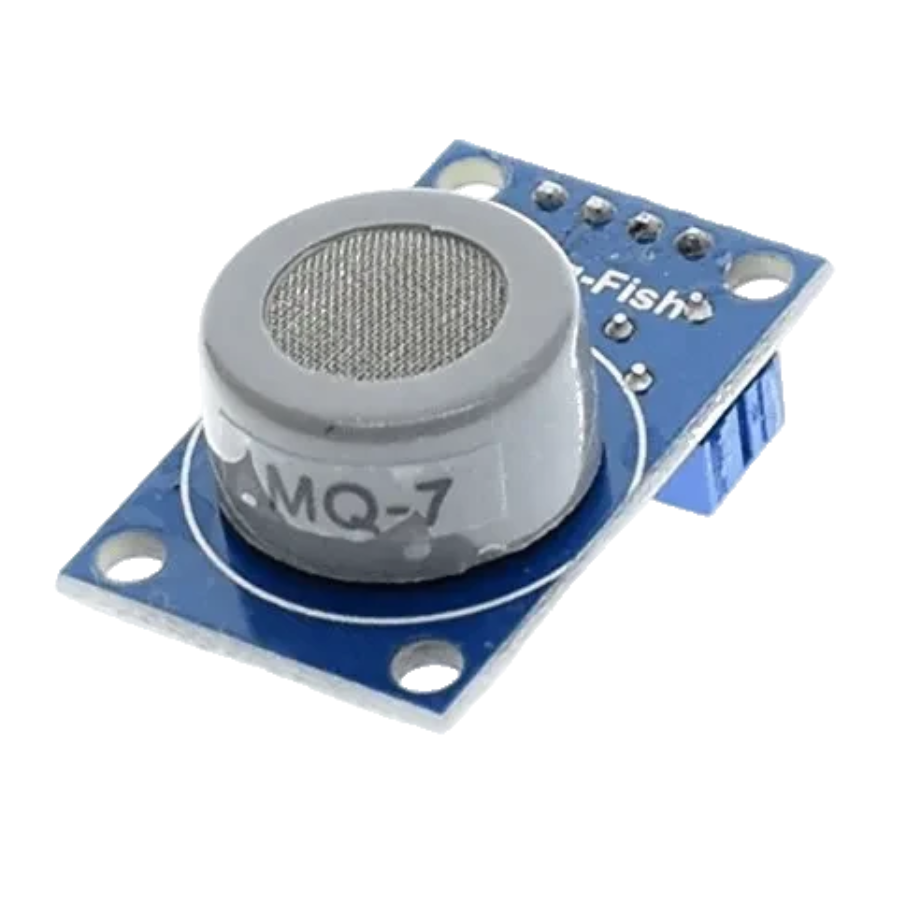

Introducing the MQ-7 CO Carbon Monoxide Coal Gas Sensor Module, your reliable solution for monitoring CO concentrations in the air. This sensor accurately detects CO levels ranging from 10 to 10,000 ppm, providing vital information for maintaining indoor air quality and ensuring safety.
Operating within a temperature range of -10 to 50°C, this sensor module consumes less than 150 mA at 5V, making it efficient and versatile for various applications.
Equipped with both digital and analog outputs, the module offers flexibility in data interpretation. Easily adjust the digital output threshold using the onboard preset, enabling seamless integration with microcontrollers, Arduino boards, and other compatible devices.
Ensure a safe and healthy environment with the MQ-7 CO Carbon Monoxide Coal Gas Sensor Module, your trusted ally in CO detection and monitoring.
Standard Test Conditions
Temperature:20°C ± 2°C
Humidity:65% ± 5% RH
Standard Test Circuit: Vc:5.0V ± 0.1V; Vh(high):5.0V±0.1V
Vh(low):1.5V±0.1V
Features
The voltage of the analog output increases as the concentration increases.
The sensitivity of the carbon monoxide detection is high.
There are four screw holes for easy positioning.
The service life is long and the stability is reliable.
The response and recovery characteristics are fast.
specification:
Operating voltage (v)
DC 5
Range
10 ~ 1000 ppm
Characteristic gas
100 ppm CO
Sensitivity
≥ 3%.
Return time
≤ 30 sec
Heating resistance
± 31 Ω
Heating current
≤ 180 mA
Heating voltage
5.0V ± 2V / 1.5 ± 1V
Heating power
approx. 350 mW
Ambient temperature (°C)
-20 ~ + 50
Humidity
≤ 95% RH
Oxygen content
21%.
Length (mm):
35
Width (mm)
20
Height (mm)
11
Weight (gm)
20
Package Includes
1 x MQ-7 CO Carbon Monoxide Coal Gas Sensor Module.
The MQ-7 CO Carbon Monoxide Coal Gas Sensor Module is a versatile gas and dust sensor used across a wide range of applications including air quality monitoring, gas leak detection, industrial safety, HVAC systems, and environmental monitoring.
Common use cases:
Building a gas leak alarm for LPG/methane
Monitoring indoor air quality (CO2, VOC)
Dust monitoring in a workshop
This product is ideal for environmental engineers, safety professionals, and IoT developers.
Technical Tip: MQ-series sensors need a warm-up period (24-48 hours for first use). Calibrate in clean air for accurate readings.
