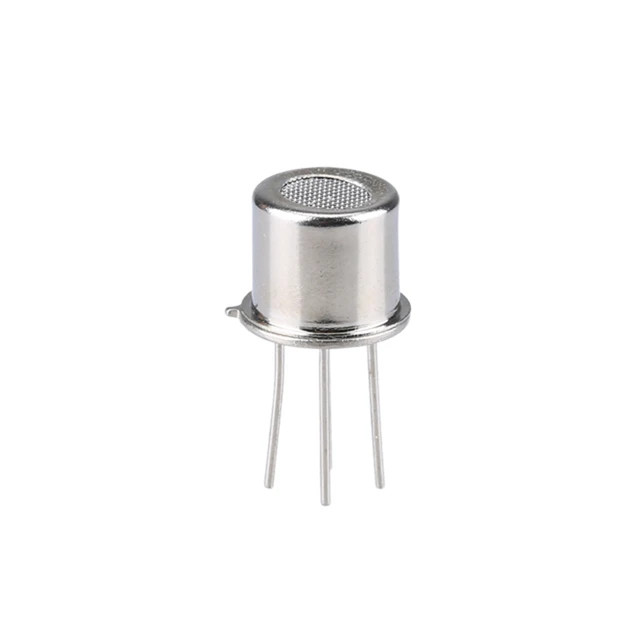

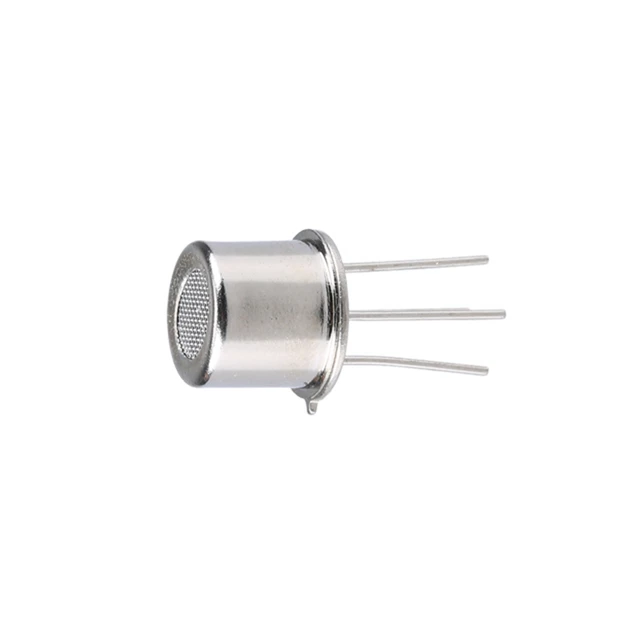

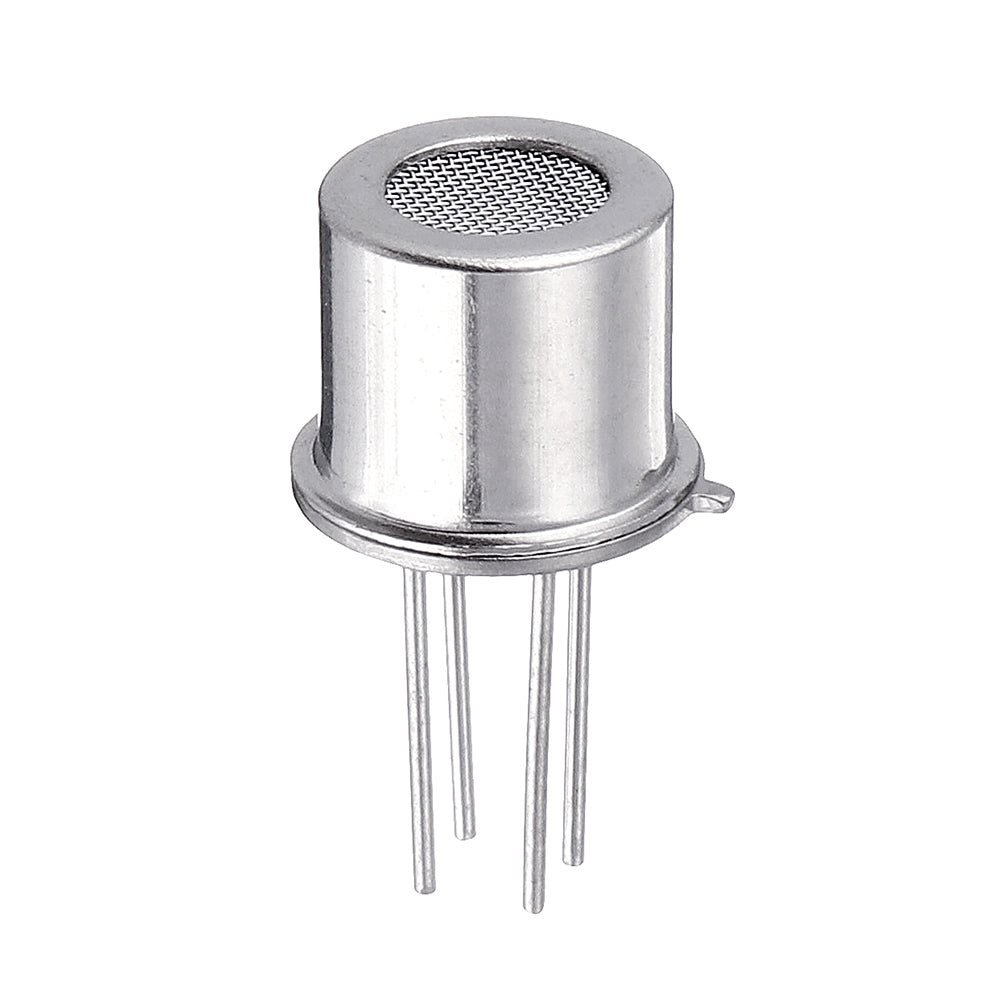

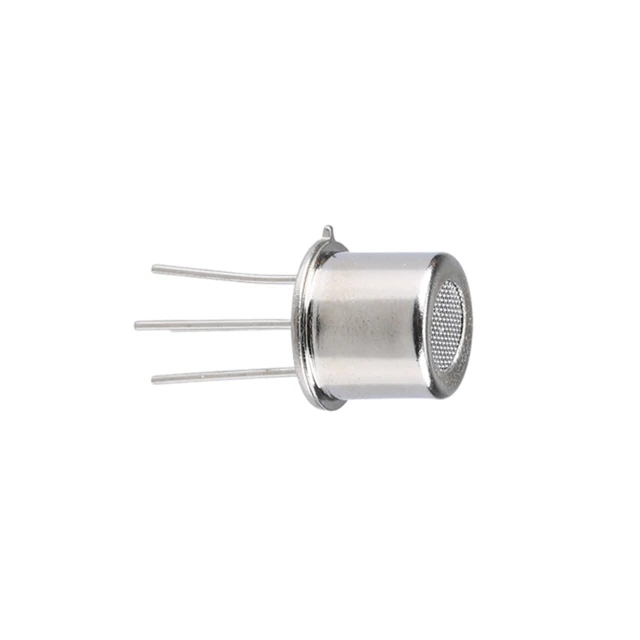

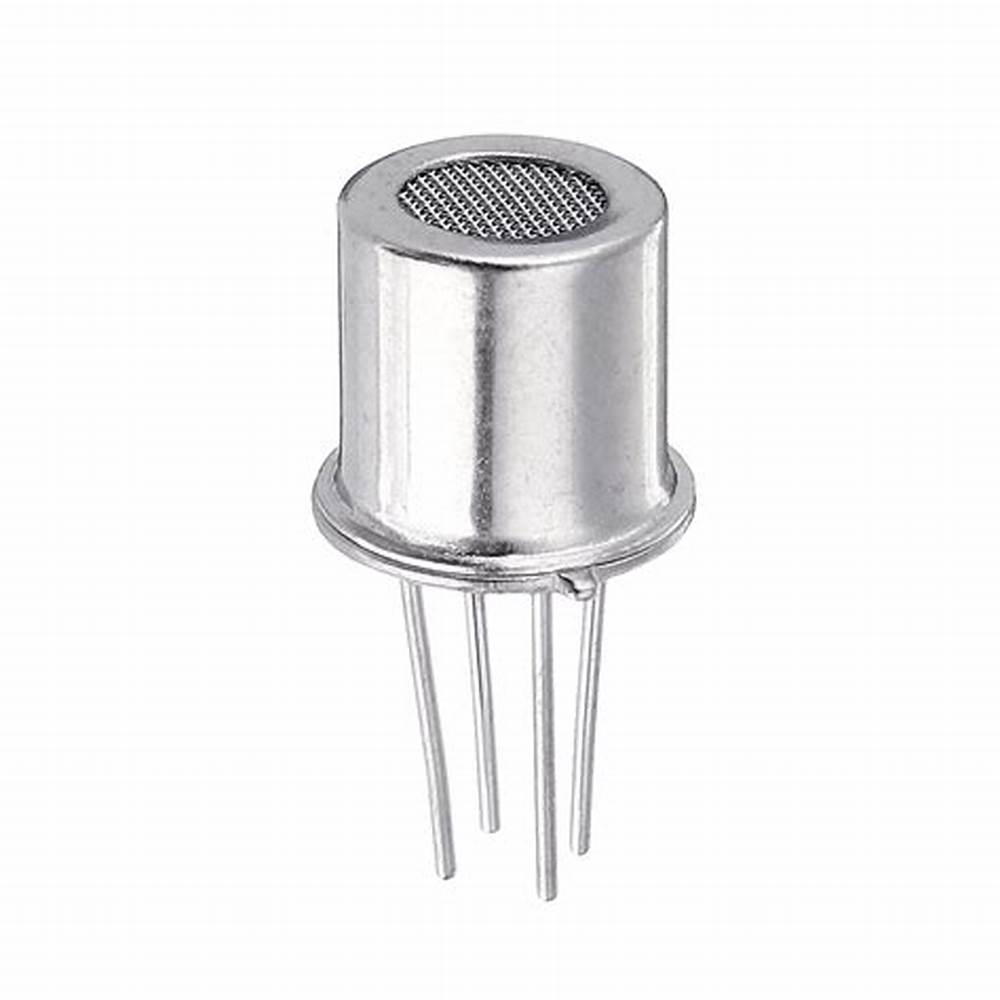

MP135 Air Pollution Gas Sensor DIP-4
The MP135 Air Pollution Gas Sensor, housed in a DIP-4 package, is an essential tool for detecting and measuring a wide variety of pollutants in the air. Known for its broad detection range, fast response time, and high sensitivity, this sensor offers reliable performance for air quality monitoring. It can detect volatile organic compounds (VOCs), carbon dioxide, carbon monoxide, and other harmful gases, providing critical data for environmental assessments and management. With the insights from the MP135 sensor, individuals, communities, and regulatory authorities can take informed actions to improve air quality and protect public health. In comparison to similar sensors like the MQ135, the MP135 excels in accuracy, reliability, and ease of integration, making it a top choice for air quality monitoring applications.
Features:
Gas Detection: The MP135 is capable of detecting multiple gases, including ammonia (NH3), nitrogen dioxide (NO2), and benzene (C6H6), among others.
Sensitivity: The sensor’s sensitivity might vary based on the specific gas being detected.
Analog Output: It typically provides an analog output voltage that changes in response to the concentration of the detected gas.
Operating Voltage: The sensor module might require a specific operating voltage, typically around 5V.
Calibration: Like many gas sensors, proper calibration is essential for accurate readings.
Selective Gas Detection: If your application requires the detection of specific gases such as ammonia (NH3), nitrogen dioxide (NO2), or benzene (C6H6), the MP135 might be a better choice due to its ability to detect these gases.
Targeted Environmental Monitoring: If your project focuses on monitoring and controlling certain pollutants like industrial gases or specific toxic compounds, the MP135’s selectivity could be advantageous.
Air Quality in Specific Environments: If you need to assess air quality in specific environments where the presence of certain gases is more critical, such as industrial settings or areas near pollution sources, the MP135’s targeted detection capabilities might be useful.
Specification:
- Model No. MQ135
- Sensor Type Semiconductor
- Standard Encapsulation Bakelite (Black Bakelite)
- Detection Gas Ammonia, Sulfide, petrol steam
- Concentration 10-10000ppm (Ammonia, gas, Hydrogen)
- Loop Voltage Vc ≤24V DC
- Heater Voltage VH 5.0V ± 0.2V AC or DC
- Load Resistance RL Adjustable
- Heater Resistance RH 31Ω ± 3Ω (Room Tem.)
- Heater consumption PH ≤900mw
- Diameter: 7MM
- Thickness: 0.125” Thick
PACKAGE INCLUDES
1 X MP135 Air Pollution Gas Sensor DIP-4
MP135 Air Pollution Gas Sensor DIP-4 Overview
The MP135 Air Pollution Gas Sensor in a DIP-4 package is designed for detecting and measuring a wide range of harmful air pollutants. Ideal for real-time air quality monitoring, it provides critical data on volatile organic compounds, carbon dioxide, carbon monoxide, and other gases.
Key Features of MP135 Air Pollution Gas Sensor DIP-4
- Broad detection range for VOCs, CO₂, CO and other harmful gases
- Fast response time for near-instant readings
- High sensitivity to low concentrations
- Standard DIP-4 package for easy PCB integration
- Compact and lightweight (1 g) design
- Genuine product with fast shipping from Zbotic
Applications and Use Cases
- Indoor air quality monitoring in homes and offices
- Portable environmental testing devices
- Trigger control for smart air purifiers and HVAC systems
- Industrial emission and workplace safety sensors
- Outdoor air quality stations and research projects
How to Use MP135 Air Pollution Gas Sensor DIP-4
Mount the MP135 onto your PCB using the DIP-4 footprint, supply the recommended operating voltage (typically 5 V), and connect the analog output to your microcontroller’s ADC input. Allow a warm-up period of 1–2 minutes for sensor stabilization, then read voltage changes corresponding to gas concentrations. Calibrate against known gas levels for accurate measurements.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What gases can the MP135 detect?
The MP135 is optimized to detect volatile organic compounds (VOCs), carbon dioxide (CO₂), carbon monoxide (CO) and a variety of other hazardous gases found in indoor and outdoor environments.
How do I interface the MP135 with a microcontroller?
Connect the sensor’s VCC and GND to your power supply (usually 5 V), then route the analog output pin to an ADC channel on your microcontroller. Use a load resistor as specified in the datasheet and read voltage variations to infer gas concentration.
What is the recommended warm-up time before taking readings?
Allow the MP135 sensor to warm up for approximately 1–2 minutes after power-up. This ensures stable baseline readings and consistent sensitivity for accurate air quality measurements.
Flame and Fire Sensor: IR Detection for Safety Systems
Fire detection is one of the most critical safety functions in any building, factory, or automated system. Flame...
Read More →
MLX90640 Thermal Camera Array: Build a Fever Scanner
Table of ContentsIntroduction to the MLX90640How Thermal Array Sensors WorkMLX90640 SpecificationsHardware RequirementsWiring to Arduino / ESP32Library Installation and...
Read More →
Piezoelectric Vibration Sensor: Knock Detection with Arduino
Table of Contents Introduction to Piezoelectric Vibration Sensing The Piezoelectric Effect Explained Piezo Sensor Modules vs Bare Elements...
Read More →Technical Specifications
| Model | MP135 |
|---|---|
| SKU | AI3539 |
| Weight | 0.0 kg |
| Availability | In Stock |
Applications & Use Cases
The MP135 Air Pollution Gas Sensor DIP-4 is a versatile air quality sensor used across a wide range of applications including air quality monitoring, gas leak detection, industrial safety, HVAC systems, and environmental monitoring.
Common use cases:
- Building a gas leak alarm for LPG/methane
- Monitoring indoor air quality (CO2, VOC)
- Dust monitoring in a workshop
This product is ideal for environmental engineers, safety professionals, and IoT developers.
Technical Tip: MQ-series sensors need a warm-up period (24-48 hours for first use). Calibrate in clean air for accurate readings.
