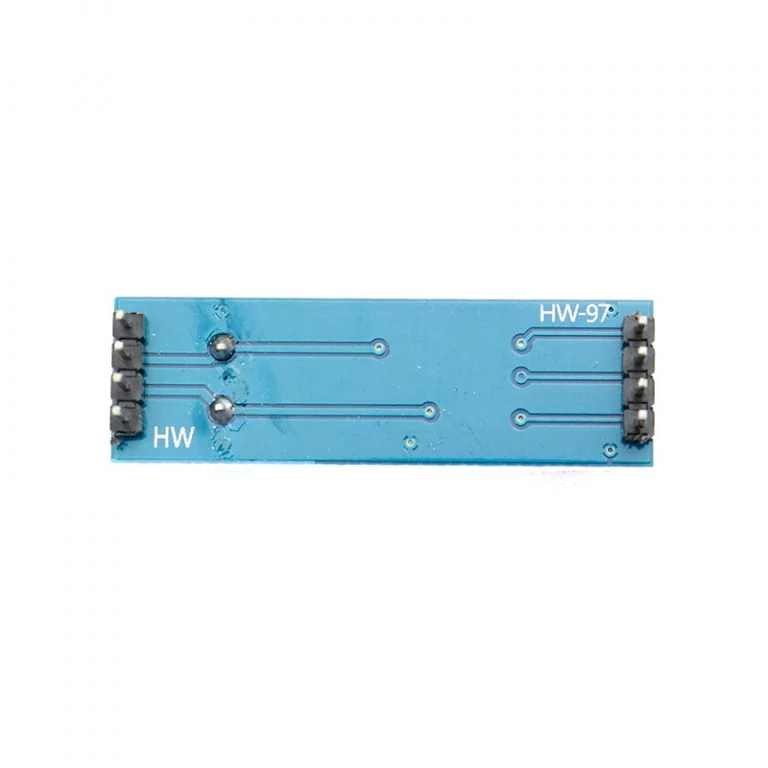

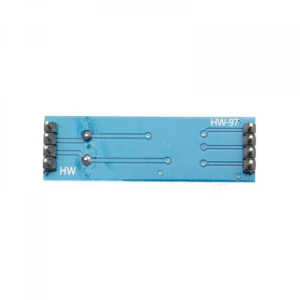

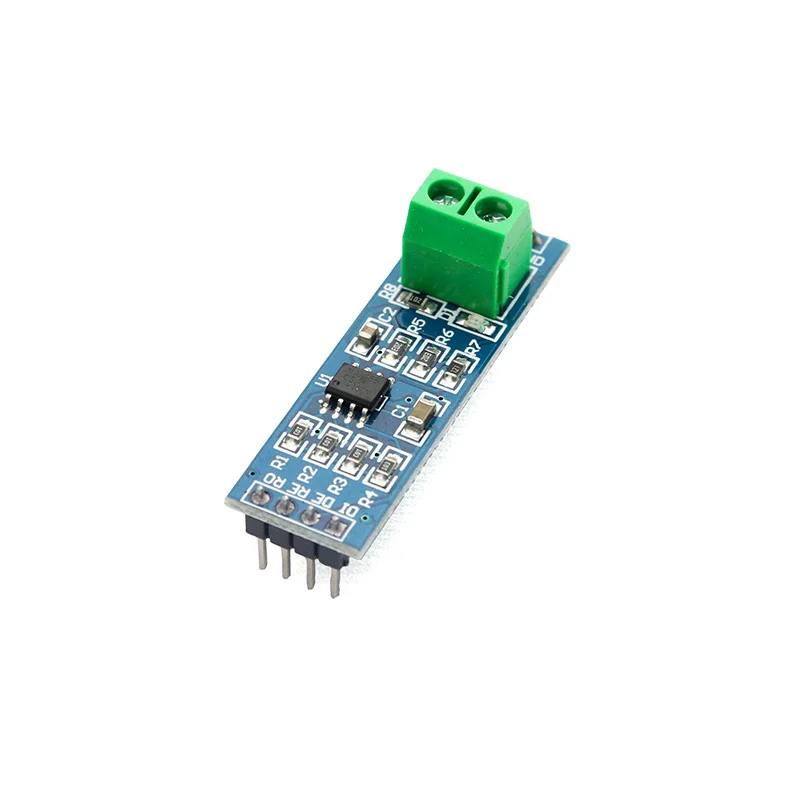

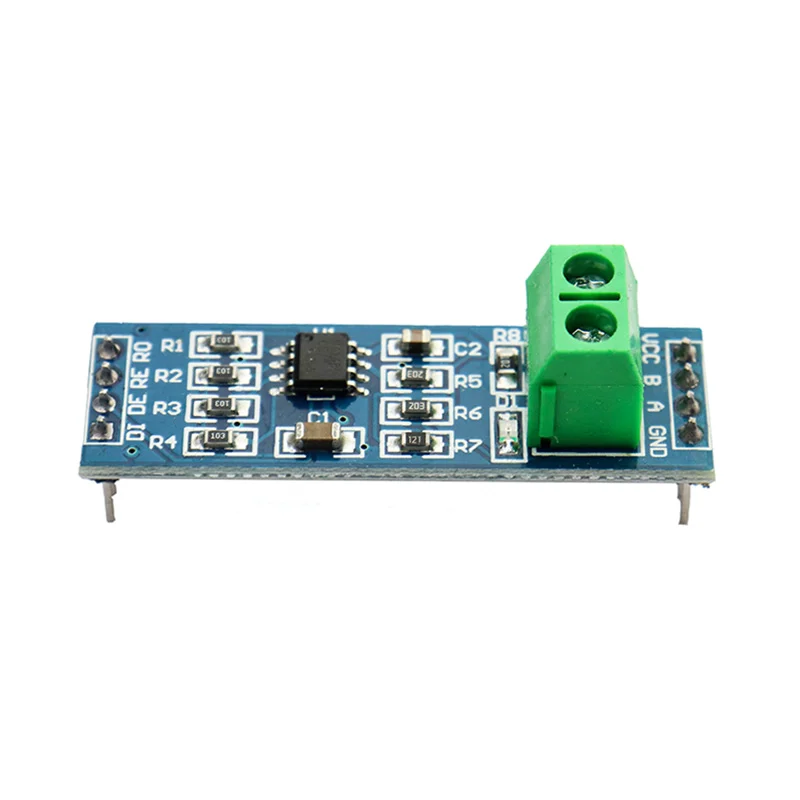

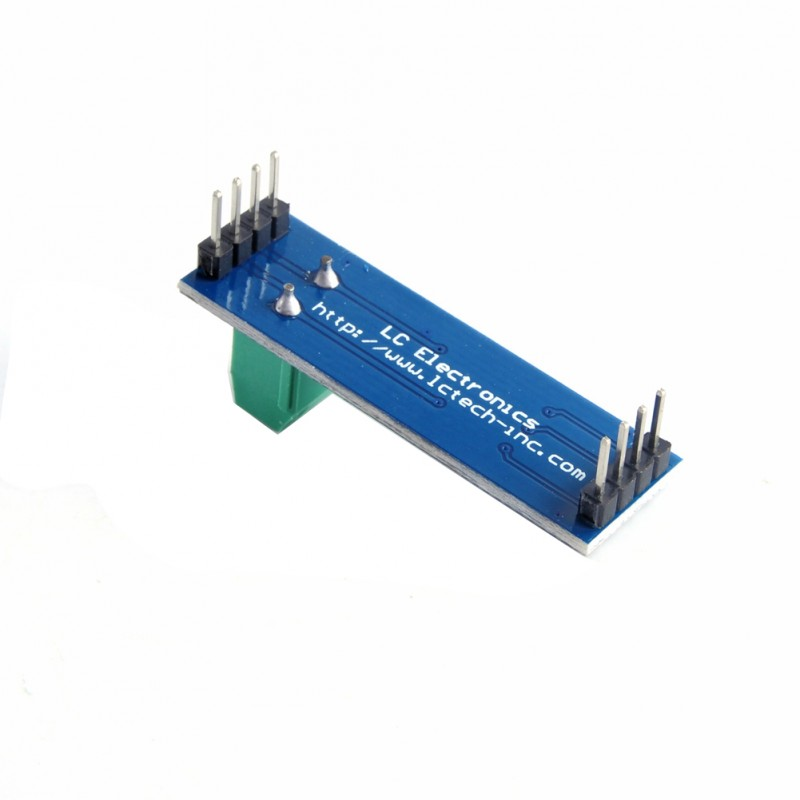

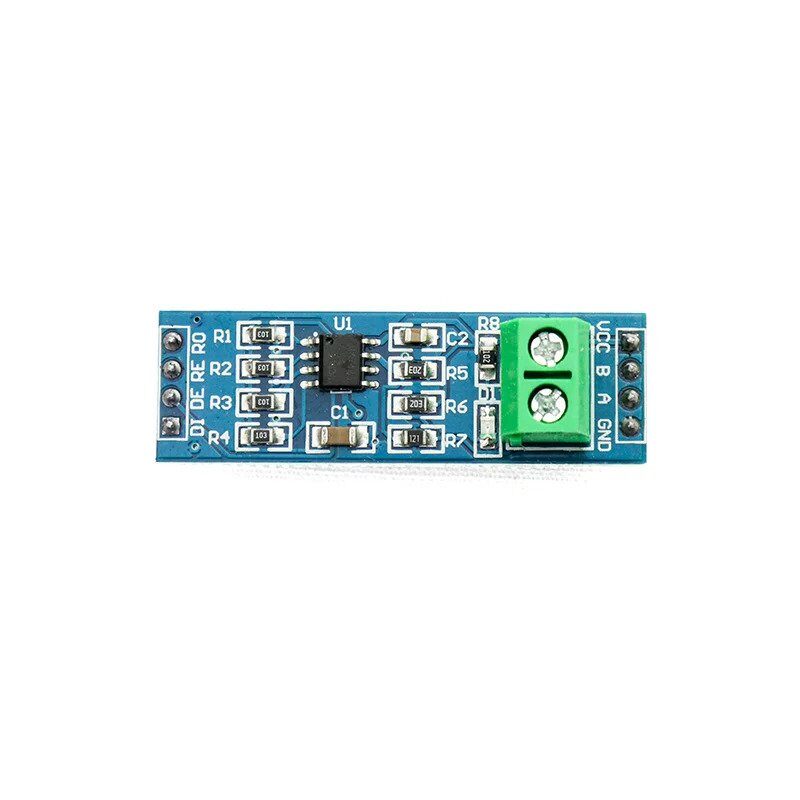

MAX485 TTL to RS485 Converter Module
The MAX485 TTL To RS485 Module is a device that transforms TTL signals into RS485 signals. RS485 is a standard for differential communication that allows high-speed data transmission over long distances and in noisy environments. RS485 networks can connect multiple receivers in a linear, multi-drop configuration, which makes them suitable for industrial and similar applications.
This converter enables your Arduino/microcontroller to send and receive data using the RS485 network. RS485 is similar to Serial TTL and RS232 interfaces, but with extra features. It can support data transfer between up to 32 devices on the same data line, over a cable length of up to 1.2km (4000ft), with a maximum data rate of 10Mbit/s. This converter is designed for office and industrial applications (non-isolated) and offers superior characteristics/features that are usually found only on more expensive units.
Features
- n-board MAX485 chip, A low power consumption for the RS-485 communication, slew-rate limited transceiver.
- A low power consumption for the RS-485 communication
- Onboard then 5.08 (mm) pitch 2P terminal to facilitate RS-485 communication wiring.
- Slew-rate limited transceiver
- All pins of the chip have been lead to can be controlled through the microcontroller.
- Convenient RS-485 communication wiring
- Multiple Units can be connected to the same RS-485 bus wiring.
- All Chip pins are brought out for proper controls
Specifications:
| Length (mm): | 45 |
|---|---|
| Width (mm): | 15 |
| Height (mm): | 14 |
| Weight (g): | 4 |
Package Includes
- 1 x MAX485 TTL TO RS485
Tutorial:
Technical Specifications
| Model | MAX485 |
|---|---|
| Interface / Protocol | RS485, TTL |
| Package Quantity | 485 pcs |
| SKU | AI0571 |
| Weight | 0.01 kg |
| Availability | Out of Stock |
Applications & Use Cases
The MAX485 TTL to RS485 Converter Module is a versatile usb interface module used across a wide range of applications including serial communication, industrial automation, data logging, PLC interfacing, and IoT gateway.
Common use cases:
- Converting USB to RS485 for industrial equipment
- Building a data logger for factory sensors
- Debugging embedded systems via UART
This product is ideal for embedded system developers and industrial automation engineers.
Technical Tip: Industrial-grade modules with isolation protect against ground loops and voltage spikes in noisy environments.
