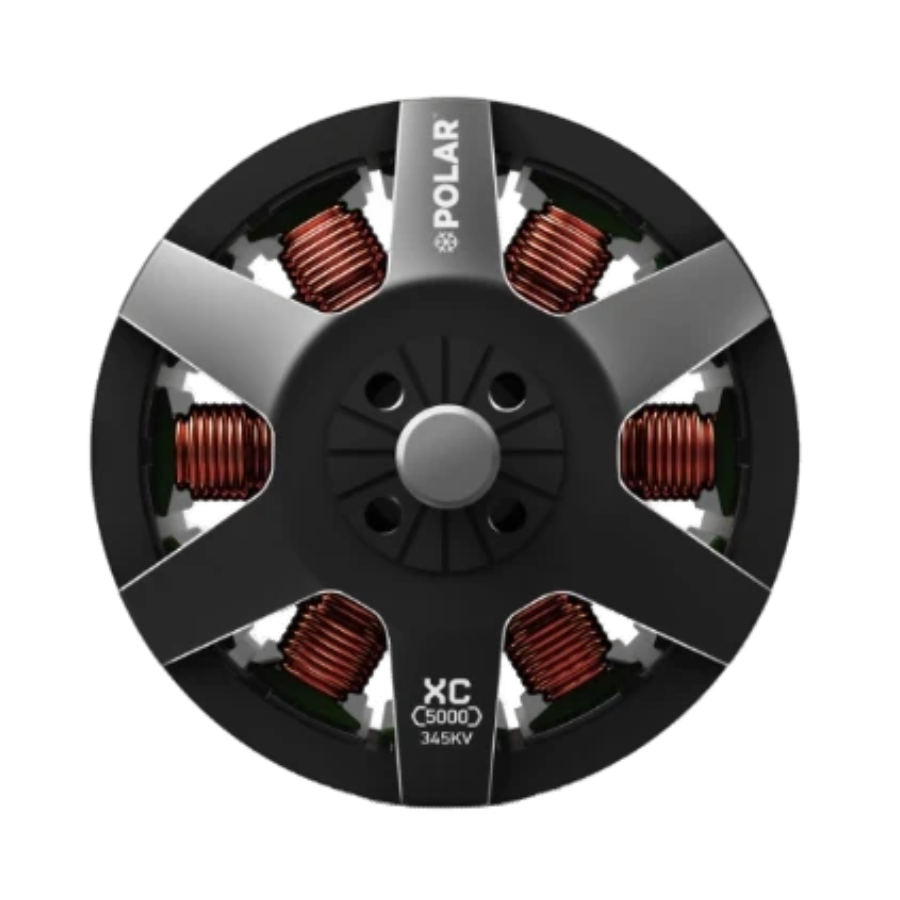

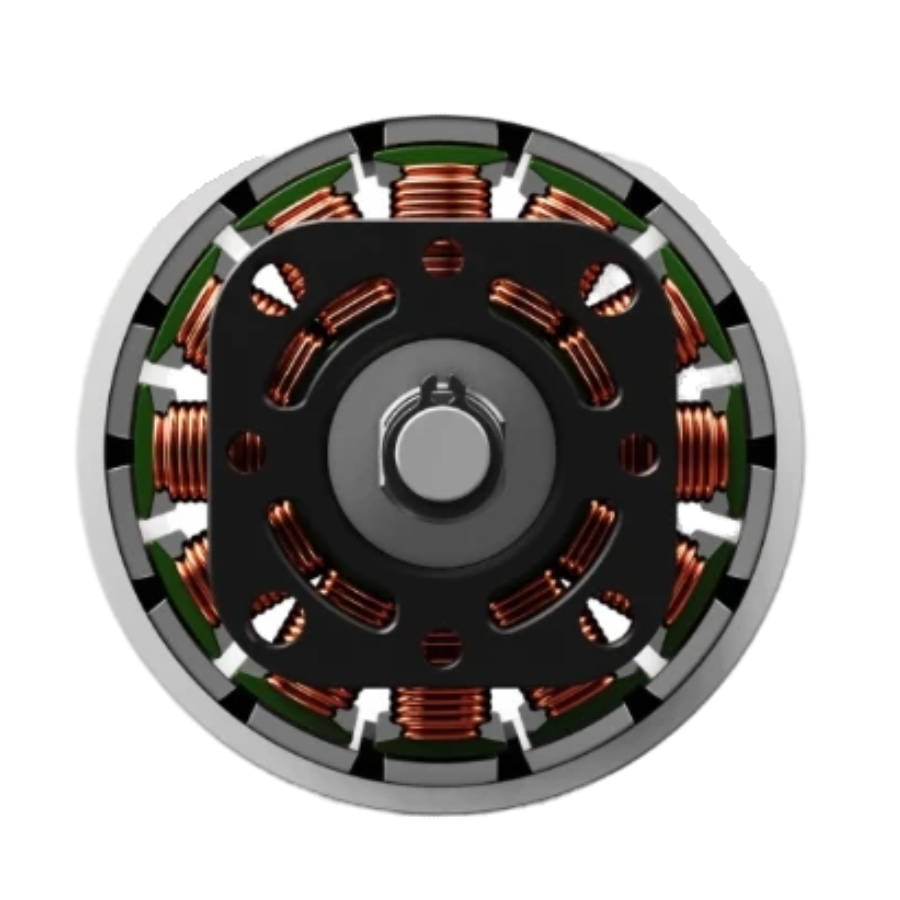

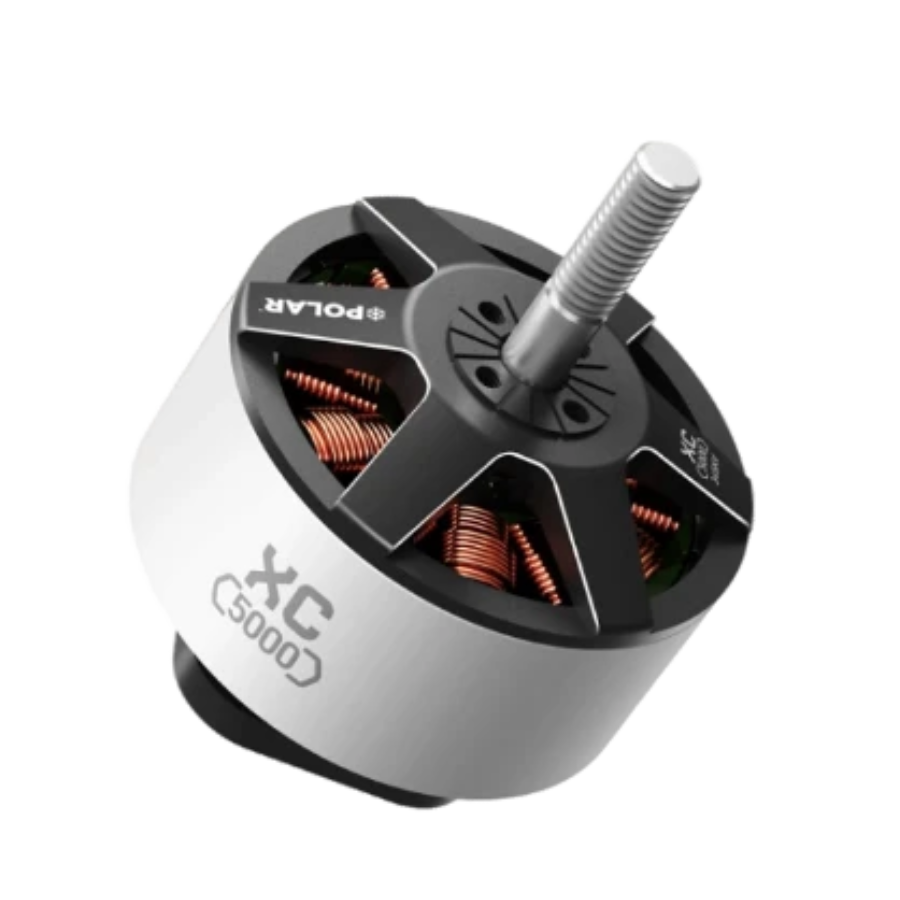

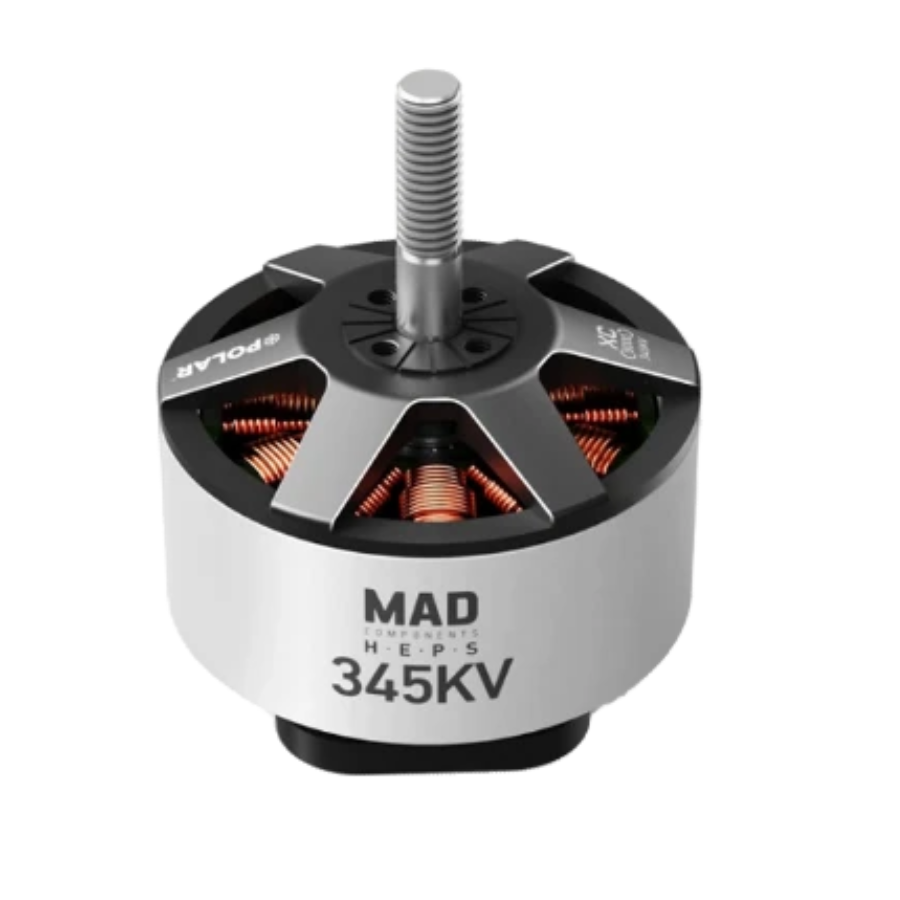

MAD CO – XC5000 POLAR brushless motor 345KV
Description:
XC5000 motors are designed for the fastest high-end X-class drones, i.e.: 800-1200mm multi-rotor aircraft, VTOL aircraft and agricultural copters (2-3kg load per rotor).
Features:
- Weighs 324g with 3pcs durable bearings.
- Maximum thrust 6.1kg.
Specification:
| Motor Type: | Brushless Motor |
|---|---|
| Motor KV (RPM/V): | 345 |
| Max Current (A) | 67.9 |
| Internal Resistance(mOhm) | 60 |
| Max. Power (W) | 2929 |
Package Includes:
1 x MAD CO – XC5000 POLAR brushless motor 345KV
How to Solder Drone ESC and Motors: Beginner Tutorial
How to Solder Drone ESC and Motors: Beginner Tutorial Soldering is the single most important skill you will...
Read More →
How to Configure ArduPilot on Pixhawk: Step-by-Step Guide
Pixhawk is the most widely used open-source flight controller in the world, and ArduPilot is the firmware that...
Read More →
Servo Motor Buying Guide India: Micro, Standard, and Digital
Whether you are building a robotic arm, a pan-tilt camera mount, or an automated door lock, choosing the...
Read More →Technical Specifications
| Brand | MAD COMPONENTS |
|---|---|
| KV Rating | 345KV |
| SKU | AI8141 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The MAD CO – XC5000 POLAR brushless motor 345KV is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
- Genuine MAD COMPONENTS product sourced from authorized channels
Reviews
There are no reviews yet.
