MAD CO – MOVO CM5330 Brushless motor for 15-17 inch Three-blade prop long range FPV RACING Cinelifter drone 260KV
Description:
The MAD MOVO CM5330 is a high-performance 260KV brushless motor designed specifically for long-range FPV racing and heavy-lift cinelifter drones. Ideal for 15–17 inch three-blade propellers, this motor delivers powerful, stable, and efficient performance even under intense flight conditions. Perfectly tuned for X8 coaxial setups, the CM5330 includes dual stainless steel dust filters and an internal split exhaust blade to ensure long-term durability and superior heat dissipation. With precision-balanced rotors and IP45 protection, this motor ensures smooth operation in demanding aerial environments. Whether you’re capturing cinematic footage or racing long-range, the CM5330 offers exceptional thrust, efficiency, and reliability. Engineered to meet professional-level requirements, it’s the choice for serious drone pilots and filmmakers who need the best in flight performance.
Features:
- Two ultra-thin stainless steel dust filters are added inside the stator.
- The split exhaust blade is added inside the rotor.
- Optimized for 15–17″ 3-blade props on FPV cinelifter drones
- 260KV rating for stable long-range performance
- Built-in centrifugal heat dissipation system
- Dual stainless steel internal dust filters for protection
- Internal split exhaust blade enhances rotor cooling
Specifications:
| Max. Power (W) | 4846 |
|---|---|
| Internal Resistance(mOhm) | 21 |
| Max Thrust | 12.2kg |
| Motor KV (RPM/V): | 260 |
| Motor Type: | Brushless Motor |
| Compatible LiPO Batteries: | 6S to 8S |
| Framework | Cinelifter Drone |
| Shaft Diameter (mm): | 8 |
| No of poles | 14 |
| Operating Temperature (°C): | Up to 150 |
| Outer Diameter (mm): | 61.1 |
| Height (mm): | 66.5 |
| Weight (g): | 635 |

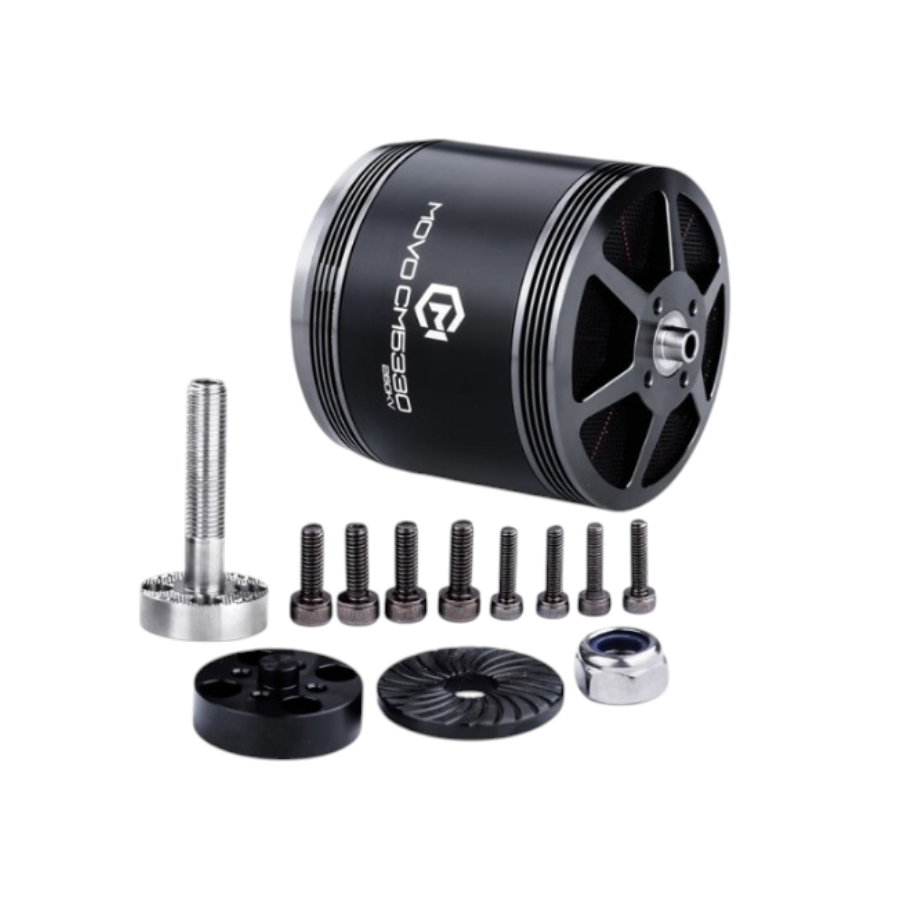

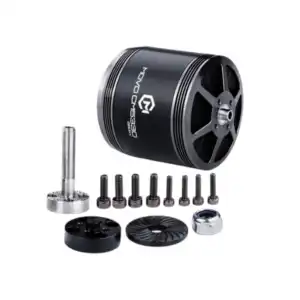

Package Includes:
1 x MAD CO – MOVO CM5330 Brushless motor for 15-17 inch Three-blade prop long range FPV RACING Cinelifter drone 260KV
