MAD 4008 600KV EEE Drone Motor (Pack Of 2)
Description:

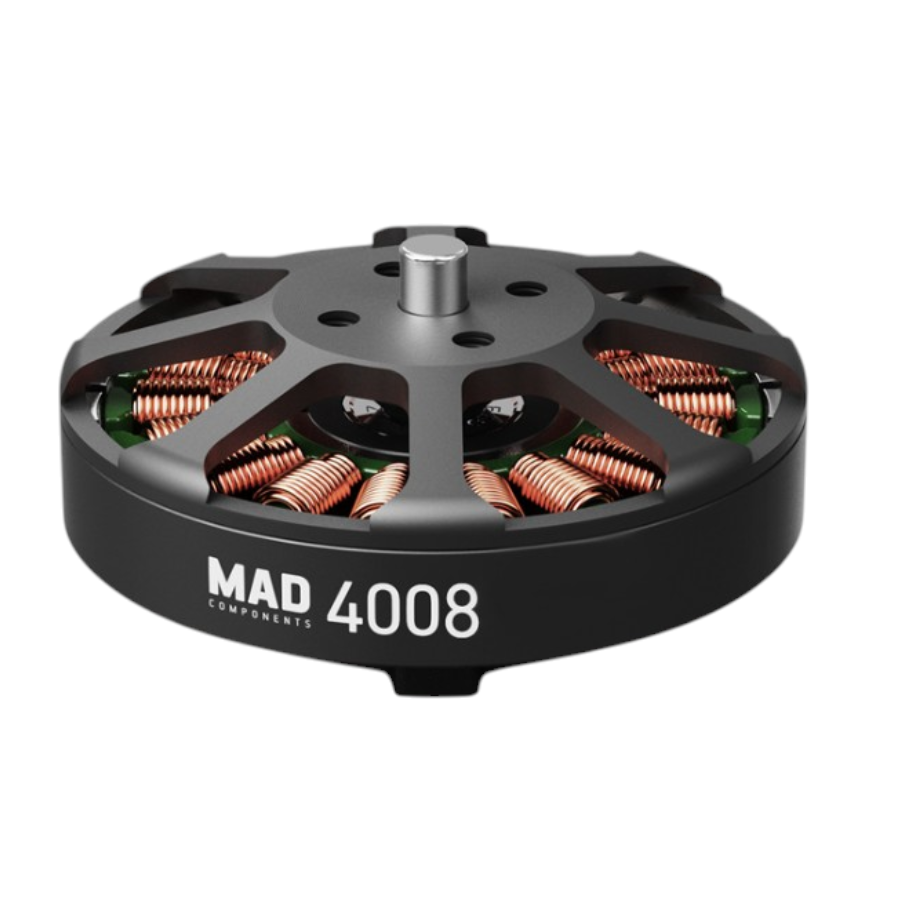

The MAD 4008 600KV EEE Drone Motor is a high-efficiency, mid-lift motor designed for professional cinematography, industrial transport, and stealth UAV missions. Each motor supports payloads of 700–1300 g per axis and delivers up to 2.2 kg of thrust, all while weighing just 88 g thanks to its integrated centrifugal heat dissipation.
Paired with 14–18″ carbon fiber propellers and compatible with 4S LiPo systems, this 600KV EEE Drone Motor ensures low vibration, silent operation, and long-range endurance — perfect for film crews, logistics drones, or tactical surveillance platforms.

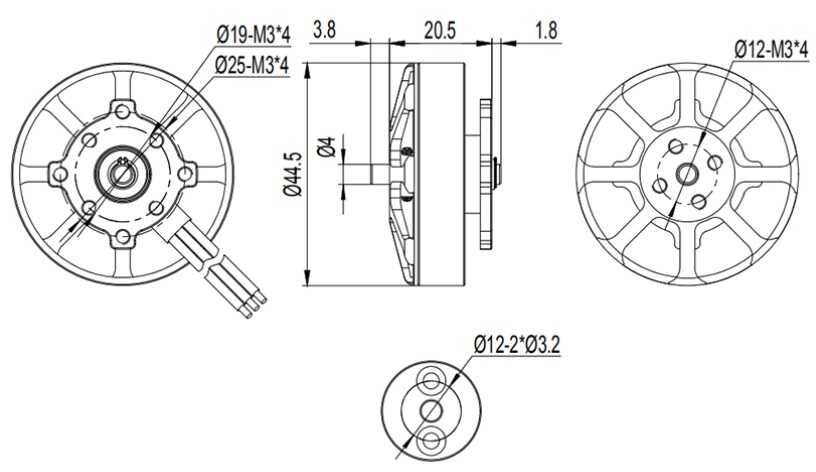

Dimensional diagram:
Features:
- Silent, smooth operation – Ideal for film and defense
- 2.2 kg thrust with only 88 g weight
- EMP-resistant variant available (for military use)
- Centrifugal cooling + rain protection for reliability
- Supports large carbon fiber props (14–18″)
Applications:
- Heavy-Lift Cinematography
- Safely carries RED V-RAPTOR + 360° gimbal (2.1kg payload)
- Silent operation for film-set environments
- Industrial Logistics
- 5km+ delivery range with 1.5kg cargo
- Vibration-free for medical transport
Specifications:
| Model: | EEE Drone Motor |
|---|---|
| Motor KV (RPM/V): | 600 |
| Model No: | 4008 |
| Motor Type: | Brushless Drone Motor |
| Compatible LiPO Batteries: | 4S |
| Shaft Diameter (mm): | 4 |
| Max. Power (W) | 371 |
| Maximum Thrust (gm) | 2200 |
| No of poles | 24 |
| Propeller Mount Holes | D:12 M3×4 |
| Bearing | EZO 694ZZ*2 |
| Motor Size (mm): | D:44.5 × 26.1 |
| Torque: | 0.39 Nm |
| Weight (g): | 88(Each) |

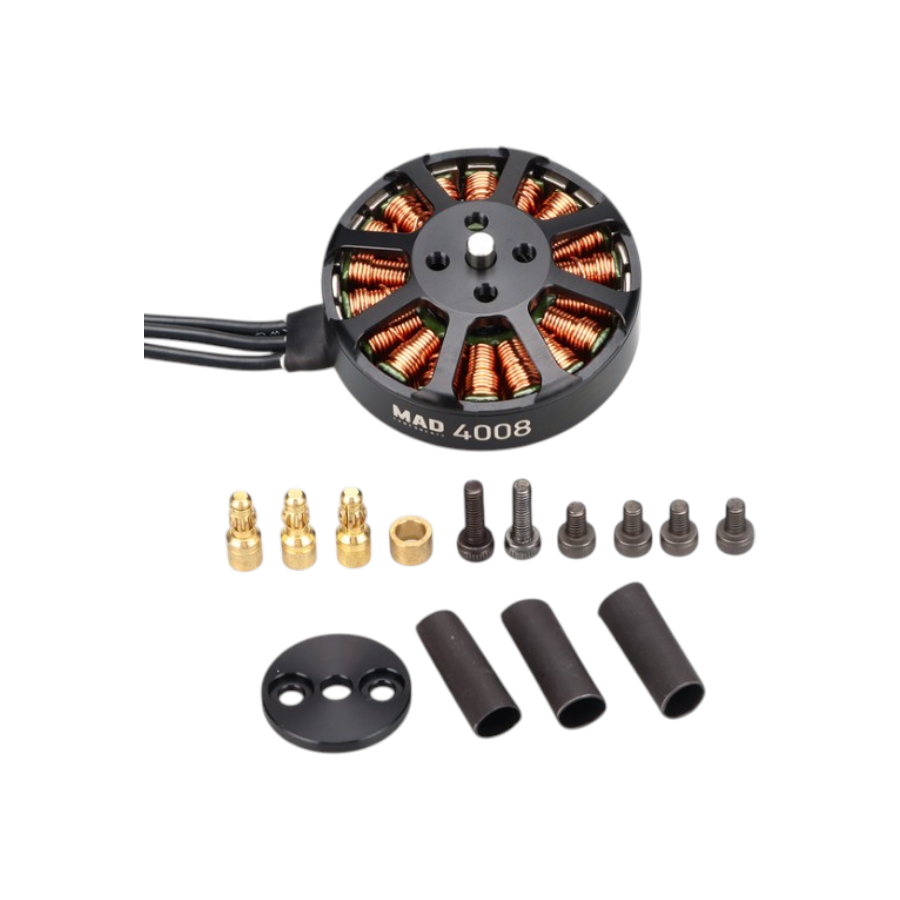

Package Includes:
2 x MAD 4008 EEE Brushless Motors 600KV
2 x Propeller Plates
2 x 3.5mm Bullet Connectors
6 x Adapter Rings (Ø4–6)
6 x Heat Shrink Tubes
8 x M3×6 Motor Mounting Screws
4 x M3×10 Propeller Screws
2 x MAD Stickers
