This is the Black variant of the M5 Propeller Nut Cap CW&CCWColor: Silver & Black in Propeller Nuts and Accessories. Available at ₹59.00 (₹50.00 + GST) with free shipping across India.
Looking for M5 Nut Cap Propeller? M5 Propeller Nut Cap CW&CCWColor: Silver & Black is available at Zbotic with fast shipping across India.
This M5 Propeller Prop Nut Cap CW CCW for Emax 2204 Brushless DC Motor is the set of two different i.e CW and CCW Nut Cap for 2204 brushless motor to be fitted above the propeller.
Prop nuts of different directions usually come in different colors, such as black and silver for better user-friendliness.
Some mini quad motors are labeled CW and CCW, and it can cause a hell of confusion for a lot of people in this hobby including experienced quadcopter builders.
Basically, CW (clockwise) and CCW (counterclockwise) motors are still the same motors, apart from the prop shaft threads which have opposite direction. That means for a CCW motor, the prop nut is secured by turning clockwise. And for CW motors, the prop nuts need to be rotated anti-clockwise in order to fasten.
Advantages of having different CW and CCW threads
So why have 2 different shaft threads and making it so confusing?
They call this ‘Self-locking’ because on a quadcopter we have 2 motors spinning clockwise direction and the other two spinning counter clockwise. By using threads that are the opposite to motor spin direction, the prop nuts automatically lock themselves down and won’t come loose.
However, it becomes difficult to source spare prop nuts for both threads. And it also makes it confusing to which way we should turn to remove the prop nuts when changing propellers.
Prop nuts are basically M6 nylon nuts. In hardware stores, they are referred to as right handed and left handed thread as opposed to CW and CCW.
Identify CW and CCW Threads
So basically if you can fasten the prop nut clockwise, then you have a CCW motor, for which you should get the Right handed thread nut (standard thread).
For CW motors, go for the Left-hand thread nuts (reverse thread)
Specification:
| Thread Size | M5 |
|---|---|
| Material | High-Quality Plastic |
| Cap Height(mm) | 14 |
| Nut Type | CW and CCW |
| Color | Black(CW), Silver(CCW) |
| Shipping Weight | 0.01 kg |
| Shipping Dimensions | 3 × 3 × 3 cm |
Package Includes :
1 x M5 Propeller Prop Nut Cap CCW (Silver).
1 x M5 Propeller Prop Nut Cap CW (Black).
M5 Propeller Nut Cap CW&CCWColor: Silver & Black Overview

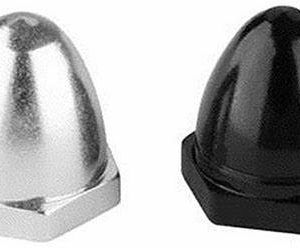

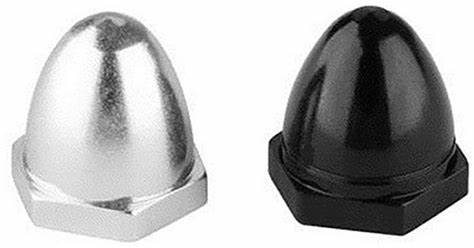

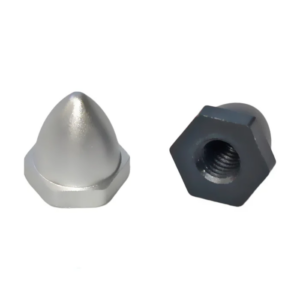

This M5 Propeller Nut Cap CW&CCW in silver and black is a set of thread caps designed to secure propellers on brushless DC motors such as the Emax 2204. Each pack includes one clockwise (black) and one counterclockwise (silver) cap, making prop installation and identification quick and error-free.
Key Features of M5 Propeller Nut Cap CW&CCWColor: Silver & Black
- Thread size: M5, compatible with standard M5 motor shafts
- High-quality plastic construction for lightweight strength and vibration resistance
- Cap height of 14 mm to ensure secure propeller retention
- Color-coded: black for CW (clockwise) and silver for CCW (counterclockwise)
- Includes one CW cap nut and one CCW cap nut in each set
- Genuine product with fast shipping from Zbotic across India
Applications and Use Cases
- Securing propellers on mini quadcopters and racing drones
- Replacement caps for brushless motor maintenance and repair
- Spare parts for RC airplanes, multirotors, and custom drone builds
- Ensuring correct prop rotation by color-coded nut identification
- Preventing propeller loosening during aerobatic maneuvers
How to Use M5 Propeller Nut Cap CW&CCWColor: Silver & Black
After mounting your propeller onto the motor shaft, thread the appropriate cap nut (black for CW or silver for CCW) onto the M5 shaft. Tighten by hand or with a thin wrench until snug against the propeller hub, ensuring the prop is firmly secured without over-torquing.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Can I use these caps on any motor with M5 shafts?
Yes, as long as your motor shaft has M5 threads, these cap nuts will fit and secure the propeller correctly.
How do I identify the correct cap for CW and CCW motors?
The black cap is marked for clockwise (CW) rotation, while the silver cap is for counterclockwise (CCW) rotation—preventing mix-ups during installation.
Are these plastic caps durable enough for high-RPM drones?
Constructed from high-quality plastic, these nut caps resist vibration and maintain grip at high RPMs typical in racing and freestyle quads.
