LMV358IDR
|
TYPE
|
DESCRIPTION
|
|
|---|---|---|
|
Category
|
Integrated Circuits (ICs)
Linear – Amplifiers – Instrumentation, OP Amps, Buffer Amps
|
|
|
Mfr
|
Texas Instruments
|
|
|
Series
|
–
|
|
|
Package
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Product Status
|
Active
|
|
|
Amplifier Type
|
General Purpose
|
|
|
Number of Circuits
|
2
|
|
|
Output Type
|
Rail-to-Rail
|
|
|
Slew Rate
|
1V/µs
|
|
|
Gain Bandwidth Product
|
1 MHz
|
|
|
Current – Input Bias
|
15 nA
|
|
|
Voltage – Input Offset
|
1.7 mV
|
|
|
Current – Supply
|
210µA (x2 Channels)
|
|
|
Current – Output / Channel
|
40 mA
|
|
|
Voltage – Supply Span (Min)
|
2.7 V
|
|
|
Voltage – Supply Span (Max)
|
5.5 V
|
|
|
Operating Temperature
|
-40°C ~ 125°C (TA)
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
8-SOIC (0.154″, 3.90mm Width)
|
|
|
Supplier Device Package
|
8-SOIC
|
|
|
Base Product Number
|
LMV358
|
Package Includes
1*LMV358IDR
LMV358IDR Overview

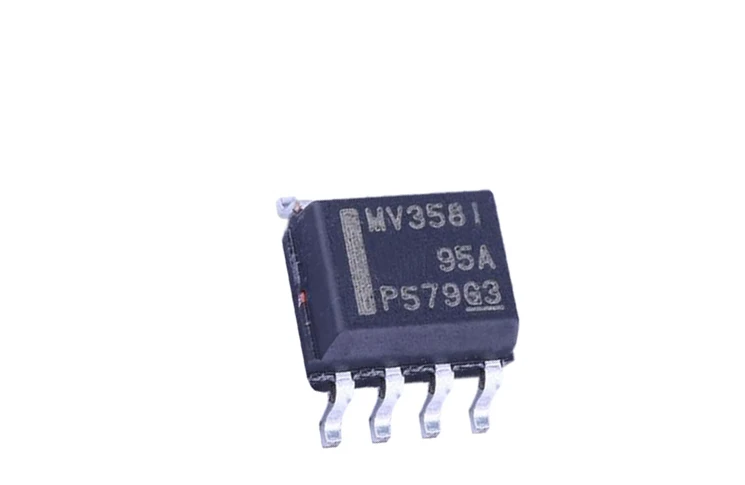

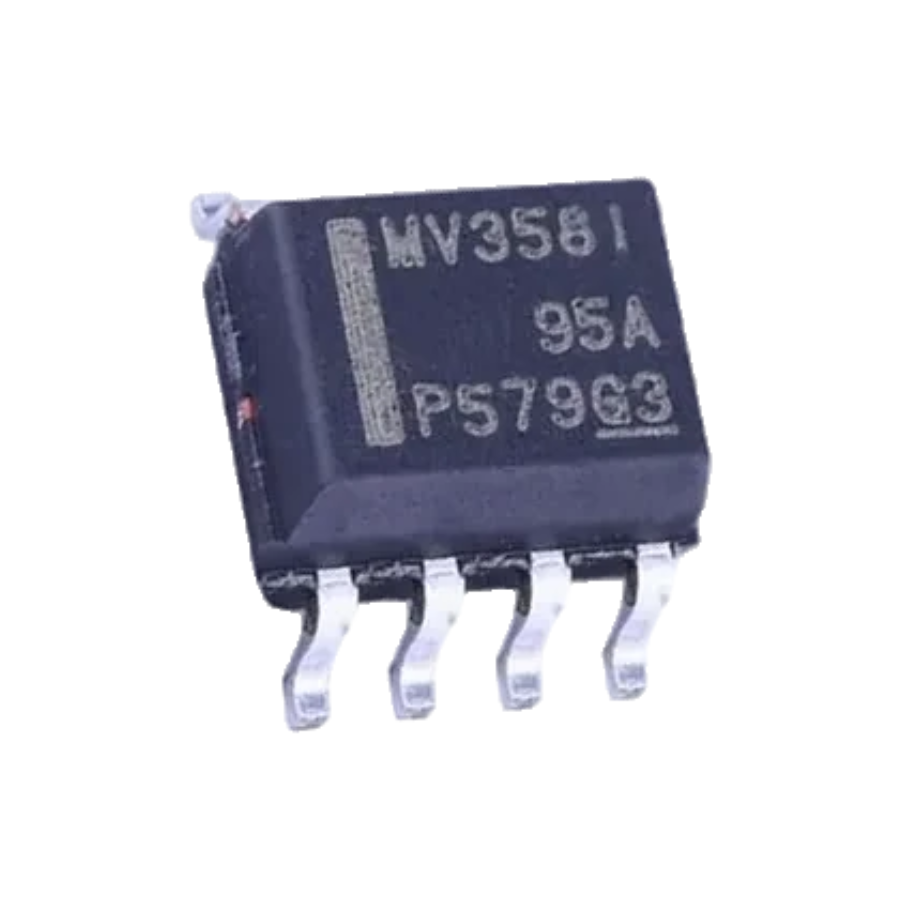

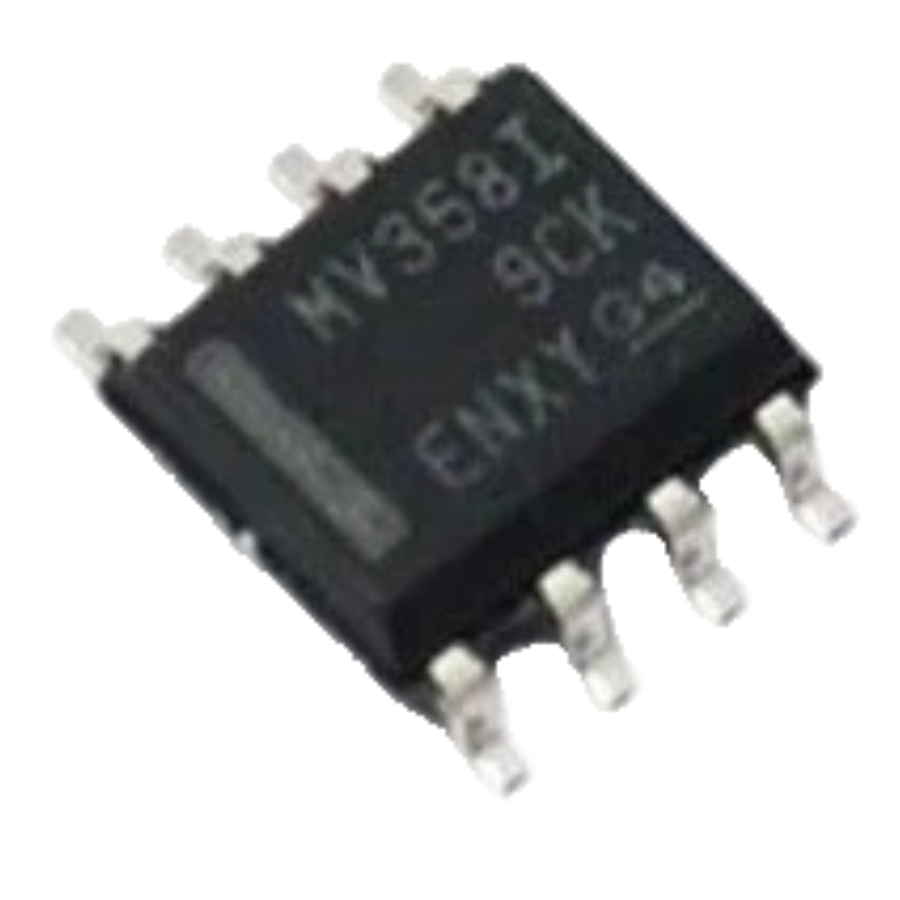

The LMV358IDR from Texas Instruments is a dual general-purpose operational amplifier in an 8-pin SOIC package. It offers rail-to-rail output capability and low-power operation, making it ideal for precision signal conditioning and amplification in portable and battery-powered electronics.
Key Features of LMV358IDR
- Two independent general-purpose op-amp circuits in a compact 8-SOIC package
- Rail-to-rail output swing for maximized dynamic range
- Low supply current of 210 µA per channel for energy-efficient designs
- 1 V/µs slew rate and 1 MHz gain bandwidth product for stable moderate-speed signals
- Ultra-low input bias current (15 nA) and low input offset voltage (1.7 mV) for precise measurements
- Genuine TI product with fast shipping from Zbotic for quick project turnaround
Applications and Use Cases
- Sensor signal conditioning in handheld and portable instruments
- Voltage follower or buffer stages in data acquisition modules
- General-purpose amplification in battery-powered IoT devices
- Audio buffering and low-pass filtering in compact audio electronics
- Pulse shaping and front-end amplification for comparator circuits
How to Use LMV358IDR
Mount the LMV358IDR on your PCB, connect VCC and ground pins according to your voltage rail, and place a 0.1 µF decoupling capacitor close to the supply pins. Wire the non-inverting and inverting inputs as per your feedback network configuration, ensuring proper gain and stability. Use the dual channels independently or in tandem for differential amplification.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
How many amplifier circuits are included in the LMV358IDR?
The LMV358IDR contains two independent general-purpose op amp circuits, allowing dual-channel signal processing in a single 8-pin package.
What is the typical input offset voltage and bias current?
This dual op amp features a maximum input offset voltage of 1.7 mV and an input bias current of just 15 nA, ensuring accurate low-level signal amplification.
Can I use LMV358IDR for low-power, battery-operated designs?
Yes. With only 210 µA supply current per channel and rail-to-rail output, the LMV358IDR is well suited for energy-efficient, battery-powered and portable applications.
Technical Specifications
| Model | LMV358IDR |
|---|---|
| SKU | AI0742 |
| Weight | 0.0003 kg |
| Availability | Out of Stock |
Applications & Use Cases
The LMV358IDR Operational Amplifier ICs is a versatile operational amplifier ics used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
