Home Batteries, Chargers and Accessories LiPo Battery Single Cell Micro LiPo Battery
Return to previous page
KP301020
KP301020 2
KP301020 1
KP301020 4
  • KP301020
  • KP301020 2
  • KP301020 1
  • KP301020 4

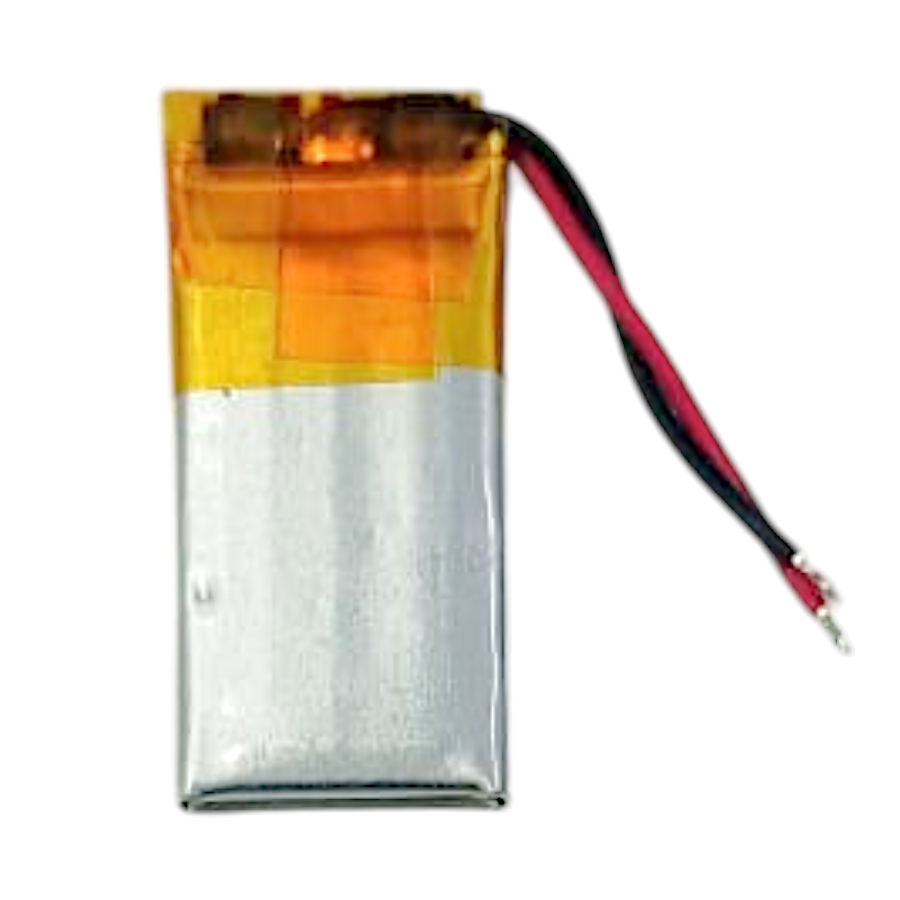

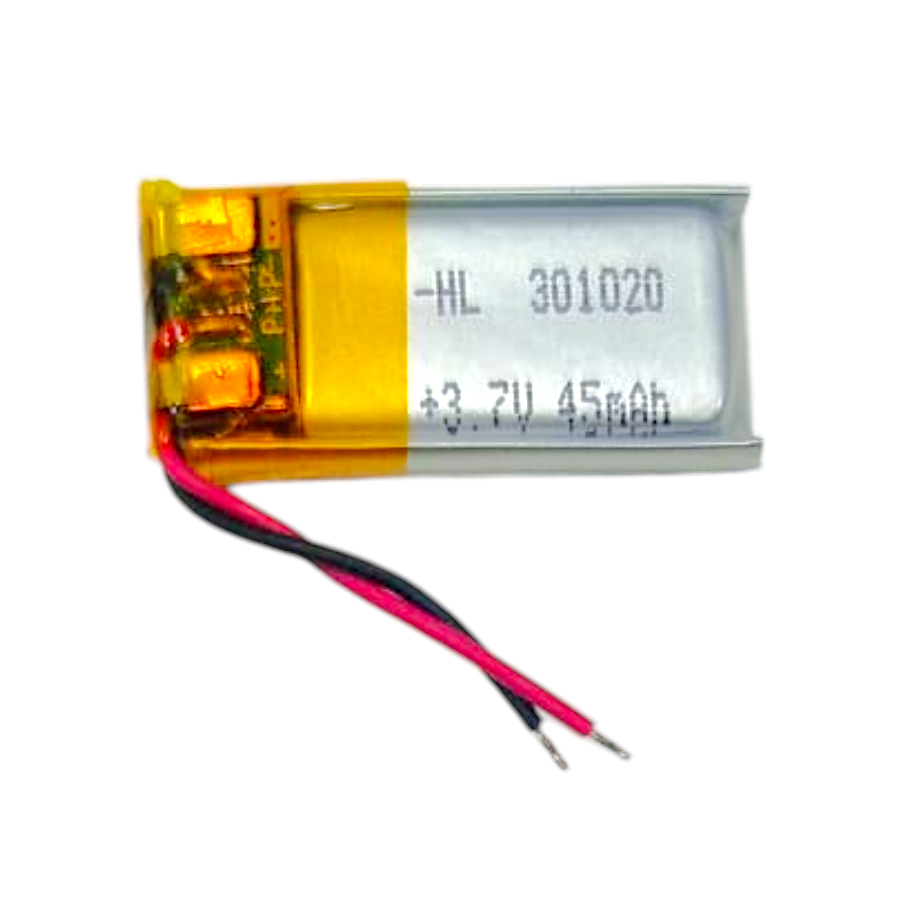

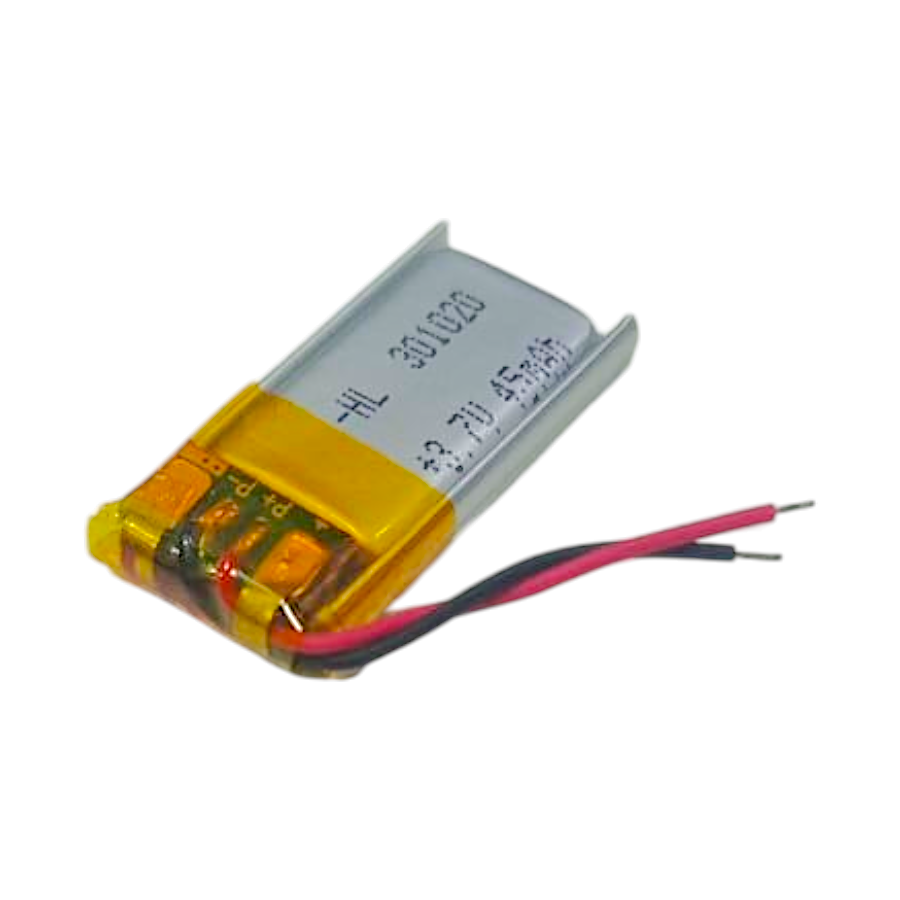

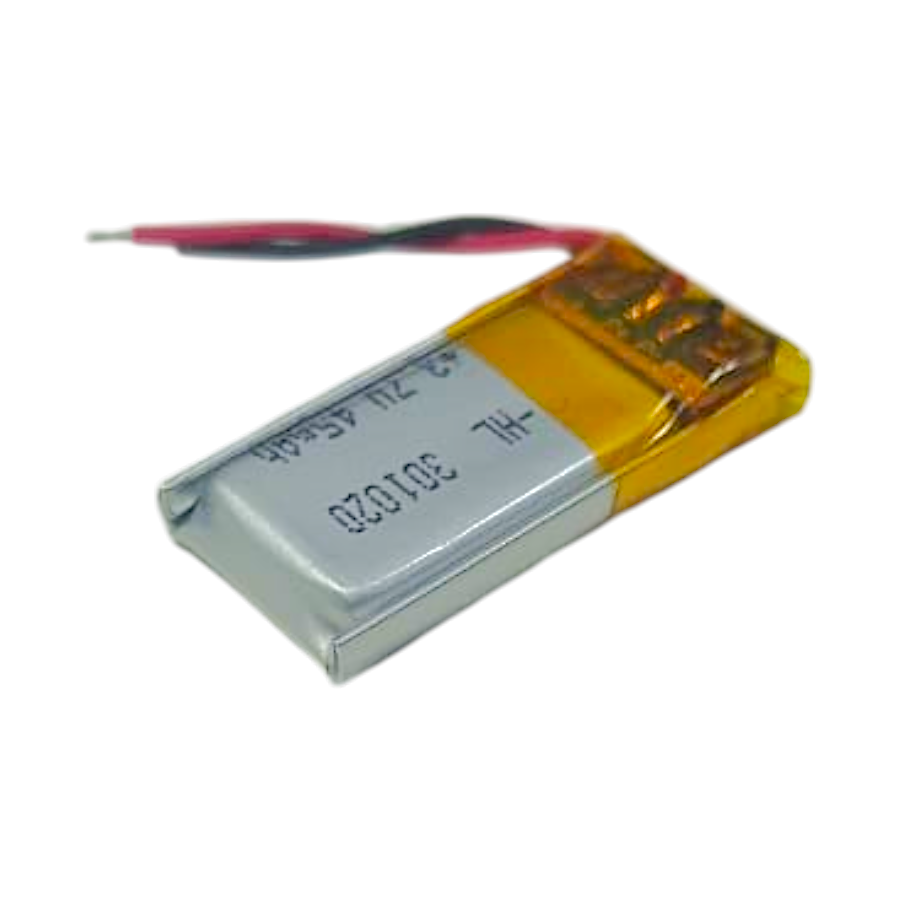

KP Original 301020 45mAh 3.7V single cell Rechargeable LiPo Battery

Share: Facebook Twitter Tumblr Linkedin Houzz Vk Pinterest Whatsapp
Add to wishlist
Add to compare

Quick Overview:

  • Product Name: KP Original 301020 45mAh 3.7V single cell Rechargeable LiPo Battery
  • Type: Lithium Polymer (LiPo)
  • Battery Configuration: Single Cell
  • Nominal Voltage: 3.7V
  • Capacity: 45mAh
Brand: KP SKU: AI8154
Category: Single Cell Micro LiPo Battery

₹101.48 (₹86.00 + GST)

Purchase this product now and earn 2 Zbotic Points!
Description
Additional information
Warranty
COO

This is the 7V variant of the KP Original 301020 45mAh 3.7V single cell Rechargeable LiPo Battery in Single Cell Micro LiPo Battery. Available at ₹101.48 (₹86.00 + GST) with free shipping across India.

KP Original 301020 45mAh 3.7V Single Cell Rechargeable LiPo Battery

Description:

Introducing the KP Original 301020 45mAh 3.7V Single Cell Rechargeable LiPo Battery, specially designed for ultra-compact electronic devices that require lightweight and reliable power. With its small size and stable performance, this battery is ideal for micro electronics, wearables, IoT devices, and miniature drones.


Features:

  • Overcharge Protection: Yes
  • Over-discharge Protection: Yes
  • Short Circuit Protection: Yes
  • Fire Resistance: Designed with protective features to minimize fire hazards

Specifications:

  • Model Number: 301020
  • Type: Lithium Polymer (LiPo)
  • Battery Configuration: Single Cell
  • Nominal Voltage: 3.7V
  • Capacity: 45mAh
  • Discharge Rate: 1C (45 mA continuous current)
  • Charge Voltage: 4.2V (maximum)
  • Discharge Cut-off Voltage: 3.0V (minimum)
  • Temperature Range for Charging: 0°C to 45°C
  • Temperature Range for Discharging: -20°C to 60°C
  • Charging Method: Constant Current / Constant Voltage (CC/CV)
  • Recommended Charge Current: 0.5C to 1C (22.5 mA – 45 mA)
  • Charge Time: Approximately 1.5 to 3 hours depending on charge current

Applications:

Commonly used in:

  • Micro electronic devices
  • Wearable technology
  • Bluetooth devices
  • Mini drones and toys
  • IoT and embedded systems

Package Includes:

1 x KP Original 301020 45mAh 3.7V Single Cell Rechargeable LiPo Battery

Also in Single Cell Micro LiPo Battery:
KP Original 523450 1500mAh 3.7Vsingle cell Rechargeable LiPo BatteryKP Original 502035 500mAh 3.7Vsingle cell Rechargeable LiPo BatteryKP Original 481035 150mAh 3.7Vsingle cell Rechargeable LiPo BatteryKP Original 601035 450mAh 3.7Vsingle cell Rechargeable LiPo Battery
Related Articles:
Power MOSFET Switch: High-Current Battery Disconnect

Power MOSFET Switch: High-Current Battery Disconnect

Table of ContentsWhy MOSFETs for Battery Switching MOSFET Selection Criteria High-Side vs Low-Side Switching Gate Driver Circuits Building...

Read More →
Balancing Charger for LiPo: iMax B6 & B6AC Tutorial India

Balancing Charger for LiPo: iMax B6 & B6AC Tutorial India

Balancing Charger for LiPo: iMax B6 & B6AC Tutorial India The iMax B6 is arguably the most popular...

Read More →
LiFePO4 Battery: Safer Chemistry for Solar Storage India

LiFePO4 Battery: Safer Chemistry for Solar Storage India

LiFePO4 Battery: Safer Chemistry for Solar Storage India If you are building an off-grid solar system in India,...

Read More →

Technical Specifications

BrandKP
Operating Voltage3.7V
Battery Capacity45mAh
Interface / ProtocolBLE
SKUAI8154
Weight0.0 kg
AvailabilityIn Stock

Applications & Use Cases

The KP Original 301020 45mAh 3.7V single cell Rechargeable LiPo Battery is a versatile single cell micro lipo battery used across a wide range of applications including FPV drones, RC vehicles, portable electronics, robotics, and airsoft guns.

Common use cases:

  • Powering an FPV racing drone
  • Running a high-current RC car
  • Portable power for field robotics

This product is ideal for drone pilots, RC enthusiasts, and robotics builders.

Technical Tip: Never discharge below 3.5V per cell. Store at 3.8V per cell. Always use a balance charger and never leave charging unattended. Use a LiPo bag for safety.

Shipping & Delivery

  • Free shipping on orders above ₹999 across India
  • Dispatched within 1-3 business days
  • Expected delivery: 3-7 business days depending on location
  • Secure packaging to ensure safe transit of electronic components
  • Genuine KP product sourced from authorized channels
Weight 0.0 kg
15 Days Warranty

Please note that this item is only covered by a standard supplier warranty against manufacturing defects for a period of 15days from the time of delivery. It is important to understand that only manufacturing defects are covered under this warranty, and any other issues will not be considered for reimbursement or replacement. We strongly advise inspecting the product upon delivery to ensure it meets your expectations. In case of any manufacturing defects, we guarantee reimbursement or replacement.


What voids warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.

Also in Single Cell Micro LiPo Battery:
KP Original 351826 400mAh 3.7Vsingle cell Rechargeable LiPo BatteryKP Original 75130+ 40mAh 3.8Vsingle cell Rechargeable LiPo BatteryKP Original 552030 500mAh 3.7Vsingle cell Rechargeable LiPo BatteryKP Original 403450 1000mAh 3.7Vsingle cell Rechargeable LiPo Battery
Related Articles:
Hand Crank Generator: Emergency USB Power Source

Hand Crank Generator: Emergency USB Power Source

Table of ContentsDC Motor as Generator Gear Ratio Design Voltage Regulation Circuit USB Output Integration Mechanical Design Considerations...

Read More →
Hydrogen Fuel Cell: PEM Fuel Cell for Education Projects

Hydrogen Fuel Cell: PEM Fuel Cell for Education Projects

Table of ContentsHow PEM Fuel Cells Work Fuel Cell vs Battery Comparison Educational Fuel Cell Kits Hydrogen Generation...

Read More →
Solar Charge Controller: PWM vs MPPT Explained for India

Solar Charge Controller: PWM vs MPPT Explained for India

If you are setting up a solar power system in India — whether for a small off-grid cabin,...

Read More →
Country Of Origin: China
