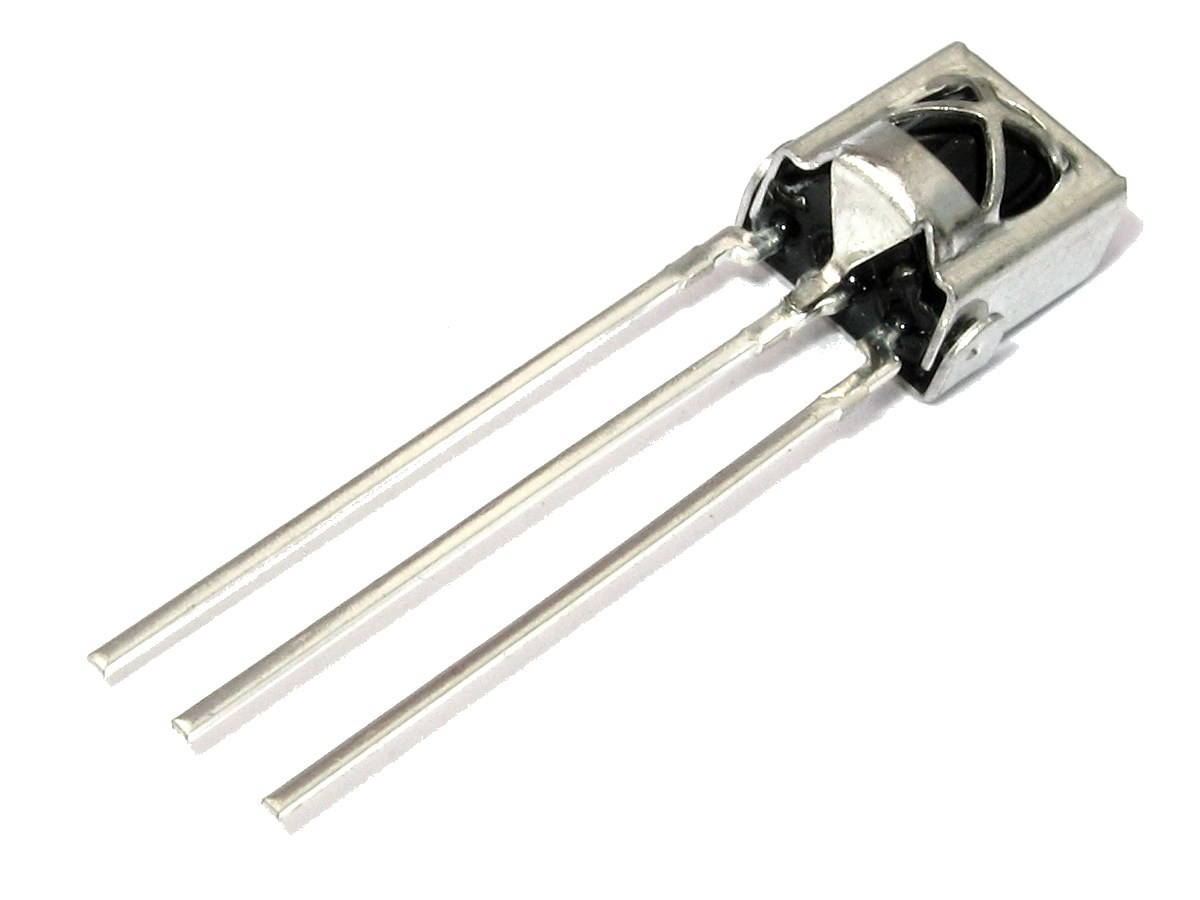

IR Receiving Head VS1838B Remote Control Receiver
This is IR Receiving Head VS1838B Remote Control Receiver. The 1838B is miniaturized infrared receivers for remote control and other applications requiring improved ambient light rejection. The separate PIN diode and preamplifier IC are assembled on a single lead frame.
The epoxy package contains a special IR filter. This module has excellent performance even in disturbed ambient light applications and provides protection against uncontrolled output pulses.
Use this IR Receiver Diode – TSOP38238, a simple IR receiver for infrared remote control of your next project. With low power consumption and an easy to use package, it mates well with embedded electronics and can be used with common IR remote.
The TSOP382 is a miniaturized receiver for infrared remote control systems. A PIN diode and a preamplifier are assembled on a lead frame while the epoxy package acts as an IR filter. The demodulated output signal can be directly decoded by a microprocessor.
Applications :
- Optical switch
- Light detecting portion of a remote control
- AV instruments such as Audio,TV,VCR,CD,MD,DVD,etc.
- Home appliances such as Air-conditioner, Fan,etc.
- CATV set-top boxes
- Multi-media Equipment.
Features :
- Photodetector and preamplifier in one package.
- Internal filter for PCM frequency.
- Inner shield, good anti-interference ability.
- High immunity against ambient light.
- Improved shielding against electric field disturbance
- 3.0V or 5.0V supply voltage; low power consumption.
- TTL and CMOS compatibility.
- Suitable transmission code:NEC code,RC5 code.
- Universal receiver. 38 KHz
- Infrared receiver.
- Infrared remote control receiver.
- TL1838 VS1838B. 38khz
Specifications:
| Input Supply Voltage (VDC) | 2.5 ~ 5.5 |
|---|---|
| Suitable Transmission Code | NEC code,RC5 code |
| Universal Receiver | 38 KHz |
Package Includes :
5 x IR Receiving Head VS1838B.
Datasheet
IR Receiving Head VS1838B Remote Control Receiver – 5pcs Overview
The IR Receiving Head VS1838B is a compact infrared receiver module designed for remote control applications. Sold as a pack of five, it decodes 38 kHz modulated IR signals such as NEC and RC5 codes, making it ideal for DIY electronics and embedded projects.
Key Features of IR Receiving Head VS1838B Remote Control Receiver – 5pcs
- Built-in IR filter and inner shield for enhanced PCM frequency rejection
- High immunity to ambient light and improved electric field disturbance shielding
- Operates on 3.0 V or 5.0 V with low power consumption
- TTL and CMOS compatible output for easy microcontroller interfacing
- Supports popular remote control codes: NEC code and RC5 code
- Fast shipping from Zbotic
Applications and Use Cases
- Arduino or Raspberry Pi infrared remote control receiver modules
- Home automation systems for lights, fans, and appliances
- Custom media center or TV remote sensing
- Robotics projects requiring wireless command input
- Educational electronics kits and prototyping boards
How to Use IR Receiving Head VS1838B Remote Control Receiver – 5pcs
Connect the VS1838B module’s VCC pin to your 5 V supply (or 3.3 V), GND to ground, and OUT to a digital input on your microcontroller. Point an IR remote at the receiver, then use an IR decode library (such as IRremote for Arduino) to read and interpret the incoming NEC or RC5 signals.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What voltage range does the VS1838B support?
The VS1838B operates reliably on a supply voltage between 3.0 V and 5.0 V, making it suitable for most microcontroller platforms.
Which IR modulation frequency does this receiver use?
This module is tuned to 38 kHz carrier frequency, compatible with common remote control protocols like NEC and RC5.
Can I connect the output directly to an Arduino pin?
Yes. The OUT pin provides TTL/CMOS-level digital signals, so you can wire it directly to an Arduino digital input and use an IR decoding library to process remote commands.
