This is the 3V variant of the Horizontal Mute Sounds Mini Submersible Pump DC 3V-5V in Generic Mini Pumps. Available at ₹59.00 (₹50.00 + GST) with free shipping across India.
Features:
- 100% brand new, high quality
- Type: Horizontal Mute Sounds Mini Submersible Pump
- Material: engineering plastic
- Drive mode: DC brushless design, magnetic drive
- 500 hours of continuous working life
Specifications:
| Item Type: | Submersibe Pump |
|---|---|
| Voltage Rating (V): | 2.5-6V, 3 ~ 5VDC |
| Flow Rate (L/Hr) | 80 ~ 120 |
| Maximum Lift (mm) | 400-1100 |
| Length (mm): | approx. 45 mm |
| Height (mm): | about. 33mm |
| Diameter (mm): | approx. 24mm |
| Effluent Outer Diameter (mm) | 7.5mm/0.3″ |
| Water Outlet ID (mm) | 4.7 mm / 0.18″ |
Packages Includes:
1 x Horizontal Mute Sounds Mini Submersible Pump DC 3V-5V

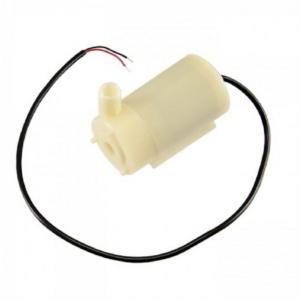

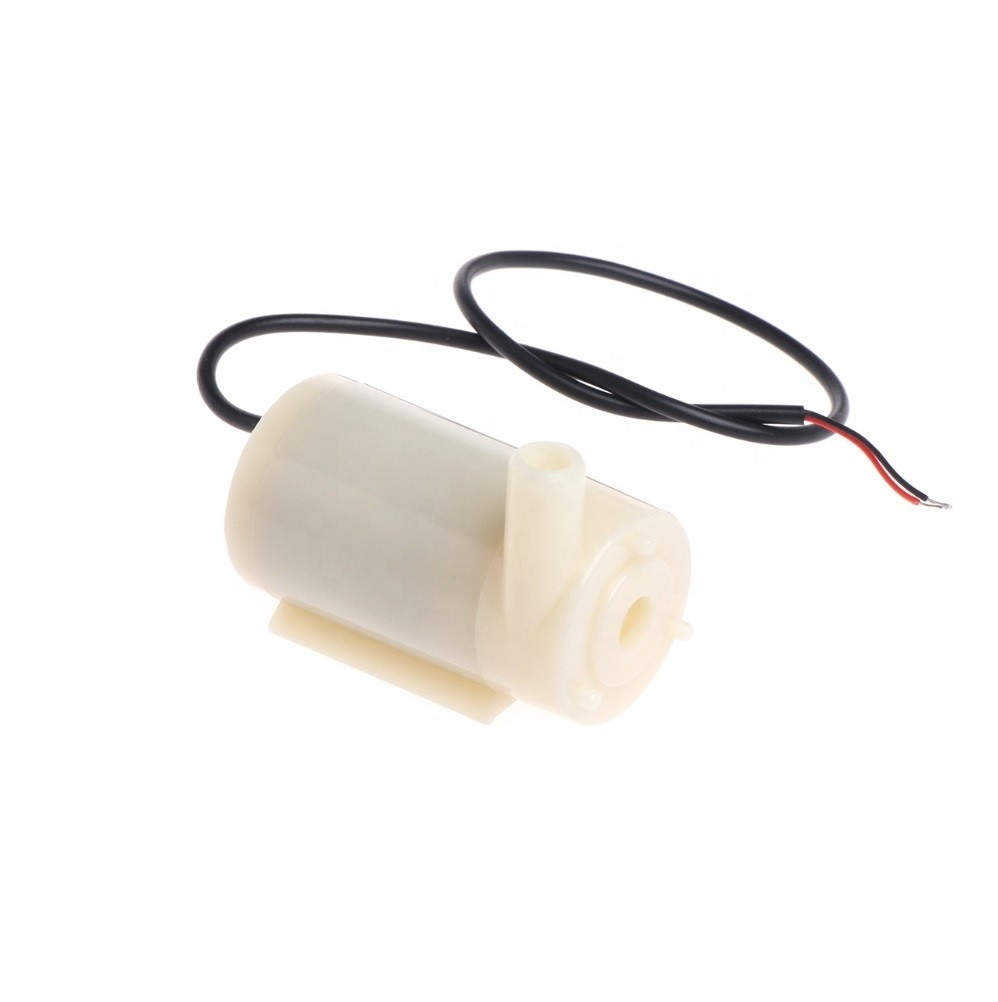

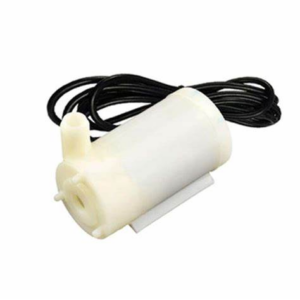

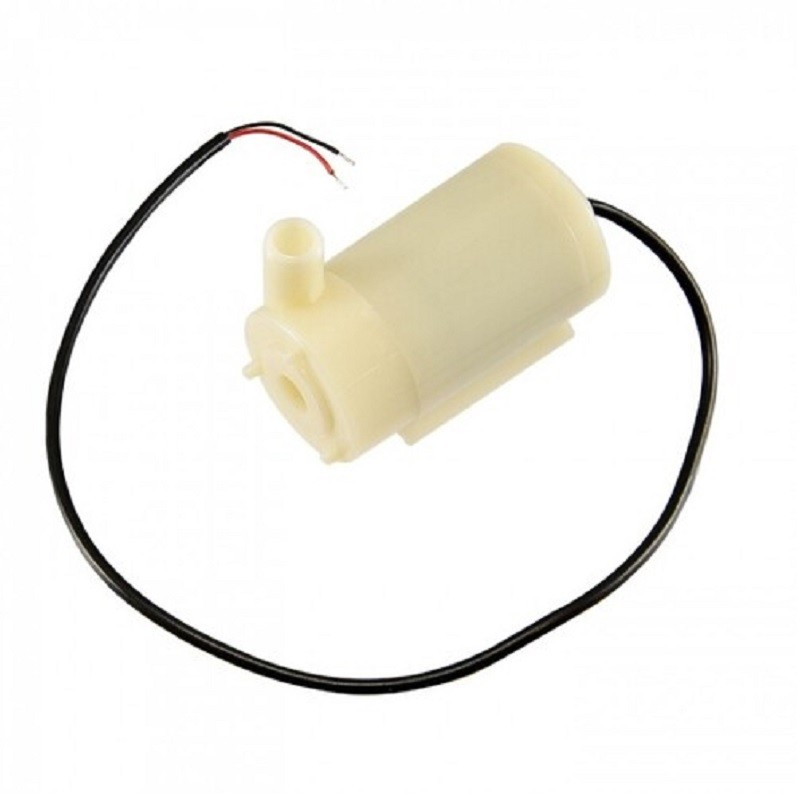

Horizontal Mute Sounds Mini Submersible Pump DC 3V-5V Overview
The Horizontal Mute Sounds Mini Submersible Pump DC 3V-5V is a compact, low-noise centrifugal pump designed for continuous immersion in clean water. Operating between 2.5 V and 6 V DC, it delivers flow rates up to 120 L/H and lifts water to heights between 40 cm and 110 cm, making it ideal for small-scale liquid transfer tasks.
Key Features of Horizontal Mute Sounds Mini Submersible Pump DC 3V-5V
- Wide DC Voltage Range: Operates smoothly from 2.5 V to 6 V DC (recommended 3 V–5 V).
- Low Noise Operation: Horizontal design with silent motor for minimal disturbance.
- Decent Lift & Flow: Maximum lift of 40 cm–110 cm and flow rate of 80–120 L/H.
- Compact & Submersible: Fully waterproof housing for safe underwater use.
- Standard Outlet Size: 7.5 mm (0.3″) outer diameter for easy hose connections.
- Fast Shipping: Genuine stock at Zbotic, dispatched within 24 hours.
Applications and Use Cases
- Circulating water in small aquariums or terrariums.
- Feeding water to tabletop fountains and desktop water features.
- Supplying nutrient solution in home hydroponic setups.
- Liquid cooling loops for compact electronics or Raspberry Pi projects.
- Model railroad scenery or miniature architectural water displays.
- Draining water from shallow flooded areas or open containers.
How to Use Horizontal Mute Sounds Mini Submersible Pump DC 3V-5V
Submerge the pump fully in clean water, attach a 7.5 mm inner-diameter hose to the outlet, and connect the red and black leads to a stable 3 V–5 V DC power supply. Ensure the pump remains underwater during operation to maintain prime and prevent motor damage.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What is the recommended operating voltage and current draw?
This pump runs best at 3 V–5 V DC. At 5 V it achieves maximum flow and lift without overloading; typical current draw is under 200 mA at peak performance.
Can the pump run continuously for long periods?
Yes. When fully submerged in clean water, the pump motor stays cool and can operate continuously. Avoid running it dry to prevent overheating.
Do I need to prime the pump before use?
No manual priming is required. The pump is self-priming as long as its inlet is submerged in water; ensure no air pockets form around the impeller.
