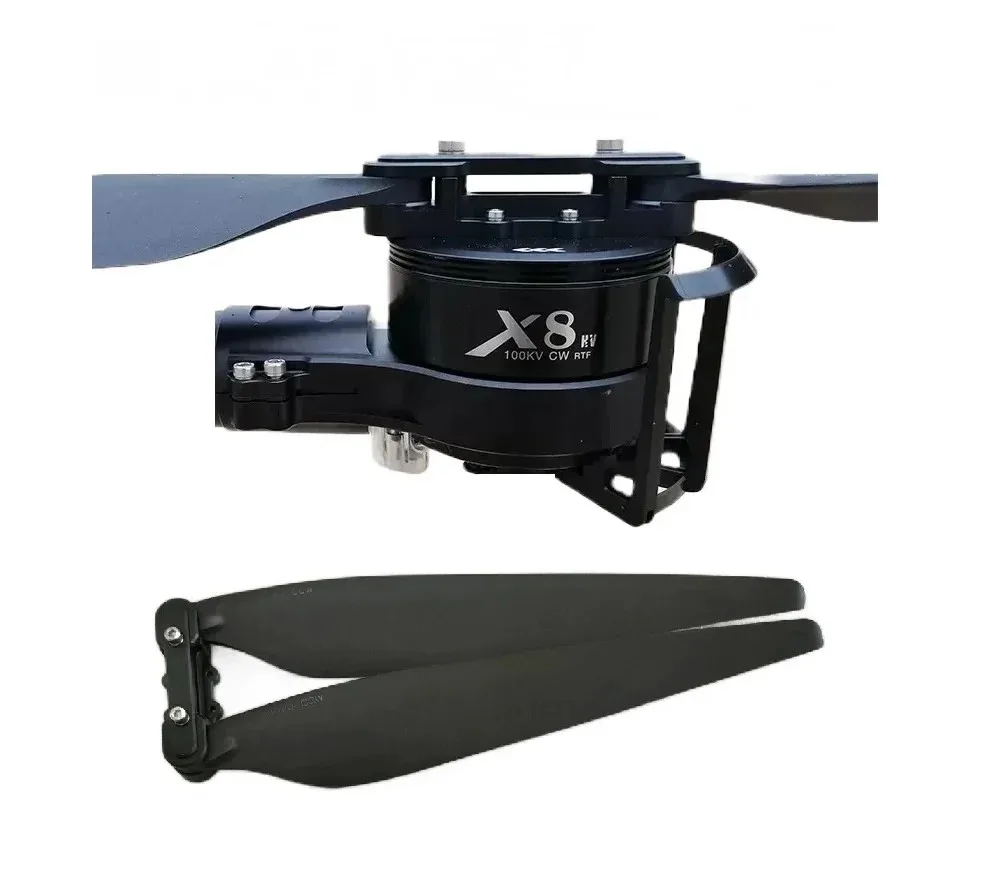

This is the CW rotation variant of the Hobbywing X8 Motor and X8 3011 Folding Propeller Combo Kit – CW in Drone Kits. Available at ₹13,942.95 (₹13,279.00 + GST) with free shipping across India.
Description:
The X8 brushless power system is engineered to meet the demands of agricultural drones, boasting remarkable capabilities. With the ability to handle a substantial load of 5~7kg per rotor, it delivers impressive thrust of up to 15.3kg, making it ideal for heavy-duty applications. Designed to match 30/35mm carbon fiber tube arms, it ensures seamless integration into drone frameworks.
Notably, the X8 is built to withstand harsh environments, certified waterproof and dustproof to IPX7 standards. It exhibits resilience against various elements including rainwater, pesticides, salt spray, sand, dust, mud, sandy soil, high temperatures, and impacts.
Moreover, the X8 incorporates advanced algorithms optimizing the FOC ESC & Motor system, ensuring balance and efficiency. It offers multiple protective features such as power-on self-detection, abnormal voltage detection on startup, over-current protection, and motor lock-up prevention, guaranteeing the safety and reliability of the system.
Additionally, it facilitates real-time data output, providing valuable insights for monitoring and diagnostics. Overall, the X8 stands as a formidable power system, tailored to meet the rigorous demands of agricultural drone operations with precision and durability.
Note: For more technical details go through Datasheet in the attachment section.
Features:

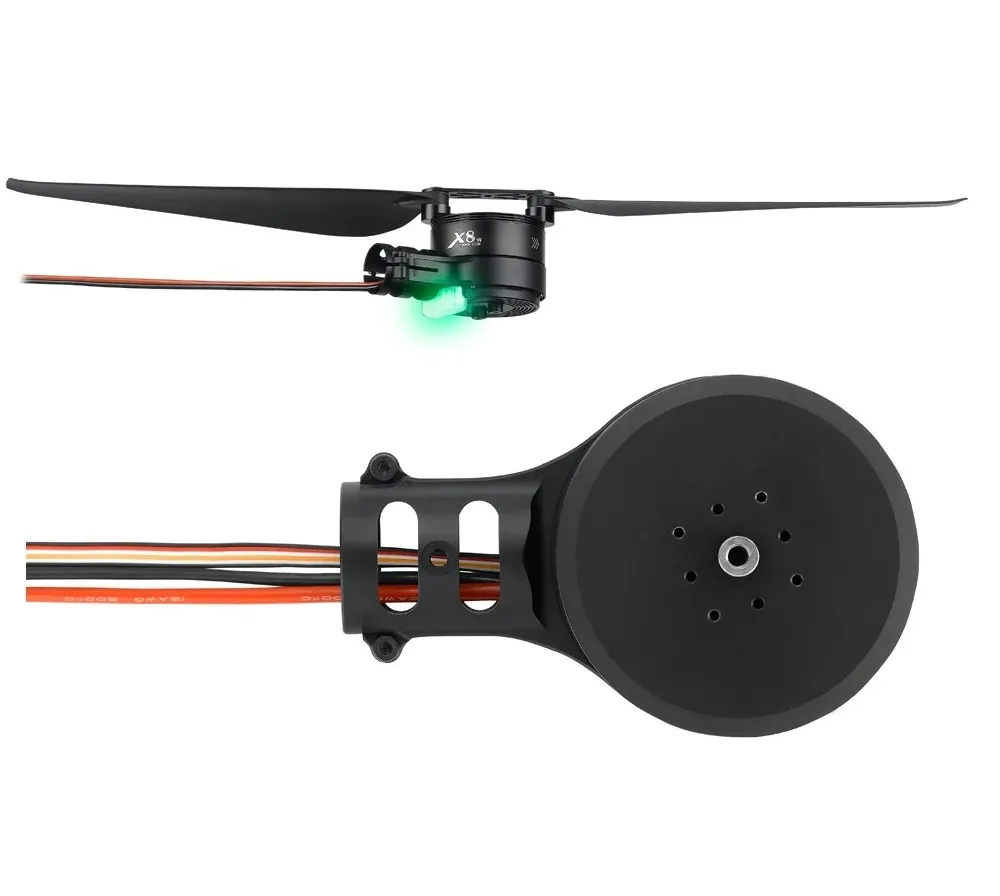

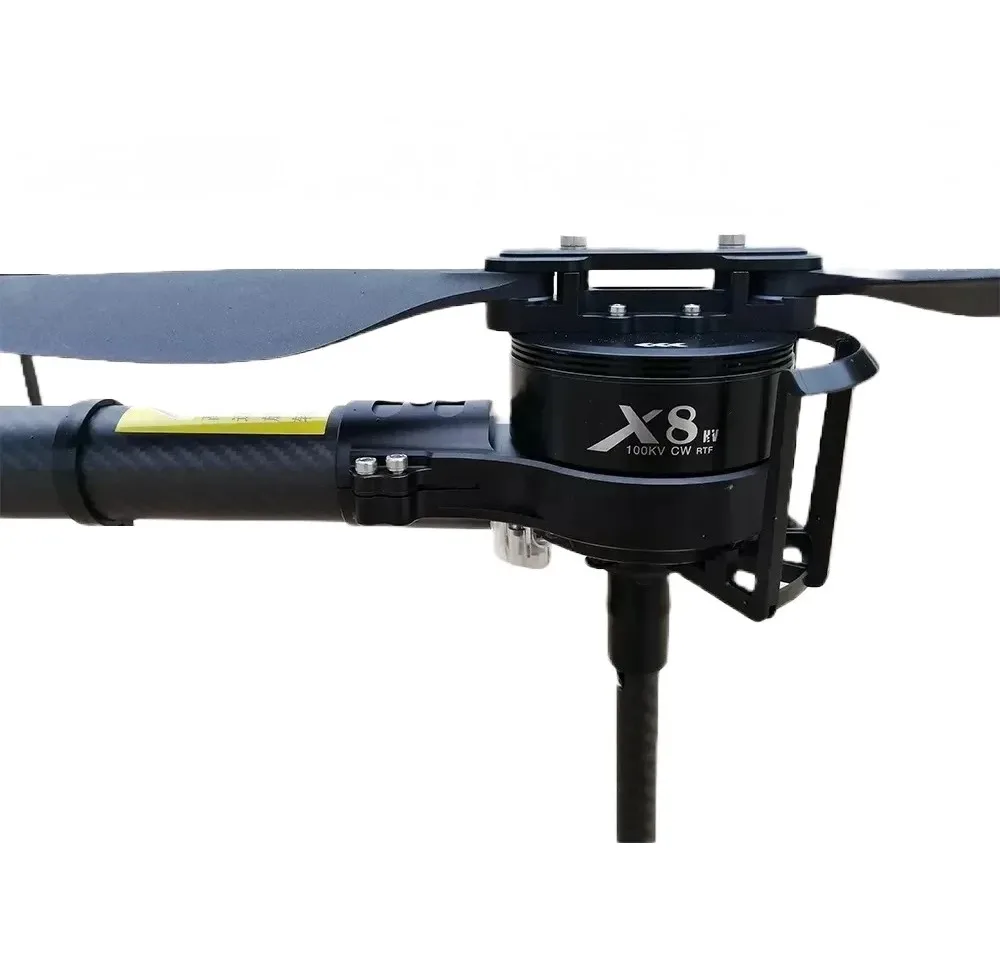

- Integrated & Ready-to-use Propulsion System: The X8 propulsion system, which integrates the motor, ESC, propeller, and motor mount (with the stock/standard tube adapter, it’s compatible with 30mm&35mm diameter carbon fiber arm tubes) together, is easy to mount and use.
- FOC-based PMSM Algorithm Perfect Propulsion System: The FOC (Filed Oriented Control)-based PMSM (Permanent Magnet Synchronous Motor) algorithm, an optimized algorithm for improving the collaborative performance of the ESC, motor & propeller, makes the motor-propeller more balanced and creates a propulsion system features high stability, and reliability and efficiency.
- Compared with the BLDC motors, the PMSM has a lot of advantages such as low noise, small size, high power density, low pulsating torque, and high control precision.
- Waterproof: The X8 propulsion system is waterproof to IPX7 standards. It’s applicable to almost all harsh working conditions (for agricultural applications) like rainwater, pesticides, salt spray, high temperature, sand, and dust. Combined with the outlets at the bottom of the motor mount (note: patented design), you can directly rinse the system with fresh water after use.
Specifications:
| Motor Type | CW |
|---|---|
| Thrust Limitation | 15kg/Axis (46V, Sea Level ) |
| Weight Lift | 5-7kg/Axis(46V, Sea Level) |
| LiPo Battery Cell Count | 12S |
| Motor KV | 100KV |
| Stator Size (mm) | 81X20 |
| Bearing | NSK Ball Bearing (Waterproof) |
| Operating Temperature (°C) | -20~65 |
| IP Rating | IPX6 |
| Compatible Propellers Size (inch) | 3011 |
Package Includes:

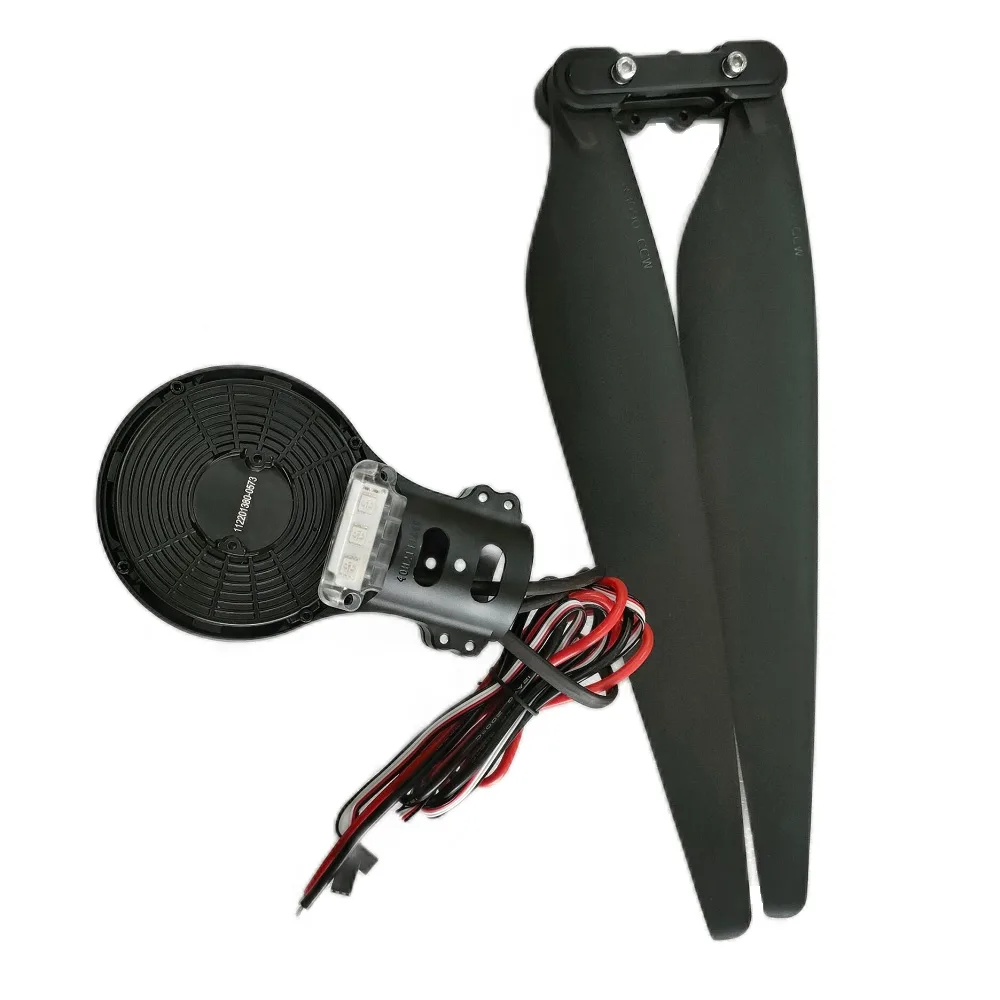

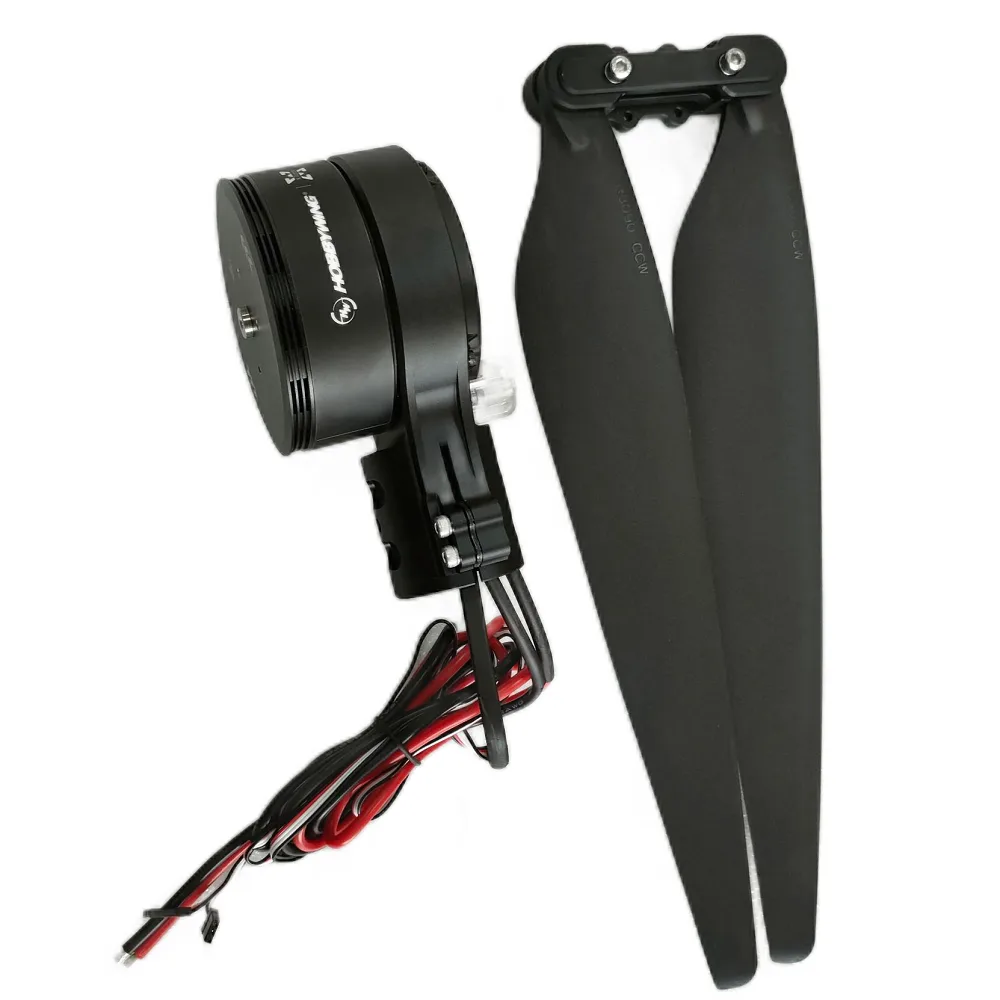

- 1 x Hobbywing X8 Motor – CW
- 1 x Hobbywing X8 3011 Folding Propeller – CW
- 1 x Foam pad for propeller folding.
