This is the CW rotation variant of the HOBBYWING X6-SE 280KV Motor and 2270 Propeller Combo Kits-CW in Drone Kits. Available at ₹13,494.60 (₹12,852.00 + GST) with free shipping across India.
Looking for X6-se Motor? HOBBYWING X6-SE 280KV Motor and 2270 Propeller Combo Kits-CW is available at Zbotic with fast shipping across India.

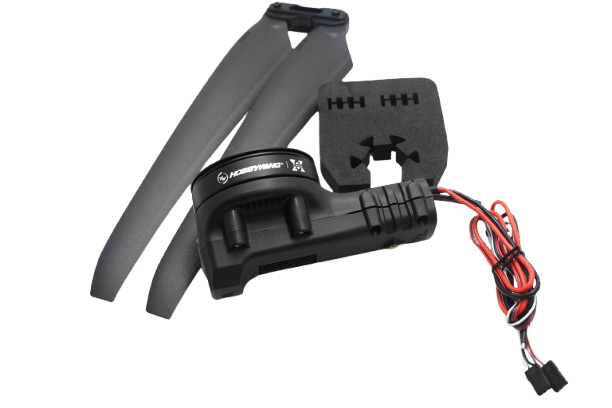

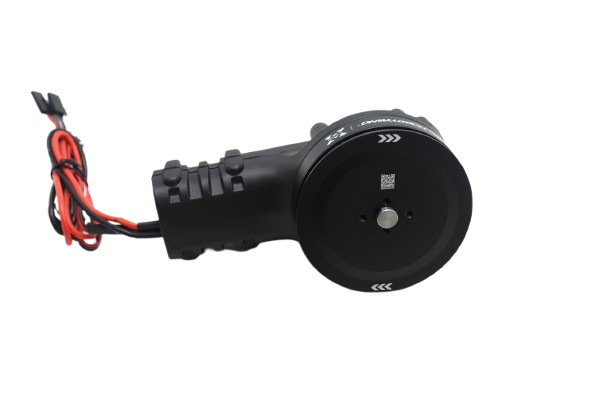

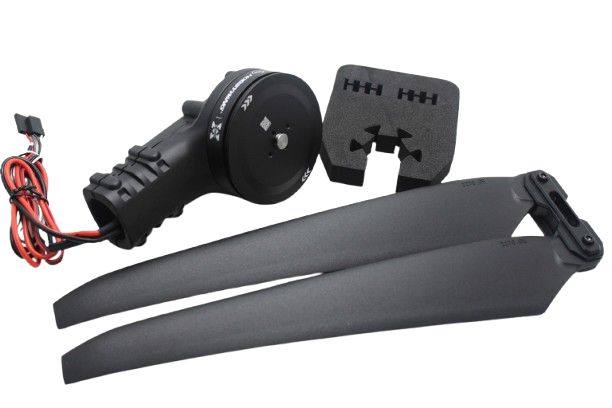

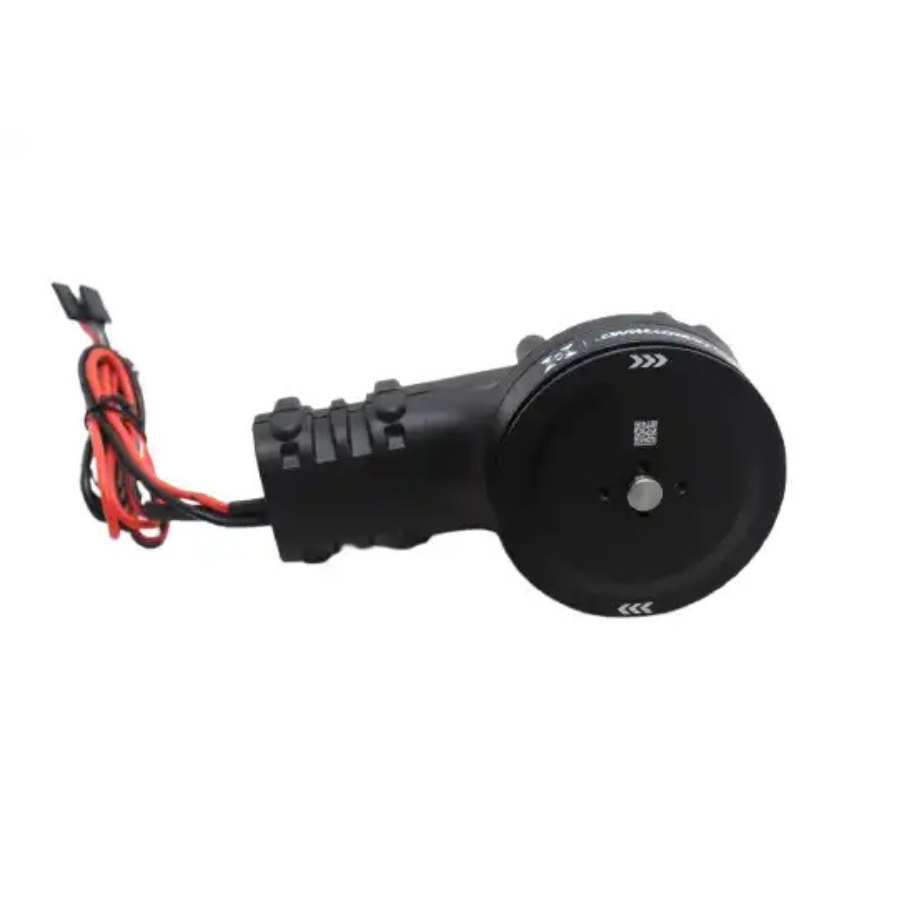

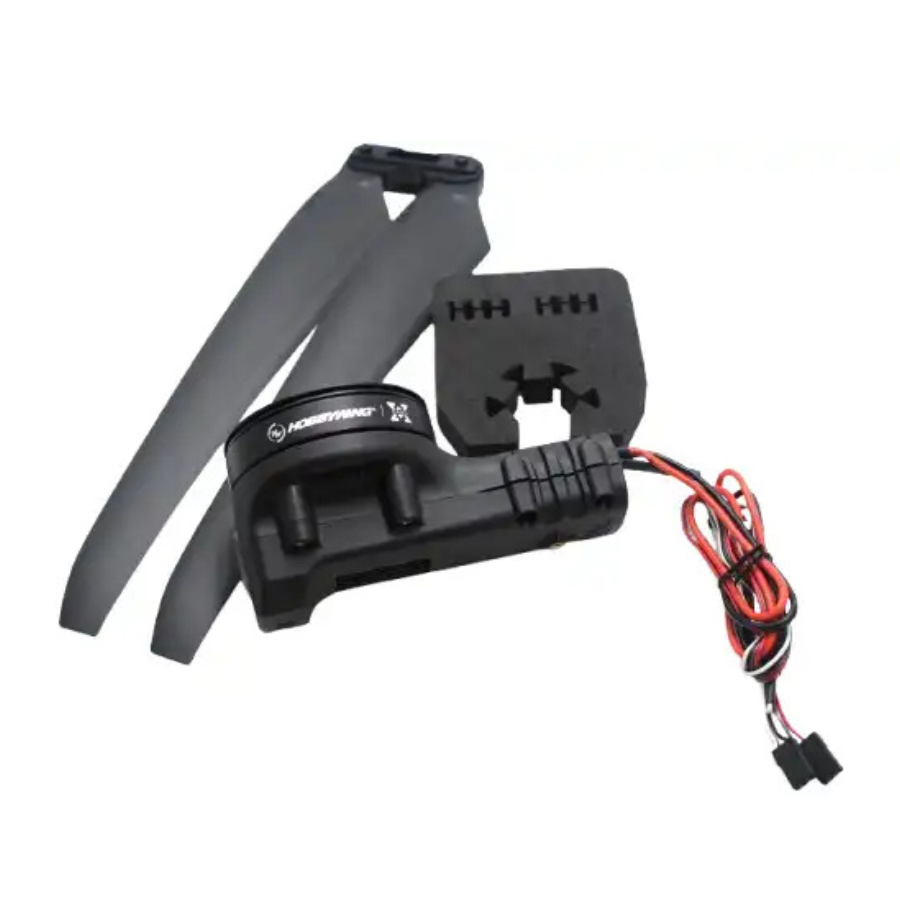

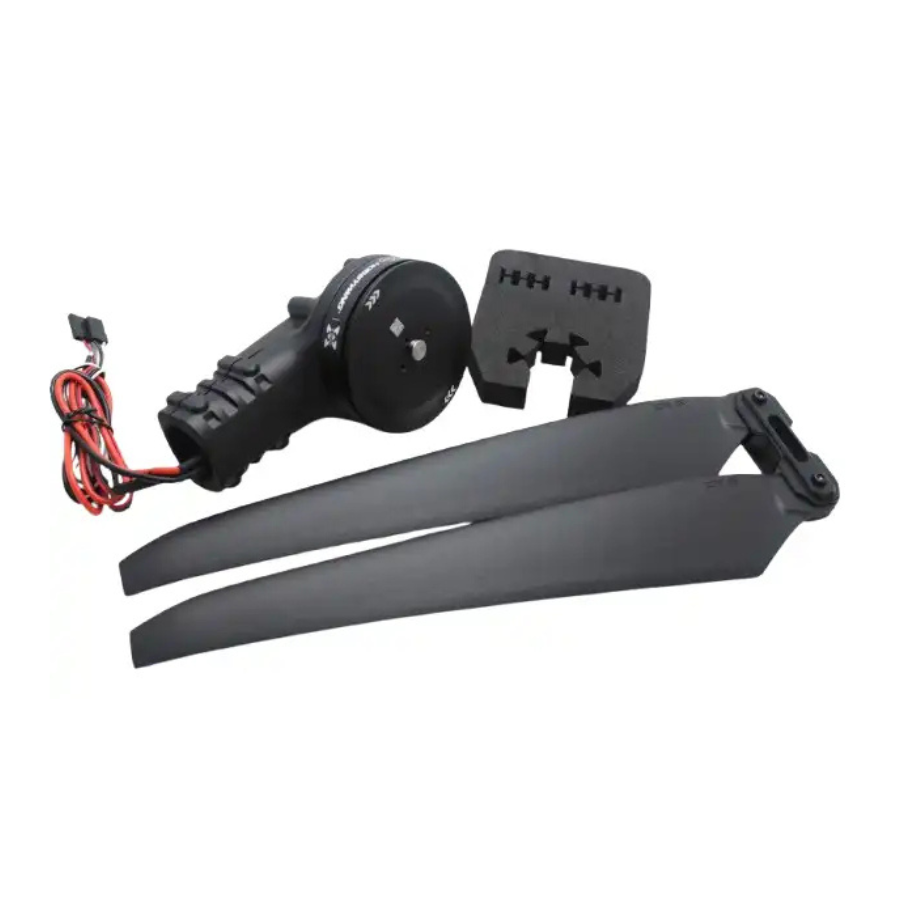

A low-cost and reliable integrated propulsion system designed for drone education and training. With a 6208- 280KV motor, 60A-BLDC and 2270 propeller, it delivers a maximum thrust of 6.2kg and is suitable for 8kg quadcopters with 25mm arm tube. It is applied to various drone scenarios such as aerial photography, inspections, mapping and more.
X6 SE-380KV Load performance parameters
X6 SE-280KV Techenical Parameters
| Voltage(V) | Propeller | Throttle(%) | Thrust(g) | Current(A) | Power Input(W) | Speed(RPM) | Efficiency(g/W) | Torque(N·m) | Power Output(W) | Temperature℃ |
|---|---|---|---|---|---|---|---|---|---|---|
| 23V (6S LiPo) | MFP 22×7.0 | 33% | 1195 | 4.1 | 93.9 | 2252 | 12.7 | 0.31 | 79.8 | 72℃ |
| 35% | 1327 | 4.7 | 107.9 | 2369 | 12.3 | 0.35 | 91.7 | |||
| 37% | 1460 | 5.3 | 123.0 | 2484 | 11.9 | 0.38 | 104.5 | |||
| 39% | 1596 | 6.0 | 139.1 | 2596 | 11.5 | 0.41 | 118.2 | |||
| 42% | 1802 | 7.1 | 165.2 | 2760 | 10.9 | 0.46 | 140.4 | |||
| 45% | 2013 | 8.4 | 193.5 | 2919 | 10.4 | 0.52 | 164.5 | |||
| 48% | 2229 | 9.7 | 223.9 | 3072 | 10.0 | 0.57 | 190.3 | |||
| 51% | 2449 | 11.1 | 256.3 | 3220 | 9.6 | 0.62 | 217.9 | |||
| 54% | 2673 | 12.6 | 290.9 | 3363 | 9.2 | 0.68 | 247.2 | |||
| 57% | 2901 | 14.2 | 327.6 | 3502 | 8.9 | 0.73 | 278.5 | |||
| 60% | 3132 | 15.9 | 366.6 | 3636 | 8.5 | 0.79 | 311.6 | |||
| 63% | 3365 | 17.6 | 407.9 | 3767 | 8.2 | 0.85 | 346.7 | |||
| 66% | 3600 | 19.5 | 451.7 | 3895 | 8.0 | 0.91 | 383.9 | |||
| 69% | 3836 | 21.5 | 498.0 | 4021 | 7.7 | 0.96 | 423.3 | |||
| 72% | 4071 | 23.7 | 546.8 | 4145 | 7.4 | 1.02 | 464.7 | |||
| 75% | 4306 | 25.9 | 597.9 | 4267 | 7.2 | 1.08 | 508.2 | |||
| 78% | 4538 | 28.2 | 651.3 | 4387 | 7.0 | 1.14 | 553.6 | |||
| 81% | 4768 | 30.6 | 706.5 | 4505 | 6.7 | 1.20 | 600.5 | |||
| 84% | 4993 | 33.0 | 763.0 | 4619 | 6.5 | 1.26 | 648.6 | |||
| 87% | 5213 | 35.5 | 820.3 | 4730 | 6.4 | 1.32 | 697.3 | |||
| 90% | 5427 | 38.0 | 877.8 | 4835 | 6.2 | 1.37 | 746.1 | |||
| 100% | 6058 | 45.6 | 1051.6 | 5115 | 5.8 | 1.53 | 893.9 |
HOBBYWING X6-SE 280KV Motor and 2270 Propeller Combo Kits-CW Overview
The HOBBYWING X6-SE 280KV Motor and 2270 Propeller Combo Kits-CW is an integrated propulsion solution designed for educational and training drones. It combines a 6208-280KV brushless motor, a 60A BLDC ESC with CAN protocol and a high-efficiency 2270 propeller to deliver up to 6.2 kg of thrust per rotor.
Key Features of HOBBYWING X6-SE 280KV Motor and 2270 Propeller Combo Kits-CW
- Integrated 6208-280KV brushless motor paired with a 60A BLDC ESC for streamlined installation
- High-efficiency 2270 propeller engineered for maximum lift and stable performance
- Supports 6S LiPo battery input, delivers up to 1070 W peak power
- Delivers recommended thrust of 2–2.5 kg per rotor and maximum thrust of 6.2 kg per rotor
- Mounts on standard 25 mm arm tubes for 8 kg class quadcopters
- Equipped with CAN protocol interface for precise motor control and telemetry feedback
- Genuine product, fast shipping from Zbotic across India
Applications and Use Cases
- Drone education and pilot training programs in schools and hobby clubs
- Aerial photography platforms requiring stable liftoff and smooth throttle response
- Industrial inspections and site surveys where reliable thrust is critical
- Mapping and surveying drones needing consistent motor performance
- Prototype and R&D quads testing new payload configurations
- Heavy-lift UAVs for light cargo delivery and agricultural monitoring
How to Use HOBBYWING X6-SE 280KV Motor and 2270 Propeller Combo Kits-CW
Secure the motor to a 25 mm diameter arm tube using the supplied mounting screws, attach the 2270 propeller, and connect the 60A ESC to your flight controller via the CAN port. Balance the propeller, plug in a fully charged 6S LiPo battery, and program ESC parameters using Hobbywing’s software for optimal thrust and throttle linearity.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Is the X6-SE compatible with 6S LiPo batteries?
Yes, the ESC and motor combo are designed specifically for 6S LiPo packs, supporting up to 1070 W of power for high-thrust applications.
What mount size is required for installation?
The motor base is sized for a 25 mm diameter arm tube, making it suited to standard 8 kg class quadcopter frames.
Can this kit handle heavy-lift payloads?
With a maximum thrust of 6.2 kg per rotor and recommended thrust of 2–2.5 kg each, it’s ideal for heavy-lift UAVs and industrial inspection platforms.
