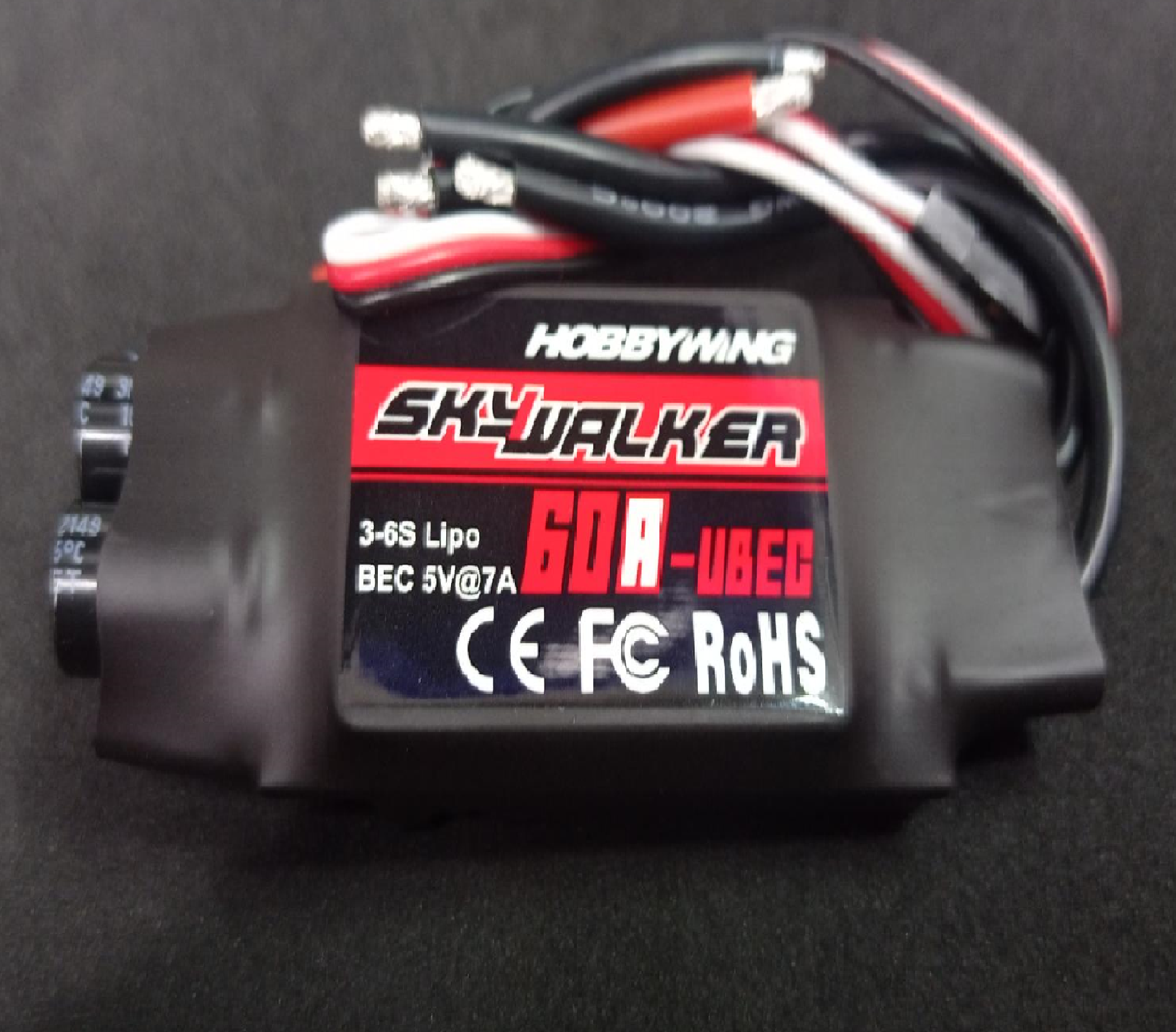

Hobbywing Skywalker-60A- UBEC
The SKYWALKER series is an excellent choice for those in search of high-performance brushless power systems that are both affordable and reliable. These ESCs, made with high-quality components and great attention to detail, are especially suitable for hobby newcomers.
A notable model in the series is the Hobbywing Skywalker-60A-UBEC 3A 2-6S Brushless ESC (SW60A). It stands out with a comprehensive set of features and specifications, presenting a superb choice for beginners in RC aviation.
This ESC, with a continuous current capacity of 60A, offers sufficient power for various aircraft applications. Its integrated UBEC (Universal Battery Elimination Circuit) ensures a steady 3A output, providing a consistent power supply to the onboard electronics, including servos and receivers.
The SW60A ESC’s compatibility with 2-6S LiPo batteries adds flexibility in battery choice, allowing pilots to tailor their power system to their particular requirements and preferences.
Moreover, the Hobbywing Skywalker-60A-UBEC ESC is known for its sturdy build and sophisticated electronic capabilities, such as overheat protection, throttle signal loss protection, and smooth throttle response. These features enhance safety and performance, offering a seamless flying experience, especially beneficial for beginners perfecting their piloting skills.
In summary, the Hobbywing Skywalker-60A-UBEC 3A 2-6S Brushless ESC (SW60A) is a testament to the SKYWALKER series’ outstanding balance of value and performance. Its blend of affordability, quality, and ease of use makes it a prime selection for novices eager to start their RC adventure confidently.
Features:
1 Safety arming feature: Regardless of the throttle stick position, the motor will not spin after the battery is connected.
2 Throttle calibration function: The throttle range can be calibrated to be compatible with different transmitters.
3 User programmable.
4 Multiple program methods supported: transmitter stick, LED Program Card. Very easy to program the ESC at home or at the flying field.
5 Compatible with Lipo and NiMH battery.
6 Timing can be changed to be suitable for different brushless motors.
7 Full protection: Low voltage cutoff protection / Over-heat protection / Throttle signal loss protection.
Specification-
| Output | Continuous 60A, Burst 80A up to 10 seconds |
|---|---|
| Input Voltage | 3-6S Lipo, 5-18 cells NiMH |
| BEC | 5A / 5V Switch mode BEC. |
| Refresh rate of the throttle signal | 50Hz to 432Hz |
| Max Speed | 210000rpm for 2 Poles BLM, 70000rpm for 6 poles BLM, 35000rpm for 12 poles BLM. (BLM = BrushLess Motor) |
| Size (mm): | 77mm*35mm*14mm |
| Shipping Weight | 0.06 kg |
| Shipping Dimensions | 8 × 6 × 1 cm |
Package Includes :
1 x Hobbywing Skywalker-60A- UBEC
Tricopter Build Guide: Unique Y-Frame Drone Design
Tricopter Build Guide: Unique Y-Frame Drone Design In a world dominated by quadcopters, the tricopter is the odd...
Read More →
HDZero VTX: Low-Latency Digital FPV for Racing
Table of Contents Understanding HDZero VTX Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation Practical Tips...
Read More →
FPV Camera & Video Transmitter Buying Guide
A good FPV camera and VTX (video transmitter) combo is what turns a flying quad into a truly...
Read More →Technical Specifications
| Brand | Hobbywing |
|---|---|
| Current Rating | 60A |
| SKU | AI5426 |
| Weight | 0.11 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Hobbywing Skywalker-60A- UBEC is a versatile (esc) drone speed controller used across a wide range of applications including brushless motor speed control, FPV drone builds, multirotor platforms, and RC aircraft.
Common use cases:
- Controlling motor speed in a quadcopter
- Replacing a burnt ESC after a short
- Upgrading to BLHeli_32 for smoother throttle response
This product is ideal for drone builders and RC enthusiasts.
Technical Tip: Choose ESC amperage 20% above your motor's max draw. DShot600 protocol recommended for modern builds.
