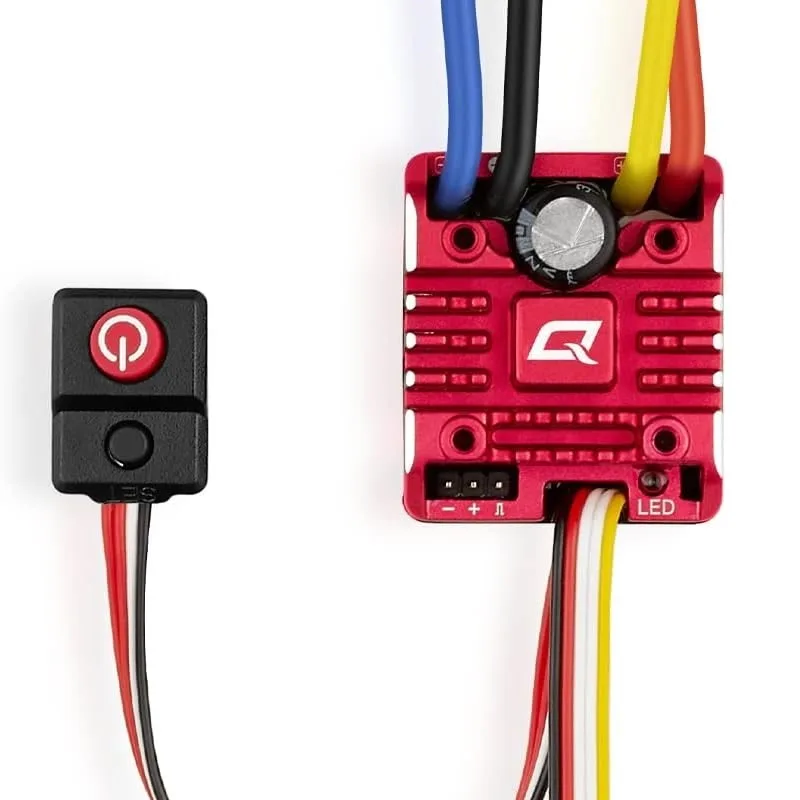

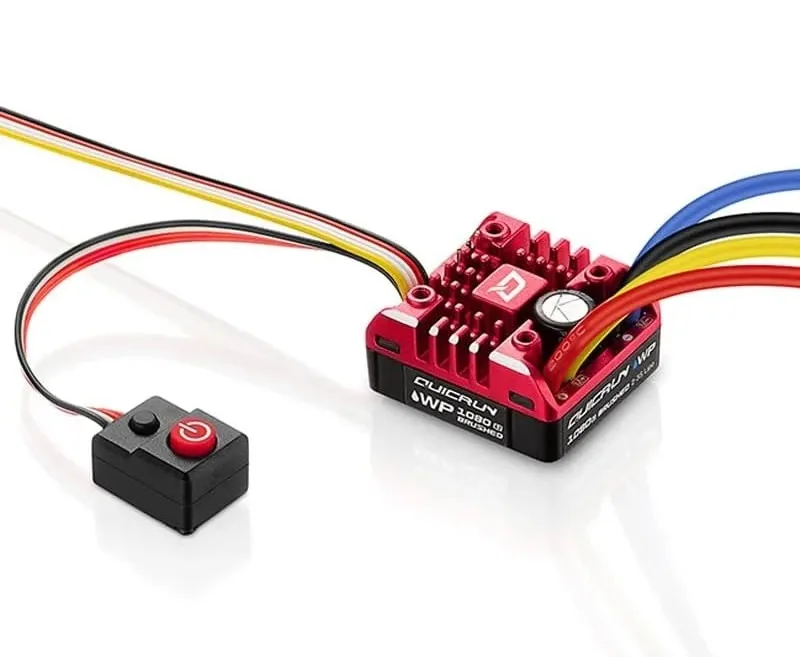

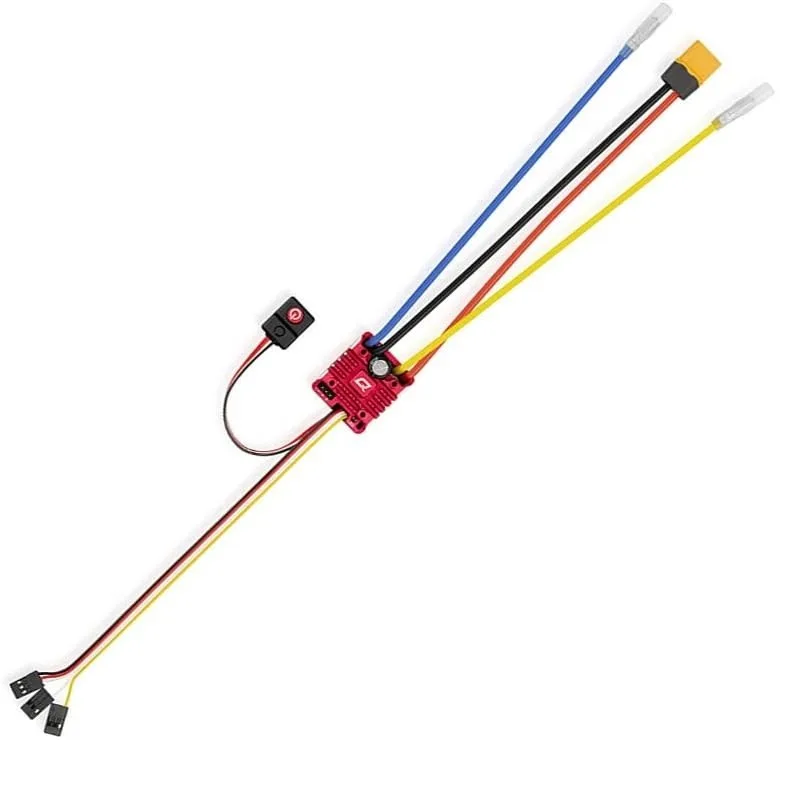

Hobbywing QuicRun WP 1080 G2 Brushed Electronic Speed Controller (ESC)

Looking for Hobbywing Quicrun Wp Controller? Hobbywing QuicRun WP 1080 G2 Brushed Electronic Speed Controller (ESC) is available at Zbotic with fast shipping across India.

Hobbywing QuicRun WP 1080 G2 Brushed Electronic Speed Controller (ESC)

The Hobbywing QuicRun WP 1080 G2 Brushed stands out as a high-performance electronic speed controller (ESC) tailored for RC (radio-controlled) vehicles, specifically optimized for brushed motor setups.

Its most notable feature is its waterproof design, enabling it to operate seamlessly in various weather conditions, including mud, puddles, or wet terrain, without risking damage from water or moisture. This resilience makes it an ideal choice for off-road vehicles.

Constructed with durability in mind, the ESC is engineered to endure the demands of RC racing and bashing. Utilizing top-tier components and advanced cooling technology, it ensures reliable performance and extended lifespan. The aluminum case serves as an efficient heat sink, dissipating heat generated during operation to prevent overheating and enhance the ESC’s longevity.

Features:

1. Fully Waterproof and dust-proof, suitable for all-weather races. Small size, with built-in capacitor module.
2. Four operating modes available (Real Car Operating / FWD with Brake / FWD and REV with Brake / FWD and REV)
3. The first “real car mode” The direction of the motor is switchable in real time by using the idle channel on the remote control.
4. Real-Time Adjustment of Drag Braking Force. 15 programmable parameter items PWM Frequency: 1K/2K/4K/8K/16K Adjustable Freewheeling (DEO) capability Drag brake rate in 9 levels (adjustable)
5. Great built-in BEC output capacity switchable 6V/ 7.4/ 8.4V
6. Multiple protections: Over Voltage Protection Low voltage cut-off protection for battery Over-heating protection Throttle signal loss protection, and much more

Specification:

Package Includes:

1 x Hobbywing QuicRun WP 1080 G2 Brushed Electronic Speed Controller (ESC)

Hobbywing QuicRun WP 1080 G2 Brushed Electronic Speed Overview

The Hobbywing QuicRun WP 1080 G2 Brushed is a waterproof ESC designed for 540/550-size brushed motors in off-road and on-road RC vehicles. With an 80A continuous and 400A peak current rating, it ensures smooth throttle response and reliable power delivery under a variety of track and weather conditions.

Key Features of Hobbywing QuicRun WP 1080 G2 Brushed Electronic Speed

• 80A continuous and 400A peak current handling for sustained high performance
• Waterproof design to tackle mud, puddles, and wet terrain without damage
• Switch-mode BEC offering 6V, 7.4V, or 8.4V output at up to 4A for stable receiver and servo power
• Compatible with 2–3S LiPo (7.4–11.1V) or 5–9S NiMH battery packs
• Dedicated programming port for easy setup and tuning via an external programmer
• Genuine product, fast shipping from Zbotic with nationwide delivery

Applications and Use Cases

• 1/10 scale off-road buggy and monster truck racing in muddy or wet environments
• Rock crawling builds requiring precise low-speed control and waterproof reliability
• On-road touring cars that demand smooth throttle response at high RPM
• Drift cars where adjustable BEC voltage keeps servos consistent during slides
• Stadium trucks and short-course trucks running 540/550 brushed motors

How to Use Hobbywing QuicRun WP 1080 G2 Brushed Electronic Speed

Mount the ESC securely in your chassis, connect the three brushed motor leads to the motor, and wire your 2–3S LiPo or 5–9S NiMH battery to the power input. Plug the receiver lead into your receiver’s throttle channel, select the desired BEC output voltage via the built-in switch, then calibrate throttle endpoints. Use the separate programming port and an optional Hobbywing programmer to fine-tune brake strength, punch, and timing for optimal performance.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

Is the QuicRun WP 1080 G2 fully waterproof?

Yes. The QuicRun WP 1080 G2 features a sealed housing and waterproof connectors, allowing reliable operation in rain, puddles, and muddy conditions without risk of short circuits.

Which battery types and cell counts can I use?

This ESC supports 2–3S LiPo packs (7.4–11.1V) and 5–9S NiMH packs. Always ensure your battery voltage matches the ESC’s input range to avoid overvoltage damage.

Can I program throttle and braking settings?

Absolutely. The separate programming port allows you to connect Hobbywing’s optional programming card or USB link to adjust punch, brake force, motor timing, and BEC voltage for a tailored driving experience.
