This is the CW rotation variant of the Hobbywing P50M 11KV Motor + ESC with USC 5423 Propeller Combo Kit-CW in Carbon Fiber Propeller, Drone Motor. Available at ₹325,237.50 (₹309,750.00 + GST) with free shipping across India.
Hobbywing P50M 11KV Motor + ESC with USC 5423 Propeller Combo Kit-CW
Description:
The Hobbywing P50M 11KV Motor + ESC with USC 5423 Propeller Combo Kit-CW is a high-performance UAV propulsion solution that combines a P50M motor, ESC, and USC 54×23 propeller for efficient power delivery, reliable operation, and optimized thrust. Ideal for professional multirotor and industrial drone applications. The Hobbywing P50M 11KV Motor + ESC with USC 5423 Propeller Combo Kit is an integrated UAV propulsion solution designed to deliver efficient, stable, and reliable performance for multirotor drones. The kit combines the Hobbywing P50M motor, compatible ESC, and USC 5423 propeller, providing optimized power delivery and thrust while simplifying installation and system integration. It is well suited for professional, industrial, agricultural, mapping, and other heavy-duty UAV applications.

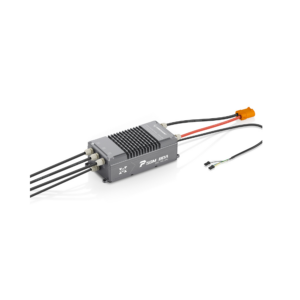

P50M ESC CAD

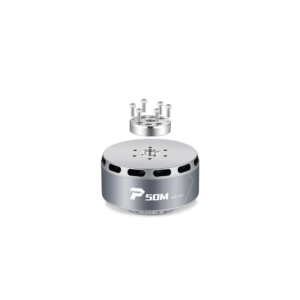

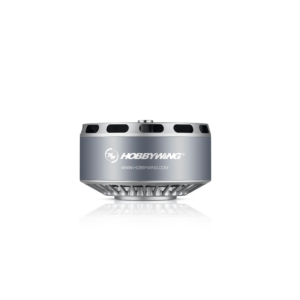

P50MMotor CAD
P50M LED Outline CAD
USC 54×23 CAD
Specifications:
| Parameter | Specification |
|---|---|
| Product Name | P50M Propulsion System |
| Model | P50M |
| Max Thrust | 116 kg |
| Recommended Takeoff Weight per Axis | 50 kg |
| Efficiency at Recommended Takeoff Weight | 7.2 g/W / 6.3 g/W |
| Input Voltage | 280–450 V |
| Rated Voltage | 400 V |
| Tube Outer Diameter | Φ60 mm |
| Weight (with Cable & Propeller) | 6.2 kg* |
| Power Cable | 10 AWG, 400 mm* |
| Signal Cable | 800 mm* |
| Operating Temperature | -35°C to 55°C |
| Ingress Protection | IP35 |
| Rated Output Power (Max. Continuous) | 5984 W |
| DataLink Version | DataLinkBox G3 |
ESC Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 400 V |
| Communication Protocol | UAVCAN / RS485 |
| ESC Size | 225.6 × 98 × 60 mm (with connector) |
| Weight (Including Cable) | 1200 g* |
| Peak Current (3s) | 80 A |
| Continuous Current | 40 A |
| Ingress Protection | IP67 |
| Throttle Signal Combination | CAN + RS485 / CAN + PWM / RS485 + PWM |
| Operating Pulse Width | 1100–1940 μs |
| Calibration | Not supported |
| Black Box | 2–48 h log |
Motor Specifications
| Parameter | Specification |
|---|---|
| KV | 9 KV / 11 KV |
| Slot & Pole | 36N42P |
| Motor Dimensions | Φ167.1 × H100.5 mm |
| Stator Size | Φ156 × H35 mm |
| Ingress Protection | IPX5 |
| Weight (with Cable) | 4250 g* |
Propeller Specifications
| Parameter | Specification |
|---|---|
| Propeller Models | MSC 64×20 / USC 54×23 |
| Weight | 860 g* / 707 g* |
| Material | Carbon Fiber Composite |
| Mounting Dimensions | D60-6 × M6 |
| Center Hole Diameter | D20 mm |
Features:
- Ultra-High Thrust: Delivers up to 116 kg maximum thrust.
- High Power Output: Supports up to 5984 W maximum continuous output power.
- High-Voltage Operation: Designed for 280–450 V input, with a 400 V rated voltage.
- ntegrated Propulsion System: Combines the motor, ESC, and carbon-fiber propeller into one system.
- Multiple Motor Options: Available in 9 KV and 11 KV configurations.
- Advanced ESC Communication: Supports UAVCAN and RS485 communication protocols.
- Multiple Throttle Interfaces: Supports CAN + RS485, CAN + PWM, and RS485 + PWM.
- Durable Construction: Motor rated IPX5 and ESC rated IP67 for demanding UAV environments.
- Wide Operating Temperature: Suitable for operation from -35°C to 55°C.
- Carbon-Fiber Propellers: Compatible with MSC 64×20 and USC 54×23 propellers.
- Black Box Logging: ESC supports 2–48 hours of flight data logging.
- Industrial UAV Applications: Suitable for heavy-lift, agricultural, mapping, logistics, and professional industrial drones.
Package Includes:
1xHobbywing P50M 11KV Motor + ESC with USC 5423 Propeller Combo Kit-CW
