This is the CCW rotation variant of the Hobbywing P50M 11KV Motor + ESC with USC 5423 Propeller Combo Kit-CCW in Carbon Fiber Propeller, Drone Motor. Available at ₹341,499.38 (₹325,237.50 + GST) with free shipping across India.
Hobbywing P50M 11KV Motor + ESC with USC 5423 Propeller Combo Kit-CCW
Description:

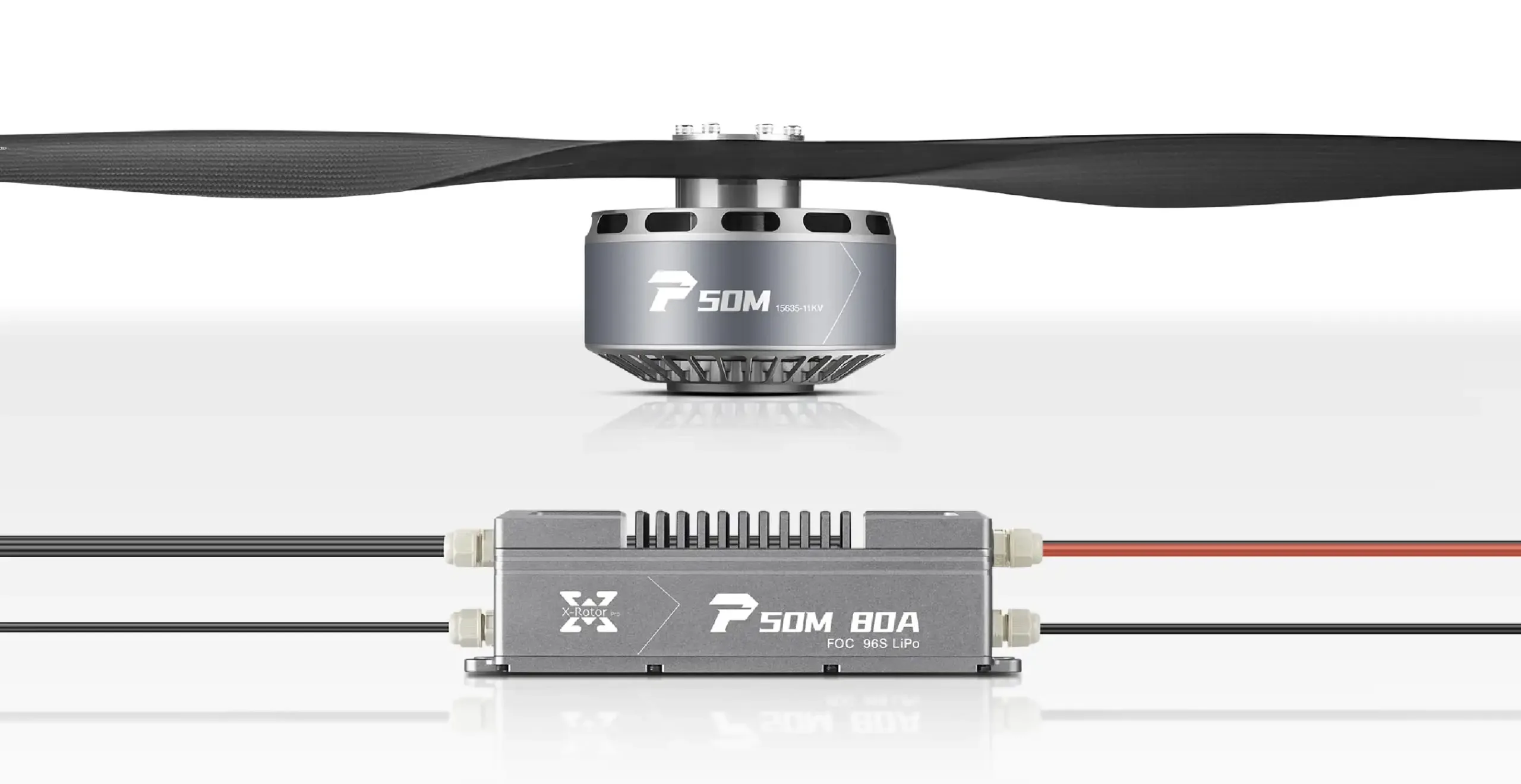

The Hobbywing P50M 11KV Motor + ESC with USC 5423 Propeller Combo Kit-CCW is a high-performance UAV propulsion solution that combines a P50M motor, ESC, and USC 54×23 propeller for efficient power delivery, reliable operation, and optimized thrust. Ideal for professional multirotor and industrial drone applications. The Hobbywing P50M 11KV Motor + ESC with USC 5423 Propeller Combo Kit-CCW is an integrated UAV propulsion solution designed to deliver efficient, stable, and reliable performance for multirotor drones. The kit combines the Hobbywing P50M motor, compatible ESC, and USC 5423 propeller, providing optimized power delivery and thrust while simplifying installation and system integration. It is well suited for professional, industrial, agricultural, mapping, and other heavy-duty UAV applications.

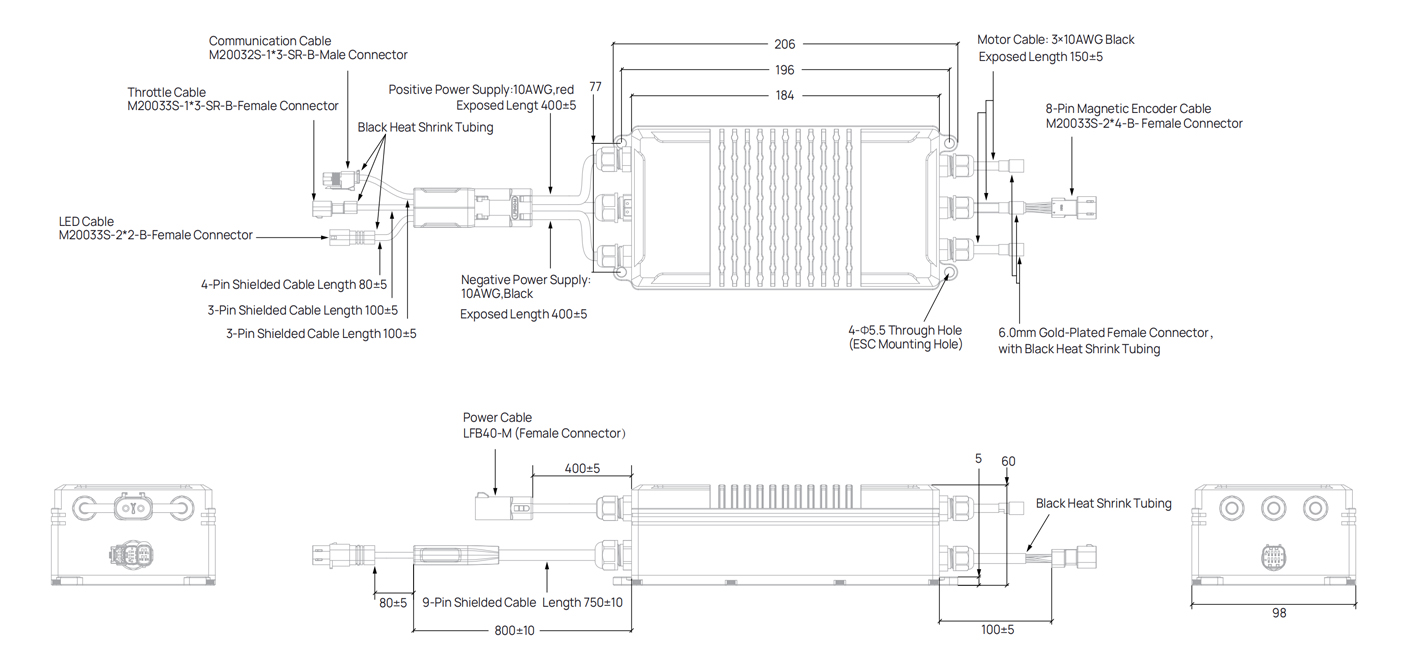

P50M ESC CAD

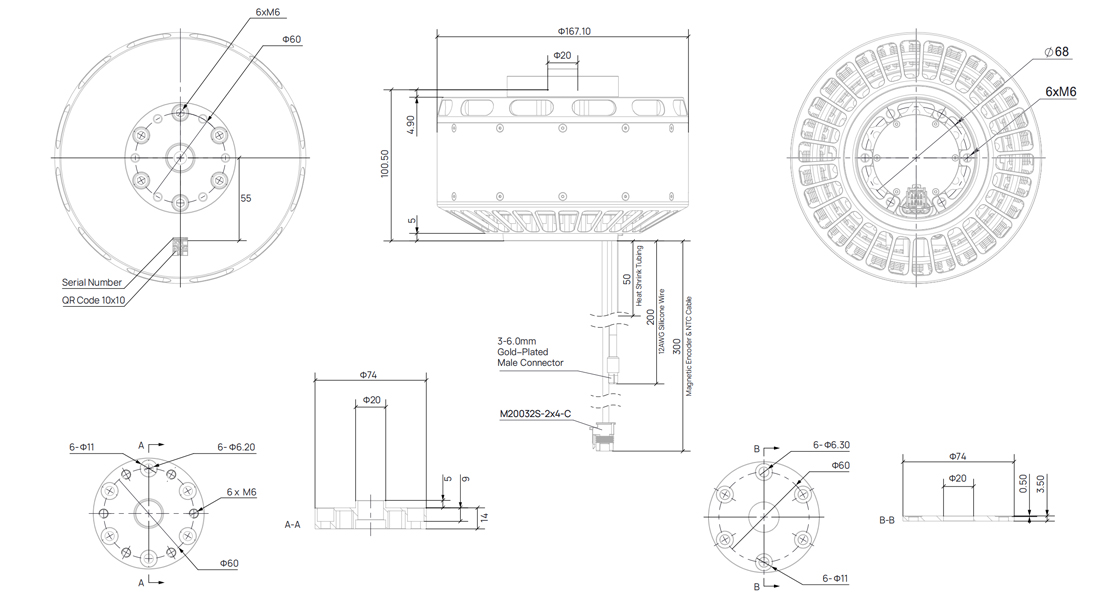

P50MMotor CAD

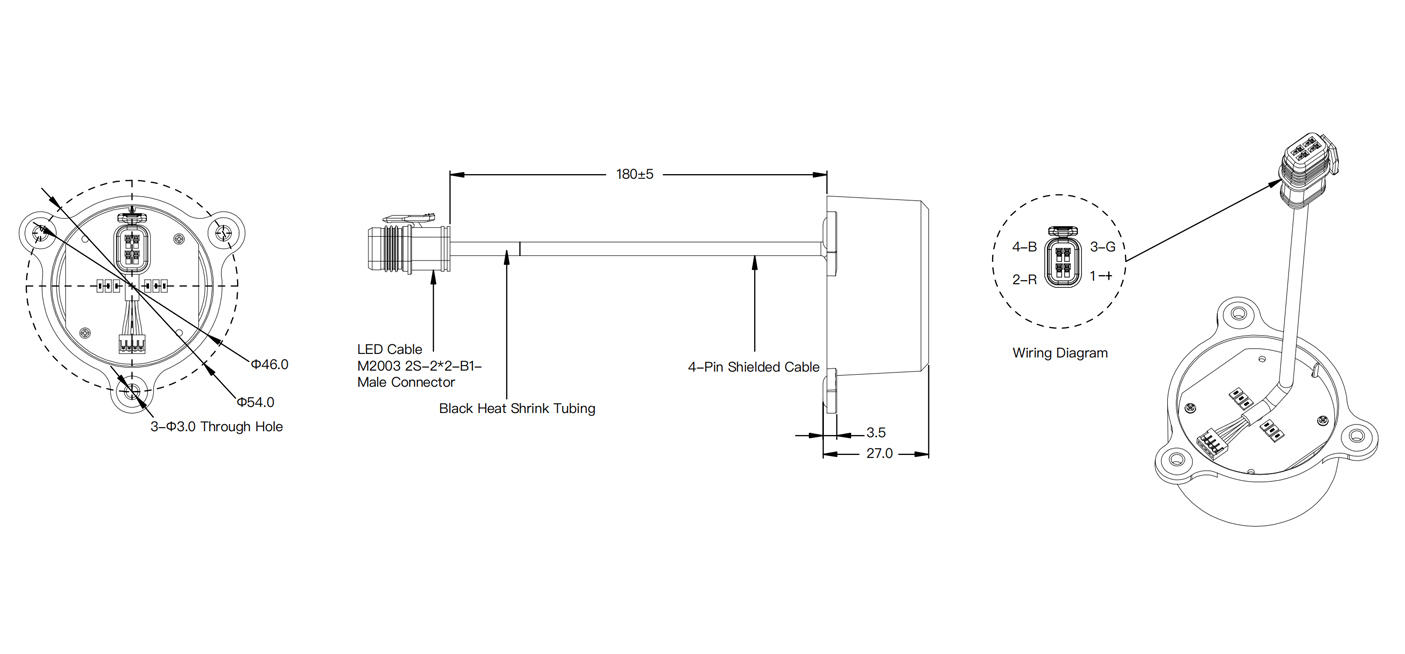

P50M LED Outline CAD

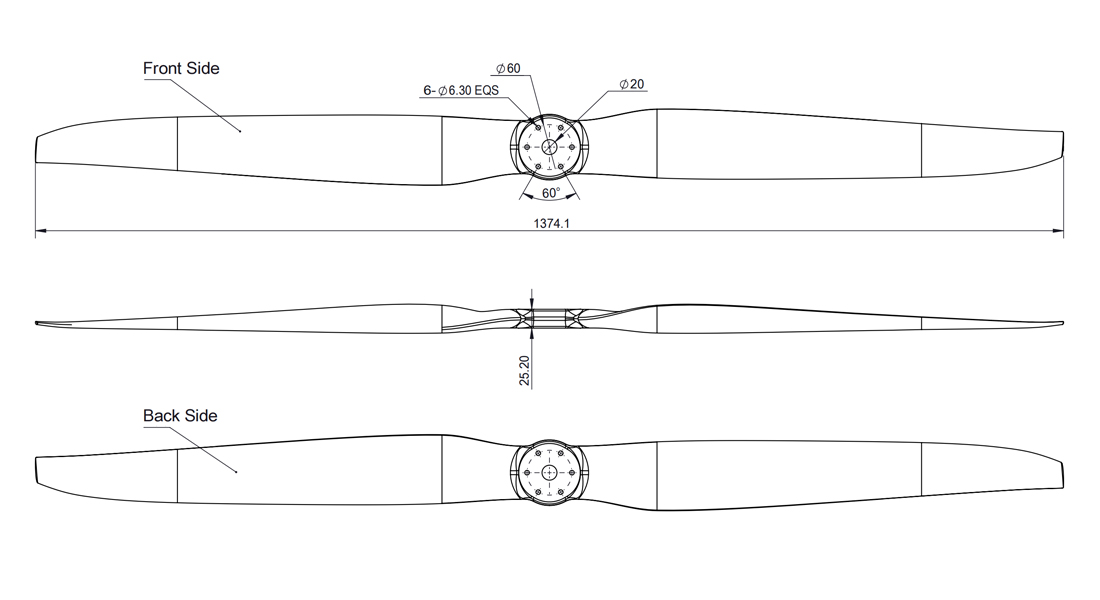

USC 54×23 CAD
Specifications:
| Parameter | Specification |
|---|---|
| Product Name | P50M Propulsion System |
| Model | P50M |
| Max Thrust | 116 kg |
| Recommended Takeoff Weight per Axis | 50 kg |
| Efficiency at Recommended Takeoff Weight | 7.2 g/W / 6.3 g/W |
| Input Voltage | 280–450 V |
| Rated Voltage | 400 V |
| Tube Outer Diameter | Φ60 mm |
| Weight (with Cable & Propeller) | 6.2 kg* |
| Power Cable | 10 AWG, 400 mm* |
| Signal Cable | 800 mm* |
| Operating Temperature | -35°C to 55°C |
| Ingress Protection | IP35 |
| Rated Output Power (Max. Continuous) | 5984 W |
| DataLink Version | DataLinkBox G3 |

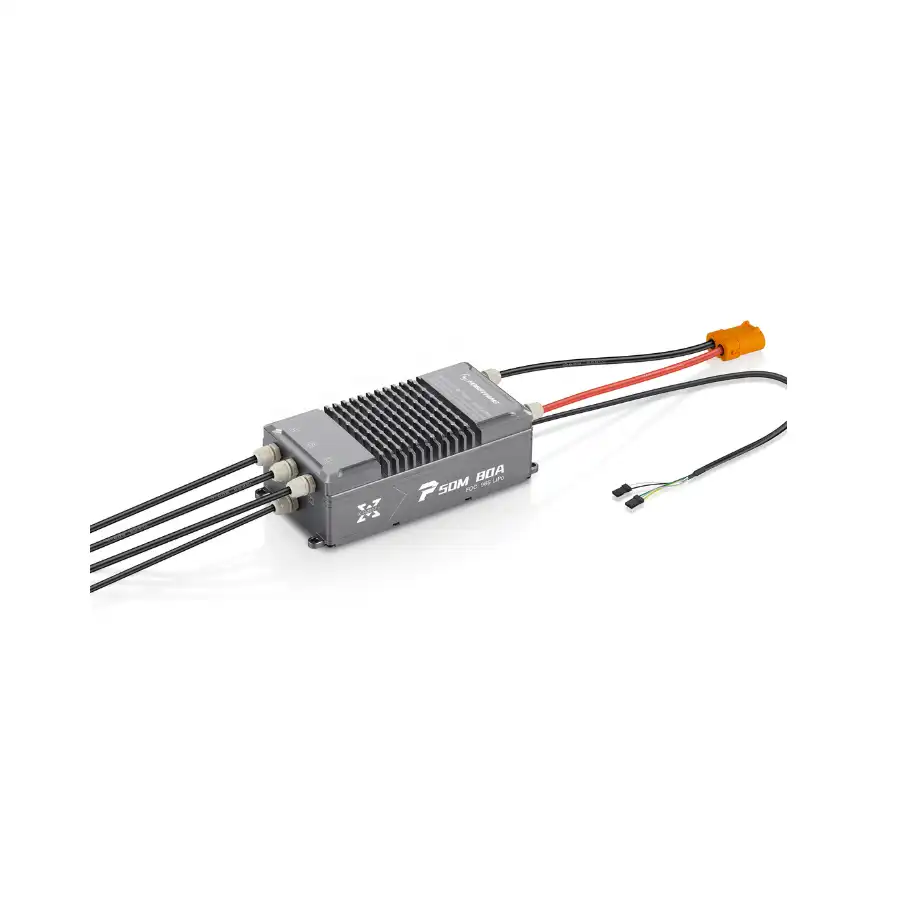

ESC Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 400 V |
| Communication Protocol | UAVCAN / RS485 |
| ESC Size | 225.6 × 98 × 60 mm (with connector) |
| Weight (Including Cable) | 1200 g* |
| Peak Current (3s) | 80 A |
| Continuous Current | 40 A |
| Ingress Protection | IP67 |
| Throttle Signal Combination | CAN + RS485 / CAN + PWM / RS485 + PWM |
| Operating Pulse Width | 1100–1940 μs |
| Calibration | Not supported |
| Black Box | 2–48 h log |

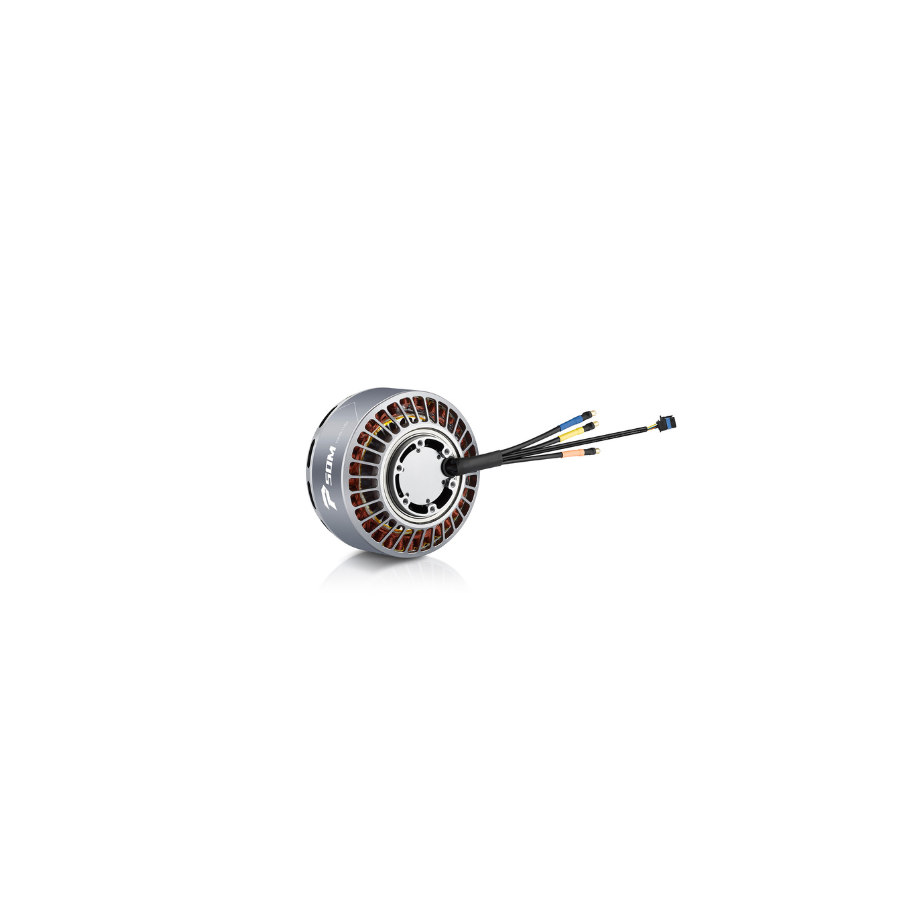

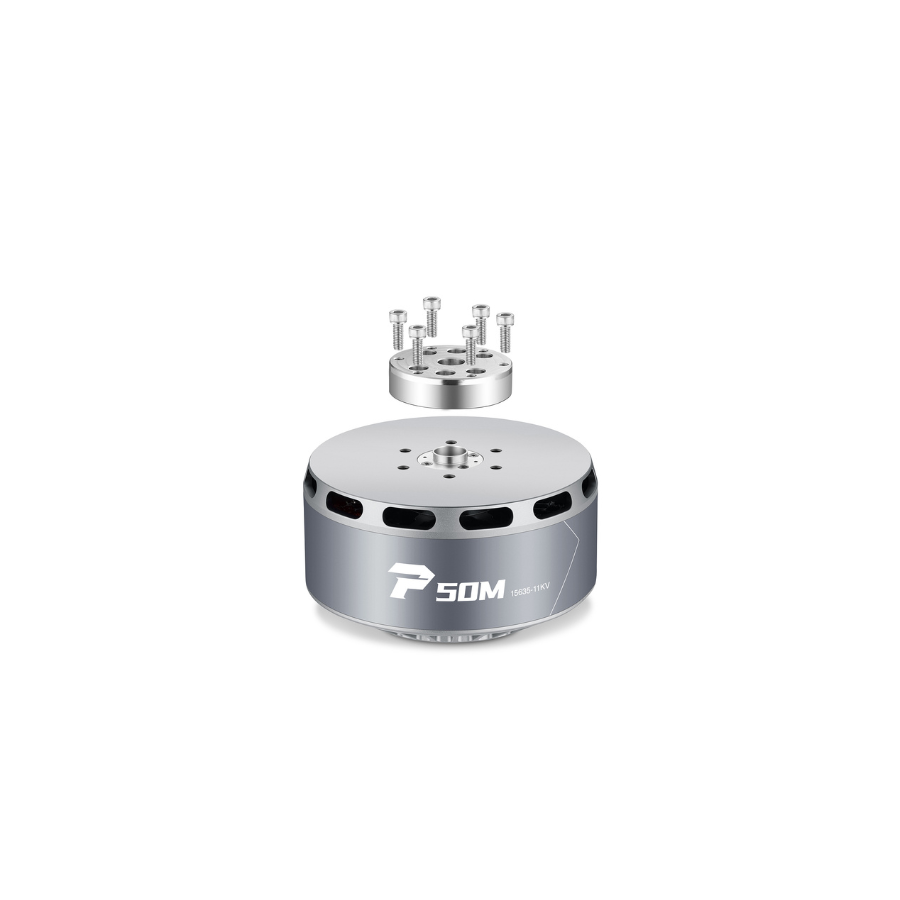

Motor Specifications
| Parameter | Specification |
|---|---|
| KV | 9 KV / 11 KV |
| Slot & Pole | 36N42P |
| Motor Dimensions | Φ167.1 × H100.5 mm |
| Stator Size | Φ156 × H35 mm |
| Ingress Protection | IPX5 |
| Weight (with Cable) | 4250 g* |
Propeller Specifications
| Parameter | Specification |
|---|---|
| Propeller Models | MSC 64×20 / USC 54×23 |
| Weight | 860 g* / 707 g* |
| Material | Carbon Fiber Composite |
| Mounting Dimensions | D60-6 × M6 |
| Center Hole Diameter | D20 mm |
Features:
- Ultra-High Thrust: Delivers up to 116 kg maximum thrust.
- High Power Output: Supports up to 5984 W maximum continuous output power.
- High-Voltage Operation: Designed for 280–450 V input, with a 400 V rated voltage.
- ntegrated Propulsion System: Combines the motor, ESC, and carbon-fiber propeller into one system.
- Multiple Motor Options: Available in 9 KV and 11 KV configurations.
- Advanced ESC Communication: Supports UAVCAN and RS485 communication protocols.
- Multiple Throttle Interfaces: Supports CAN + RS485, CAN + PWM, and RS485 + PWM.
- Durable Construction: Motor rated IPX5 and ESC rated IP67 for demanding UAV environments.
- Wide Operating Temperature: Suitable for operation from -35°C to 55°C.
- Carbon-Fiber Propellers: Compatible with MSC 64×20 and USC 54×23 propellers.
- Black Box Logging: ESC supports 2–48 hours of flight data logging.
- Industrial UAV Applications: Suitable for heavy-lift, agricultural, mapping, logistics, and professional industrial drones.
Package Includes:
1xHobbywing P50M 11KV Motor + ESC with USC 5423 Propeller Combo Kit-CCW
Servo Signal Wire: PWM Timing, Signal Voltage & Level Shifting
The three-wire servo connector looks deceptively simple — power, ground, and signal. Yet that signal wire carries the...
Read More →
Drone VTX Power Levels: 25mW to 1000mW Comparison
Table of Contents Understanding Drone VTX Power Levels Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation...
Read More →
Drone Build Troubleshooting: Common First-Build Mistakes
Every drone builder faces setbacks during their first build, and effective drone build troubleshooting is a skill that...
Read More →Technical Specifications
| Brand | Hobbywing |
|---|---|
| Model | P50M |
| KV Rating | 11KV |
| SKU | AI4897 |
| Weight | 0.0 kg |
| Availability | In Stock |
Applications & Use Cases
The Hobbywing P50M 11KV Motor + ESC with USC 5423 Propeller Combo Kit-CCW is a versatile carbon fiber propeller used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
