This is the 220V variant of the Hi-Link HLK-20M15, 20W Ultra-Compact AC-DC Power Module 220V to 15V, 1.3A, Isolated SMPS in Hi-Link Power Supply Module. Available at ₹754.15 (₹639.11 + GST) with free shipping across India.

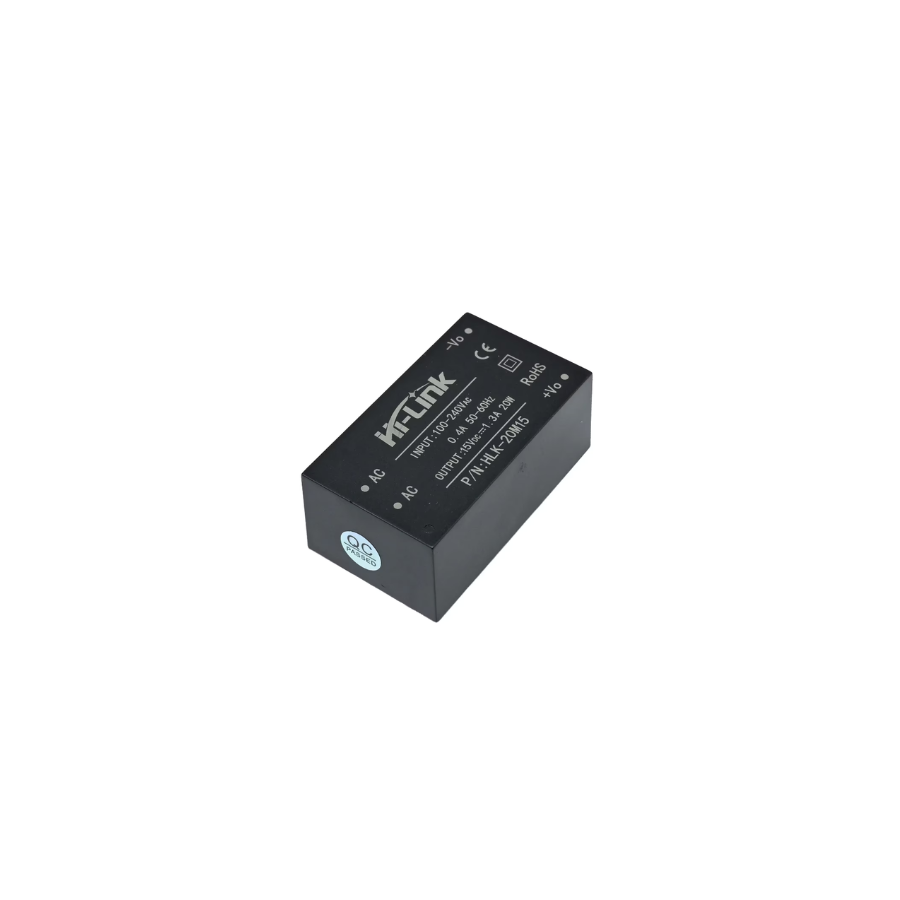

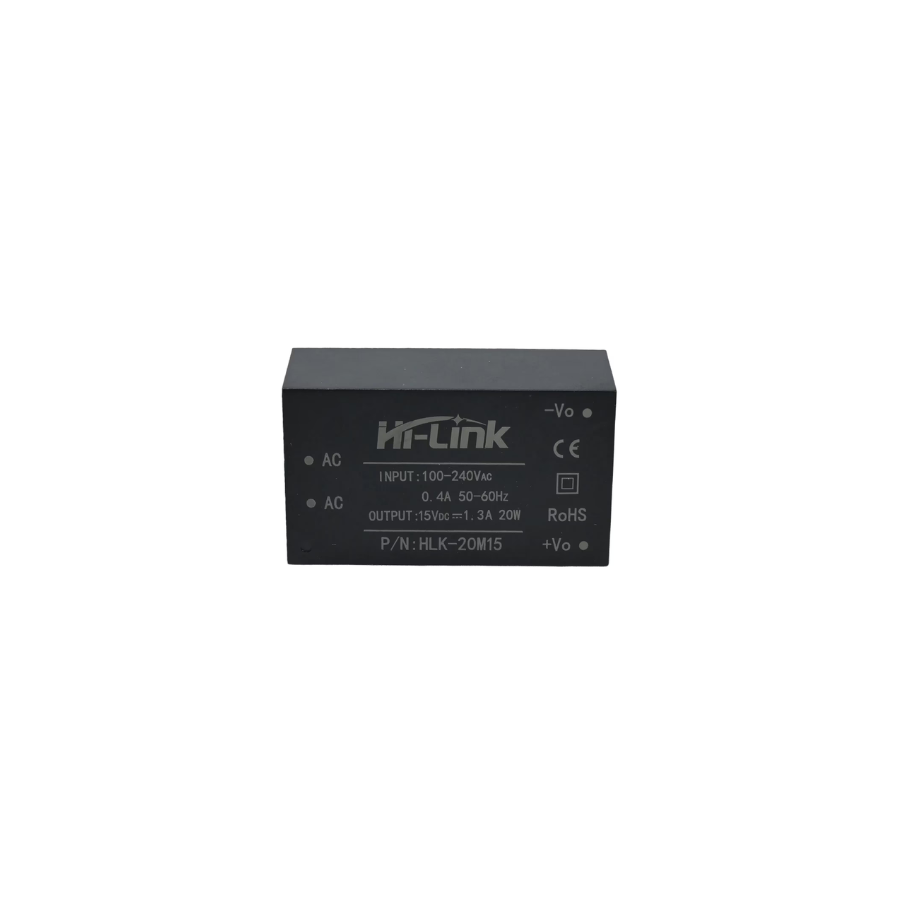

Hi-Link HLK-20M15, 20W Ultra-Compact AC-DC Power Module 220V to 15V, 1.3A, Isolated SMPS
Description:
The Hi-Link HLK-20M15 is a 20W ultra-compact AC-DC power module designed for efficient and reliable power conversion from 220V AC to 15V DC. Built with high efficiency and low power consumption, this module ensures stable output with minimal ripple and noise. Its compact size, high isolation, and robust protection features make it ideal for embedded systems and industrial applications.
With universal input voltage support and long operational life, it delivers consistent performance in demanding environments. The module is fully sealed for moisture resistance and vibration protection, ensuring durability. It is widely used in smart home systems, automation, and communication devices where space-saving and reliability are critical.
Features:
- Ultra-compact and thin design
- Universal input voltage (85–265VAC / 70–350VDC)
- High efficiency up to 84%
- Low no-load power consumption (<0.1W)
- Low ripple and noise output
- Over-current and short circuit protection
- 3000VAC isolation voltage
- Long life (>100,000 hours)
Specifications:
- Input Voltage Range : 85–265VAC / 70–350VDC
- Rated Input Voltage : 100–240VAC
- Output Voltage : 15V DC
- Output Current : 1300mA
- Voltage Regulation : ±0.2%
- Load Regulation : ±0.5%
- Ripple & Noise : ≤150mVp-p
- Efficiency (230VAC) : ≥84%
- Input Current : ≤0.4A
- Surge Current : ≤34A
- MTBF : ≥100,000 hours
- Operating Temperature : -25°C to +60°C
- Storage Temperature : -40°C to +80°C
- Humidity : 5–95% RH
- Isolation Resistance : >100MΩ
- Dimentions: 55 x 30 x 20 mm
- Weight : 67 g
Package Includes:
1 x Hi-Link HLK-20M15, 20W Ultra-Compact AC-DC Power Module 220V to 15V, 1.3A, Isolated SMPS
Technical Specifications
| Brand | Hi-Link |
|---|---|
| Model | HLK-20M15 |
| Voltage Range | 15V - 220V |
| Current Rating | 1.3A |
| Power Rating | 20W |
| SKU | AI4887 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Hi-Link HLK-20M15, 20W Ultra-Compact AC-DC Power Module 220V to 15V, 1.3A, Isolated SMPS is a versatile hi-link power supply module used across a wide range of applications including electronics workbench, LED lighting, industrial equipment, embedded system power, and CCTV installations.
Common use cases:
- Powering a development board or test setup
- Driving LED strip installations
- Providing regulated DC power to equipment
This product is ideal for electronics labs, makers, and system integrators.
Technical Tip: Ensure output voltage and current match your load requirements. Switching power supplies are more efficient but may introduce noise; consider linear for sensitive analog circuits.
