Product Description
The HC-05 4 Pin Wireless Serial Bluetooth Module is a device that enables wireless communication between a microcontroller and other Bluetooth-enabled devices. It uses the UART protocol, which simplifies the process of sending and receiving data over the air.

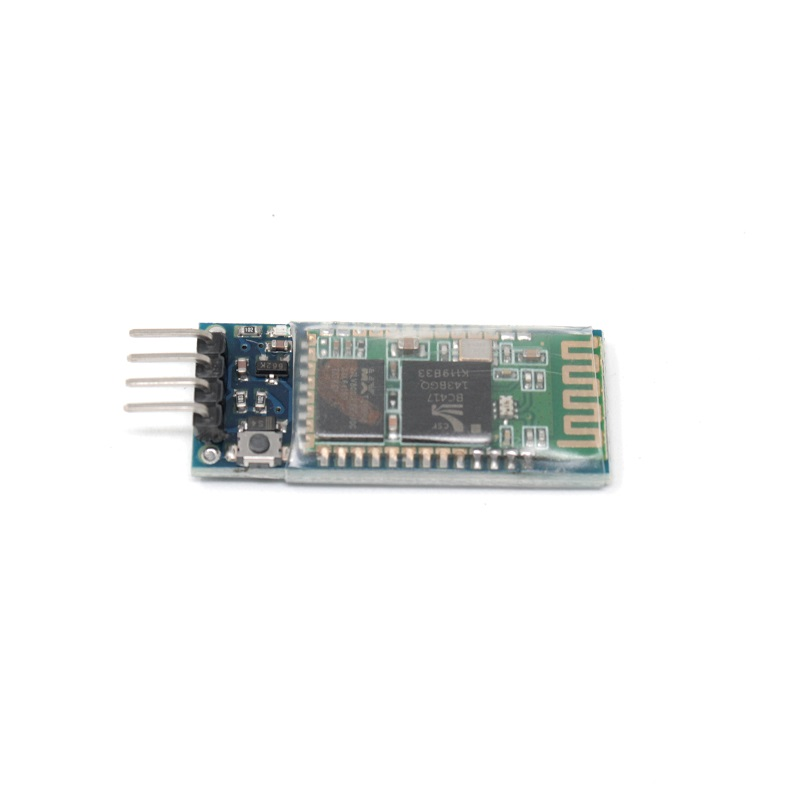

The HC-05 4pin Bluetooth Module (Master/Slave) with Button can function as either a master or a slave device, meaning that it can initiate or accept connections from other Bluetooth devices. For example, it can connect to most phones and computers with Bluetooth, as well as to other slave devices such as keyboards and other HC-06 modules. However, to connect to another slave device, a master device is required.

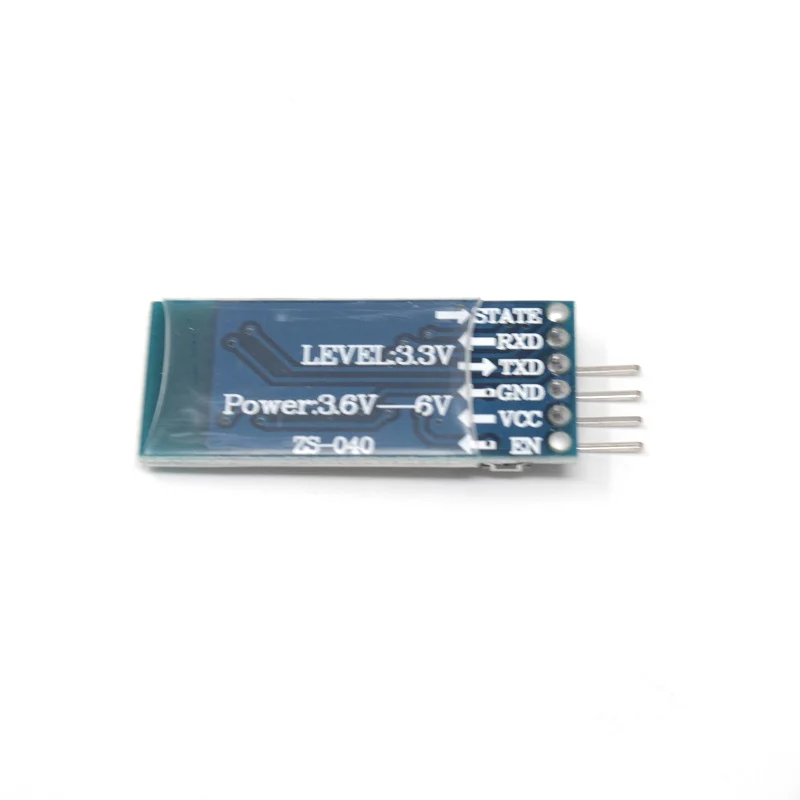

Pin Description:
| SN | PIN | Description |
| 1 | RXD | Receive Serial Data. Every serial data given to this pin will be broadcasted via Bluetooth. |
| 2 | TXD | Transmits Serial Data. Everything received via Bluetooth will be given out by this pin as serial data. |
| 3 | VCC | Powers the module. Connect to 5V Supply voltage |
| 4 | GND | Ground pin of module, connect to system ground. |
| 5 | LED | Indicates the status of Module Blink once in 2 sec: Module has entered Command Mode Repeated Blinking: Waiting for connection in Data Mode Blink twice in 1 sec: Connection successful in Data Mode |
| 6 | Button | Used to control the Key/Enable pin to toggle between Data and command Mode |
HC-05 Default Settings:
- Default Bluetooth Name: “HC-05”
- Default Password: 1234 or 0000
- Default Communication: Slave
- Default Mode: Data Mode
- Data Mode Baud Rate: 9600, 8, N, 1
- Command Mode Baud Rate: 38400, 8, N, 1
Applications:
- Embedded Projects.
- Industrial Applications.
- Computer and Portable Devices.
- GPS receiver.
Features:
- Working current: matching for 30 mA, matching the communication for 8 mA.
- Dormancy current: no dormancy.
- Used for a GPS navigation system, water, and electricity gas meter reading system.
- With the computer and Bluetooth adapter, PDA, seamless connection equipment.
- Bluetooth module HC-08 Master and slave Two in one module.
- Use the CSR mainstream Bluetooth chip, Bluetooth V2.0 protocol standards.
- Potter default rate of 9600, the user can be set up.
- Bluetooth protocol: Bluetooth Specification v2.0 EDR
- Speed: Asynchronous: 2.1Mbps(Max) / 160 kbps, Synchronous: 1Mbps/1Mbps.
- Security: Authentication and encryption.
- Profiles: Bluetooth serial port.
Package Includes:

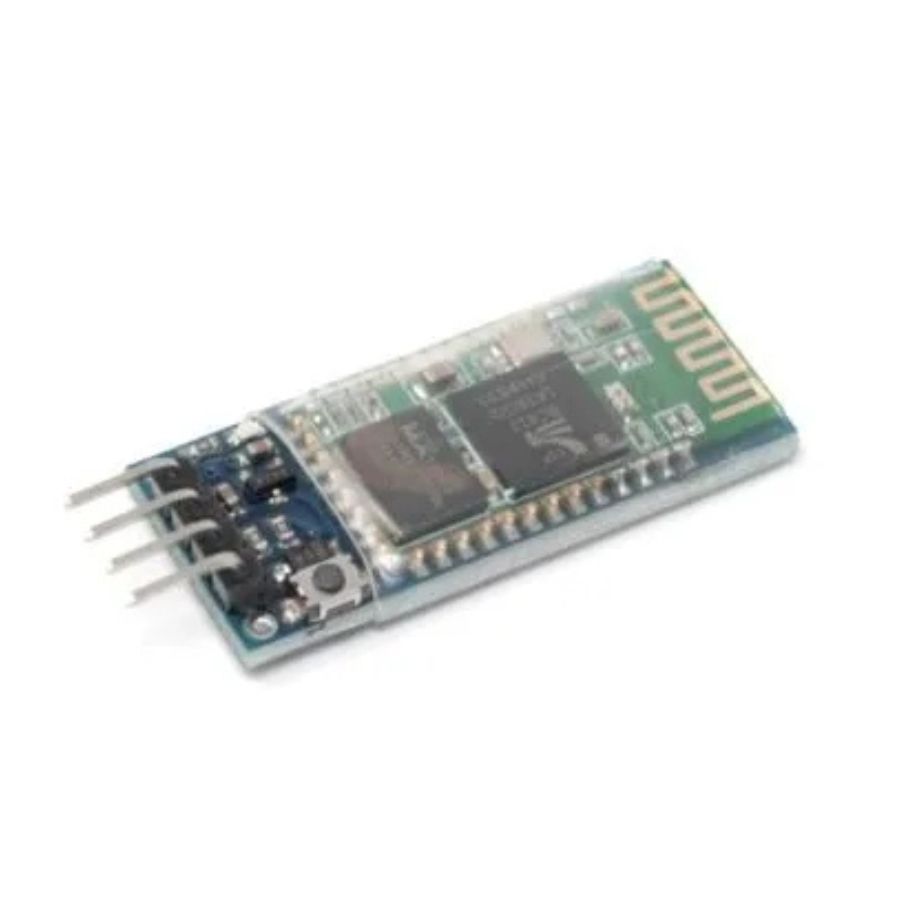

1 x HC-05 4pin Bluetooth Module(Master Slave) with Button
