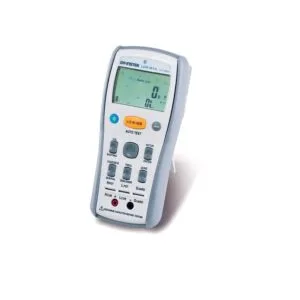

The GW Instek LCR-900 Series (LCR-916/LCR-915/LCR-914) is a smart, convenient, and fully-functional dualdisplay handheld LCR meter. The test frequency extends as high as 100 kHz/10kHz, providing greater flexibility to test a wider range of components.The LCR-916 / LCR-915 / LCR-914 uses a dual 20,000 /2,000 count display. The 20,000 count display is used for displaying the primary parameters such as capacitance, inductance, and resistance as well as DC resistance measurement, and a 2,000 count display is for secondary parameters such as Q, D, ESR, and RP measurement. Secondary measurements can also be combined with the primary measurement while the primary measurement is still being taken.
The LCR-916/915/914 provides two measurement methods, 2 wire, and 5 wire measurements. The LCR-916/915/914 also comes with a host of various standard or optional accessories to assist the testing a number of different component types. The meters also include handy functions such as data hold, tolerance sorting, zero modes, and Min/Max (for LCR-916 only).

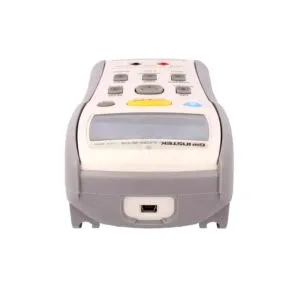

The meter’s USB interface can be used to log data to a PC using the LCR900 software and provide the DC 5V needed to power the meter. With the LCR-916/LCR-915/LCR-914, you can perform quick and basic LCR measurements with precision at an affordable price.
In the following table, you can see the main and accessories difference between the LCR-900 series Meter
LCR-900 Series Accessories
Desc |
LCR-914 |
LCR-915 |
LCR-916 |
| Test Frequency
(Selectable) |
100Hz 120Hz 1Khz |
100Hz 120Hz 1Khz 10Khz |
100Hz 120Hz 1Khz 10Khz 100Khz |

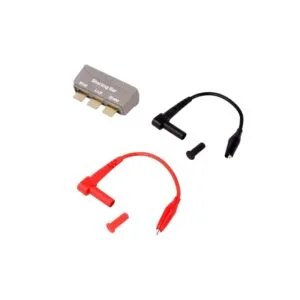

| 2Wire Alligator Clip Set | STD | STD | STD |

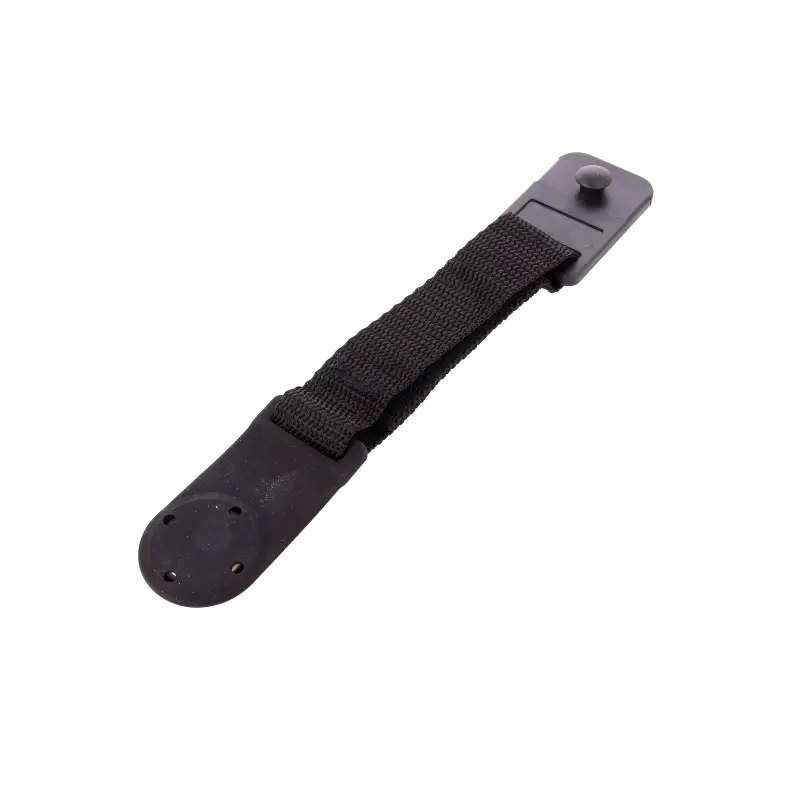

| Magnetic Hang Kit | Opt 04 | STD | STD |

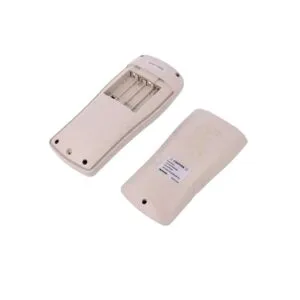

| Battery | STD | STD | STD |
| User Manual | STD | STD | STD |

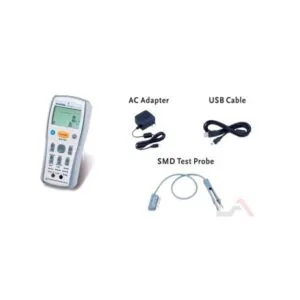

| SMD Test Probe | Opt 03 | Opt 02 | STD |
| AC Adapter | Opt 03 | Opt 02 | STD |
| USB Cable | Opt 03 | Opt 02 | STD |
| PC Software CD | N/A | Opt 02 | STD |
| 4 Wire DIP Clip Set | Opt 01 | Opt 01 | Opt 01 |
Note: To know all optional accessories please go through the datasheet provided in Attachments
Features:
- Auto LCR mode for DUT measuring
- 0.2% Basic accuracy
- Parallel or series testing mode
- Sorting mode for quality control
- Data hold or zero modes supported
- Auto range, auto backlit
- Low battery indication
- Auto power off
- Data collection or DC power operation
- 20,000/2,000 Counts Dual Display
- Selectable Test Frequency: 100Hz/120Hz/1kHz/10kHz/100kHz
- Auto LCR Mode for DUT Measuring
- Measurement Parameter : L,C,R,D,Q,ESR,θ,DCR
- 2Wire or 5Wire Measurement Available
- Auto Range, Auto Backlit
- Data Collection/AC power operation
Package Includes:
1 x GW Instek LCR 914 Handheld LCR Meter
