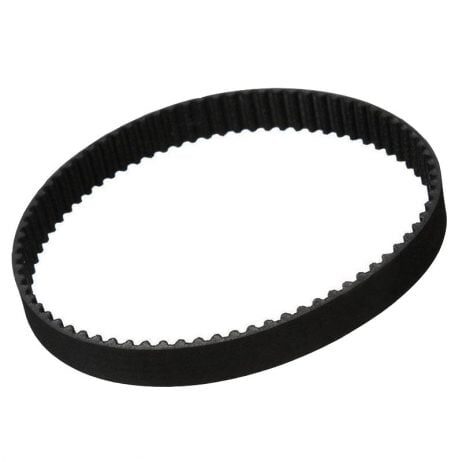

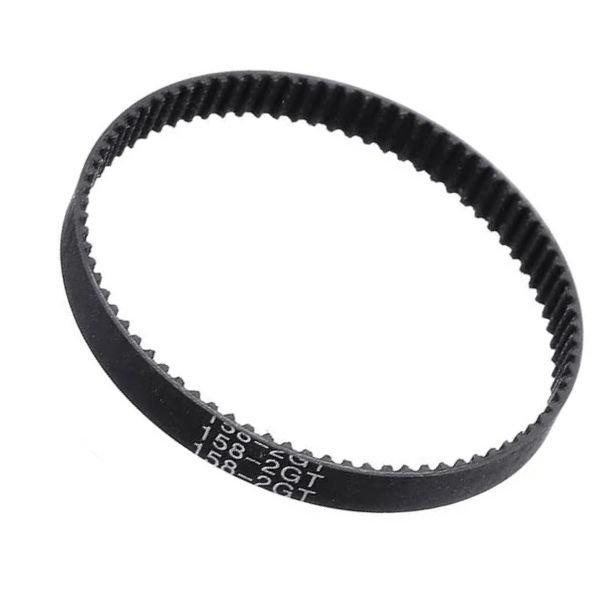

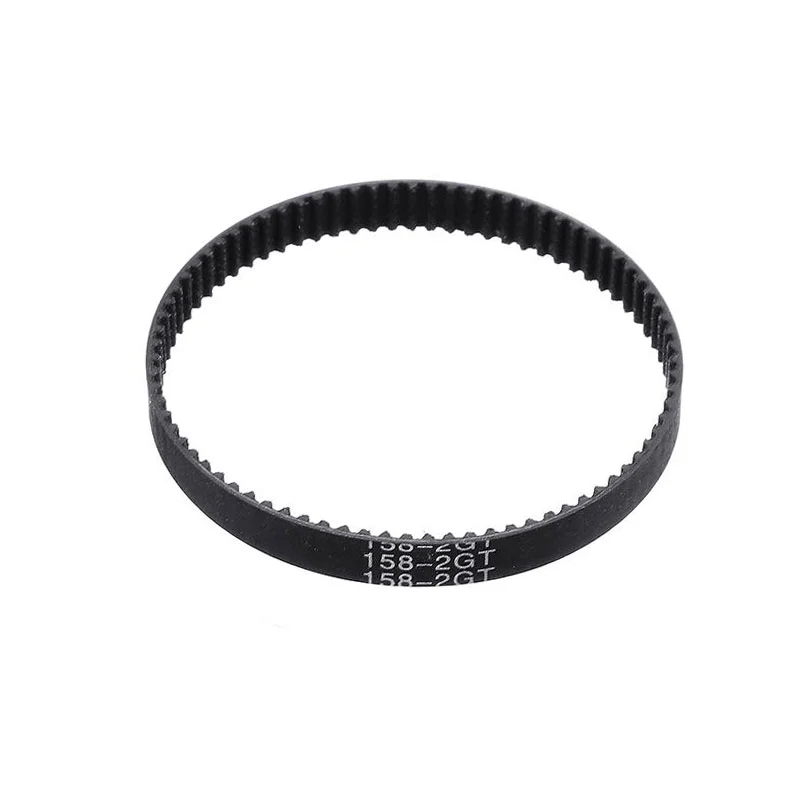

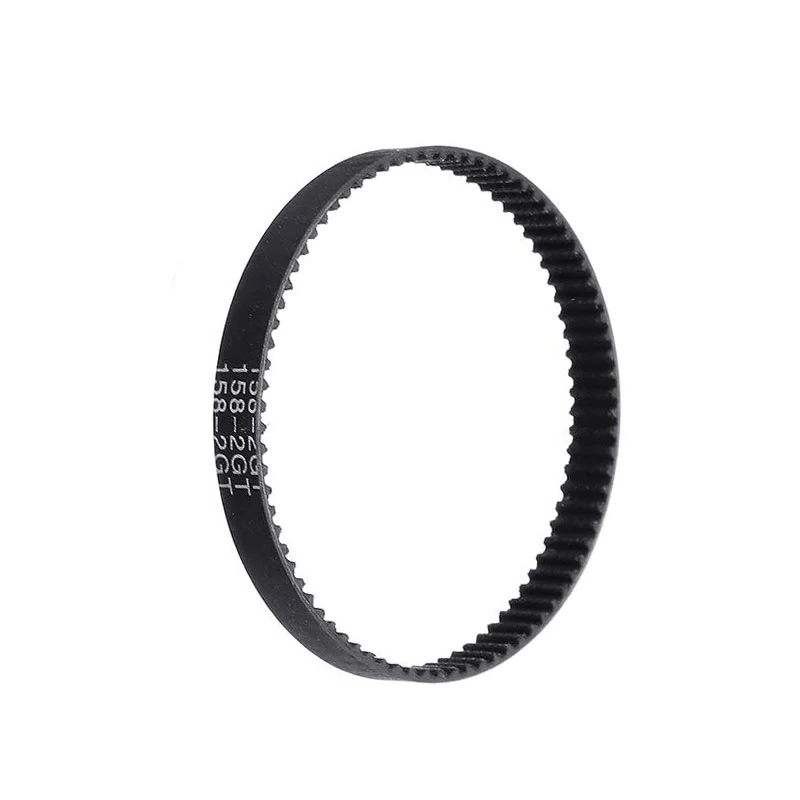

This is the 158mm variant of the GT2 Close-Loop 158mm Long & 6mm-Width Rubber Timing Belt for 3D Printer in Timing Belt and Pulley. Available at ₹43.42 (₹36.80 + GST) with free shipping across India.
Product Description
GT2 Close-Loop 158mm Long & 6mm-Width Rubber Timing Belt for 3D Printer. The PowerGrip GT2 system is an extension of the HTD system with greater load-carrying capacity.
HTD drive clearance, using small diameter pulleys, is approximately four times greater than an equivalent GT2 timing belt drive.
As smaller diameter pulleys are used, the clearance required to operate properly is increased. Circular arc tooth profile, tooth space is small, suitable for straight line driving.
Specification:
| Material: | Neoprene Rubber With Fiberglass Core |
|---|---|
| Shape | Closed Loop |
| Total Length(mm) | 158 |
| Pitch (mm) | 2 |
| Width (mm) | 6 |
| Teeth Quantity | 79 |
| Tooth Height | 0.76 |
| Belt Height(mm) | 1.52 |
| Shipping Weight | 0.01 kg |
| Shipping Dimensions | 6 × 3 × 1 cm |
Package Includes:
1 x GT2 Close-Loop 158mm Long & 6mm-Width Rubber Timing Belt for 3D Printer
Technical Specifications
| Model | GT2 |
|---|---|
| Size | 158mm |
| SKU | AI2761 |
| Weight | 0.001560 kg |
| Availability | Out of Stock |
Applications & Use Cases
The GT2 Close-Loop 158mm Long & 6mm-Width Rubber Timing Belt for 3D Printer is a versatile timing belt and pulley used across a wide range of applications including 3D printer maintenance, printer upgrades, custom printer builds, and replacement parts.
Common use cases:
- Replacing a worn-out nozzle or extruder gear
- Upgrading to a direct drive extruder
- Building a custom CoreXY printer
This product is ideal for 3D printer owners and custom printer builders.
Technical Tip: Keep spare nozzles, PTFE tubes, and belts on hand. Regular maintenance significantly extends printer life and print quality.
