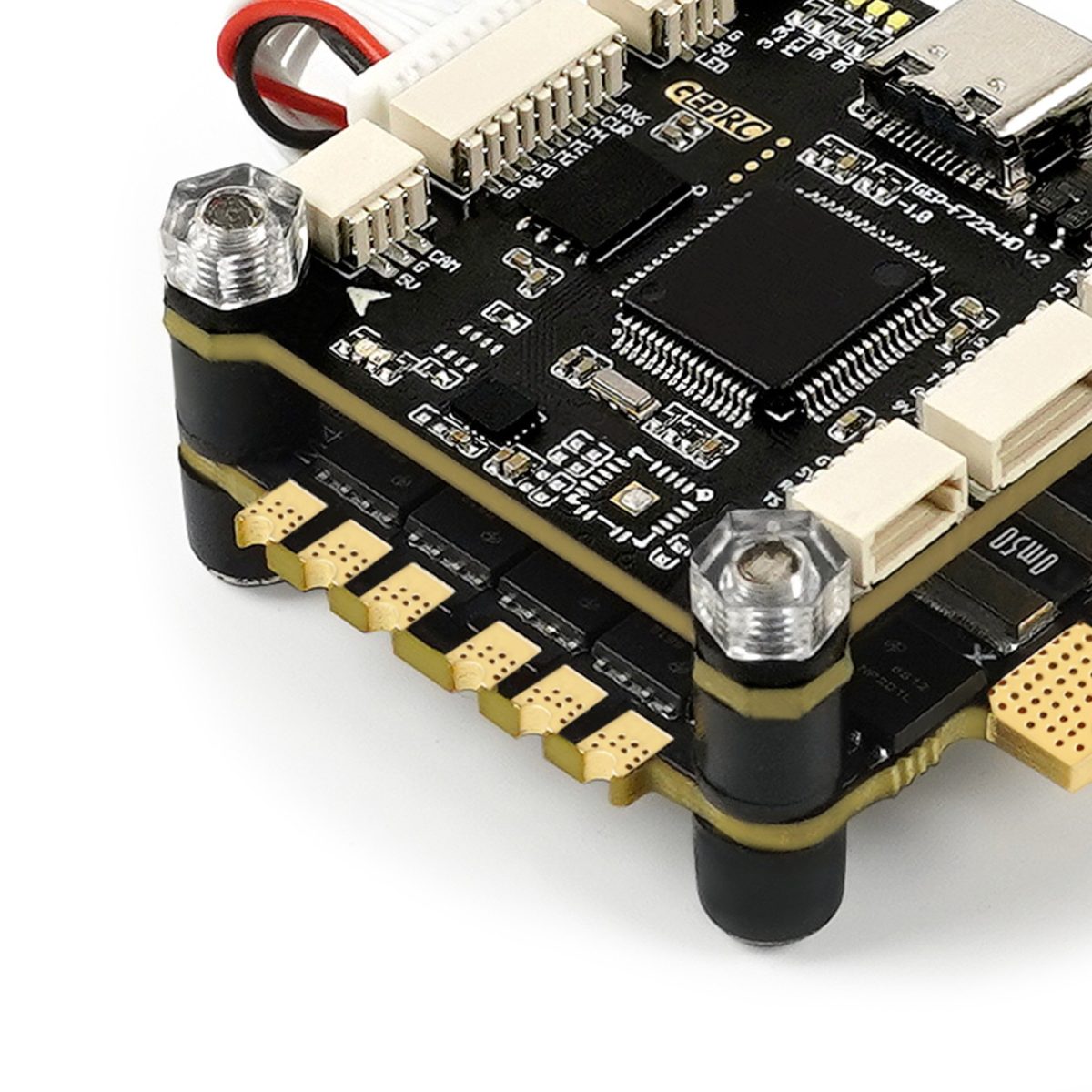

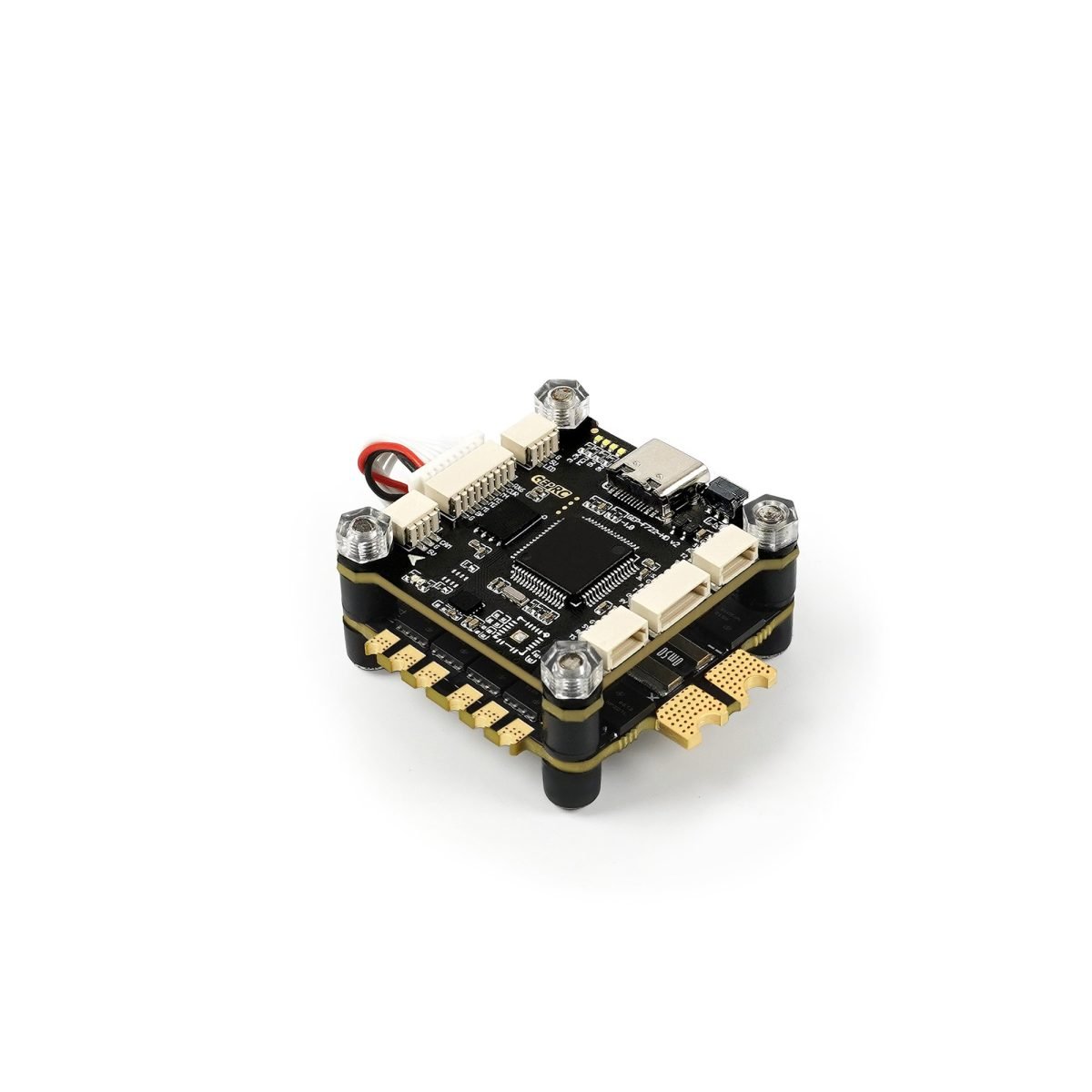

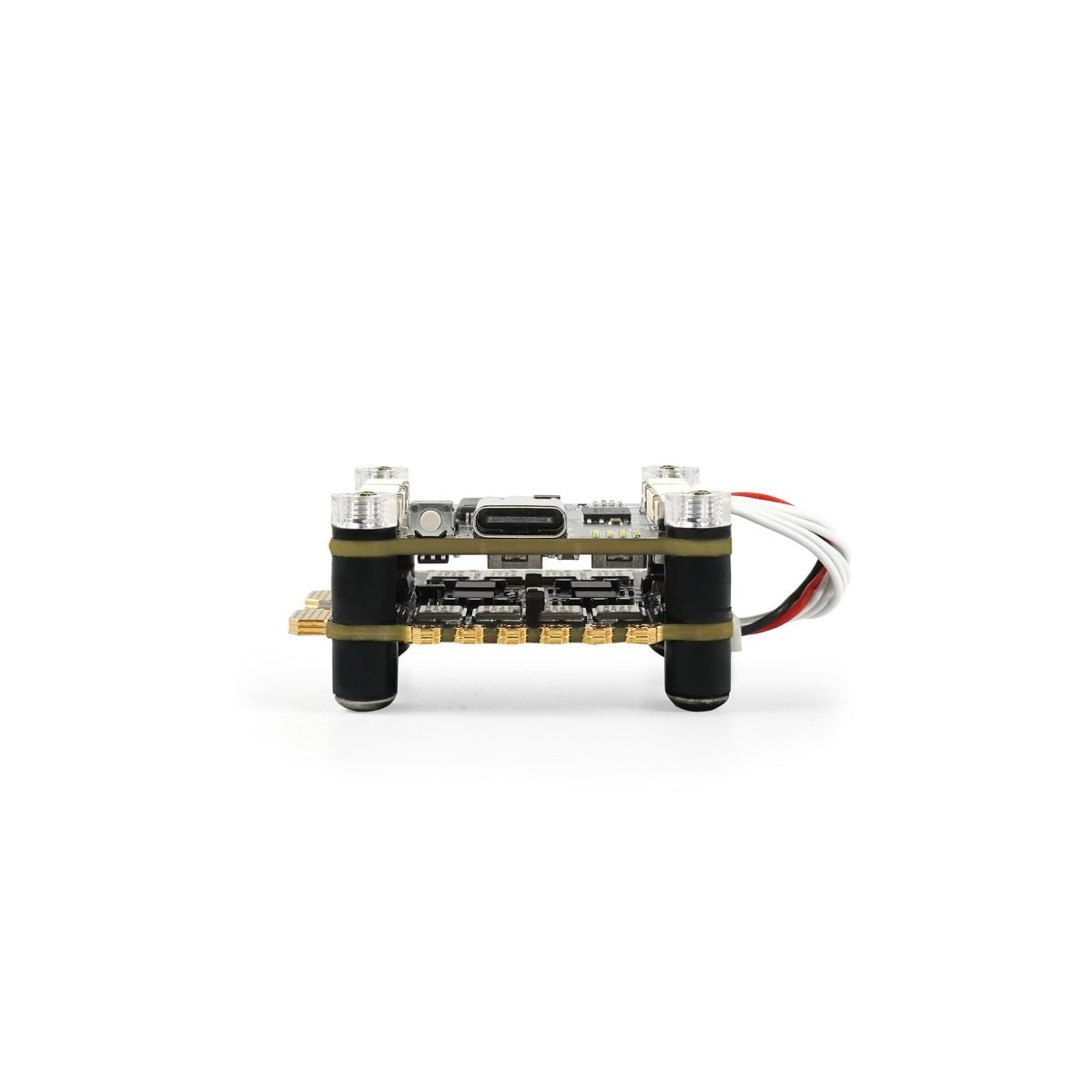

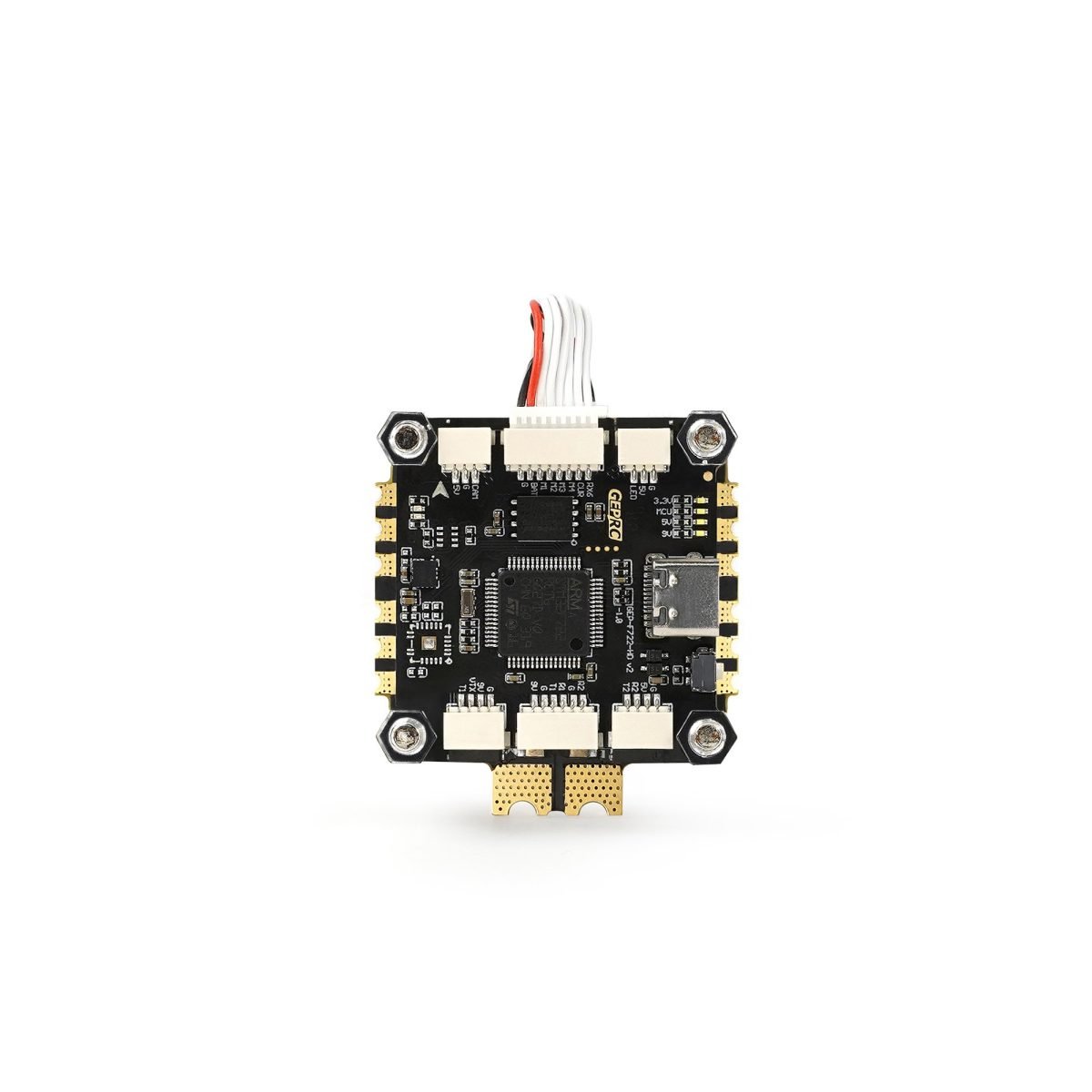

GEPRC TAKER F722 BLS 50A STACK

GEPRC TAKER F722 BLS 50A STACK

Description:

The GEPRC TAKER F722 BLS 50A Stack is a compact and high-performance flight controller and ESC stack designed for FPV racing, freestyle, and other multirotor applications. It combines an F722 32-bit flight controller with a 50A BLS ESC, providing responsive flight control and dependable motor performance.

The integrated design helps simplify installation and keeps the drone’s electronics organized. It is suitable for performance-focused FPV builds requiring reliable control and efficient motor operation.

Features

Use mainstream STM32F722 chip

Equipped with the latest 42688-P gyroscope

16M black box storage

Integrated LC filter

Upgrade type-C USB interface

1. Directly plugged into the DJI Air Unit
2. With GEP-BLS50A-4IN1 ESC, the flying feel is silky
3. Simple and reasonable installation method, the shock absorber can make the gyroscope work very stably
4. [email protected] + 5V@3A dual independent BEC

Specifications

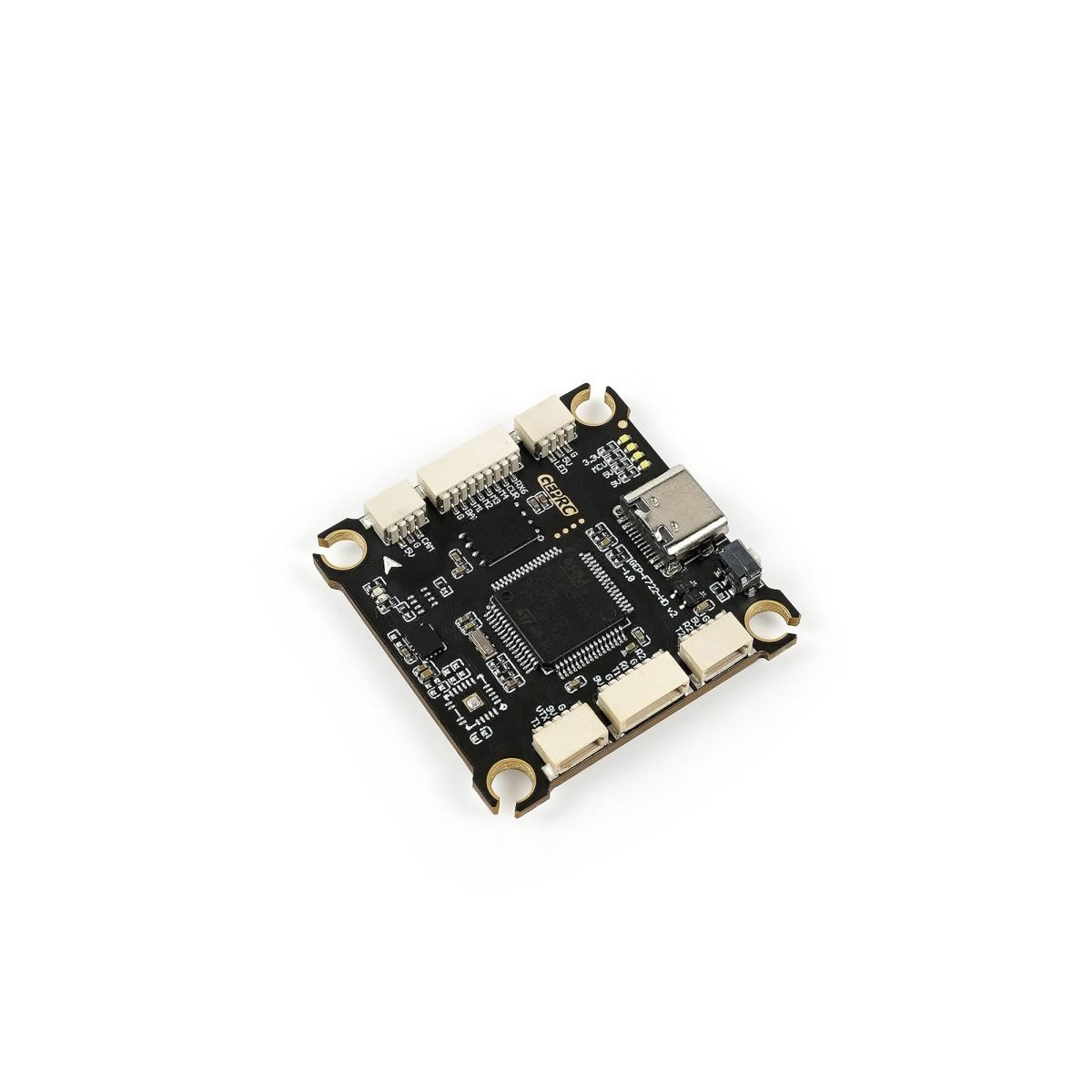

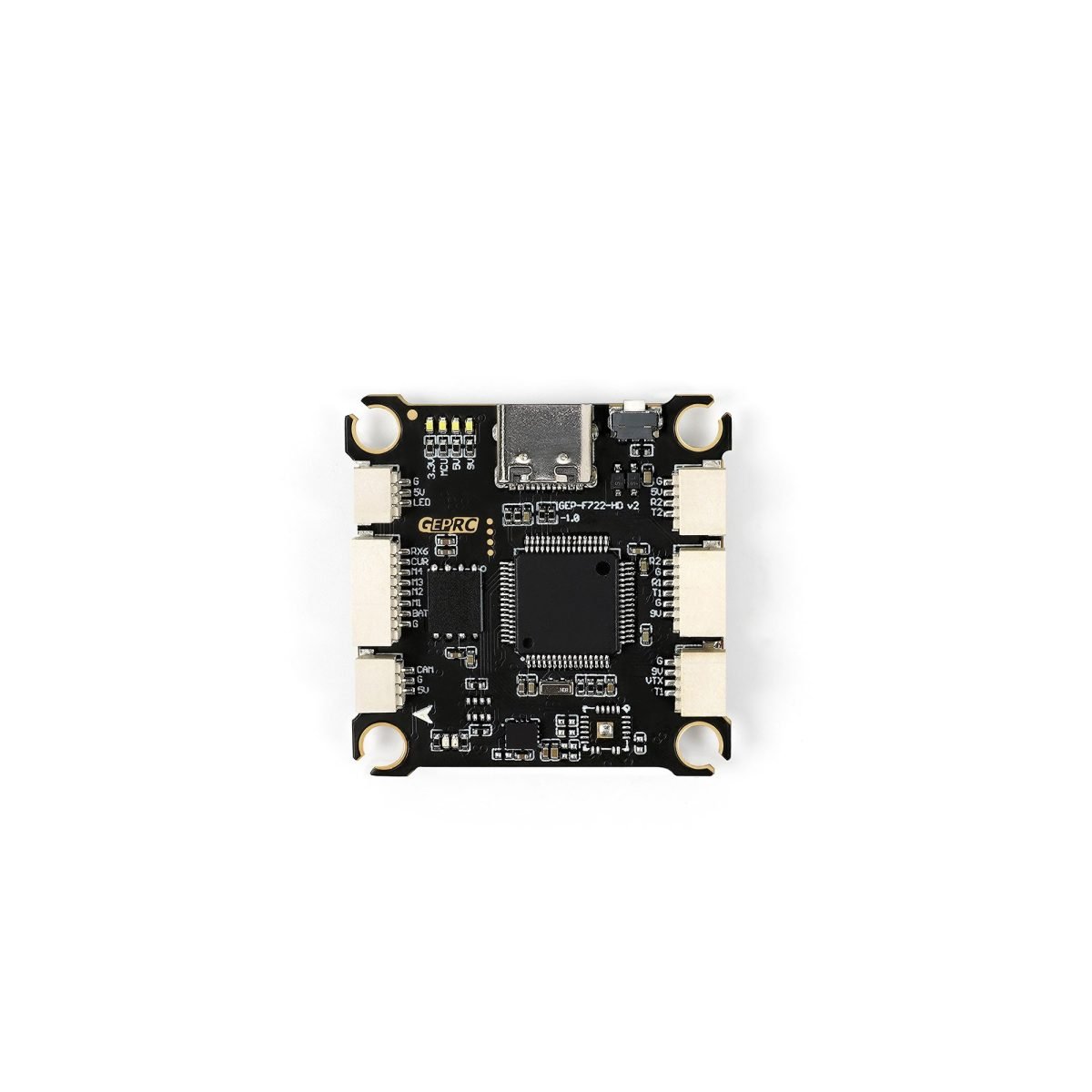

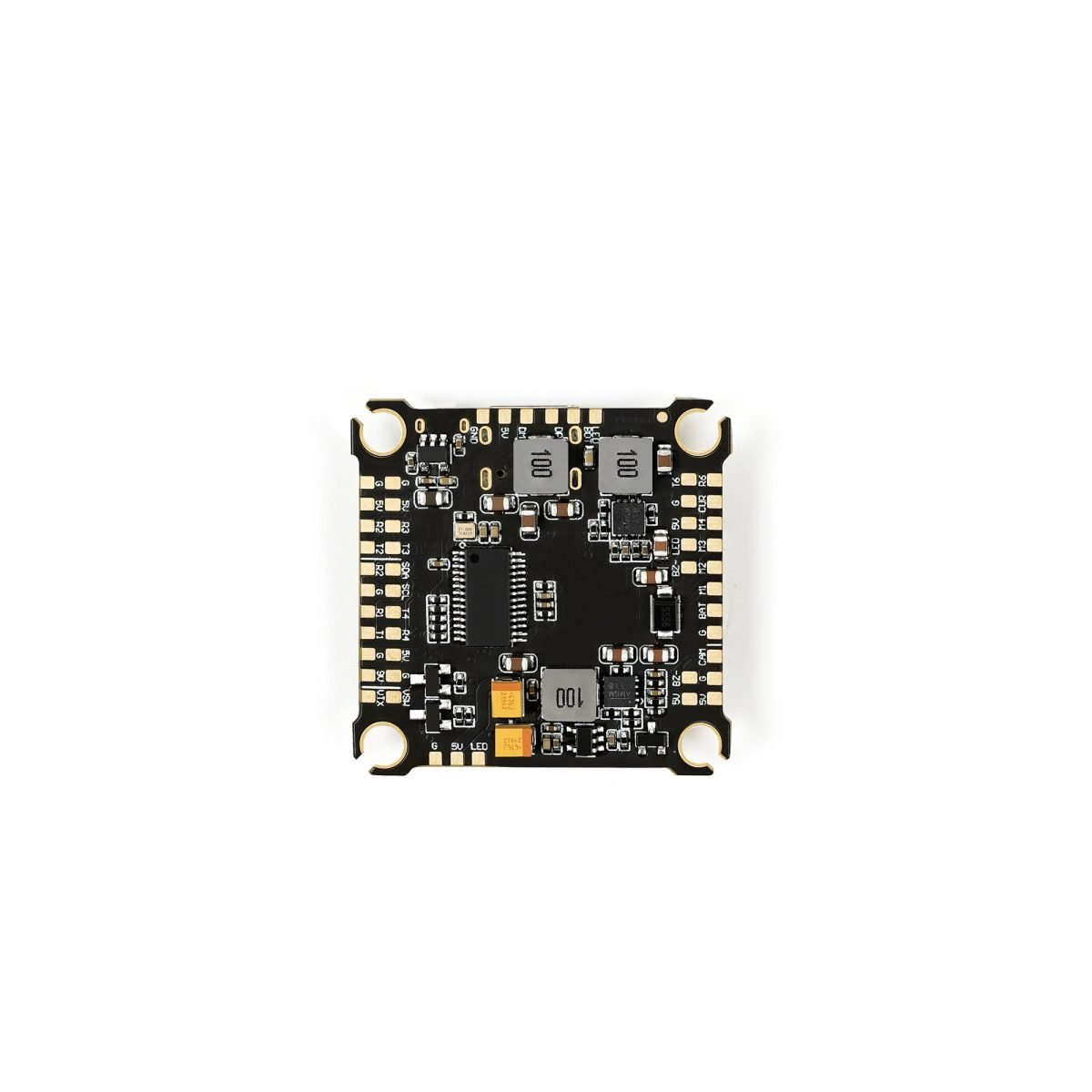

GEP-F722-HD v2 Flight Controller

• MCU：STM32F722
• IMU：ICM42688-P(SPI)
• Air Unit Connection：Direct plugging into DJI Air Unit
• Black Box：16M onboard
• USB Interface：Type-C
• OSD：BetaFlight OSD w/ AT7456E chip
• BEC：5V@3A,[email protected] dual BEC
• Firmware Target：GEPRCF722
• Size：36.85×36.85mm, hole 30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle.
• Input Voltage：3-6S LiPo
• UART：5
• Power Filter：Integrated LC filter
• Weight：8.1g

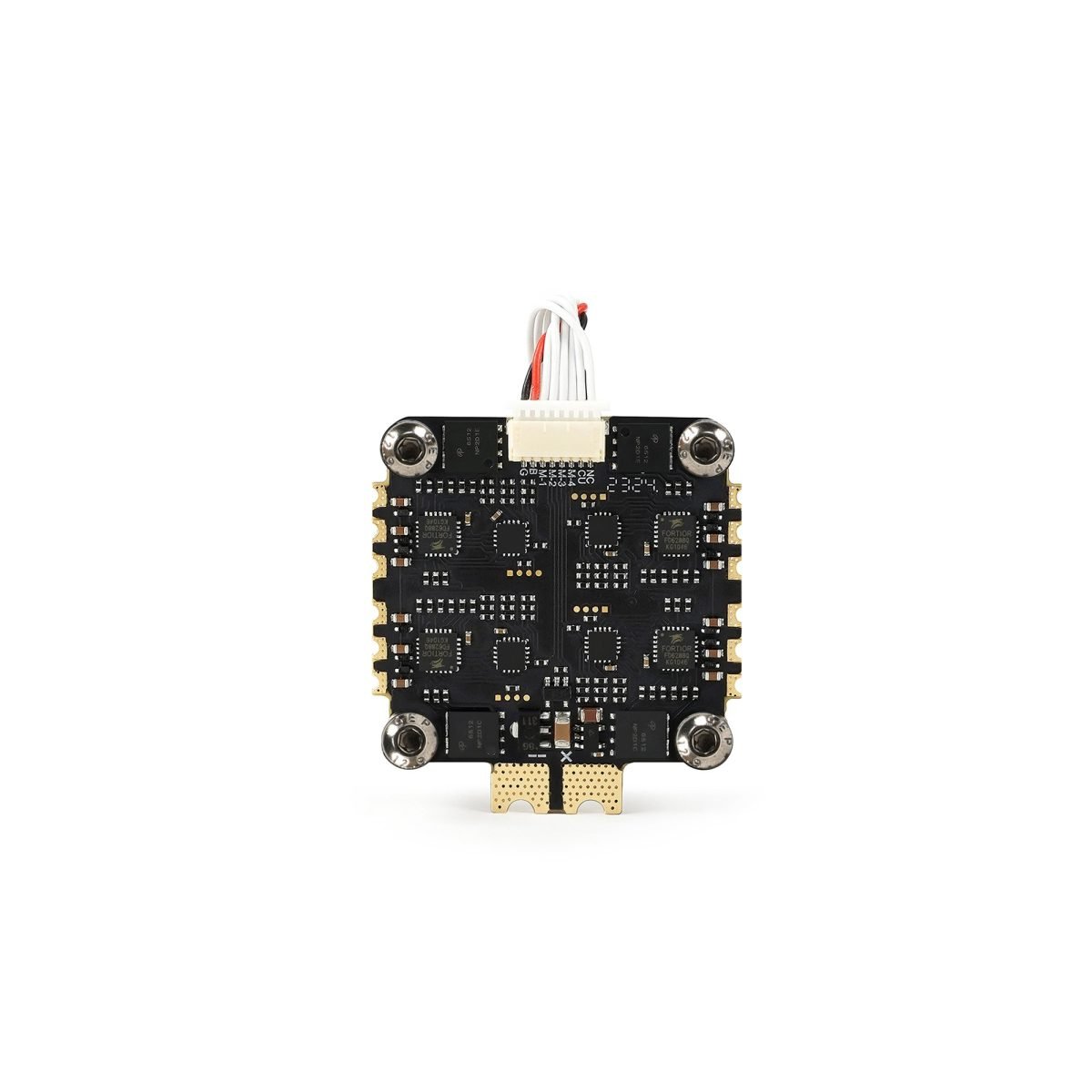

GEP-BLS50A-4IN1 ESC

• Input Voltage：3-6S Lipo
• Galvanometer：Support
• Continue Current：50A
• Burst Current：55A（5 second）
• Support Protocol：Dshot 150/300/600
• Size：42.9×39.7mm, hole30.5×30.5mm，φ4mm hole becomes φ3mm after using the silicone shock-absorbing circle.
• Weight：13.7g
• Target：G_H_30

Package Include :

1 x Flight Controller

1 x ESC

1 x Capacitor

1 x DJI Air Unit Adapter Cable

1 x Flight Controller Adapter Cable

1 x XT60 Power cable

4 x M3*30 Screws

4 x M3*24 Screws

8 x Nylon nuts

8 x Silicone grommets

2 x sh1.0 4pinsilicone cable

1 x Camera connection cable
