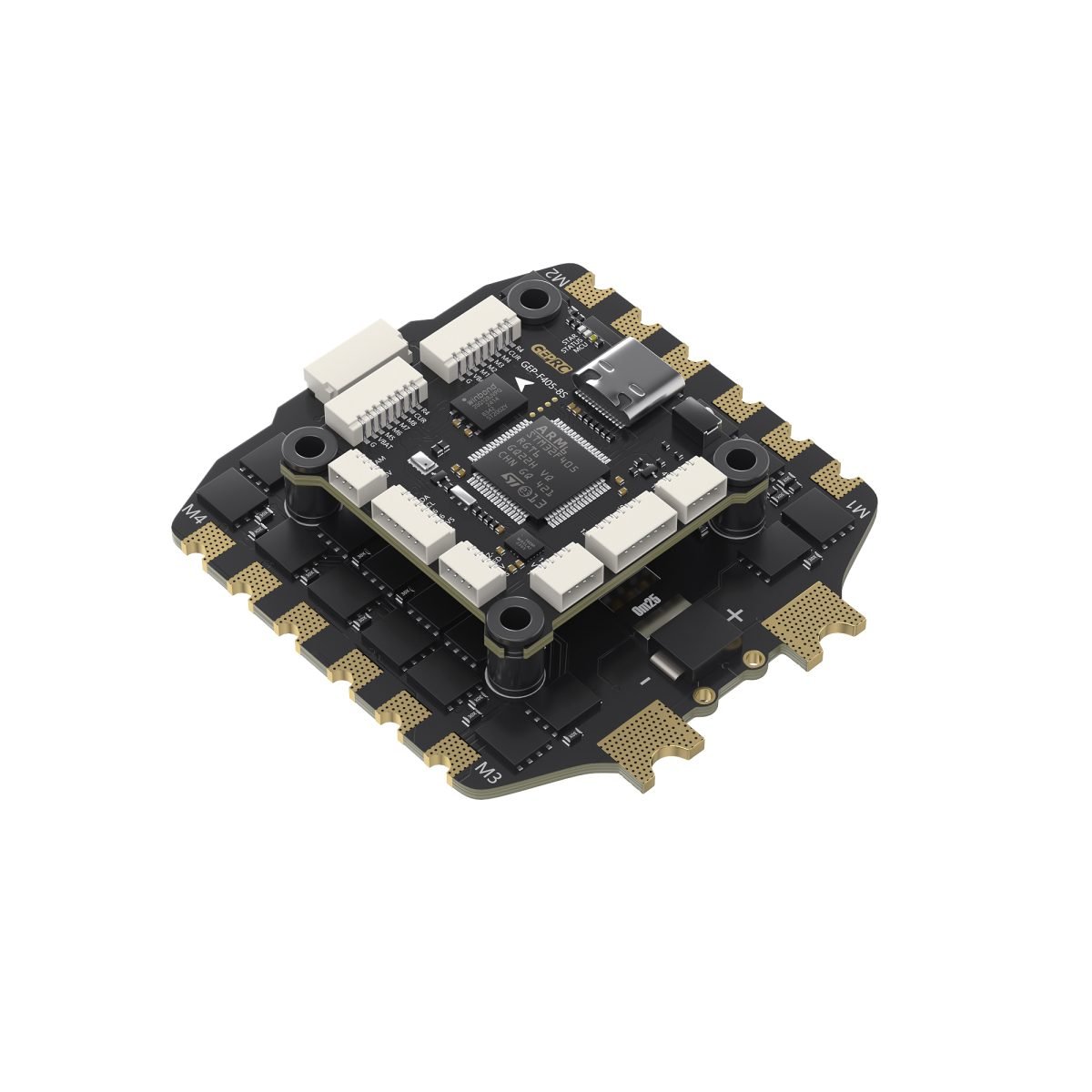

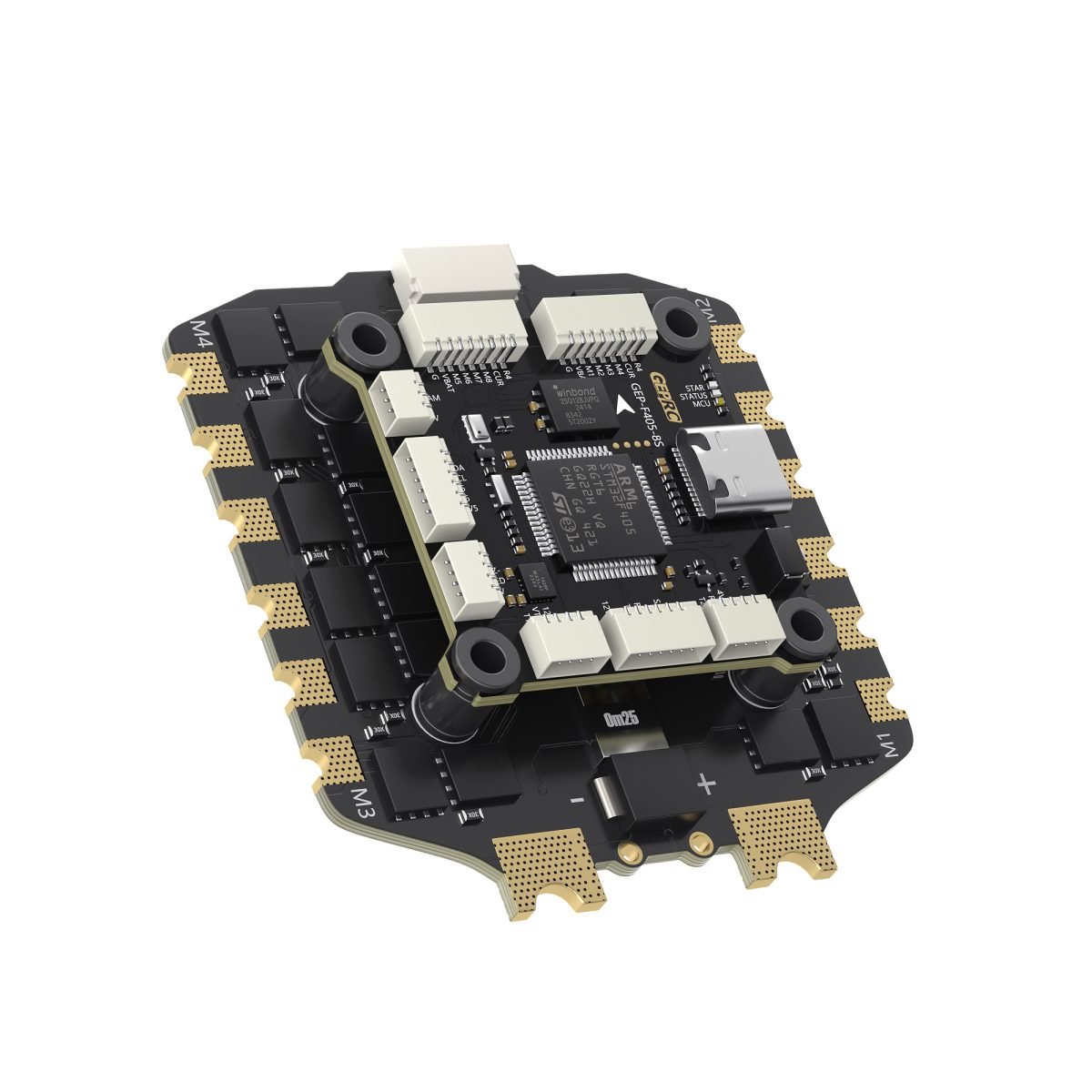

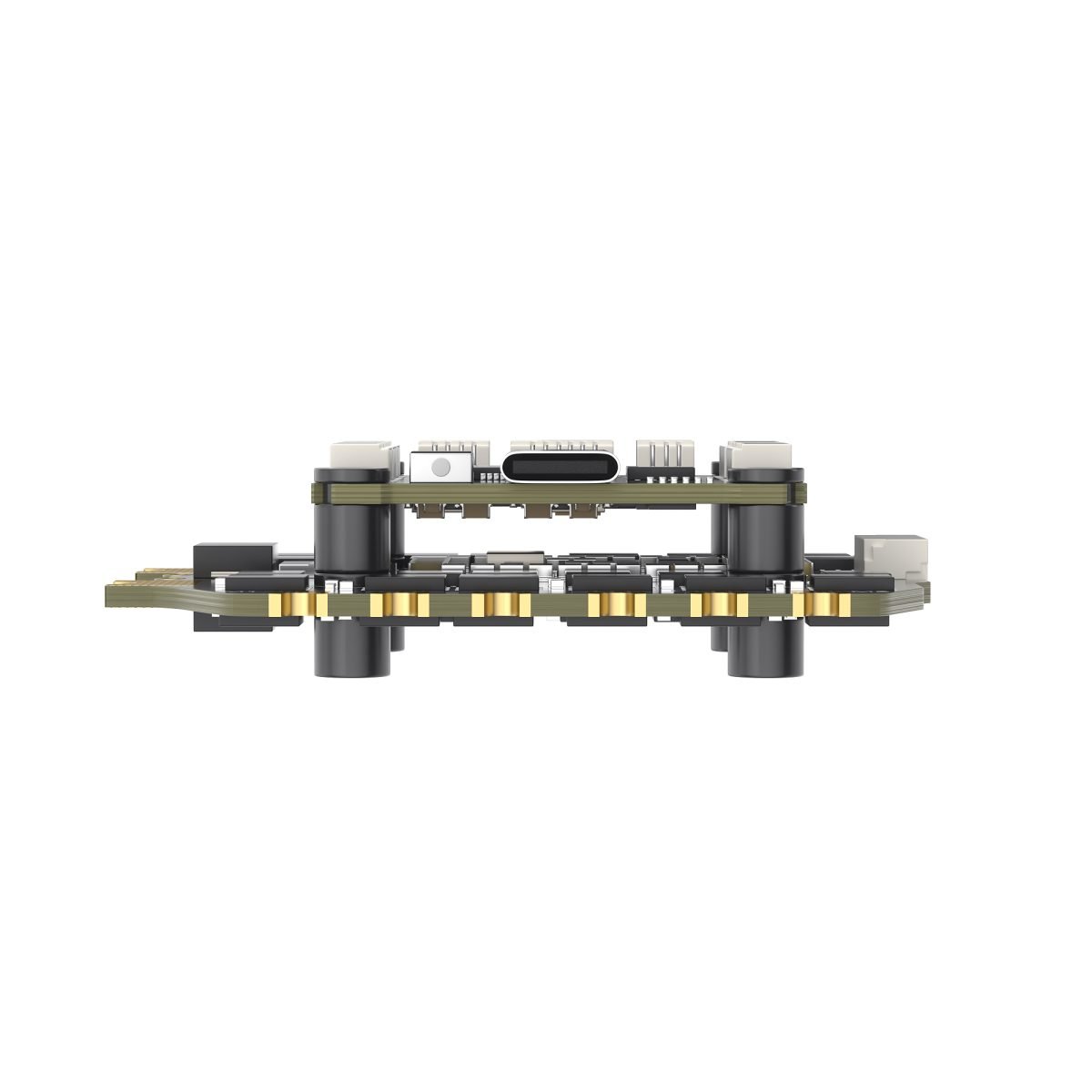

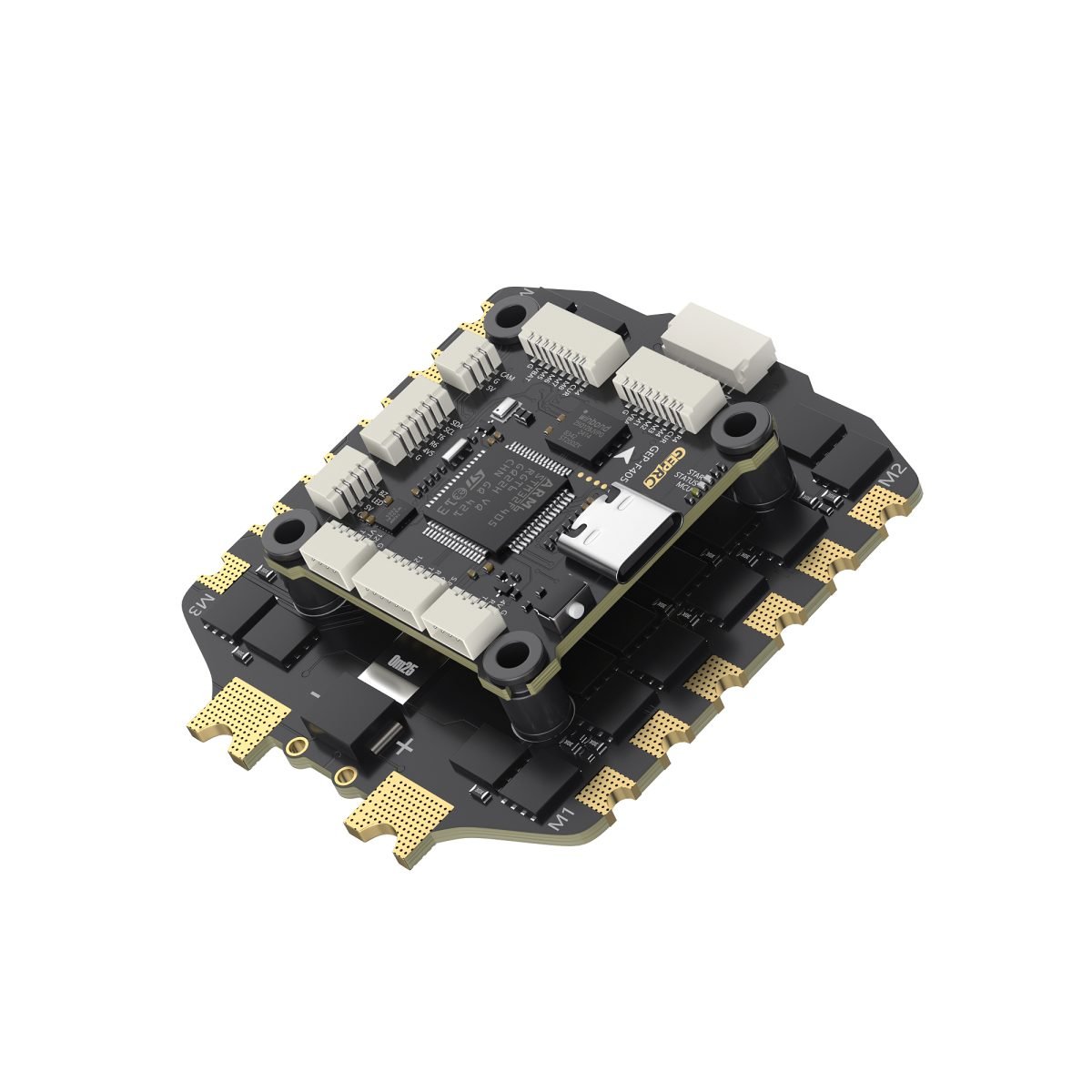

GEPRC TAKER F405 BLS 100A 8S STACK

GEPRC TAKER F405 BLS 100A 8S STACK

Description:

The GEPRC TAKER F405 BLS 100A 8S Stack is a high-current flight controller and ESC stack designed for powerful FPV racing and freestyle drone builds. It combines an F405 flight controller with a 100A BLS ESC, providing reliable flight control and high-current motor performance. With support for up to 8S LiPo batteries, this stack is suitable for high-power FPV configurations where strong and responsive motor control is required.

Features

• Use mainstream STM32F405 chip
• Equipped with the latest 42688-P gyroscope
• 16M black box storage
• Integrated LC filter
• Upgrade type-C USB interface
• Directly plugged into the DJI Air Unit
• With TAKER H100_8S_BLS 100A 4IN1 ESC, Dual MOS, high current, silky flight
• Supports 8S Lipo battery
• Simple and reasonable installation method, the shock absorber can make the gyroscope work very stably
• 12V@3A + 5V@3A dual independent BEC

Specifications

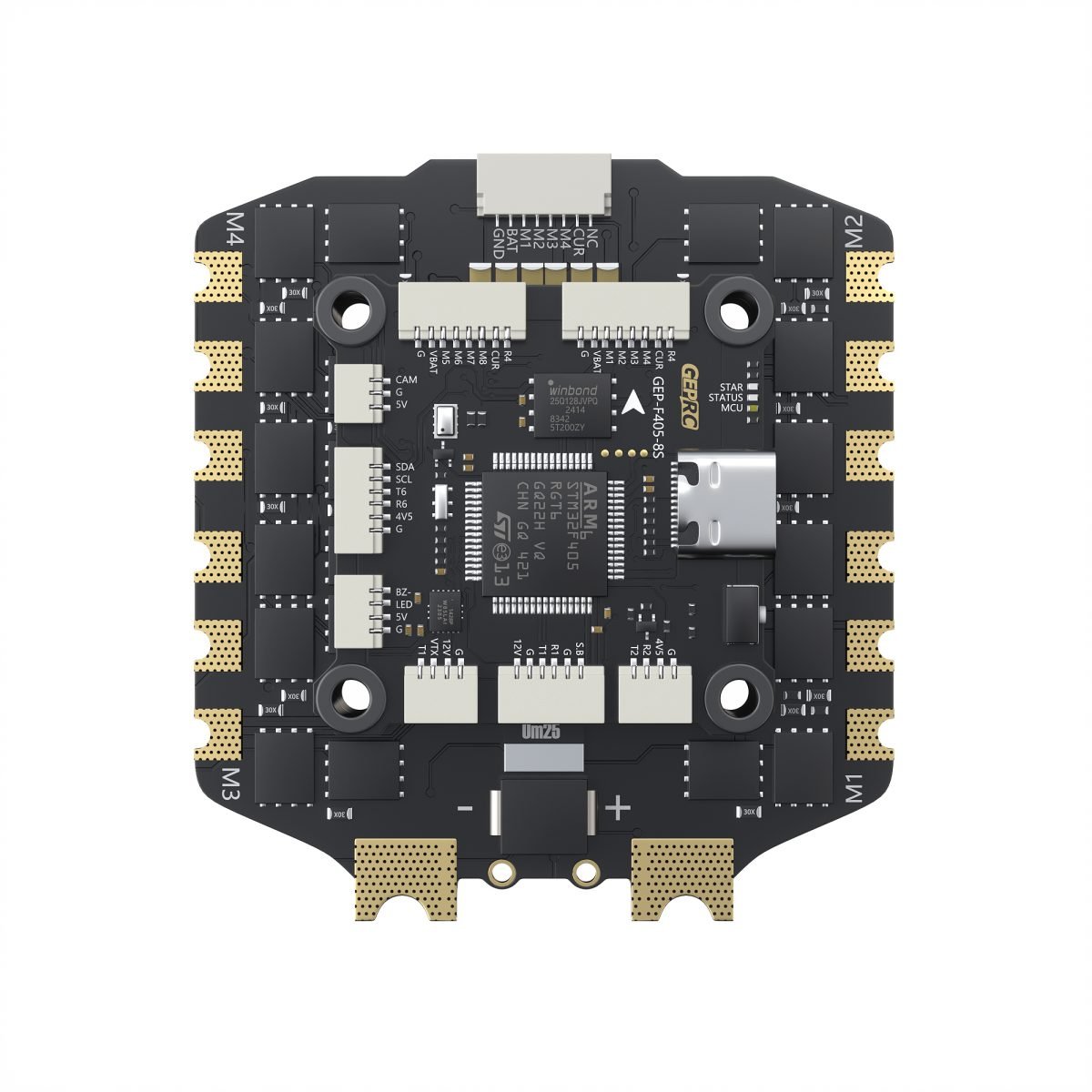

GEP-F405-8S Flight Controller

• MCU: STM32F405
• IMU: ICM42688-P(SPI)
• Air Unit Connection: Direct plugging into DJI Air Unit
• Black Box: 16M onboard
• Barometer: support
• Motor outputs: M1-M8
• USB Interface: Type-C
• OSD: BetaFlight OSD w/ AT7456E chip
• BEC: 5V@3A,12V@3A dual BEC
• Firmware Target: GEPRCF405_8S
• Size: 37x37mm
• Mounting: 30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle
• Input Voltage: 3-8S LiPo
• UART: 6 UARTs
• Power Filter: Integrated LC filter
• Weight: 8.3g

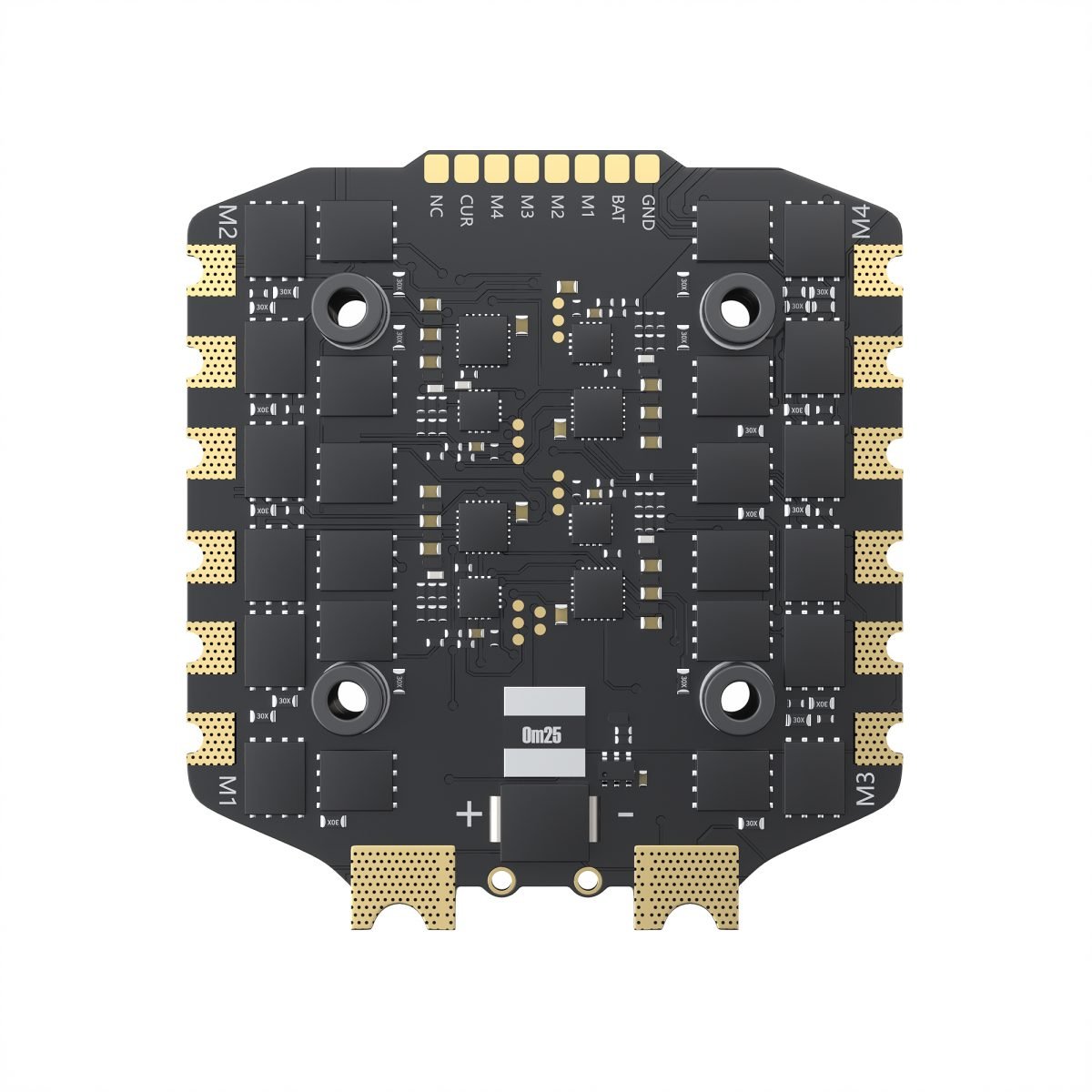

TAKER H100_8S_BLS 100A 4IN1 ESC

• Input Voltage: 3-8S Lipo
• Ammeter: Support
• Calibration value: 200
• Continue Current: 100A
• Burst Current: 105A（5 second）
• Support Protocol: Dshot 150/300/600
• Size: 56.3*61.1mm，hole30.5×30.5mm，φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring.
• Weight: 28.8g
• Target: B_X_3


  ---

Package Includes :

1 x GEP-F405-8S Flight Controller

1 x TAKER H100_8S_BLS 100A 4IN1 ESC

1 x Electrolytic capacitor(50V 4700uF)

1 x DJI connection cable(SH1.0 6pin 100mm)

2 x FC adapter cable(SH1.0 8pin 30mm)

1 x Receiver silicone cable(SH1.0 4pin 150mm)

1 x Camera connection cable(SH1.0-SH1.25 3pin 135mm)

1 x VTX connection cable(SH1.0 4pin-6pin 100mm)

1 x XT90 battery plug

1 x Red and black power cable(10AWG 240mm)

4 x M3*30 screws

4 x M3*25 screws

8 x Nylon nuts(M3)

12 x Silicone anti-shake pads(M3)
