GEP-CL30 V2 O3 Frame
Description:

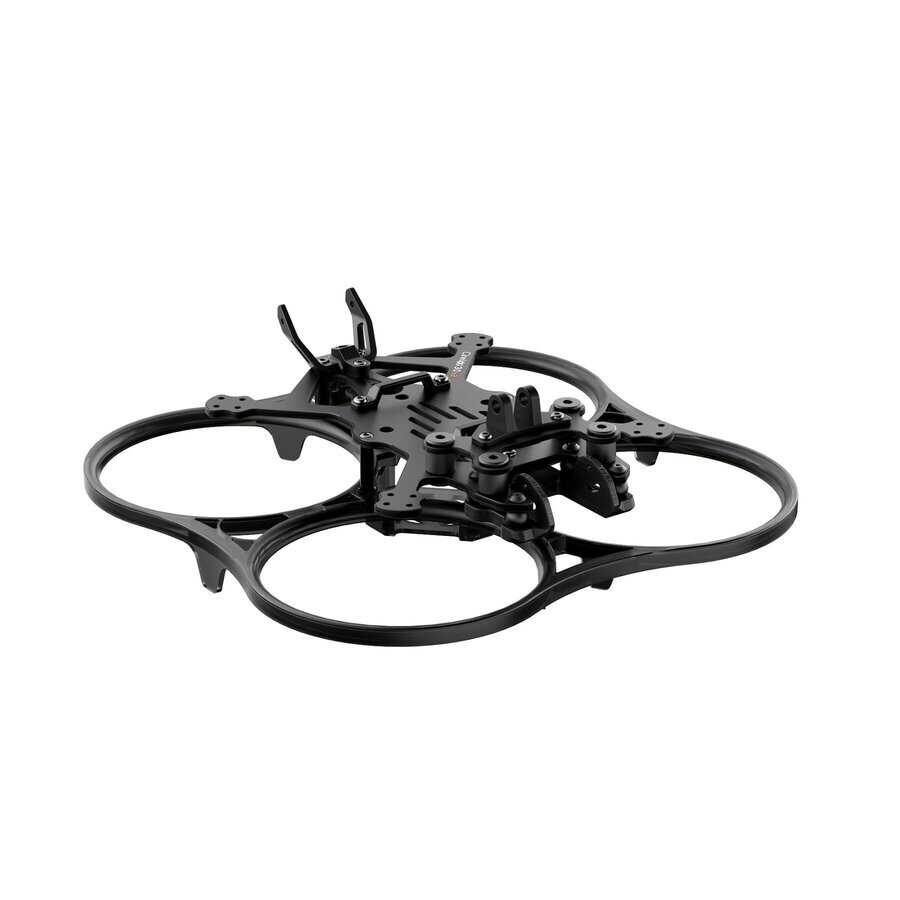

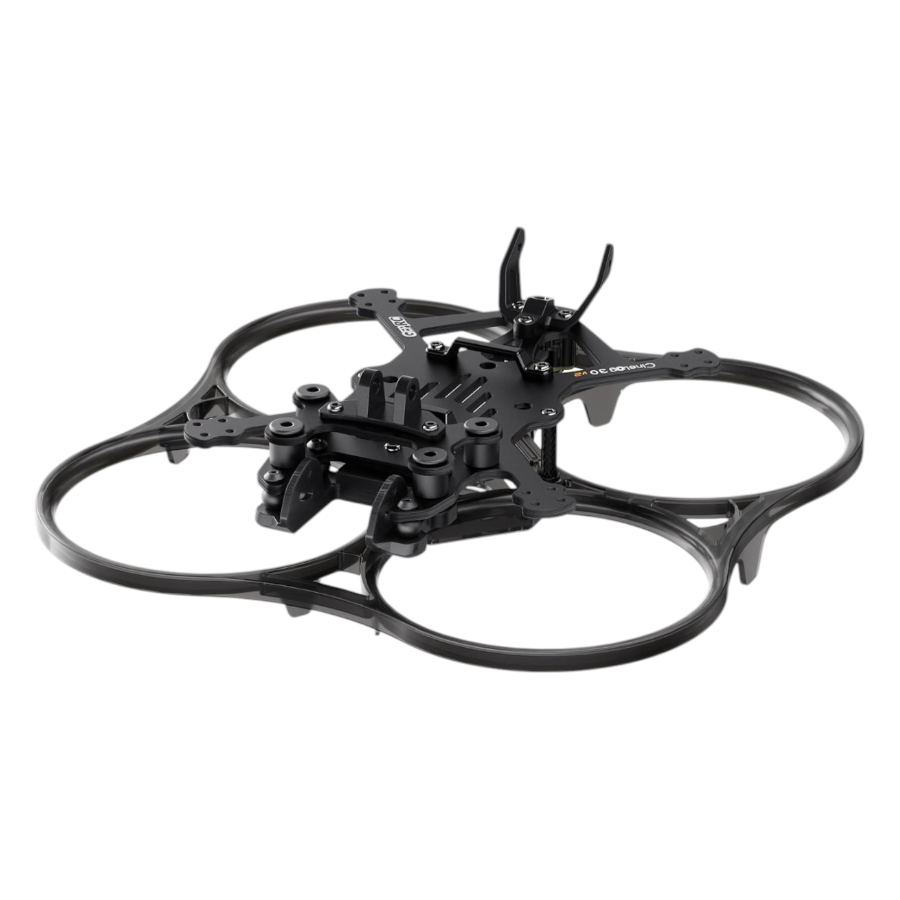

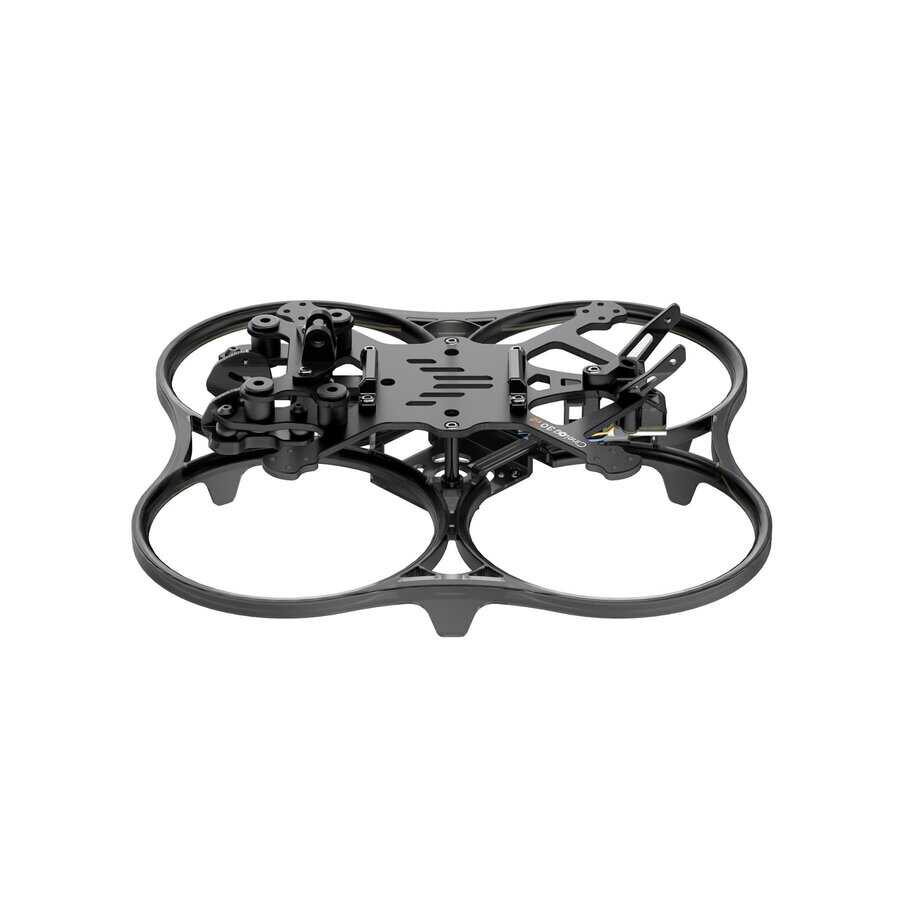

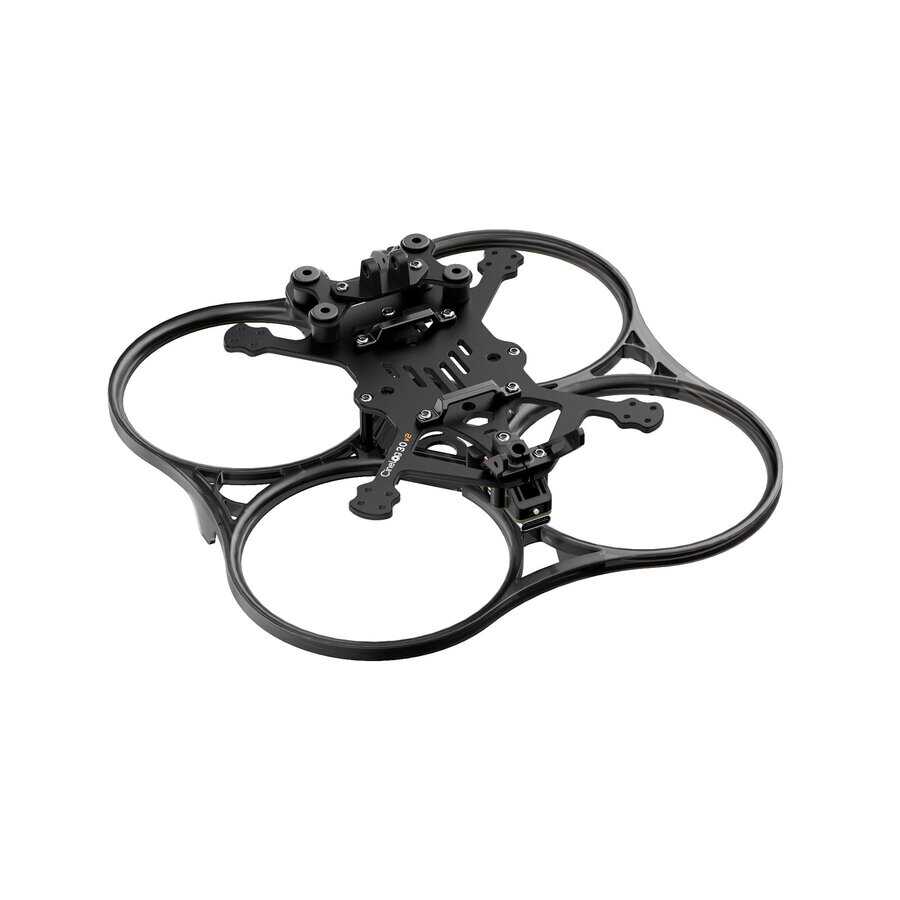

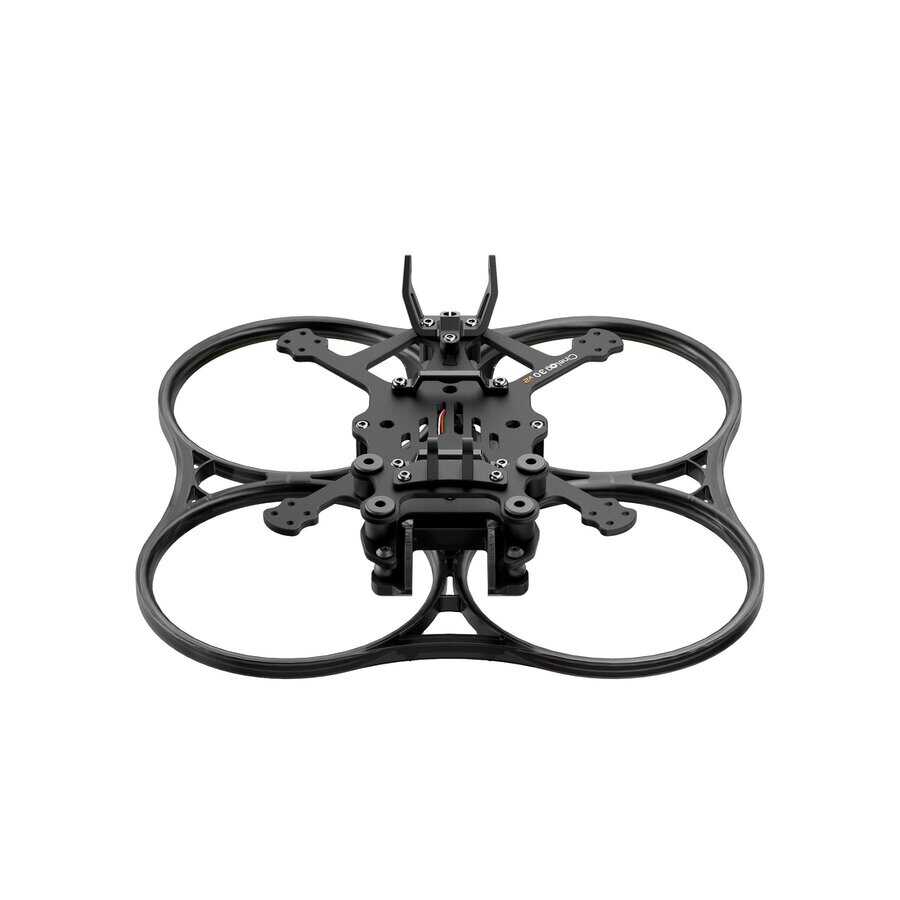

The GEP-CL30 V2 O3 frame retains the lightweight design of its predecessor, now upgraded with an all-in-one protective frame and a built-in COB LED strip for vibrant night flying.
The underslung VR gimbal ensures smooth, stable footage with the O3 camera. The rear USB expansion port and antenna mounts simplify assembly and tuning. Pair with 1404 3850KV motors and the CT30 V2 frame for the ideal thrust-to-weight ratio, delivering robust power with a lightweight feel.
The lightweight design offers an exceptional shooting experience and allows for more agile and fluid flying.
Features:
- Lightweight design with 1404 motors and a LiHv 4S 720mAh battery, keeping the weight under 250g.

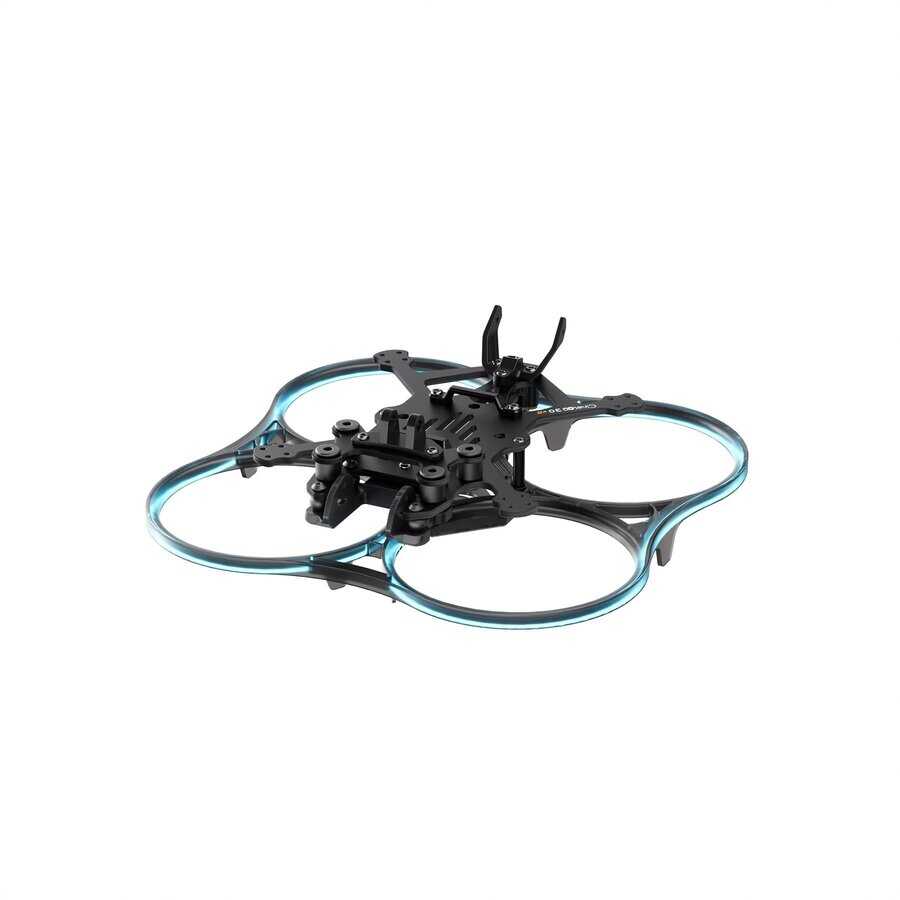

- Integrated frame with COB LED mount, delivering a vibrant lighting effect.
- Molded shock-absorbing mount for stable footage.
- The rear USB expansion module has a built-in LED tail light for easier tuning and setup.
- One-piece T-shaped antenna mount for a secure fit.
- Custom VTX compartment for easy memory and USB access.
- Simplified quick-release design for hassle-free maintenance.
Specification:
- Model: GEP-CL30 V2 O3 Frame
- Color: Black
- Dimension: 175mm*173mm*40mm
- Wheelbase: 124mm
- Carbon Fiber Plate Thickness: 2.5mm
- FC Mounting Patterns: 25.5mm * 25.5mm
- VTX Mounting Patterns: 20mm * 20mm / 25mm * 25mm
- Motor Mounting Patterns: 9mm * 9mm
- Camera Mounting Patterns: 19mm / 20mm
- Connector: XT30
- Compatible Propeller: 3-inch
- Weight: 67.6g
Package Includes:
1 x Integrated Frame
1 x Integrated Board
1 x Naked Gopro Carbon Plate
1 x Naked Gopro Mount
1 x Camera Mount
1 x T-Shaped Antenna Mount
1 x USB Extension Port
1 x Rear Light Cover
1 x Damping Ball Puncher
2 x Battery Anti-slip Pads
1 x Screw Pack
2 x 15*150mm Battery Straps
1 x L-Shaped Screwdriver 1.5mm
VTOL Drone Build: Tilt-Rotor Transition from Hover to Flight
VTOL Drone Build: Tilt-Rotor Transition from Hover to Flight VTOL (Vertical Take-Off and Landing) drones represent the perfect...
Read More →
Custom Flight Controller Build with STM32
Building a custom flight controller with STM32 is the ultimate drone electronics project. You design the PCB, select...
Read More →
Drone VTX Power Levels: 25mW to 1000mW Comparison
Table of Contents Understanding Drone VTX Power Levels Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation...
Read More →Technical Specifications
| Brand | GEPRC |
|---|---|
| Model | GEP-CL30 |
| SKU | AI7972 |
| Weight | 0.48 kg |
| Availability | In Stock |
Applications & Use Cases
The GEP-CL30 V2 O3 Frame is a versatile drone frame and accessories used across a wide range of applications including FPV racing builds, freestyle drones, cinematic drones, and agricultural spraying platforms.
Common use cases:
- Building a new racing quad
- Replacing a broken frame arm after a crash
- Mounting a camera gimbal on a custom platform
This product is ideal for FPV builders, drone racing enthusiasts, and commercial drone operators.
Technical Tip: Carbon fiber frames offer the best strength-to-weight ratio. Ensure motor-to-motor distance matches your propeller size.
