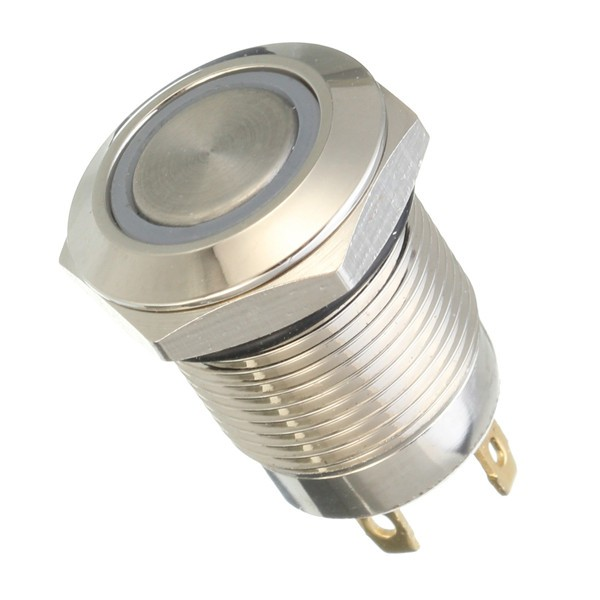

This is the Yellow variant of the Flat Head 12MM 12-24V Waterproof Momentary Self-Reset Metal Push Button Switch with Yellow Led Light in Metal Push Button Switch, Electronic Switches. Available at ₹103.84 (₹88.00 + GST) with free shipping across India.
Difference between Momentary self-reset and Latching:
1.Momentary/Self-reset: When you press the button, press-key will automatically return. (Like a car horn switch. Press it-power on, release it-power off.)
2.Latching: When you press the button, press-key will stay in position until you press again.And then the press-key return. (Like a light switch. Press it-power on, press it again-power off.)
Parameter:
Product Name: Metal Button Switch
Hole diameter: 12mm
Material: Nickel plated brass
LED color: Yellow
Shell Color: Silver
Max current: 4A
Led voltage: 12-24V
Operation type: Momentary Self-reset
Switch contact : Flat head /High head
Waterproof level: IP66
Contact type: 1NO1NC
Features:
Copper nickel plated material, strong and durable.
High grade appearance and good handle.

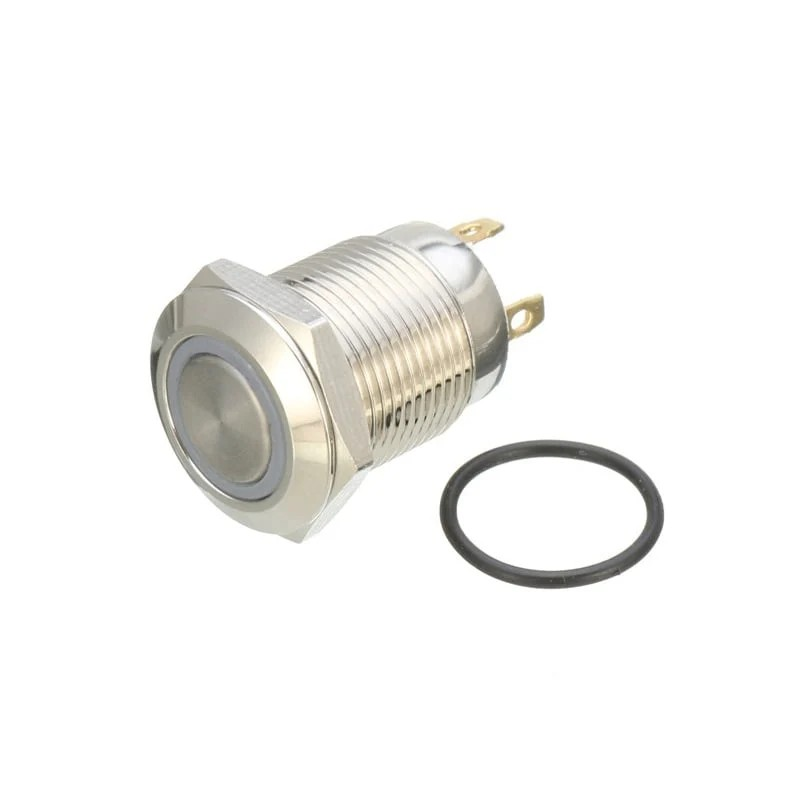

It is fixed with rubber ring and hexagon nut, which is dustproof and waterproof.
Silver electric shock has good conductivity.
Metal button head, durable.
Button Switch Tips :
” NC “: Normal Close
” NO “: Normal Open
” C ” : Common Connect
” NO ” and ” C ” : The circuit is always open unless press the button.
Connect ” NC ” and ” C ” : The circuit is always close unless press the button.
The lamp and switch have no electrode, no need to divide the positive and negative poles when wiring.
package includes:1xFlat Head 12MM 12-24V Waterproof Momentary Self-Reset Metal Push Button Switch with Yellow Led Light
Technical Specifications
| Size | 12mm |
|---|---|
| Color | Yellow |
| SKU | AI4065 |
| Weight | 0.01 kg |
| Availability | In Stock |
Applications & Use Cases
The Flat Head 12MM 12-24V Waterproof Momentary Self-Reset Metal Push Button Switch with Yellow Led Light is a versatile metal push button switch used across a wide range of applications including industrial control panels, automotive dashboards, outdoor enclosures, marine electronics, and professional equipment.
Common use cases:
- Adding a waterproof power switch to an outdoor enclosure
- Building a professional-looking control panel
- Replacing a corroded switch in marine equipment
This product is ideal for industrial designers and professional equipment builders.
Technical Tip: IP65/IP67-rated metal switches are waterproof. LED ring illumination helps visibility in dark environments. Check panel cutout diameter before ordering.
