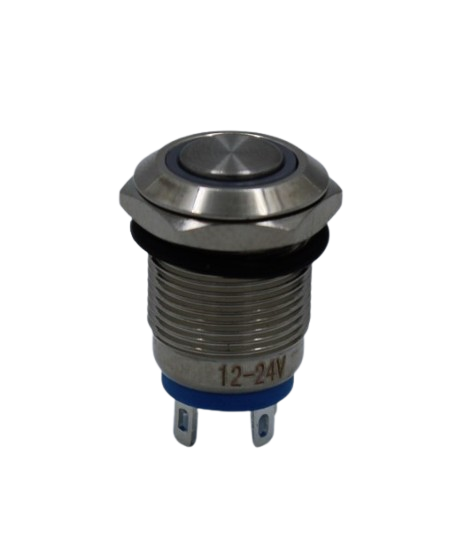

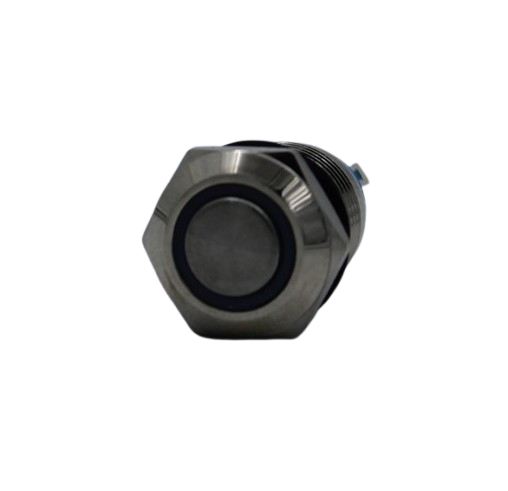

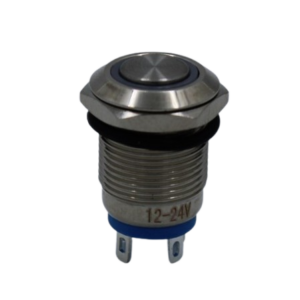

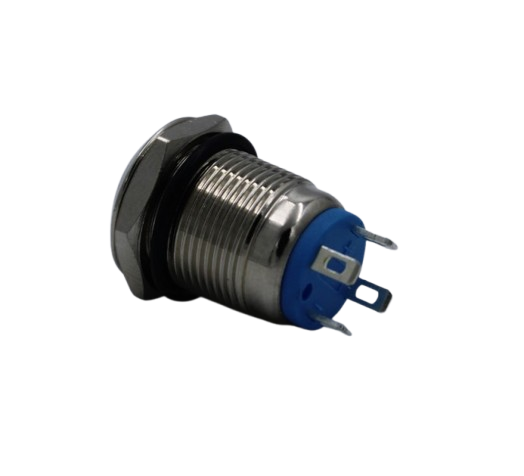

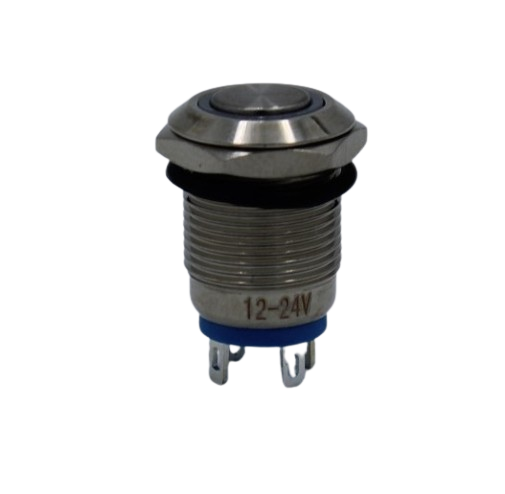

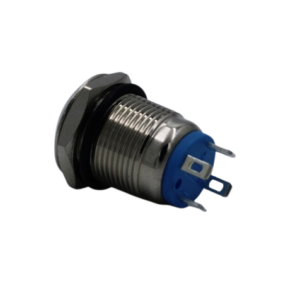

Flat Head 12MM 12-24V Waterproof Momentary Self-Reset Metal Push Button Switch with White Led Light

Difference between Momentary self-reset and Latching:

1.Momentary/Self-reset: When you press the button, press-key will automatically return. (Like a car horn switch. Press it-power on, release it-power off.)

2.Latching: When you press the button, press-key will stay in position until you press again.And then the press-key return. (Like a light switch. Press it-power on, press it again-power off.)

Parameter:

Product Name: Metal Button Switch

Hole diameter: 12mm

Material: Nickel plated brass

LED color: White

Shell Color: Silver

Max current: 4A

Led voltage: 12-24V

Operation type: Momentary Self-reset

Switch contact : Flat head /High head

Waterproof level: IP66

Contact type: 1NO1NC

Features:

Copper nickel plated material, strong and durable.

High grade appearance and good handle.

It is fixed with rubber ring and hexagon nut, which is dustproof and waterproof.

Silver electric shock has good conductivity.

Metal button head, durable.

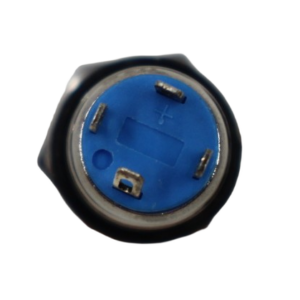

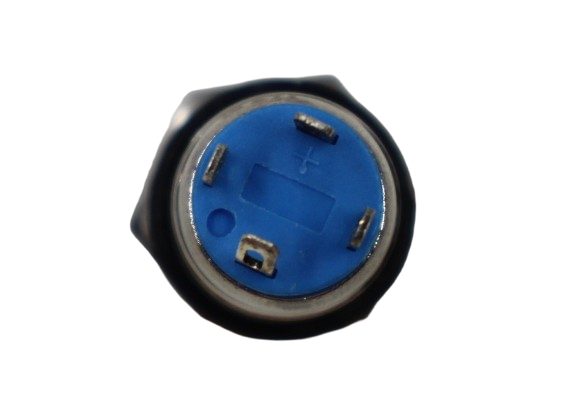

Button Switch Tips :

” NC “: Normal Close

” NO “: Normal Open

” C ” : Common Connect

” NO ” and ” C ” : The circuit is always open unless press the button.

Connect ” NC ” and ” C ” : The circuit is always close unless press the button.

The lamp and switch have no electrode, no need to divide the positive and negative poles when wiring.
