Looking for 35a Flight Controller? F7 MINI V1.0 Flight Controller +35A 2-5S BLHELI_S 4 in 1 ESC Flytower is available at Zbotic with fast shipping across India.
F7 MINI V1.0 Flight Controller +35A 2-5S BLHELI_S 4 in 1 ESC Flytower
This product is a combo kit of a flight controller and an ESC (Electronic Speed Controller) that are designed to work efficiently in drones. We offer this combo kit at a cheaper price than the market rate. This high-performance flight controller can control your drone and model plane with 95% accuracy.
The ESC that comes with the kit is compatible with the flight controller and they work together seamlessly.
The flight controller uses the data collected by the sensors to calculate the desired speed for each of the four motors. It then sends this speed to the ESCs, which convert it into a signal that the motors can understand.
The MPU6500 is the most popular IMU (Inertial Measurement Unit) sensor and it is used in almost all of the best flight controllers. The reason for this is that it has a high tolerance for vibration and can sample the gyro at 8kHz over an SPI (Serial Peripheral Interface) interface.
Note: Product can vary from images in terms of Color and Design
Features:
- This is combo kit of Flight controller & ESC
- High performance & efficient flight controller & ESC
- Light weight, Easy to connect
- Compact in size
- Flight controller comes with ARM processor
- ESC is build to give best performance
Specifications:
Flight Controller:

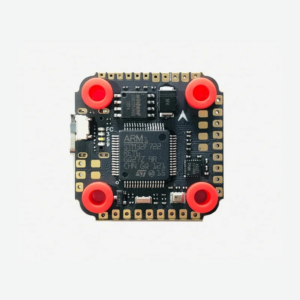

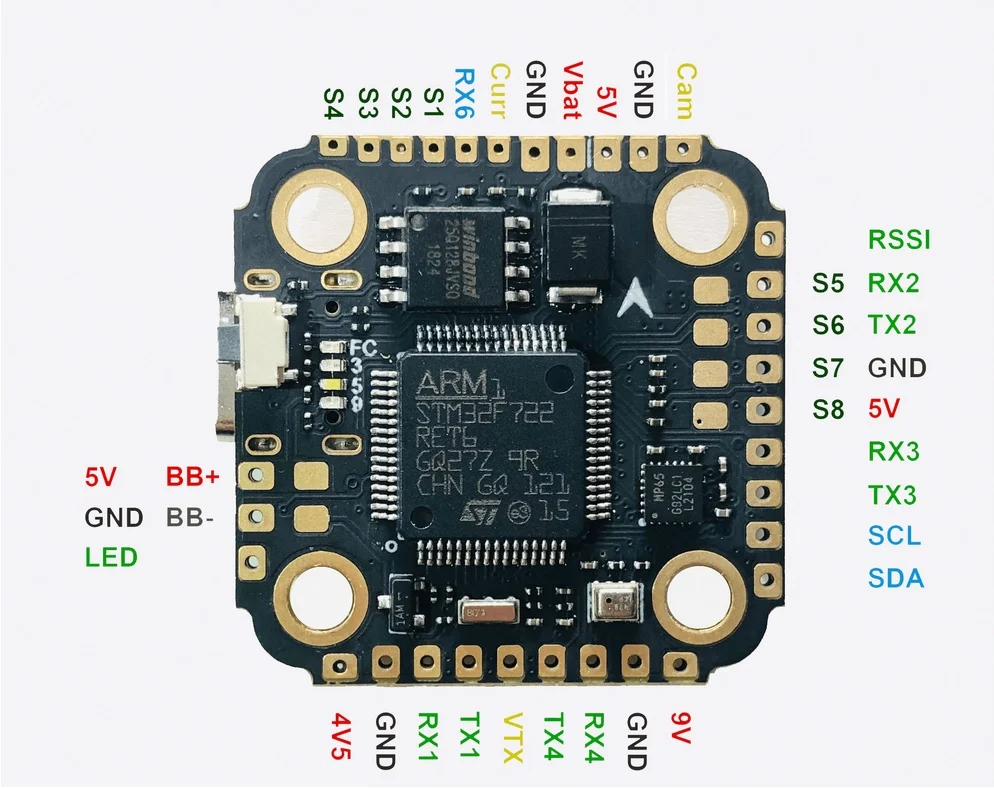

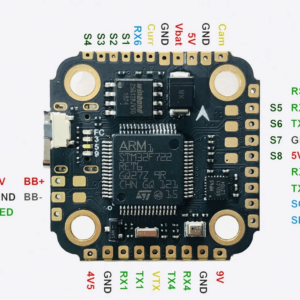

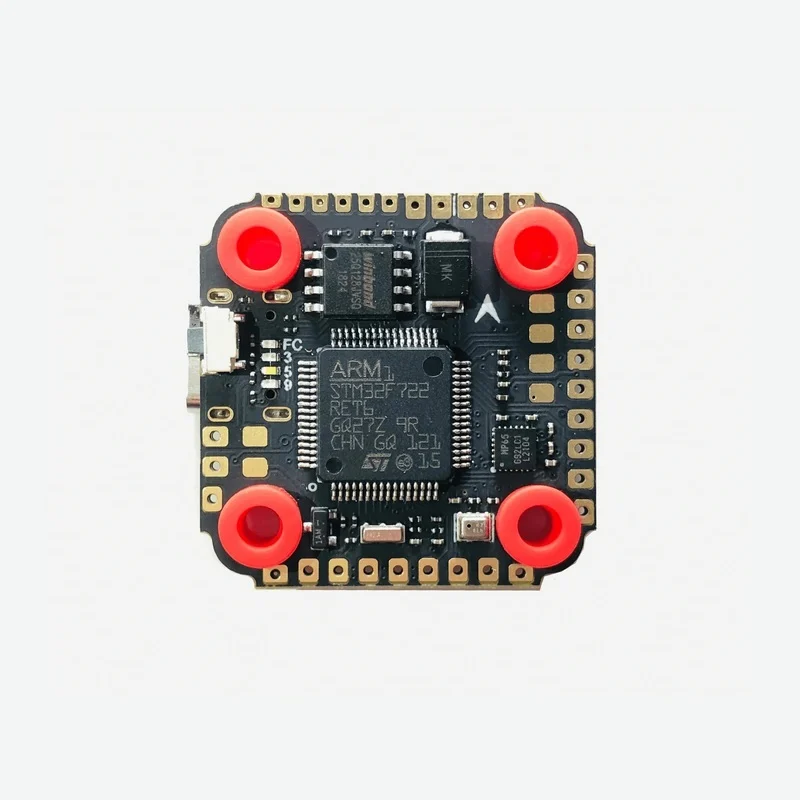

- Model: F7 MINI V1.0
- Main control chip: ARM STM32F405RGT6
- Input voltage: 3-6S Lipo
- SPI Gyro: MPU6500
- Barometer: BMP280
- Power Port: 1 C-Type
- Firmware: AOCODAF722MINI
- Weight: 6g
- Dimensions: 3 x 3 x 1 mm

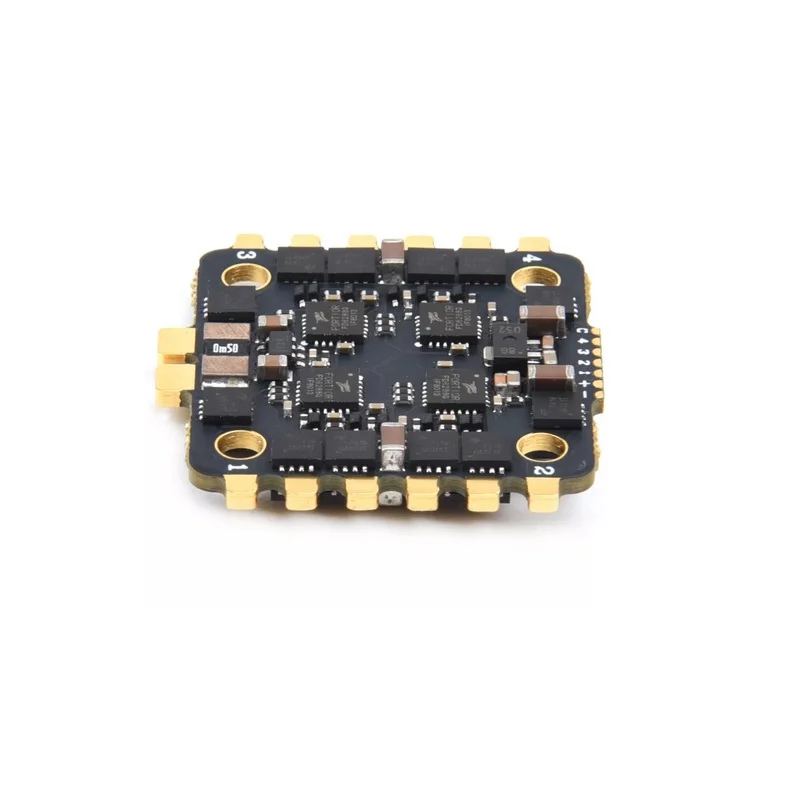

ESC (Electronic Speed Controller):
- Product: ESC
- Current: 35A
- Lipo: 2-5S
- Programming: YES
- Weight: 11g
- Dimension: 3 x 3 x 0.6 mm
Packages Includes:
1 x F7 MINI V1.0 Flight Controller
1 x 35A 2-5S BLHELI_S 4 in 1 ESC Flytower
1 x Screw Pack
F7 MINI V1.0 Flight Controller +35A 2-5S BLHELI_S 4 in 1 Overview
The F7 MINI V1.0 Flight Controller combined with a 35A 2-5S BLHELI_S 4-in-1 ESC Flytower is a compact, high-performance control solution designed for multi-rotor drones. This integrated kit handles flight stabilization via its ARM-based F7 processor while driving four motors efficiently with BLHELI_S firmware support.
Key Features of F7 MINI V1.0 Flight Controller +35A 2-5S BLHELI_S 4 in 1
- ARM-based F7 Processor: Fast calculation of flight algorithms and support for advanced flight stacks.
- 35A Continuous ESC: Rated for up to 35 amperes per motor on 2–5S LiPo batteries for versatile power setups.
- BLHELI_S Firmware: Smooth motor response, active braking, and programmable via BLHeliSuite.
- Integrated Flytower Design: Combines flight controller, ESC, and power distribution in one lightweight stack.
- Easy Connections: Pre-tinned pads and sockets for quick soldering and plug-and-play wiring.
- Fast Shipping from Zbotic: Available across India with dispatch within 24 hours.
Applications and Use Cases
- 5-inch FPV racing and freestyle quads requiring responsive flight control.
- Long-range drones running 4S or 5S LiPo for extended flight time.
- Lightweight cinewhoops and micro builds benefiting from integrated PDB and ESC.
- Custom multirotor platforms where space and weight savings are critical.
- Prototyping drone layouts with minimal wiring complexity.
How to Use F7 MINI V1.0 Flight Controller +35A 2-5S BLHELI_S 4 in 1

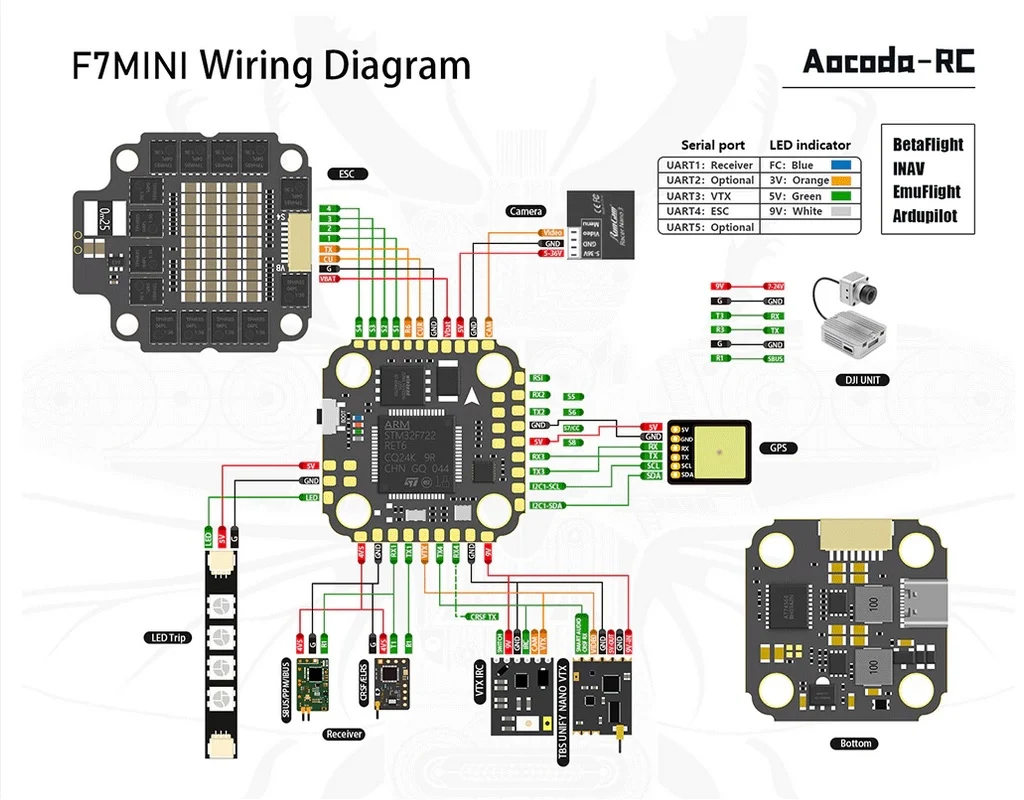

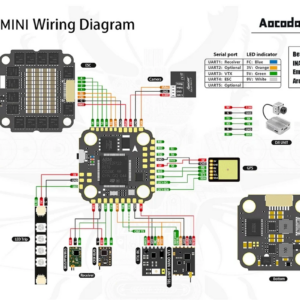

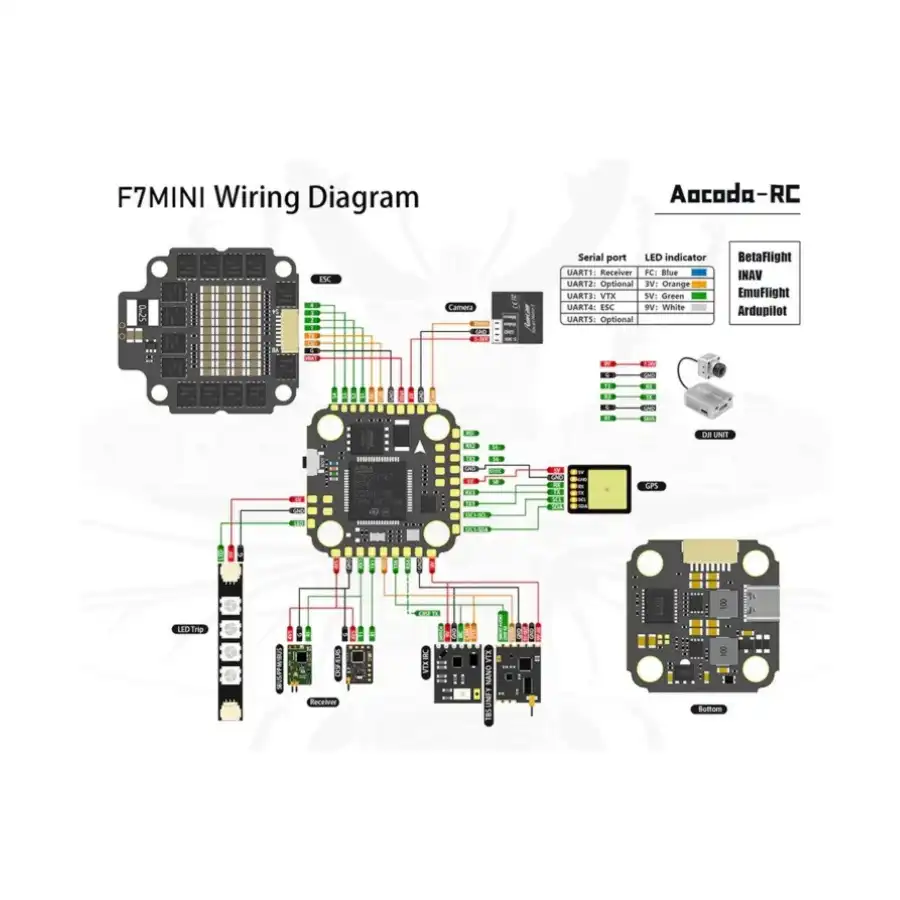

Mount the stack on your drone’s frame using anti-vibration spacers, solder the main battery leads to the ESC power pads, attach motor wires to the ESC outputs, and connect receiver and peripherals to the flight controller headers. Configure flight modes and ESC settings via a USB connection in your preferred configurator software, calibrate sensors and ESCs, then perform a hover test to verify proper operation.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What battery voltage range does this kit support?
The ESC flytower is compatible with 2-to-5S LiPo batteries, allowing you to choose between 7.4 V up to 18.5 V for different performance requirements.
Can I update the ESC firmware on this 4-in-1 module?
Yes, you can connect the ESC’s programming pads to a BLHeli-compatible USB adapter and use BLHeliSuite to read and flash the latest BLHELI_S firmware.
Is a separate power distribution board needed?
No separate PDB is required. The flytower stack integrates power distribution, ESCs, and the F7 flight controller into a single compact module.
Betaflight Setup Guide: PID Tuning for Beginners
Table of ContentsWhat is Betaflight?What Are PIDs and Why Do They Matter?Tools You Need Before You StartStep 1:...
Read More →
Racing vs Freestyle vs Photography Drone: Which to Build
Understanding the different types of FPV drones helps you build the right machine for your flying style. Racing,...
Read More →
Tricopter Build Guide: Unique Y-Frame Drone Design
Tricopter Build Guide: Unique Y-Frame Drone Design In a world dominated by quadcopters, the tricopter is the odd...
Read More →Technical Specifications
| Current Rating | 35A |
|---|---|
| Cell Configuration | 5S |
| SKU | AI1504 |
| Weight | 0.03705 kg |
| Availability | Out of Stock |
Applications & Use Cases
The F7 MINI V1.0 Flight Controller +35A 2-5S BLHELI_S 4 in 1 ESC Flytower is a versatile flight controller & accessories used across a wide range of applications including autonomous drones, FPV racing quadcopters, agricultural drones, and surveying and mapping platforms.
Common use cases:
- Central brain for drone stabilization and navigation
- GPS waypoint missions for surveying
- Acro mode flying for FPV freestyle
This product is ideal for drone builders requiring precise flight control.
Technical Tip: F4 processors are good for basic builds; F7 or H7 recommended for advanced features. Ensure firmware compatibility (Betaflight, ArduPilot, iNAV).
