Looking for G20 Frame? EFT G20 22L 8 Axis Agriculture Drone Frame is available at Zbotic with fast shipping across India.

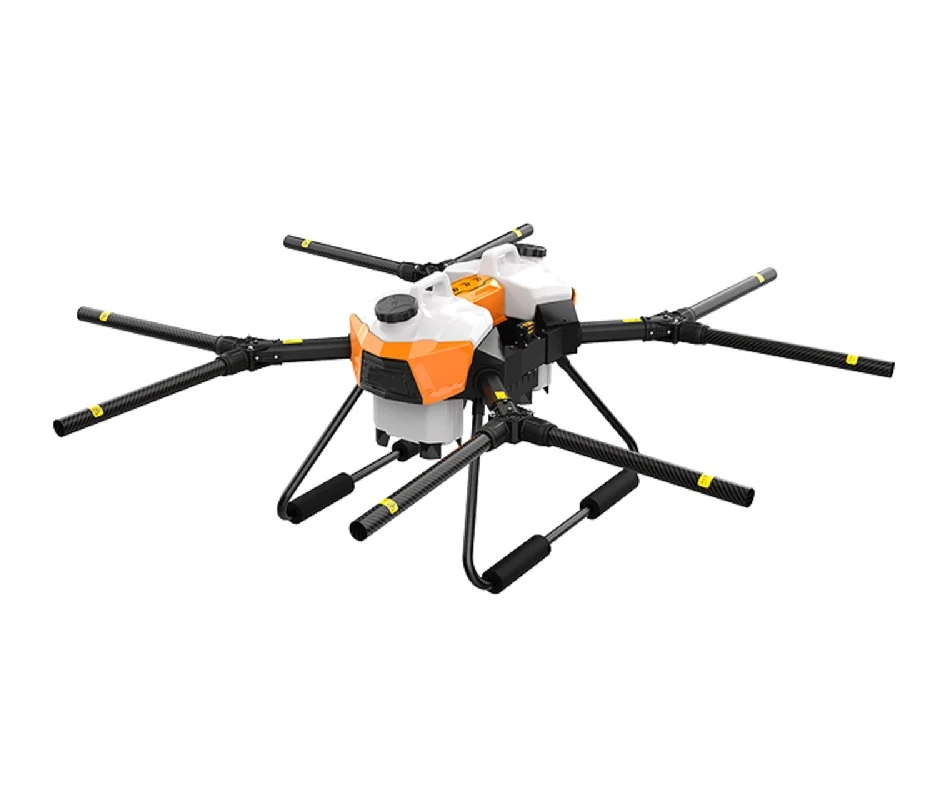

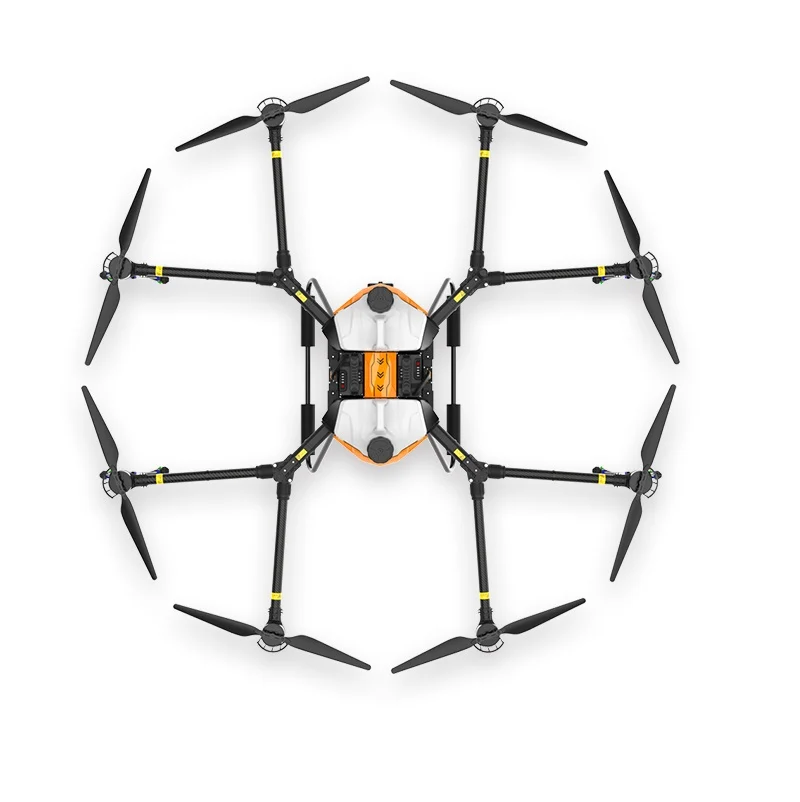

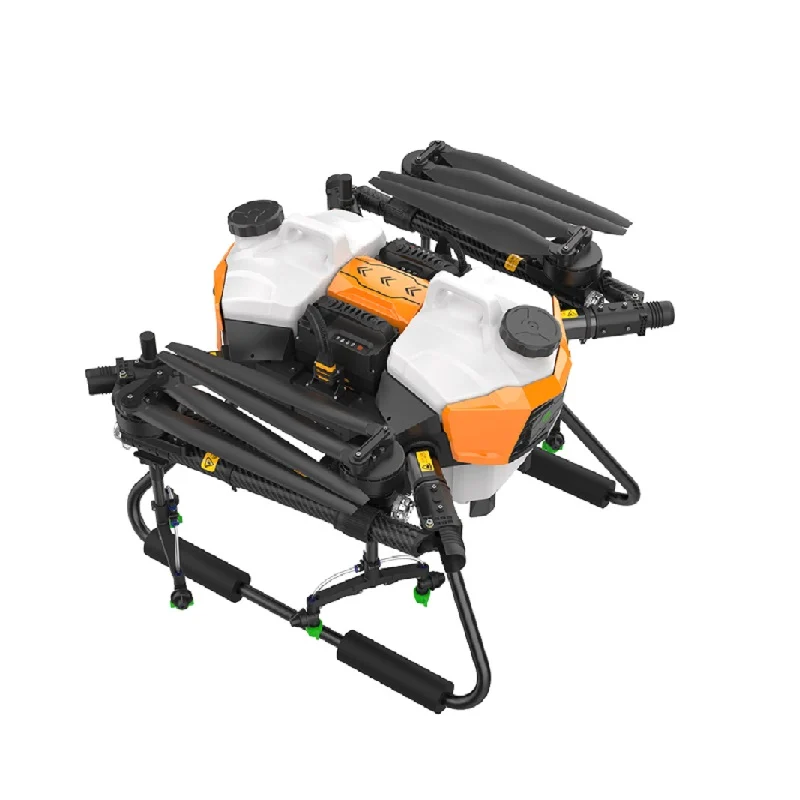

EFT G20 22L 8 Axis Agriculture Drone Frame
Introducing the EFT G20 22L 8 Axis Agriculture Drone Frame, a cutting-edge solution for precision agriculture. This advanced drone frame features a one-piece body design, enhancing strength and waterproof performance while reducing parts for streamlined operation. With a symmetrical eight-axis layout, including double front and rear tanks and left and right batteries, the G20 ensures stable center of gravity and dual redundancy for reliable operation. The quick-release double battery and double tanks enable rapid medicine change and battery replacement, minimizing operation waiting time and maximizing efficiency. Optional Y-shaped extension nozzles, equipped with a powerful spray system, ensure precise liquid atomization for optimal crop coverage. The tower-type flight control design offers clear wiring and easy maintenance, while the optional lower-mounted radar enables accurate height-fixing ground imitation and obstacle avoidance. With recommended motors and batteries, the EFT G20 22L 8 Axis Agriculture Drone Frame is the perfect choice for agricultural professionals seeking enhanced productivity and performance. Upgrade your farming operation today with the EFT G20 22L 8 Axis Agriculture Drone Frame.
Features:
- One-Piece Body: Integrated design enhances strength and waterproof performance.
- Symmetrical Eight-Axis Layout: Stable center of gravity with double front and rear tanks + left and right batteries for dual redundancy.
- Quick-Release Double Battery + Double Tanks: Enables rapid medicine change and battery replacement, reducing operation waiting time.
- Optional Y-Shaped Extension Nozzles: Equipped with four Y-shaped extension rod nozzles and a powerful spray system for precise liquid atomization.
- Tower-Type Flight Control Design: Stacked tower-type flight control warehouse with clear wiring and easy maintenance.
- Optional Lower-Mounted Radar Warehouse: Achieves accurate height-fixing ground imitation and obstacle avoidance with optional lower-mounted radar.
- Recommended Motor: X8 30inch
- Recommended Battery: 16000mAh 12s
Specifications:
| Model | EFT G20 22L 8 Axis Agriculture Drone Frame |
|---|---|
| Tank Capacity (L) | 11 |
| Expanded Height (mm) | 661 |
| Expanded Length (mm) | 2744 |
| Expanded Width (mm) | 2744 |
| Folded Height (mm) | 661 |
| Folded Length (mm) | 1114 |
| Folded Width (mm) | 1114 |
| Arm Diameter (mm) | 40 |
| Color: | Orange |
| Shipping Weight | 17 kg |
| Shipping Dimensions | 86 × 56 × 44 cm |
Package Include:
1 x EFT G20 22L 8 Axis Agriculture Drone Frame kit .
2 x Tank
EFT G20 22L 8 Axis Agriculture Drone Frame Overview
The EFT G20 22L 8 Axis Agriculture Drone Frame is a heavy-duty airframe designed for precision agricultural spraying and chemical dispersal. Featuring a one-piece body and symmetrical eight-axis layout, it provides a stable platform for dual batteries and dual tanks, ideal for professional farming applications.
Key Features of EFT G20 22L 8 Axis Agriculture Drone Frame
- One-piece molded body for enhanced structural strength and waterproof performance
- Symmetrical eight-axis design with dual front/rear tanks and left/right batteries for a balanced center of gravity
- Quick-release mounts for two batteries and two 22L chemical tanks, enabling rapid swap-outs in the field
- Optional lower-mounted radar integration for precise altitude hold and obstacle avoidance
- Support for Y-shaped extension nozzles to increase spray width and uniformity
- Genuine product, fast shipping across India from Zbotic
Applications and Use Cases
- Large-scale crop spraying of pesticides and herbicides over rice, wheat, and maize fields
- Targeted fertilizer application in orchards and vineyards
- Aerial seeding of cover crops across open farmland
- Precision spraying in greenhouse operations and nurseries
- Rapid turnaround operations requiring quick battery and tank changes
How to Use EFT G20 22L 8 Axis Agriculture Drone Frame
Begin by securely mounting your motors and propellers at each of the eight axis points, then attach the dual 22L tanks and quick-release battery packs into their respective slots. If required, install the optional radar module beneath the frame and fit Y-shaped extension nozzles to the tank outlets. Finally, balance the loaded frame, perform a center-of-gravity check, and proceed with your flight controller calibration before takeoff.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What battery type does the EFT G20 22L frame support?
The frame is designed for two quick-release lithium-polymer (LiPo) battery modules, mounted symmetrically on the left and right arms to maintain balance and provide redundancy.
How do I install the optional Y-shaped extension nozzles?
Slide the Y-shaped nozzles onto the outlet ports of each tank manifold and secure them with the included clamps. Ensure all connections are tight to prevent leaks during flight.
Can I attach a radar sensor to this frame?
Yes, the EFT G20 22L features a dedicated lower mounting bracket for optional radar units, enabling accurate height-fixing ground imitation and obstacle avoidance when integrated with your flight controller.
