DTM06-4P Circular DIN Valve Connectors

Looking for Dtm06 4p? DTM06-4P is available at Zbotic with fast shipping across India.

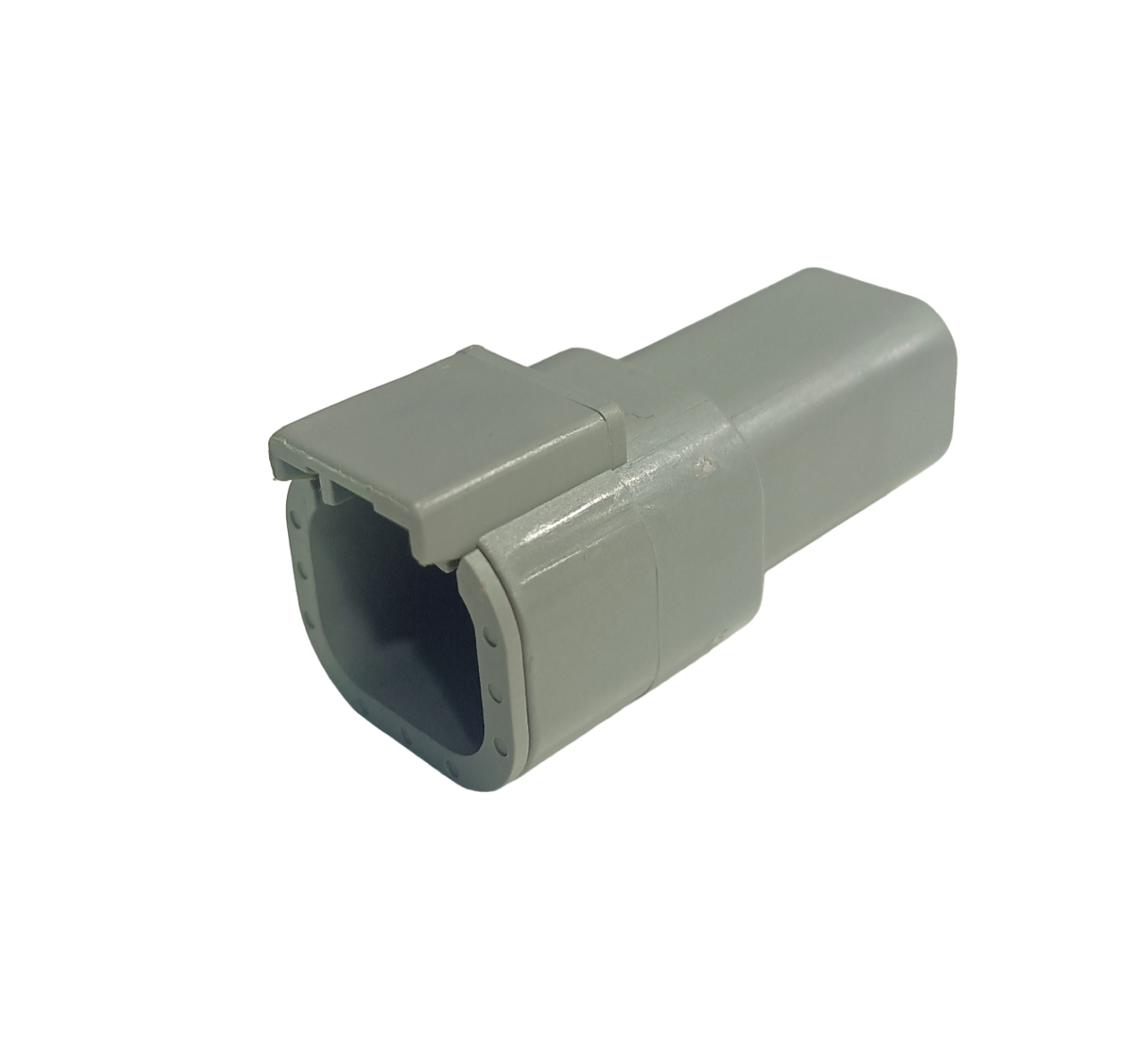

DTM06-4P

DEUTSCH DT Family of connectors are environmentally sealed connectors designed for cable-to-cable applications on the engine or transmission, under the hood, on the chassis, or in the cab. On signal level circuits in harsh environmental conditions where small connection degradation may be critical, the DT Series general purpose connectors provide reliability and performance at a low cost.

The DTM06-4P is a specific type of connector commonly used in automotive and industrial applications. Here’s a description:

The DTM06-4P is a rectangular connector manufactured by Deutsch, renowned for its reliability and durability in harsh environments. It features a 4-pin configuration, allowing for the transmission of multiple electrical signals or power connections. The connector is designed to withstand vibrations, moisture, and extreme temperatures, making it suitable for use in rugged conditions commonly encountered in automotive, aerospace, and industrial settings.

Features:

1. 4-Pin Configuration: Provides multiple electrical connections within a single connector, reducing the need for multiple connectors.
2. Rectangular Design: Ensures a secure and reliable connection, even in environments with high levels of vibration.
3. Weatherproof: Resistant to moisture and water ingress, suitable for outdoor or marine applications.
4. Temperature Resistance: Capable of operating in a wide temperature range, from extreme cold to high heat.
5. Durable Construction: Constructed from high-quality materials, ensuring long-term reliability and durability.
6. Compatible: Designed to meet industry standards, making it compatible with other Deutsch connectors and wiring systems.
7. Easy Installation: Features a simple plug-and-play design for quick and easy installation in various applications.

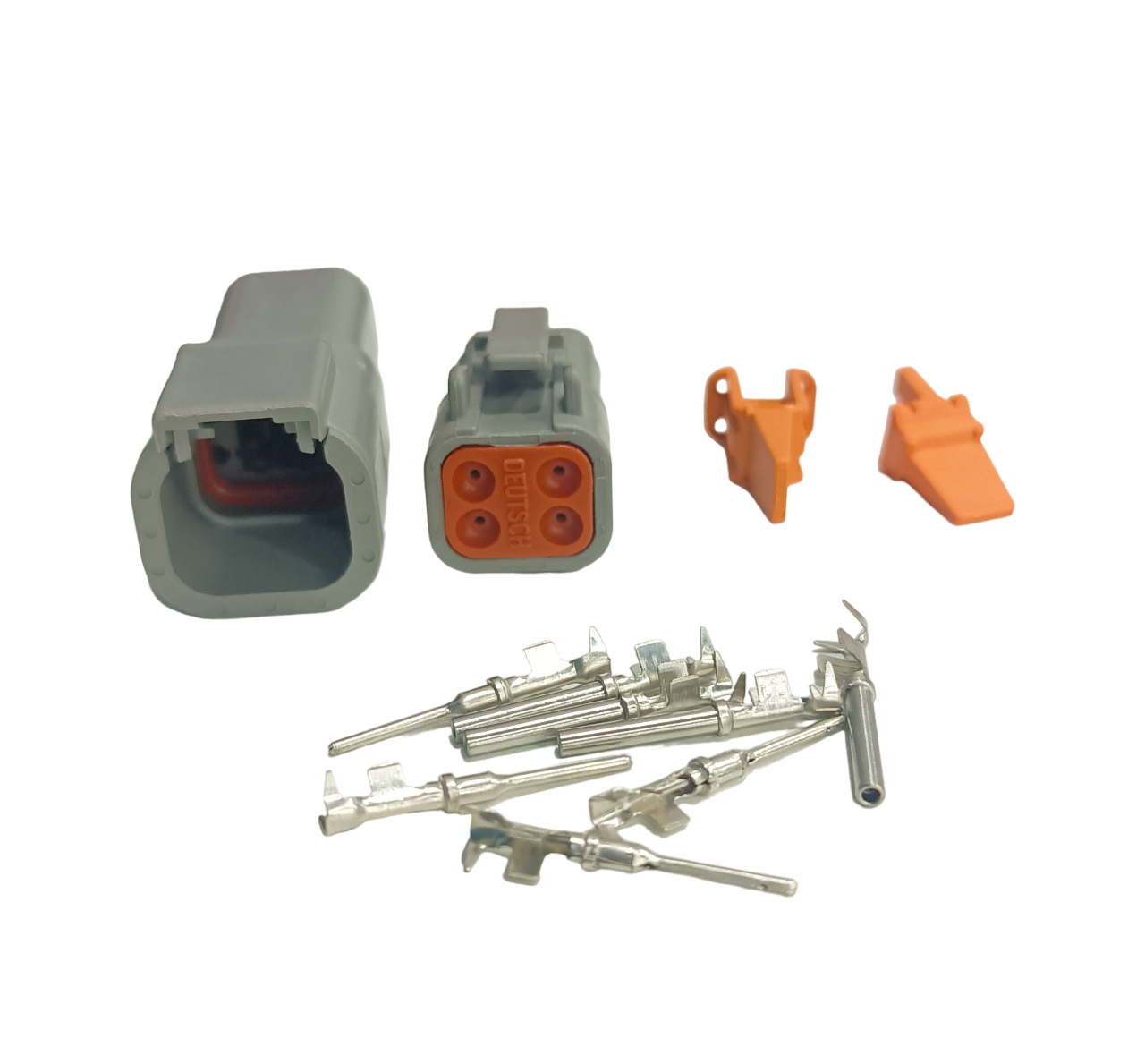

Package Includes

1 X DTM06-4P

DTM06-4P Overview

The DTM06-4P is a 4-pin rectangular connector from the DEUTSCH DT Series, engineered for cable-to-cable applications in demanding automotive and industrial environments. Rated up to 250 V AC, it provides reliable signal transmission under the hood, on the chassis, or inside vehicle cabs, even in the presence of moisture, dust, and chemicals.

Key Features of DTM06-4P

• 4-pin configuration for signal-level circuits in harsh conditions
• 250 V AC voltage rating for robust electrical performance
• Gold-plated contacts operate from –40 °C to +125 °C; tin-plated from –40 °C to +105 °C
• Environmentally sealed housing resists dust, water, and chemicals
• Rugged thermoplastic shell withstands vibration and mechanical stress
• Genuine product with fast shipping across India from Zbotic

Applications and Use Cases

• Engine compartment wiring harnesses for sensors and actuators
• Transmission control module connections in commercial vehicles
• Under-hood lighting and auxiliary power distribution
• Chassis-mounted electronic control units and diagnostic ports
• Cabin electronics such as infotainment or climate control systems
• Industrial automation equipment in harsh factory environments

How to Use DTM06-4P

Strip each wire to the manufacturer’s recommended length and crimp contacts using a DEUTSCH DMC-series crimp tool with the appropriate die. Insert crimped contacts into the housing until they click into place, then mate with the corresponding DT Series 4-pin counterpart until the latch engages. Verify proper alignment and ensure the seal is intact for full environmental protection.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

Which mating connector fits the DTM06-4P?

The DTM06-4P mates with any DEUTSCH DT Series 4-pin complement (plug or receptacle) that adheres to the DT intermateability standard for a sealed connection.

How is proper sealing ensured after assembly?

Ensure the primary latch fully engages and inspect the O-ring seal in the housing. A fully seated latch guarantees IP67-level resistance against dust and water ingress.

What crimp tool should I use for these contacts?

Use a DEUTSCH DMC-series hand tool or programmable bench crimper with the specific die for DTM contact pins to achieve consistent, UL-approved crimps.
