This is the 5V variant of the DC5V 8010 Double Ball Cooling Fan with XH2.54-2P 30CM Cable Size: 80x80x10 MM in Cooling Fans. Available at ₹184.08 (₹156.00 + GST) with free shipping across India.
Looking for Dc5v Cable 30cm 451323? DC5V 8010 Double Ball Cooling Fan with XH2.54-2P 30CM Cable Size: 80x80x10 MM is available at Zbotic with fast shipping across India.
DC5V 8010 Double Ball Cooling Fan with XH2.54-2P 30CM Cable Size: 80x80x10 MM
Specifications and Features:
| Item Type | Double Ball Cooling Fan |
|---|---|
| Dimensions in mm (LxH) | 80×10 |
| Rated Voltage (V): | 5 |
| Speed (RPM) | Unspecified |
| Color: | Black |
| Material: | Metal, Plastic |
| Cable length (mm) | 300 |
| Max. Operating Current (mA) | 100 |
Package Includes:
1 x 8010 5V Cooling Fan
DC5V 8010 Double Ball Cooling Fan with XH2.54-2P 30CM Cable Overview

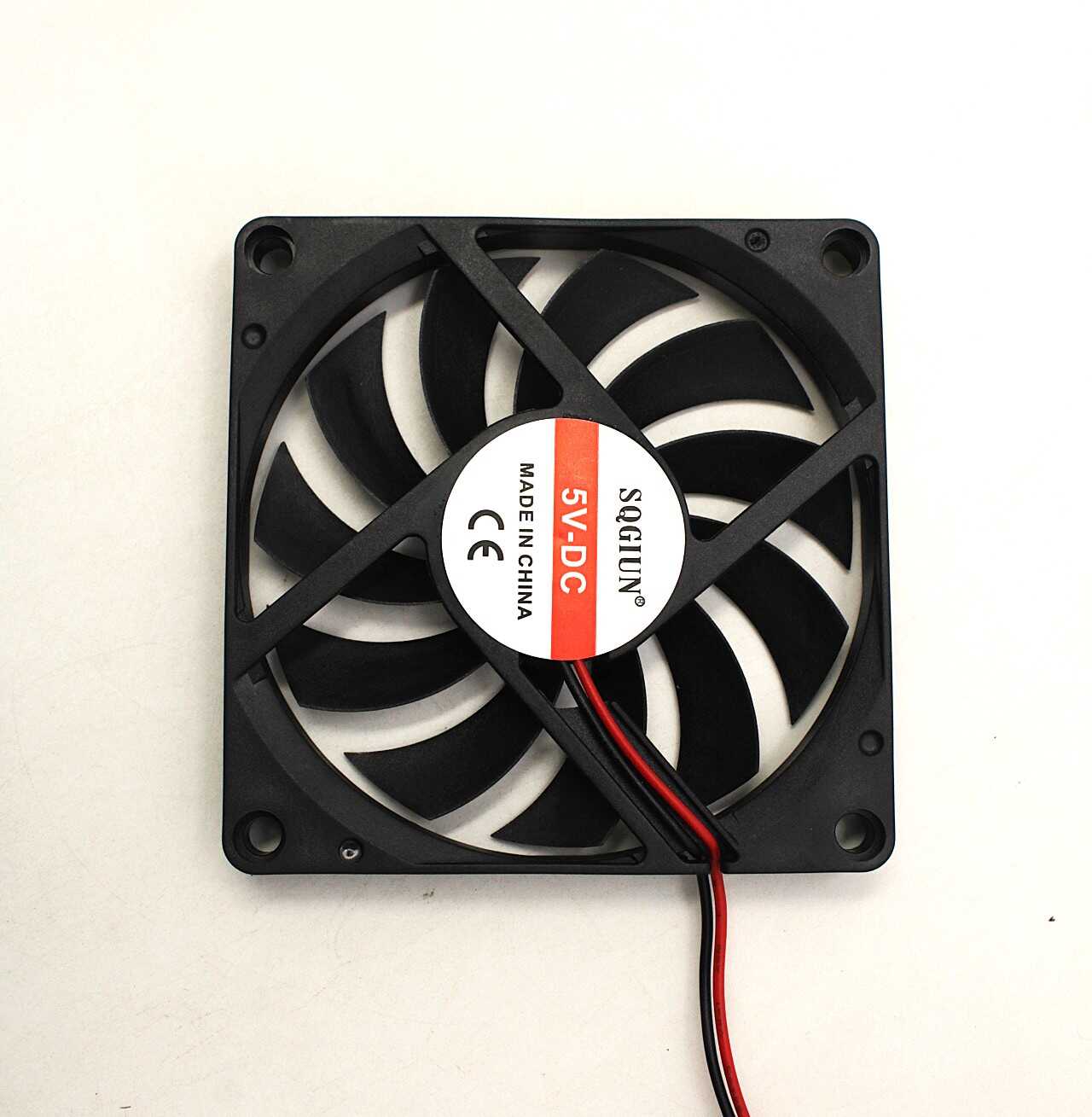

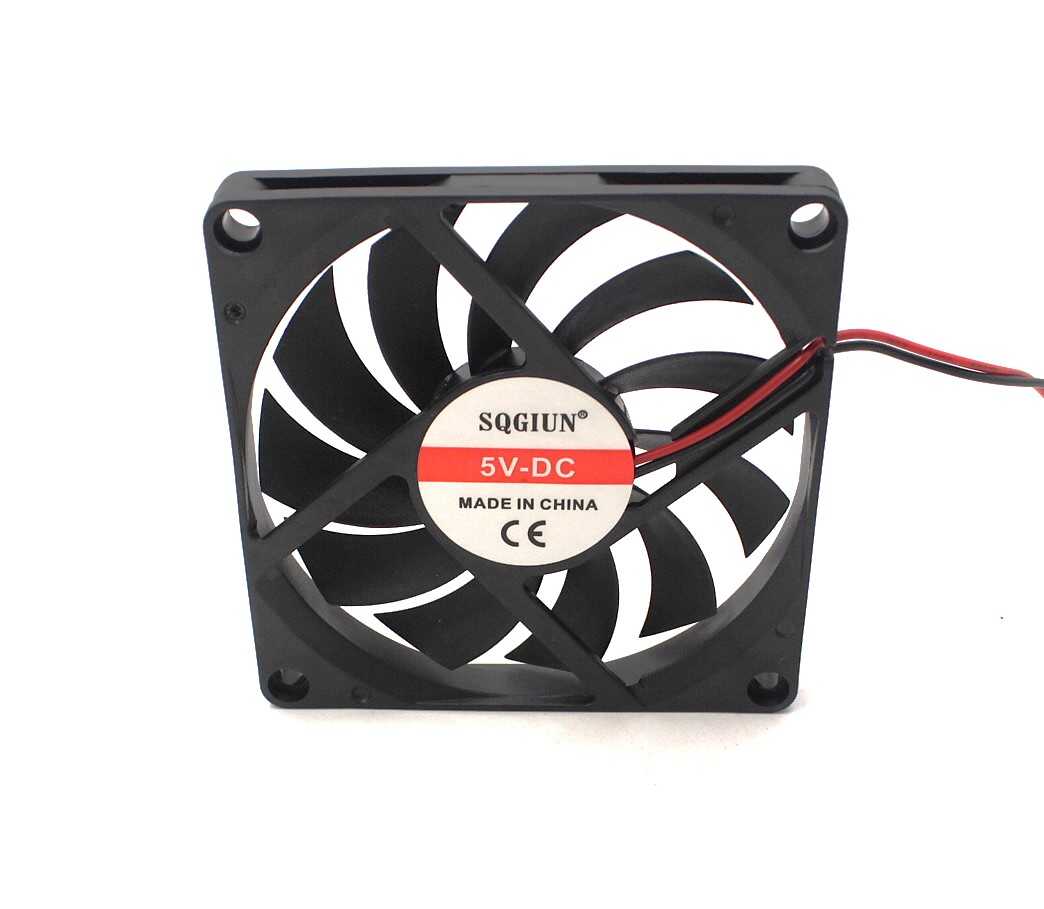

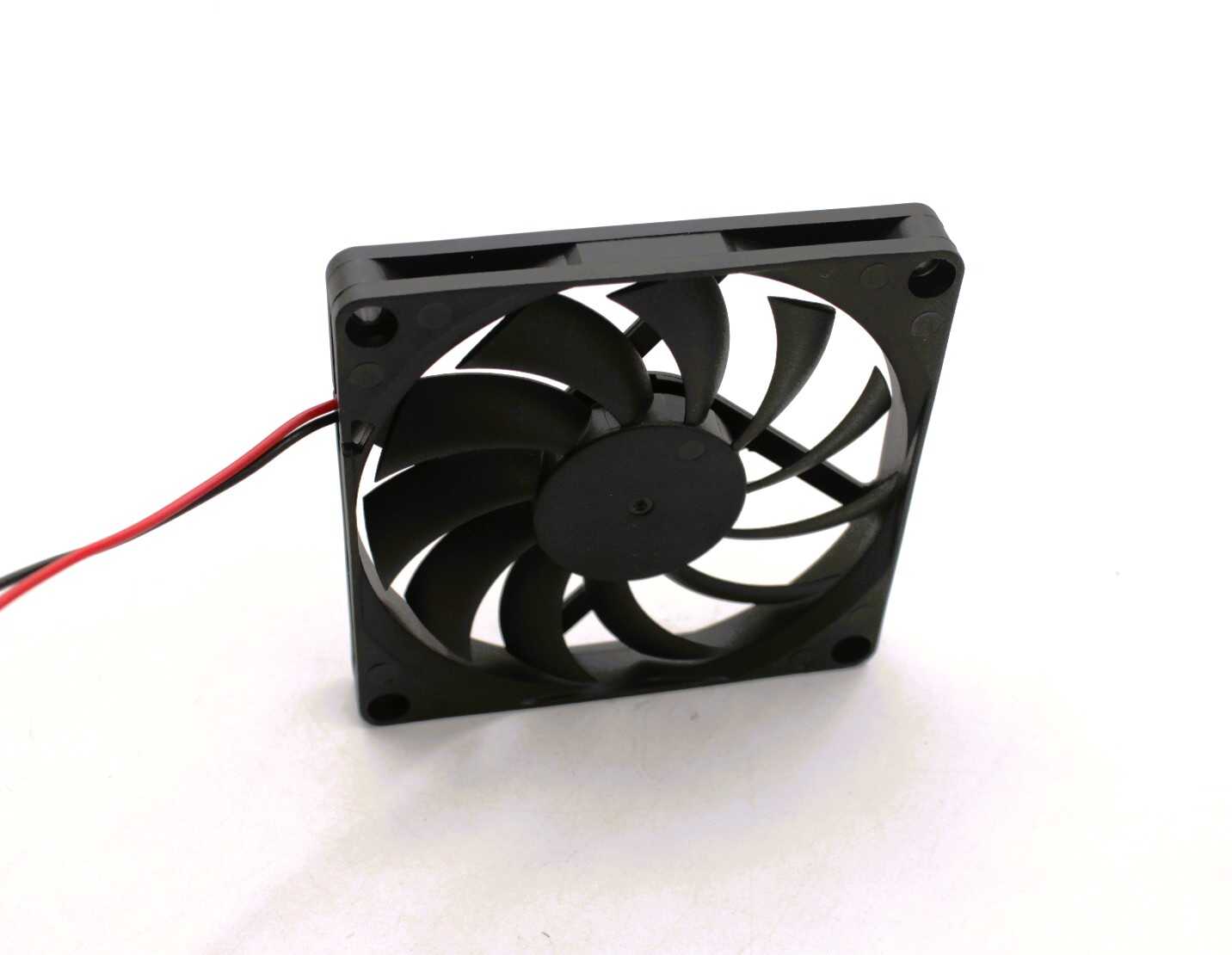

The DC5V 8010 Double Ball Cooling Fan is a compact 80×80×10 mm axial cooler designed for small electronics. Powered by a 5 V DC supply and featuring a robust double ball bearing, it delivers reliable airflow for devices like Raspberry Pi boards, routers, 3D printer components and other tight-space enclosures.
Key Features of DC5V 8010 Double Ball Cooling Fan with XH2.54-2P 30CM Cable
- 80×80×10 mm high-quality plastic frame for sturdy mounting
- 70 mm mounting hole spacing fits standard brackets and cases
- 5 V DC operating voltage draws up to 100 mA for energy-efficient cooling
- Double ball bearing design ensures long lifespan and low noise

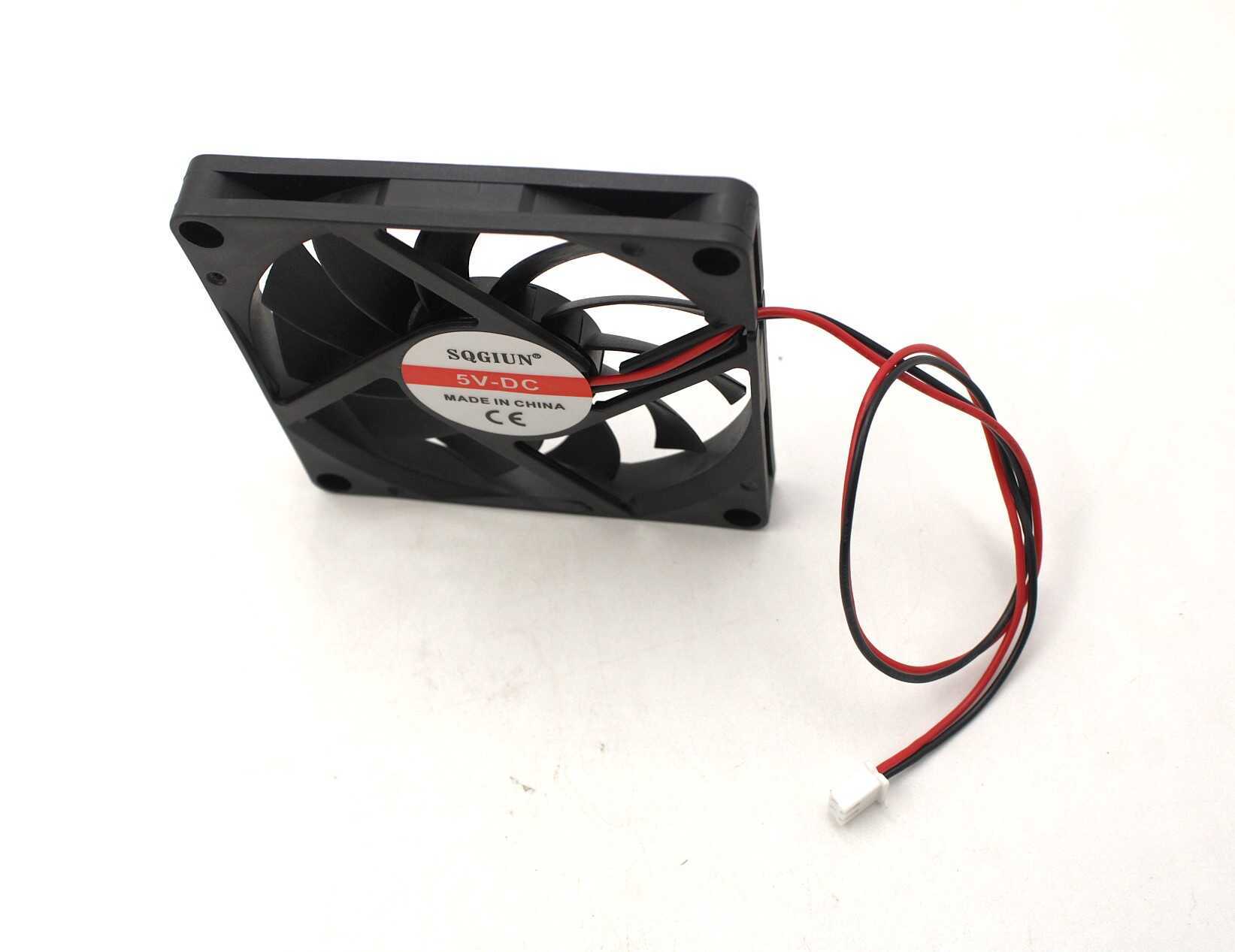

- 30 cm cable with XH2.54-2P connector for plug-and-play on Raspberry Pi pins
- Black colour finish to blend with electronics and enclosures
- Genuine product with fast shipping across India from Zbotic
Applications and Use Cases
- Cooling Raspberry Pi single-board computers and HAT modules
- Heat dissipation for 3D printer control boards or enclosures
- Ventilation inside small PC builds, mini-ITX or media players
- Temperature control for network switches, routers and modems
- Active cooling in LED driver boxes and amplifier cabinets
- Supplemental airflow in robotics control units
How to Use DC5V 8010 Double Ball Cooling Fan with XH2.54-2P 30CM Cable
Mount the fan using its 70 mm hole spacing into your case or bracket, then connect the XH2.54-2P cable to your 5 V power pins (for Raspberry Pi, pins 4 and 6). Secure wiring inside the enclosure and power on your device—airflow begins immediately to maintain safe operating temperatures.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Can I mount this fan on a custom Raspberry Pi case?
Yes. The 70 mm hole spacing matches many third-party cases. Simply align screws through the 80×80×10 mm frame and secure it to your case before plugging the XH2.54-2P connector into the Pi’s 5 V header.
Do I need an external adapter for the XH2.54-2P connector?
No adapter is required. The fan includes a 2-pin XH2.54-2P cable that plugs directly into any 5 V supply header, such as Raspberry Pi GPIO pins 4 and 6 or other 5 V headers on development boards.
Is the 30 cm cable long enough to reach remote mounting points?
The 30 cm length offers flexible routing within most enclosures and racks. If you need extra reach, standard 2-pin extension cables compatible with XH2.54-2P can be used without impacting performance.
Technical Specifications
| Model | DC5V |
|---|---|
| Operating Voltage | 5V |
| Dimensions | 80x80x10mm |
| Interface / Protocol | BLE |
| Package Quantity | 80 pcs |
| SKU | AI3301 |
| Weight | 0.05 kg |
| Availability | Out of Stock |
Applications & Use Cases
The DC5V 8010 Double Ball Cooling Fan with XH2.54-2P 30CM Cable Size: 80x80x10 MM is a versatile cooling fans used across a wide range of applications including 3D printer hotend cooling, electronics enclosure ventilation, Raspberry Pi cooling, server rack airflow, and LED heatsink cooling.
Common use cases:
- Replacing a noisy or failed cooling fan
- Adding active cooling to a Raspberry Pi 5
- Part cooling on a 3D printer for better overhangs
This product is ideal for makers, 3D printing enthusiasts, and electronics designers.
Technical Tip: Ball bearing fans last longer than sleeve bearing. Match voltage (5V/12V/24V) and size to your application. CFM rating indicates airflow capacity.
