This is the 24V variant of the DC24V 7010 Double Ball Cooling Fan with XH2.54-2P 25CM Cable Size:70*70*10MM in Cooling Fans. Available at ₹271.40 (₹230.00 + GST) with free shipping across India.

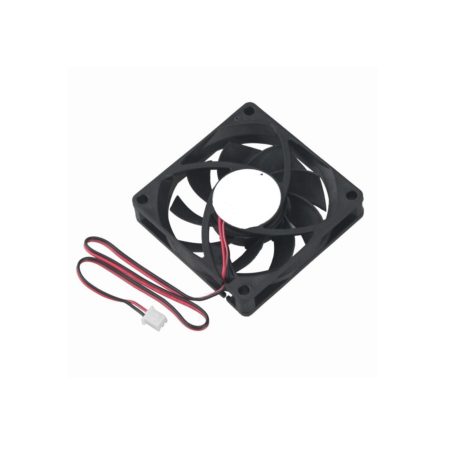

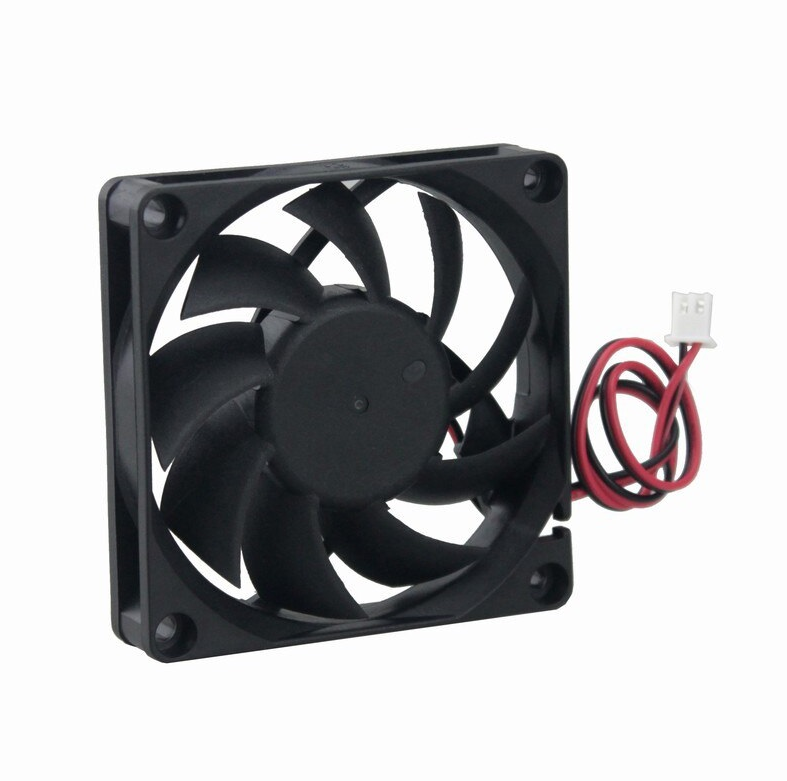

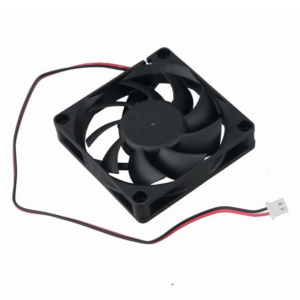

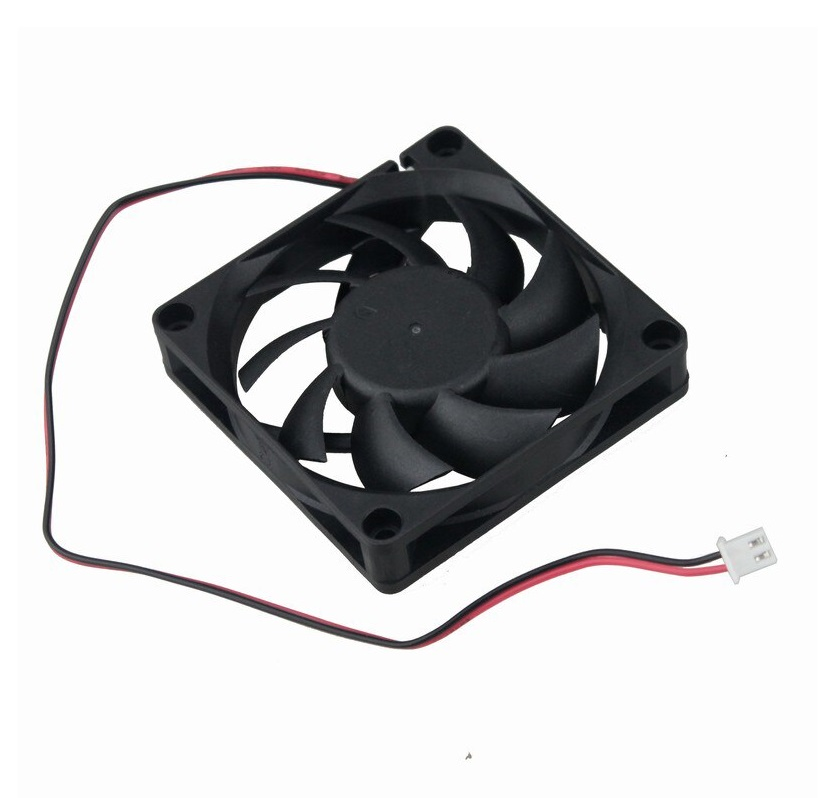

DC24V 7010 Double Ball Cooling Fan with XH2.54-2P 25CM Cable Size:70*70*10MM
Presenting the high-grade 7010 24V Cooling Fan, engineered for efficient cooling of your projects with its compact design and dependable performance. The fan’s easy installation and removal are made possible by a straightforward mounting mechanism and an integrated connector, offering users both convenience and efficiency.
The DC24V 7010 Double Ball Cooling Fan stands out for its direct compatibility with Raspberry Pi, enabling a smooth connection to pins 4 and 6. This feature positions it as an ideal cooling solution for Raspberry Pi projects that demand effective heat management. Moreover, its adaptability and consistent performance render it a popular choice for high amperage motor drivers and PC CPU enclosures, catering to the cooling requirements of a wide range of applications.
Note: We always buy the best product from the best supplier, Therefore Product Image may differ from the actual product in terms of Brand name.
Specifications:
| Item Type | Double Ball Cooling Fan |
|---|---|
| Dimensions in mm (LxH) | 70×10 |
| Rated Voltage (V): | 24 |
| Speed (RPM) | Unspecified |
| Color: | Black |
| Material: | Metal, Plastic |
| Connector Type | XH2.54-2P |
| Max. Operating Current (mA) | 100 |
| Cable length (mm) | 250 |
Package Includes:
1 x 7010 24V Cooling Fan
DC24V 7010 Double Ball Cooling Fan with XH2.54-2P 25CM Overview
The DC24V 7010 Double Ball Cooling Fan features a compact 70×70×10 mm frame and operates at 24 V DC for reliable heat dissipation in tight spaces. Equipped with a long 25 cm cable and ready-to-plug XH2.54-2P connector, it’s ideal for Raspberry Pi projects, motor drivers, PC CPUs and other 24 V applications requiring efficient airflow.
Key Features of DC24V 7010 Double Ball Cooling Fan with XH2.54-2P 25CM
- Compact 70 × 70 × 10 mm frame with 60 mm mounting hole spacing for easy installation
- Double ball bearing design ensures longer life and stable performance up to 100 mA
- Operates at DC 24 V for compatibility with high-voltage motor drivers and embedded controllers
- 25 cm XH2.54-2P cable pre-wired for direct plug-in connection to Raspberry Pi pins 4 (+24 V) and 6 (GND)
- High-quality black plastic housing resists vibration and maintains structural integrity
- Fast shipping from Zbotic—order today and dispatch within 24 hours
Applications and Use Cases
- Cooling Raspberry Pi single-board computers in performance-intensive projects
- Heat management for stepper motor drivers and CNC controller boards
- Supplementary airflow in 3D printer enclosures and filament dry boxes
- Active cooling for LED drivers and power supply units
- Temperature control in compact industrial control panels
How to Use DC24V 7010 Double Ball Cooling Fan with XH2.54-2P 25CM
Mount the fan using four M3 screws at 60 mm spacing onto your device chassis or heatsink. Connect the XH2.54-2P plug to a 24 V supply—on a Raspberry Pi, use pins 4 (24 V) and 6 (GND). Ensure the airflow direction matches your cooling requirements and that cables are secured away from rotating blades.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What mounting hardware is required?
Use four M3 screws (not included) to secure the fan at the 60 mm hole spacing. Ensure the screws do not protrude into the blade area.
Can I connect this fan directly to a 12 V system?
No. This fan is designed for 24 V DC operation. Running it at 12 V will reduce speed and airflow significantly.
Is the cable length sufficient for inside a PC case?
The 25 cm pre-wired XH2.54-2P cable provides ample reach for small cases and embedded enclosures. For longer runs, use a compatible extension harness.
Technical Specifications
| Model | DC24V |
|---|---|
| Operating Voltage | 24V |
| Size | 10mm |
| Interface / Protocol | BLE |
| SKU | AI3294 |
| Weight | 0.0377 kg |
| Availability | Out of Stock |
Applications & Use Cases
The DC24V 7010 Double Ball Cooling Fan with XH2.54-2P 25CM Cable Size:70*70*10MM is a versatile cooling fans used across a wide range of applications including 3D printer hotend cooling, electronics enclosure ventilation, Raspberry Pi cooling, server rack airflow, and LED heatsink cooling.
Common use cases:
- Replacing a noisy or failed cooling fan
- Adding active cooling to a Raspberry Pi 5
- Part cooling on a 3D printer for better overhangs
This product is ideal for makers, 3D printing enthusiasts, and electronics designers.
Technical Tip: Ball bearing fans last longer than sleeve bearing. Match voltage (5V/12V/24V) and size to your application. CFM rating indicates airflow capacity.
