This is the 24V variant of the DC24V 5015 Oil Containing Centrifugal Fan with XH2.54-2P 30CM Cable Size:50 x 50 x 15 mm in Cooling Fans. Available at ₹86.14 (₹73.00 + GST) with free shipping across India.
PRODUCT DESCRIPTION
The 5015 24V Centrifugal Fan, measuring 50 x 50 x 15 mm, comes equipped with a 30CM XH2.54-2P cable for easy installation and onboard connections. Built with high-quality materials, this fan is ideal for applications that require efficient cooling, such as high-amperage motor drivers and PC CPU enclosures. Its design ensures reliable performance and straightforward integration into your projects.
Features:
- Colour: Black

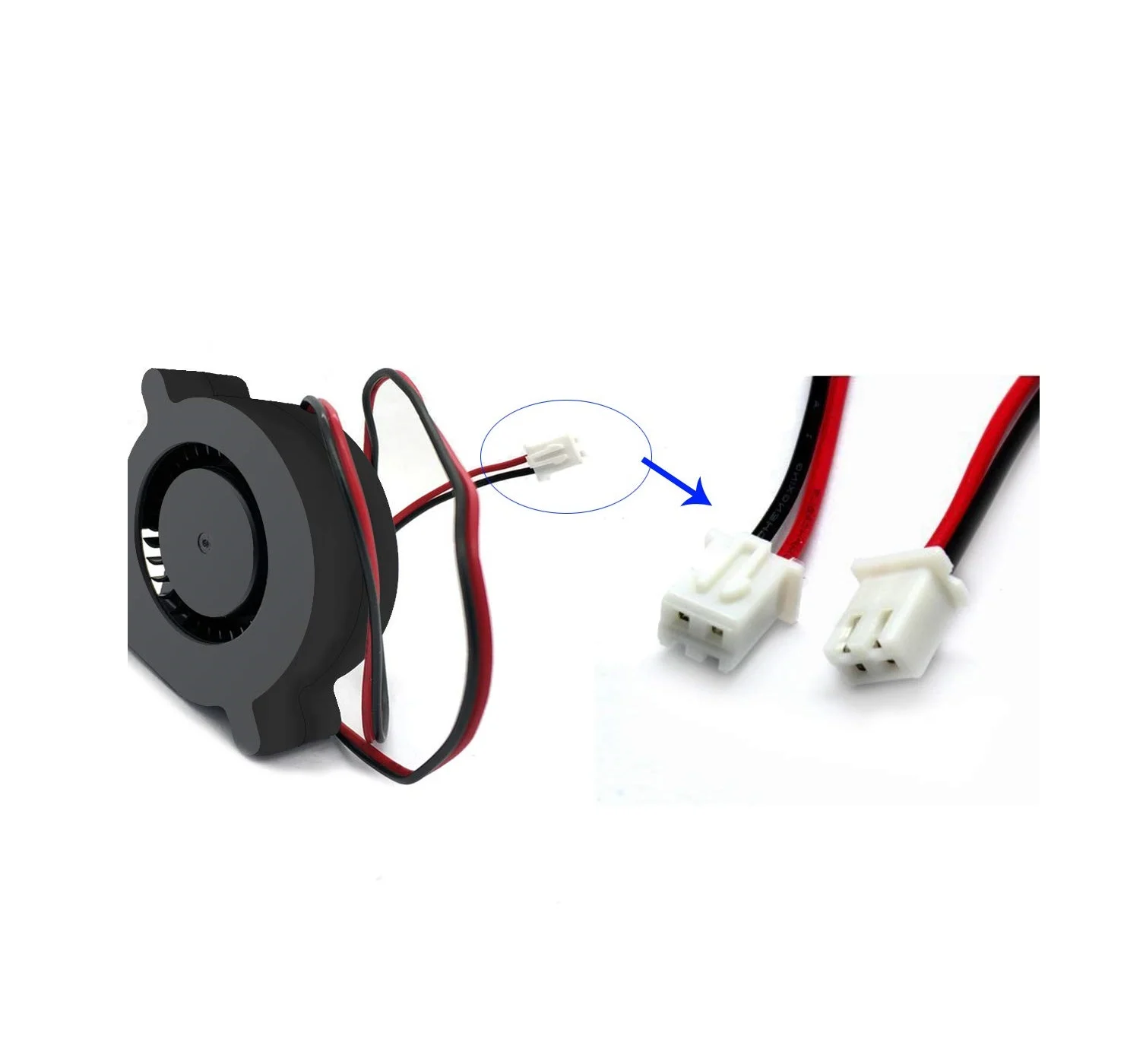

- Connector: XH2.54-2P
- Consume Current 70mA
- Supporting Cards For Mifare S50, S70
Specification:
| Color: | Black |
|---|---|
| Model | Oil Containing Centrifugal Fan |
| Cable Length(mm) | 300 |
| Material | PBT 30% glass line VO |
| Speed (RPM) | 7000±10% |
| Operating Temperature Range (°C): | 10° to 60° C |
| Operating Voltage (VDC) | 24 |
| Mounting Hole Diameter (mm) | 4mm |
| Air inlet size | 31mm |
| Outlet size | 16 x 12 mm |
| Shipping Weight | 0.027 kg |
| Shipping Dimensions | 11 × 8 × 2 cm |
Package Includes:
1 x DC24V 5015 Oil Containing Centrifugal Fan
Technical Specifications
| Model | DC24V |
|---|---|
| Operating Voltage | 24V |
| Dimensions | 50x50x15mm |
| Interface / Protocol | BLE |
| Package Quantity | 50 pcs |
| SKU | AI3342 |
| Weight | 0.03 kg |
| Availability | Out of Stock |
Applications & Use Cases
The DC24V 5015 Oil Containing Centrifugal Fan with XH2.54-2P 30CM Cable Size:50 x 50 x 15 mm is a versatile cooling fans used across a wide range of applications including 3D printer hotend cooling, electronics enclosure ventilation, Raspberry Pi cooling, server rack airflow, and LED heatsink cooling.
Common use cases:
- Replacing a noisy or failed cooling fan
- Adding active cooling to a Raspberry Pi 5
- Part cooling on a 3D printer for better overhangs
This product is ideal for makers, 3D printing enthusiasts, and electronics designers.
Technical Tip: Ball bearing fans last longer than sleeve bearing. Match voltage (5V/12V/24V) and size to your application. CFM rating indicates airflow capacity.
