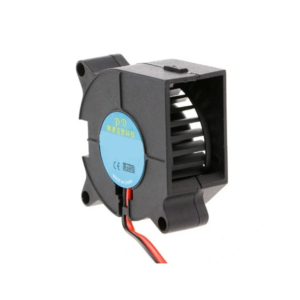

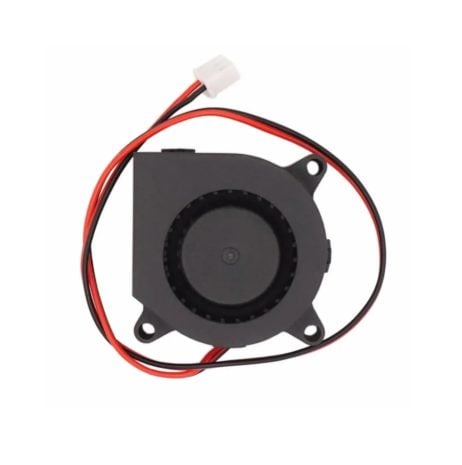

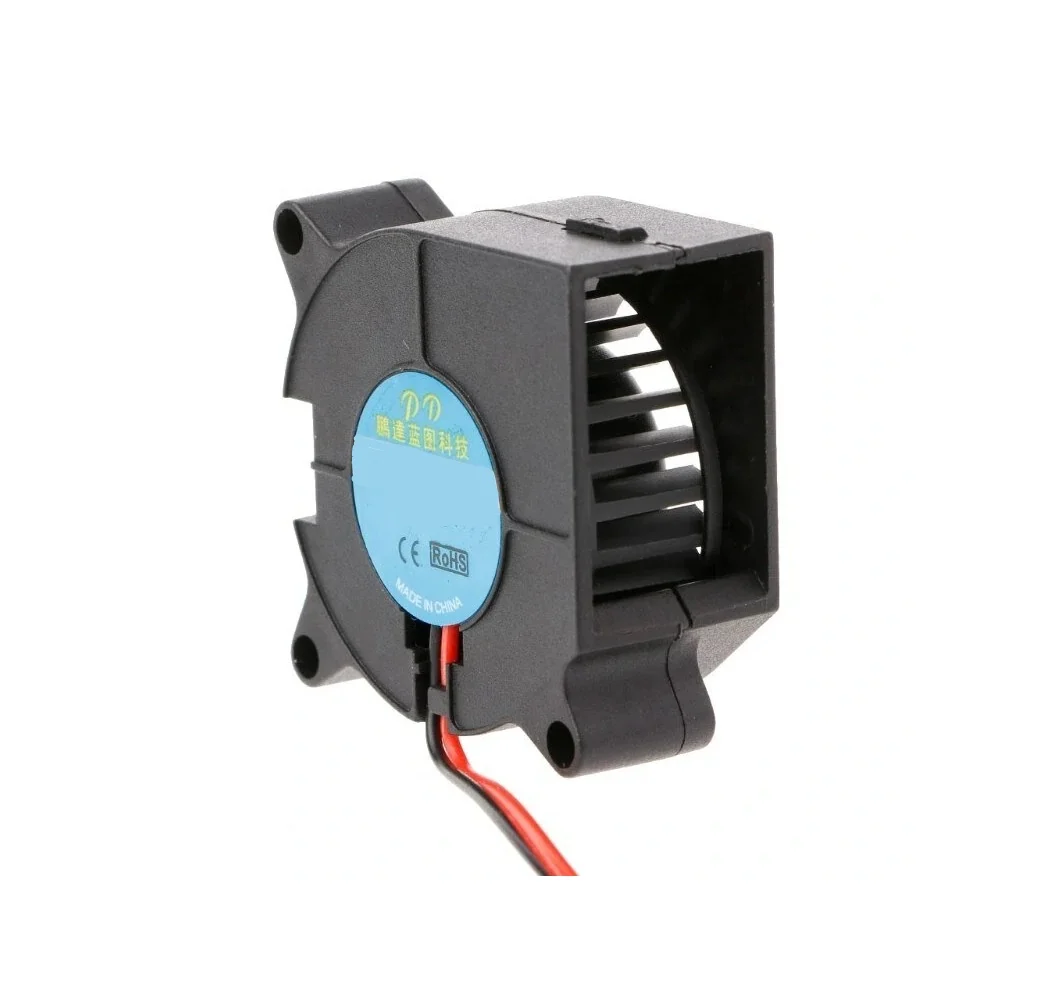

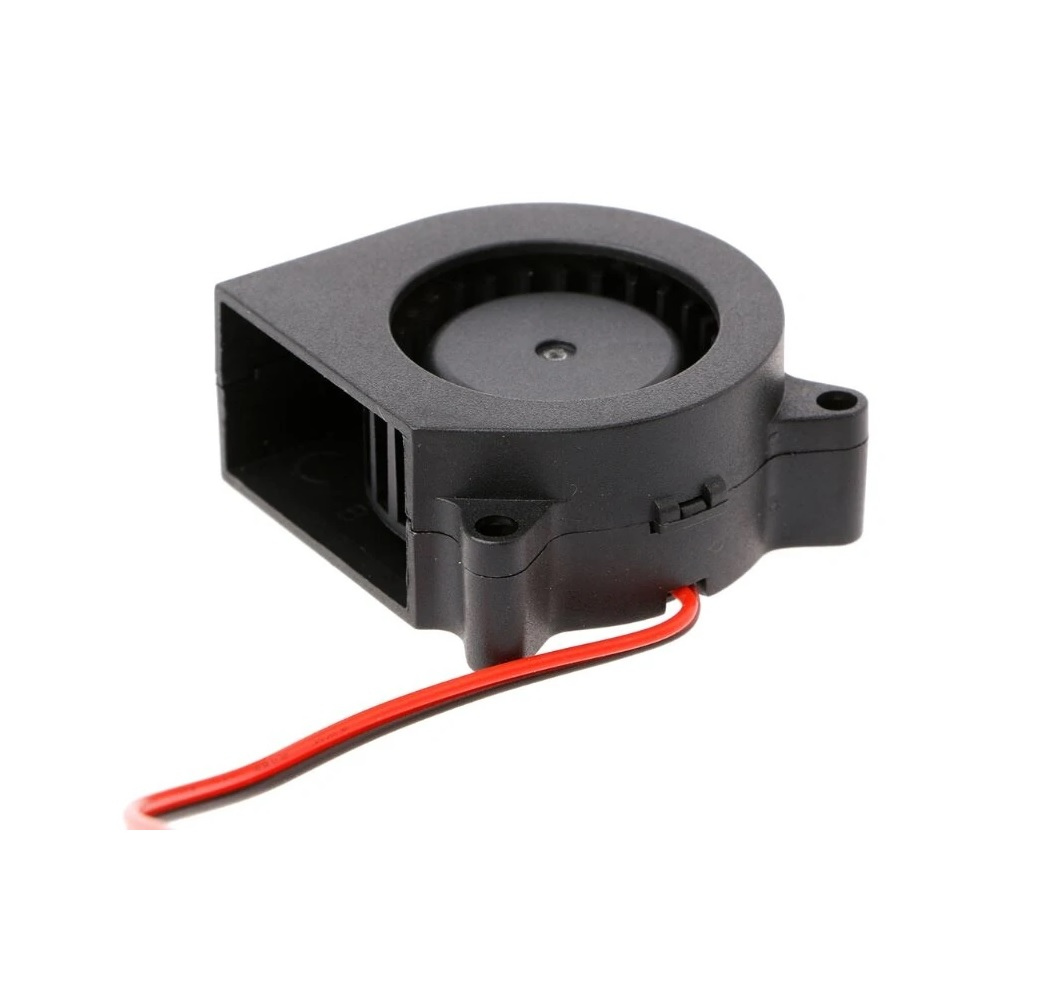

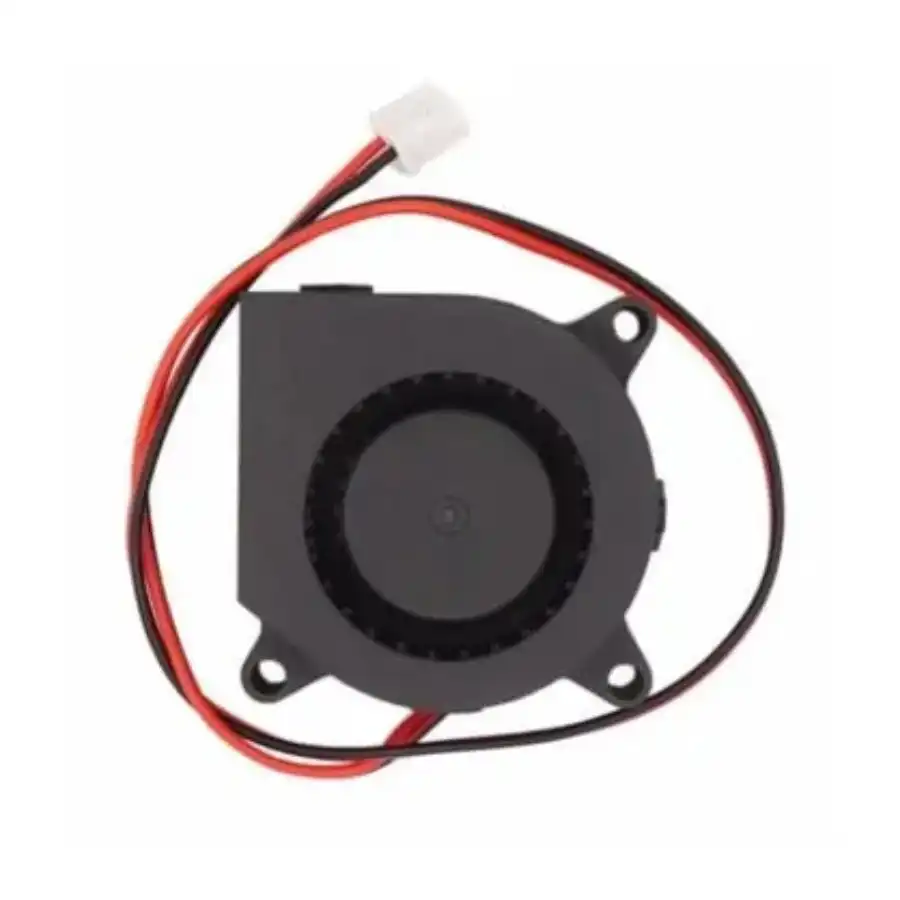

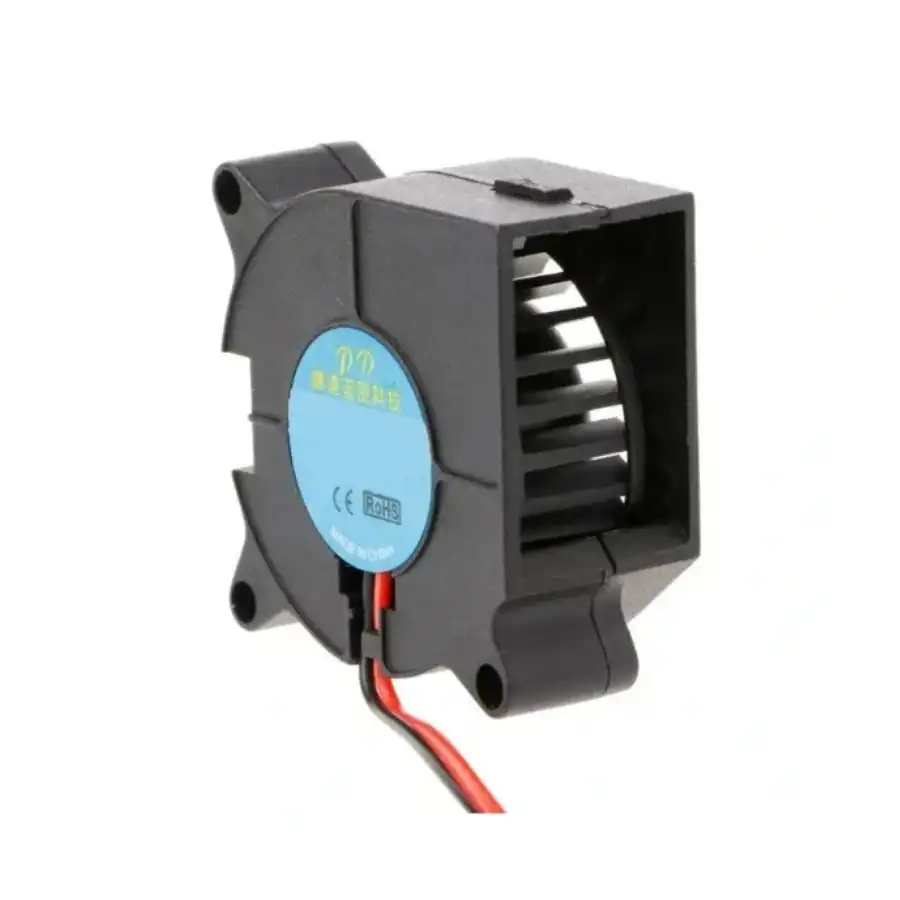

This is the 24V variant of the DC24V 4020 Oil Containing Centrifugal Fan with XH2.54-2P 30CM Cable Size:40*40*20MM in Cooling Fans. Available at ₹109.74 (₹93.00 + GST) with free shipping across India.
Looking for Dc24v Cable 30cm? DC24V 4020 Oil Containing Centrifugal Fan with XH2.54-2P 30CM Cable Size:40*40*20MM is available at Zbotic with fast shipping across India.
PRODUCT DESCRIPTION
This centrifugal fan operates on 24V DC and is lubricated with oil. Constructed from special, premium materials, it is designed to withstand high temperatures and ensure longevity. It is perfectly suited for cooling heat sinks on hot ends, prints, or fulfilling other cooling requirements.
The fan features high-quality PBT 30% glass-filled VO and a precision bearing, contributing to its low noise output and durability. It is capable of cooling environments up to 75℃ and can operate non-stop for 24 hours at 40℃.
Features:
- 35mm Radial Cooling fan.
- 24V 2-point Pin DC
- Made of high-quality PBT 30% glass line VO
- Bearing is a high precision, long life, and low noise.
- Excellent for cooling heat sinks on hot ends, prints, or other cooling needs
Specification:
- Color: Black
- Cable Length (cm): 30
- Model: Oil Containing Centrifugal Fan
- Material: PBT 30% glass line VO
- Speed (RPM): 7000±10%
- Operating Temperature: 10° to 60° C
- Operating Voltage (VDC): 24
- Mounting Screw Hole Diameter: 1mm
- Air inlet size: 26mm
- Outlet size: 25 x 15 mm
Package Includes:
1 x 5V DC 4020 Oil Containing Centrifugal Fan
DC24V 4020 Oil Containing Centrifugal Fan with XH2.54-2P Overview
The DC24V 4020 Oil Containing Centrifugal Fan is a compact 40×40×20 mm cooling solution powered by 24 V DC. Equipped with a 2-pin XH2.54 connector and oil-lubricated bearings, it delivers reliable, low-noise airflow for heat sinks, 3D printer hot ends, electronics enclosures and other tight spaces.
Key Features of DC24V 4020 Oil Containing Centrifugal Fan with XH2.54-2P
- 40×40×20 mm centrifugal design with a 35 mm radial impeller for focused airflow
- 24 V DC operation via a 2-pin XH2.54-2P connector with a 30 cm cable
- Oil-containing lubrication for high-temperature stability up to 75 °C
- High-quality PBT housing with 30% glass-filled VO rating for flame resistance
- Precision bearing ensures long service life, low vibration and minimal noise
- Continuous 24-hour operation at 40 °C ambient for industrial and 3D printing use
- Genuine product with fast shipping across India from Zbotic.in
Applications and Use Cases
- Cooling heat sinks on 3D printer hot ends, extruders and print heads
- Ventilation inside compact electronics enclosures and control panels
- Airflow for CNC router and laser module cooling in tight mounts
- Supplemental cooling for small PCBs, drivers and power supplies
- Temperature management in telecom and networking equipment
How to Use DC24V 4020 Oil Containing Centrifugal Fan with XH2.54-2P
Mount the fan using M3 screws on the standard 40 × 40 mm hole pattern, ensuring the inlet and outlet are unobstructed. Plug the 2-pin XH2.54-2P connector into a regulated 24 V DC supply, observing correct polarity. Position the fan to direct airflow toward the component needing cooling, and secure wiring to prevent strain on the connector.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What connector does this fan use?
The fan uses a 2-pin XH2.54-2P connector with a pre-attached 30 cm cable, compatible with standard 2-pin 2.54 mm pitch headers.
Can it run continuously in a high-temperature environment?
Yes. The oil-lubricated bearings and PBT 30% glass-filled housing allow continuous operation at up to 75 °C ambient and 24 hours non-stop at 40 °C.
How do I mount the fan in my enclosure?
Use M3 screws on the 40×40 mm mounting holes. Ensure screw length does not exceed housing thickness, and leave at least 5 mm clearance for airflow on inlet and outlet sides.
Technical Specifications
| Model | DC24V |
|---|---|
| Operating Voltage | 24V |
| Size | 20mm |
| Interface / Protocol | BLE |
| SKU | AI3265 |
| Weight | 0.03 kg |
| Availability | Out of Stock |
Applications & Use Cases
The DC24V 4020 Oil Containing Centrifugal Fan with XH2.54-2P 30CM Cable Size:40*40*20MM is a versatile cooling fans used across a wide range of applications including 3D printer hotend cooling, electronics enclosure ventilation, Raspberry Pi cooling, server rack airflow, and LED heatsink cooling.
Common use cases:
- Replacing a noisy or failed cooling fan
- Adding active cooling to a Raspberry Pi 5
- Part cooling on a 3D printer for better overhangs
This product is ideal for makers, 3D printing enthusiasts, and electronics designers.
Technical Tip: Ball bearing fans last longer than sleeve bearing. Match voltage (5V/12V/24V) and size to your application. CFM rating indicates airflow capacity.
