This is the 24V variant of the DC24V 16MM 12LED Alloy Air Humidifier Mist Maker Nebulizer 46MM*38MM in Ultrasonic Humidifier Module. Available at ₹356.36 (₹302.00 + GST) with free shipping across India.

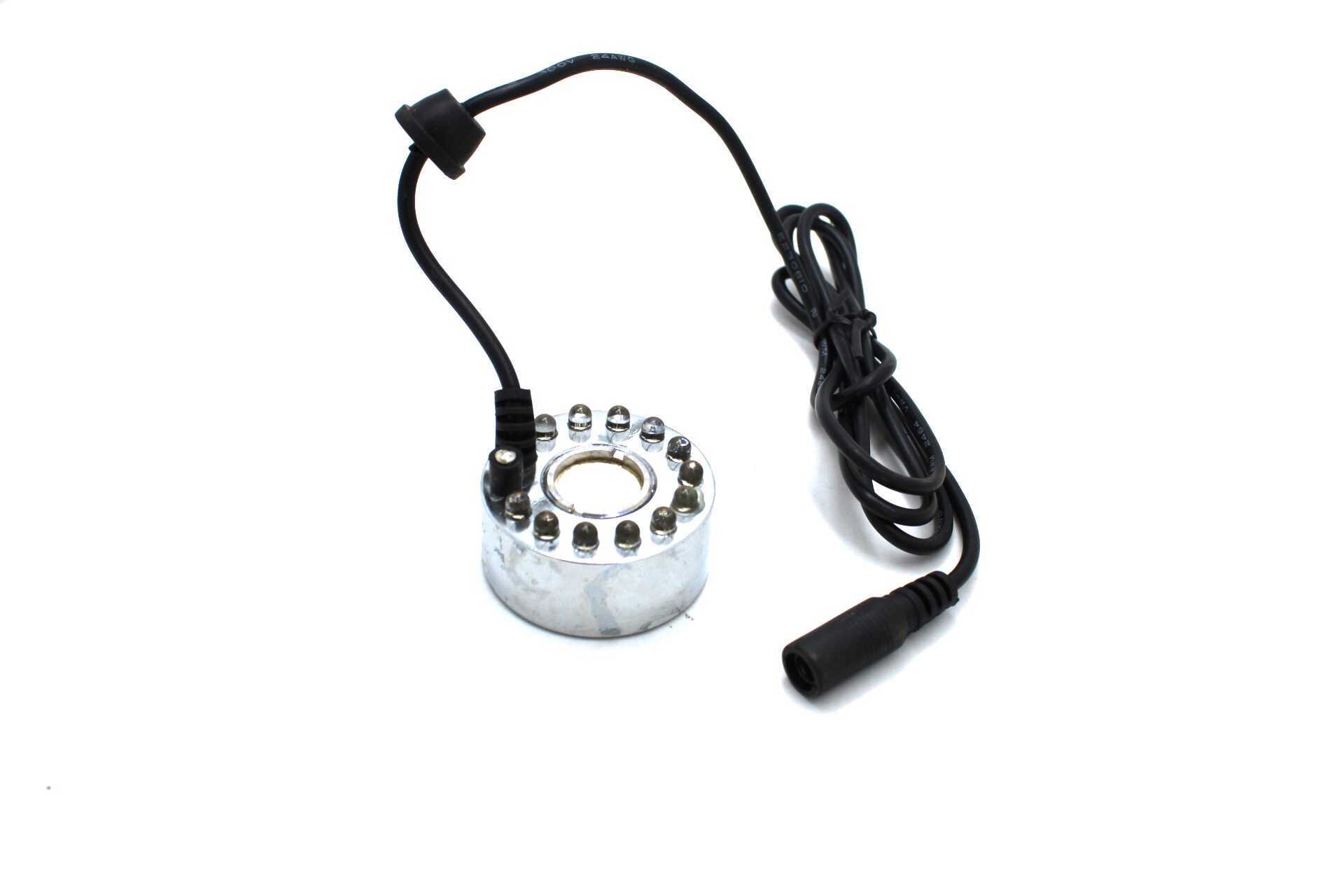

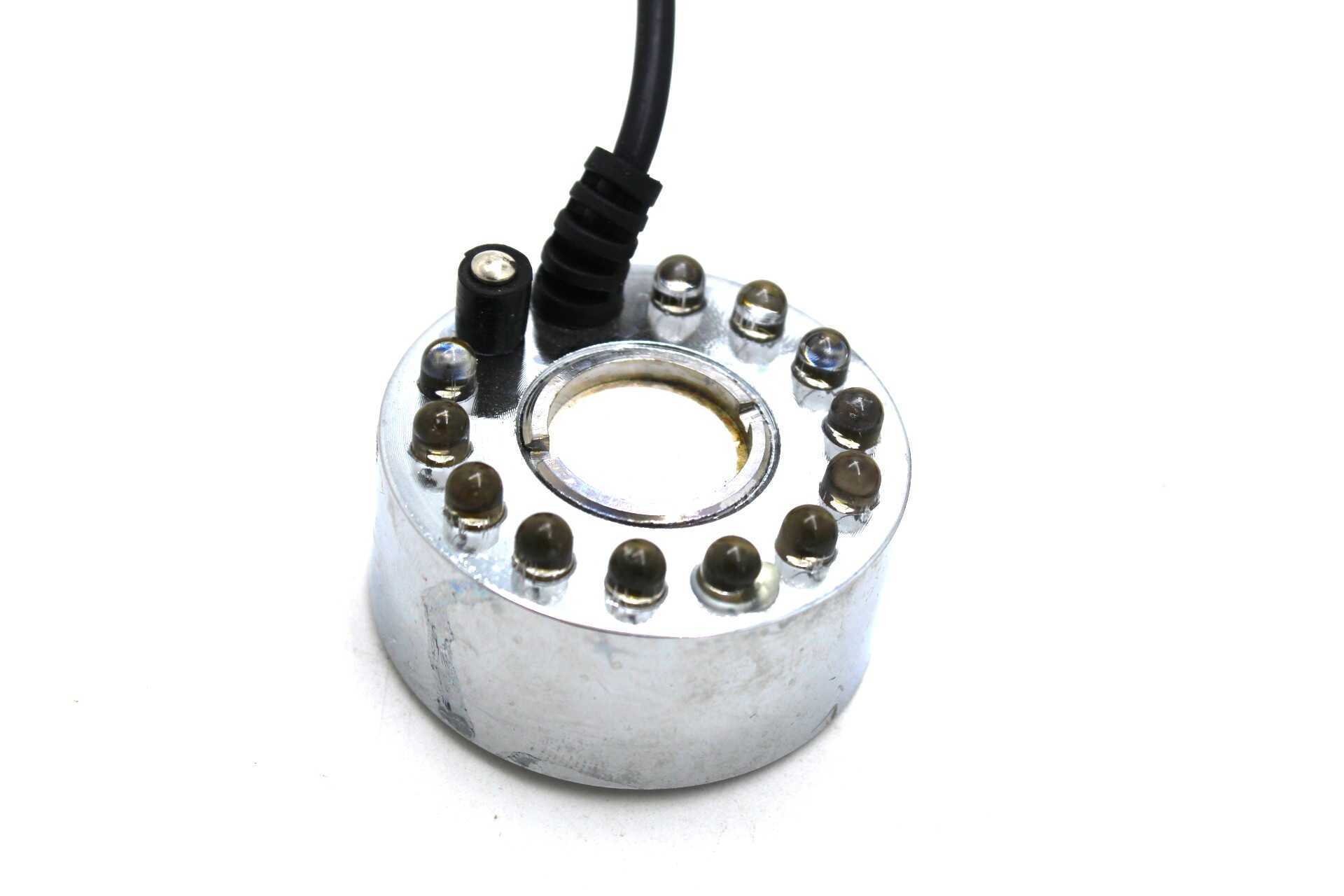

DC24V 16MM 12LED Alloy Air Humidifier Mist Maker Nebulizer 46MM*20MM
Introducing the DC 24V Ultrasonic Humidifier, a versatile device designed for efficient atomization with a plate diameter of 20mm. This humidifier is highly sought after for its diverse applications, notably in fish pots and household decorations. With its plug-and-play functionality, operation is effortless – simply submerge the module in water and supply a 24V DC power source directly from a battery or power adapter.

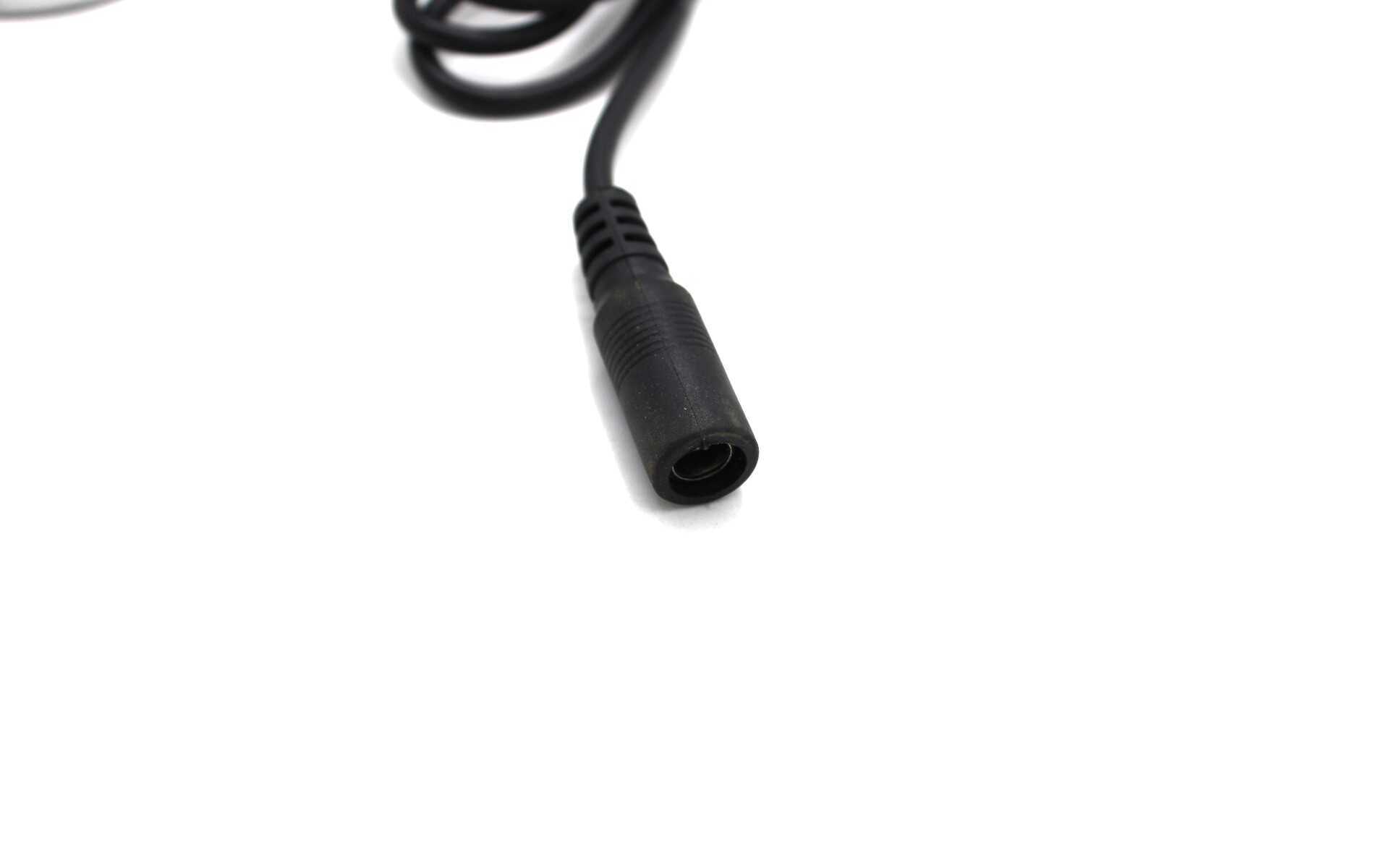

Additionally, this humidifier features 12 waterproof LED lights that emit vibrant colors, adding an enchanting mist to any setting. The LED lights cycle through three different colors, creating a mesmerizing visual effect. With its fully waterproof design and a 1-meter-long cable equipped with a 5mm DC female jack, this ultrasonic humidifier offers convenience and flexibility for various indoor decor projects.
Instruction to use:
- Deep the module in the water keeping a 4 to 5 cm water level above the device
- Connect the power supply of 24V DC 1AMP and enjoy the fog.
- Use power supply at least with 1AMP output for the best performance
- Do not deep it in the water of more than 5cm for maximum fog output.
How does it work?
Ultrasonic Humidifier Piezoelectric Transmitter module works on the principle of cavitation produced by sound waves. Just provide the power supply it will turn into an ultimate ultrasonic atomizer.
Features:
- Huge amount of humidification
- High-frequency vibration produces 350ml of mist per minute, humidifying all-day
- Wide Application
- Supporting the use of bonsai crafts, fish tank water tanks, DIY crafts and etc.
- Self-contained water level sensor
- Automatically power off with water shortage to prevent burning of the atomizer.
Specification:
- Operating Voltage (VDC):24
- Connector:5.5mm Power Jack
- Cable Length (Meter):1
- Body Diameter (mm):47
- Height (mm):20
- Weight (gm):134
Package Includes:
1 x DC24V 16MM 12LED Alloy Air Humidifier Mist Maker Nebulizer
Technical Specifications
| Model | DC24V |
|---|---|
| Operating Voltage | 24V |
| Size | 16mm |
| SKU | AI3109 |
| Weight | 0.15 kg |
| Availability | In Stock |
Applications & Use Cases
The DC24V 16MM 12LED Alloy Air Humidifier Mist Maker Nebulizer 46MM*38MM is a versatile ultrasonic humidifier module used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
