This is the 12V variant of the DC12V 4010 Double Ball Cooling Fan with XH2.54-2P 30CM Cable Size:40*40*10MM in Cooling Fans. Available at ₹184.08 (₹156.00 + GST) with free shipping across India.

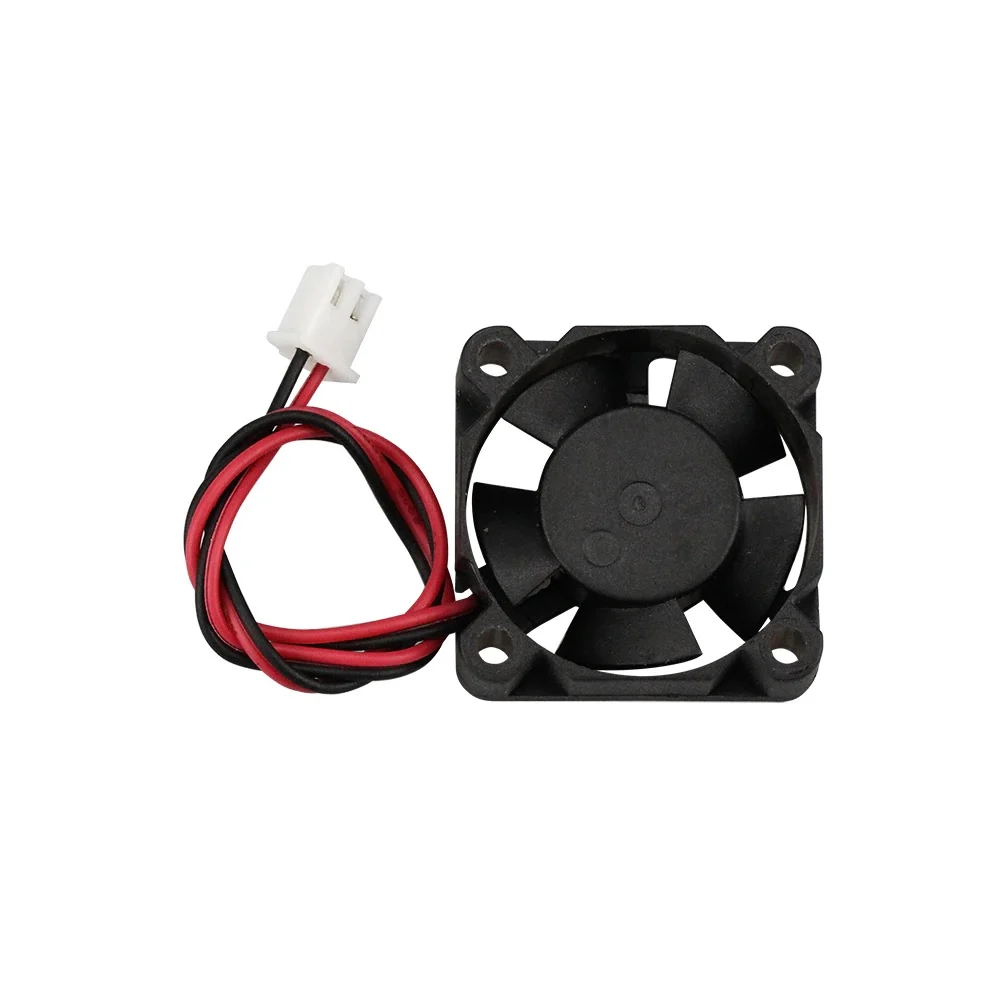

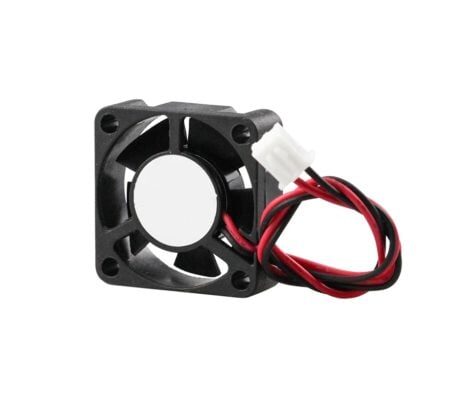

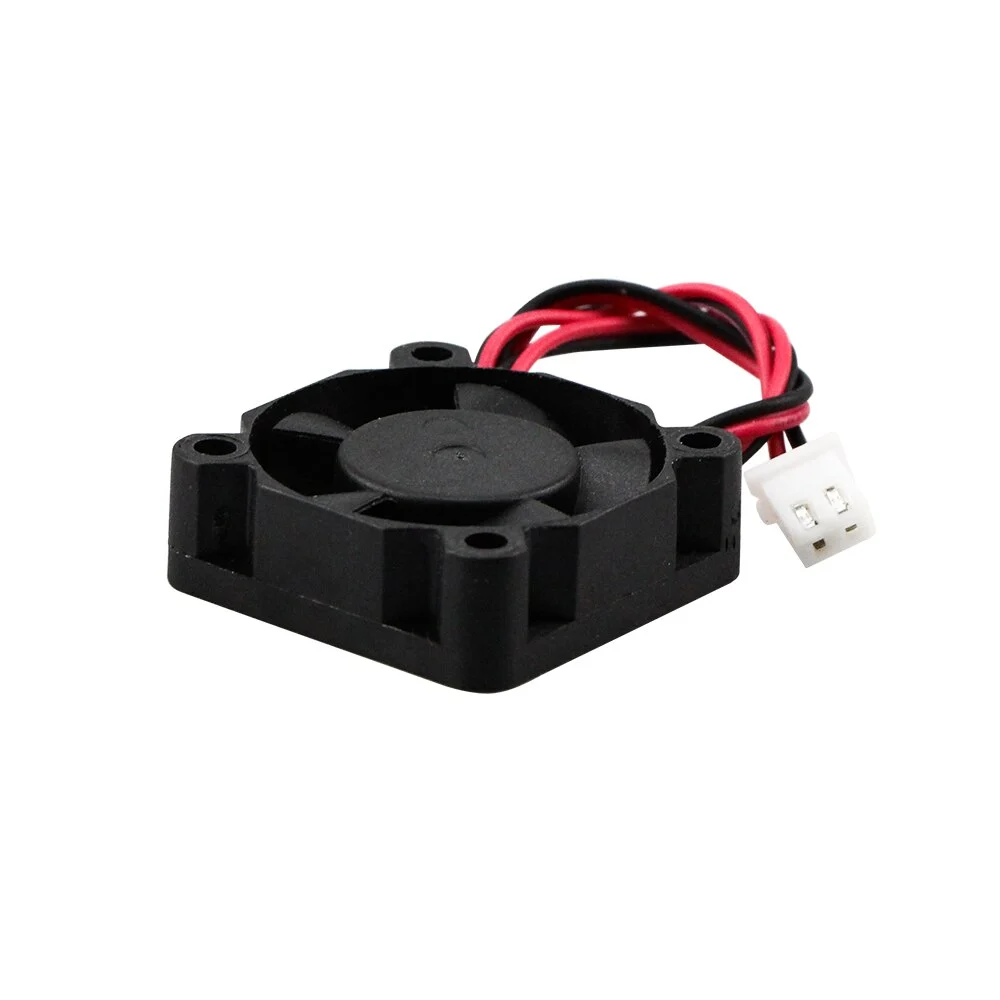

DC12V 4010 Double Ball Cooling Fan with XH2.54-2P 30CM Cable Size:40*40*10MM
This is the best quality 4010 12V Double Ball Cooling Fan. Use this compact 12V fan to keep your projects cool. It is very easy to install and uninstall with easy mounting and a Connector to connect onboard. This Fan is also always in demand for High Ampere Motor driver as well as PC CPU Box
Note: We always buy the best product from the best supplier, Therefore Product Image may differ from the actual product in terms of Brand name.
Specifications and Features:
- 40 x 40 x 10 mm casing Frame size
- 35 mm mounting hole spacing
- Cable Length 30 CM
- Ready to plug Connector for Pi board
- Colour: Black
Specification:
- Operating Voltage (VDC): 12
- Max. Operating Current (mA): 100
- Cable Length (cm): 30cm

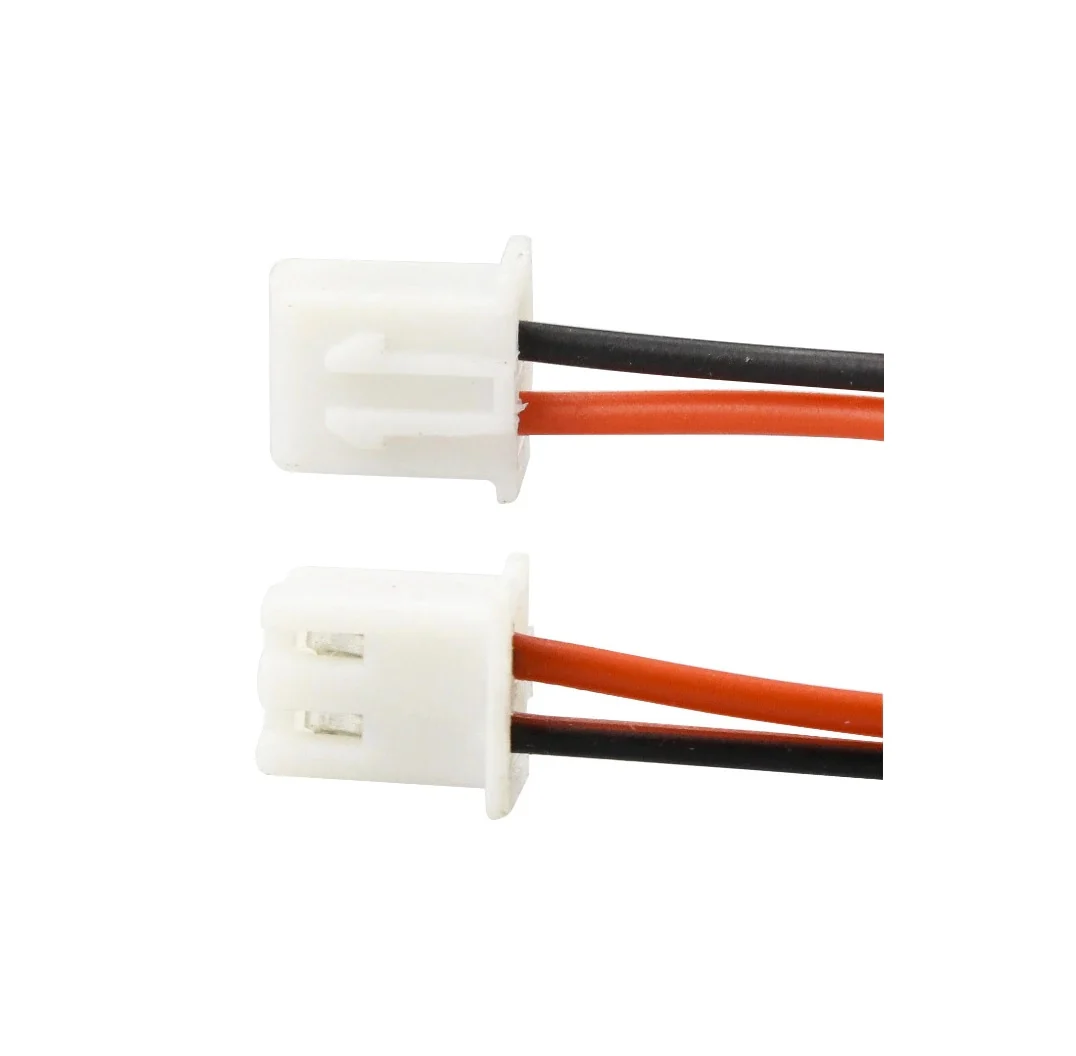

- Connector: XH2.54-2P
- Dimensions in mm (LxWxH): 40 x 40 x 1o
- Material: High-Quality Plastic
Package Includes:
1 x 4010 12V Cooling Fan
Technical Specifications
| Model | DC12V |
|---|---|
| Operating Voltage | 12V |
| Size | 10mm |
| Interface / Protocol | BLE |
| SKU | AI3208 |
| Weight | 0.02 kg |
| Availability | In Stock |
Applications & Use Cases
The DC12V 4010 Double Ball Cooling Fan with XH2.54-2P 30CM Cable Size:40*40*10MM is a versatile cooling fans used across a wide range of applications including 3D printer hotend cooling, electronics enclosure ventilation, Raspberry Pi cooling, server rack airflow, and LED heatsink cooling.
Common use cases:
- Replacing a noisy or failed cooling fan
- Adding active cooling to a Raspberry Pi 5
- Part cooling on a 3D printer for better overhangs
This product is ideal for makers, 3D printing enthusiasts, and electronics designers.
Technical Tip: Ball bearing fans last longer than sleeve bearing. Match voltage (5V/12V/24V) and size to your application. CFM rating indicates airflow capacity.
